8-28 — CHASSIS ELECTRICAL (#132685) — 26 parça

25 551 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	RELAY; TAIL LAMP 12V YAZAKI IMA	8-97309-293-0	01	1	1312-
25	RELAY; TAIL LAMP 12V OMRON	8-98005-407-0	01	1	1312-
123	RELAY; HTR 12V YAZAKI IMA	8-98146-834-0	01	1	1312-
551	RELAY; TRANSMISSION 12V YAZAKI IMA	8-97309-293-0	01	1	1312-
551	RELAY; TRANSMISSION 12V OMRON	8-98005-407-0	01	1	1312-

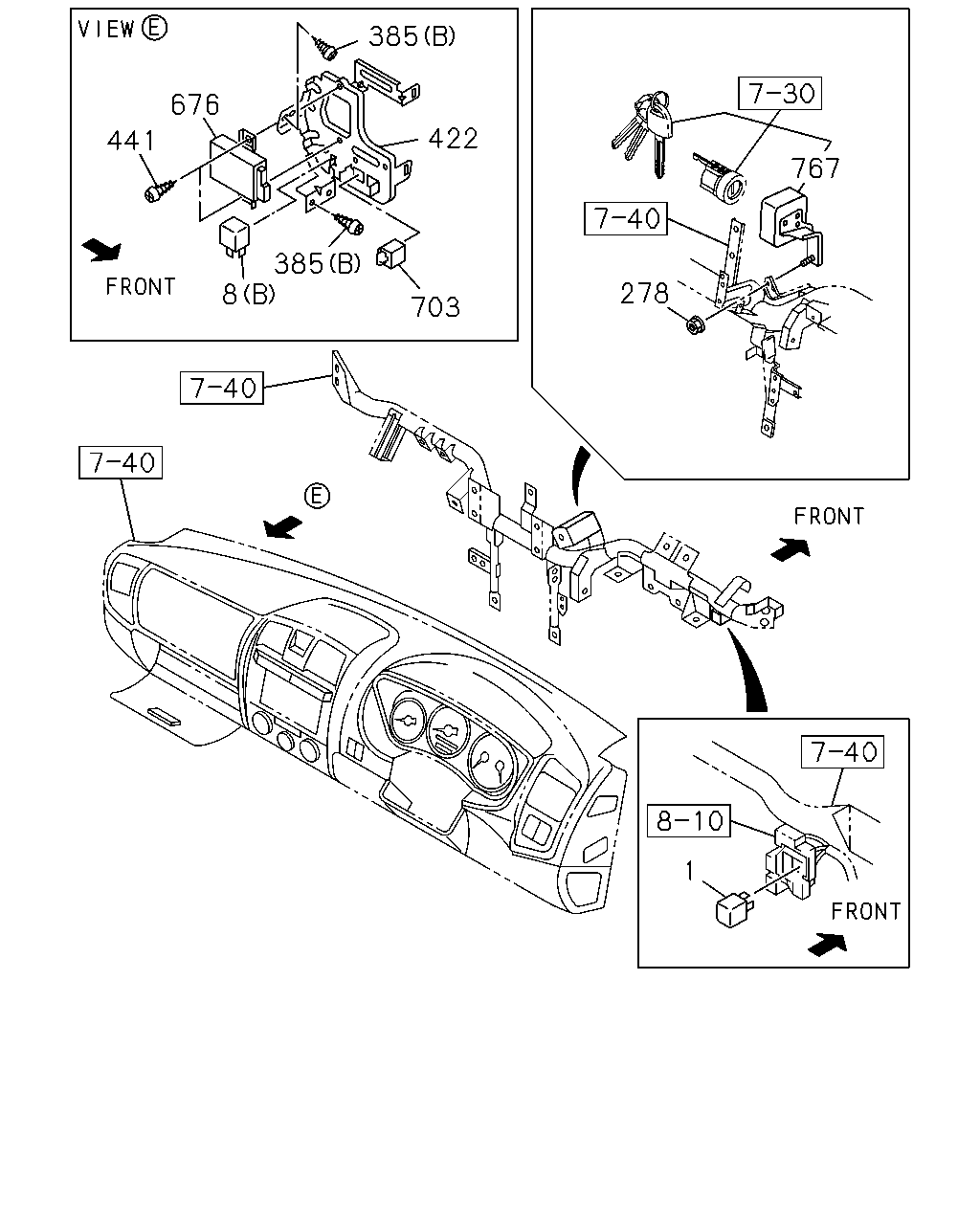

676 441 8 385 703 422 385 278 767 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER 12V DENSO	8-98032-675-0	01	1	1312-1402
1	UNIT; FLASHER DENSO	8-97202-225-1	01	1	1403-
8	RELAY; WIPER (A) 12V	8-97302-101-0	01	1	1312-
8	RELAY; WIPER (B) 12V YAZAKI IMA	8-97309-292-0	02	1	1312-
278	NUT; CONT UNIT M6 FLANGE IMA	0-91180-106-0	01	1	1312-
385	BOLT; CONT UNIT (A) M4X12 W/LK&PL WASHER IMA	0-36230-412-0	02	1	1312-
385	BOLT; CONT UNIT (B) M5X16 TAPPING IMA	8-98167-449-0	02	1	1312-
422	BRACKET; CONT UNIT	8-97381-410-0	01	1	1312-
441	SCREW; CONT UNIT M5X16 TAPPING IMA	8-98167-449-0	02	1	1312-
676	CONTROL UNIT; KEYLESS ENTRY	8-98053-167-0	01	1	1312-
703	TIMER; DEFOGGER 12V	8-97301-600-0	01	1	1312-
767	RECEIVER ASM; KEYLESS ENTRY	8-98053-170-2	01	1	1312-

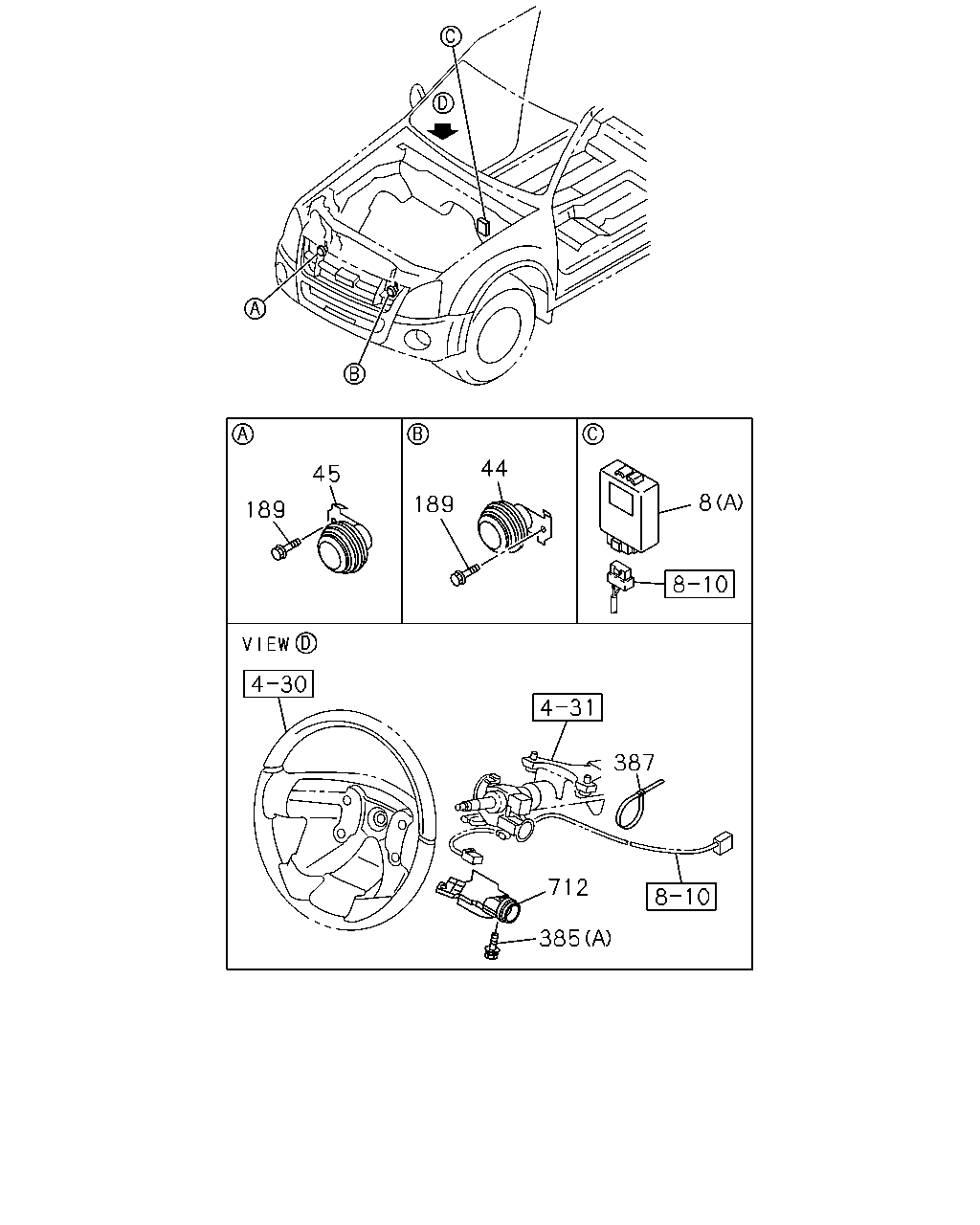

45 189 189 44 8 387 712 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER (A) 12V	8-97302-101-0	01	1	1312-
8	RELAY; WIPER (B) 12V YAZAKI IMA	8-97309-292-0	02	1	1312-
44	HORN; HIGH NOTE	8-97237-046-0	01	1	1312-
45	HORN; LOW NOTE	8-97237-047-0	01	1	1312-
189	BOLT; HORN M6X14 W/LK&PL WASHER IMA	8-97086-822-0	02	1	1312-
385	BOLT; CONT UNIT (A) M4X12 W/LK&PL WASHER IMA	0-36230-412-0	02	1	1312-
385	BOLT; CONT UNIT (B) M5X16 TAPPING IMA	8-98167-449-0	02	1	1312-
387	CLIP; BAND L=140	8-97920-656-0	01	1	1312-
712	CONTROL UNIT; ANTI THEFT	8-98008-412-0	01	1	1312-
