Sayfa 8-27 - Isuzu EPC

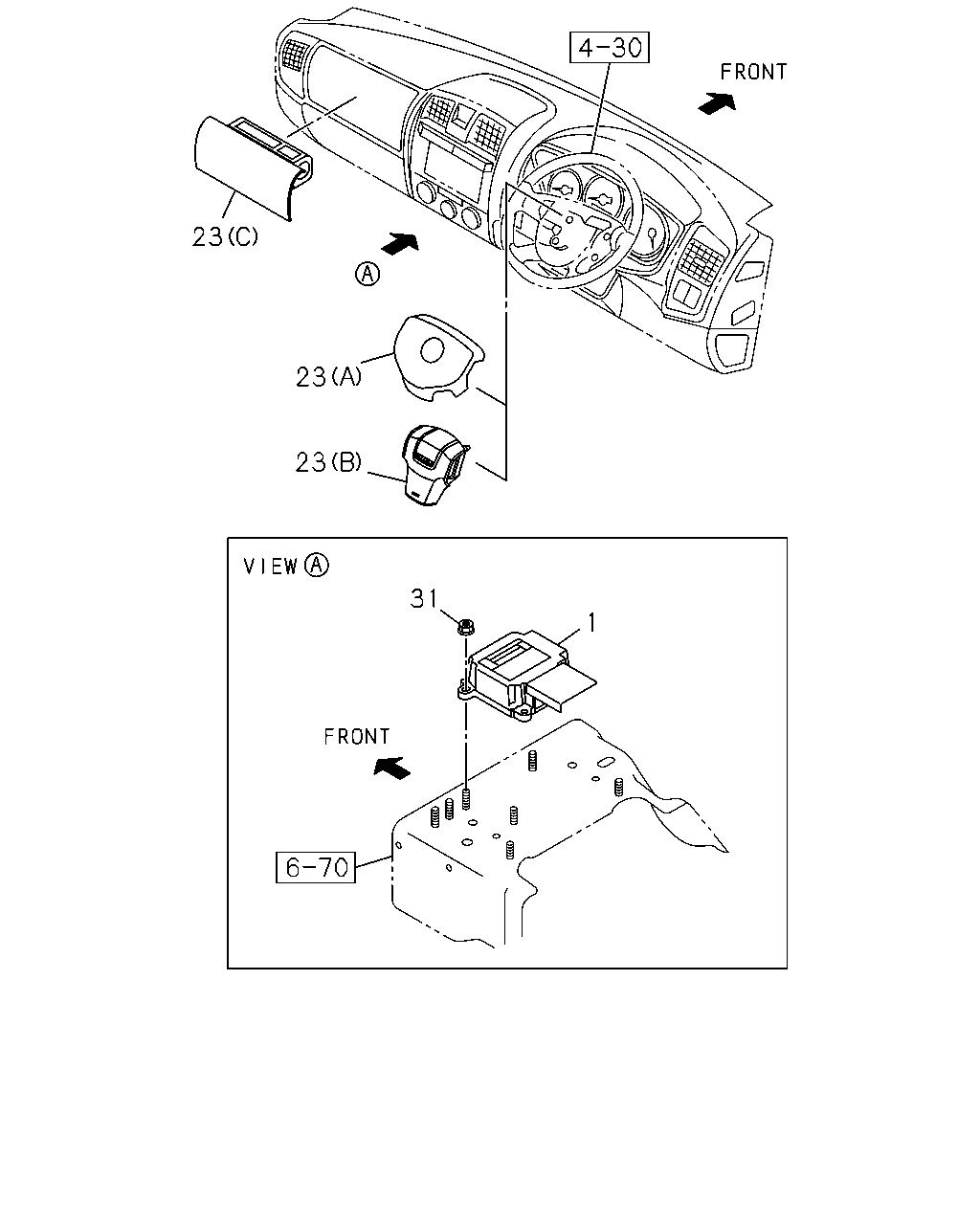

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#132684) — 6 parça

23 23 23 31 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONTROL UNIT; SIR	8-98039-723-0	01	1	1312-
23	AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97418-298-0	01	1	1312-1501
23	AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (A) DARK GRAY	8-97418-298-0	01	1	1502-
23	AIR BAG UNIT (C) BLACK	8-97422-062-0	01	1	1312-
23	AIR BAG UNIT STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> STEERING WHEEL RADIO CONTROLS<8NE> (B) BLACK	8-97424-332-0	01	1	1502-
31	NUT M6 FLANGE IMA	0-91180-206-0	03	1	1312-
