8-15 — FIXING PARTS; WIRING HARNESS (#132680) — 29 parça

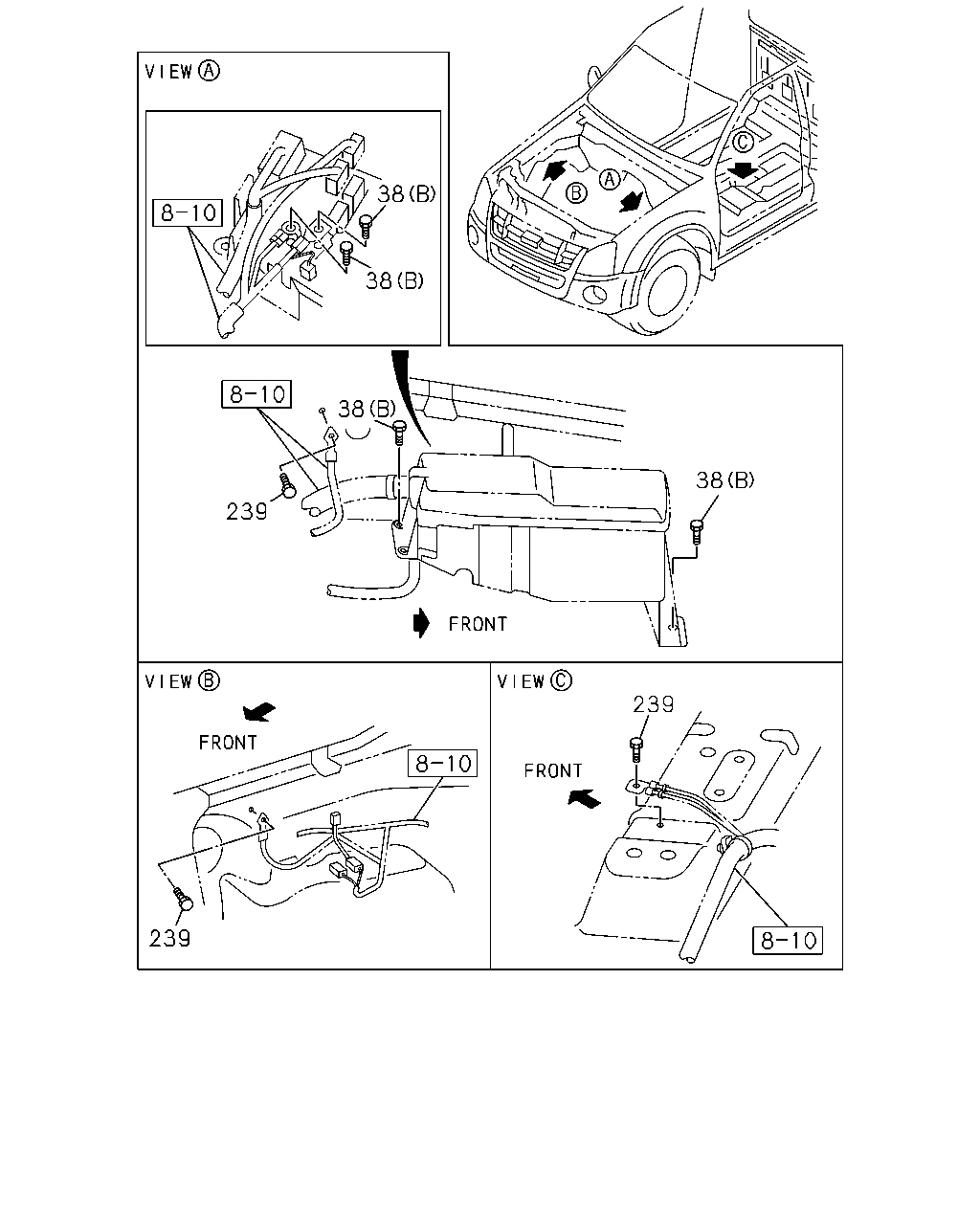

çizim 401640
38 38 38 239 38 239 239
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE IMA 		0-28050-812-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE IMA 		0-28650-616-0 05 1 1312-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER IMA 		8-97086-822-0 04 1 1312-

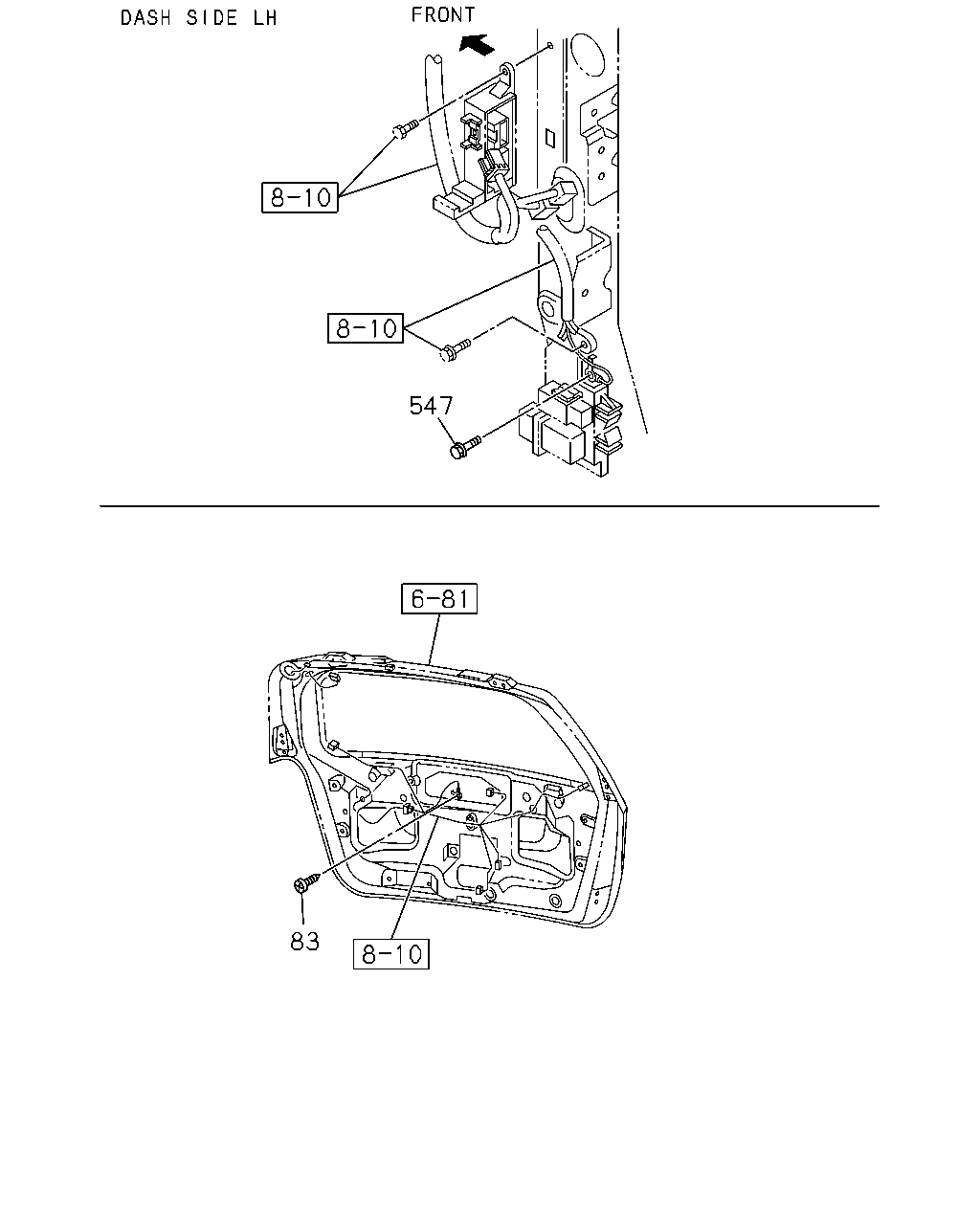

çizim 401729
547 83
BalonParca AdiParca NoAdetTipApplied Date
83 SCREW; HARNESS
M5X14 IMA 		8-94120-095-0 01 1 1312-
547 BOLT
M6X14 W/LK&PL WASHER IMA 		8-97086-822-0 01 1 1312-

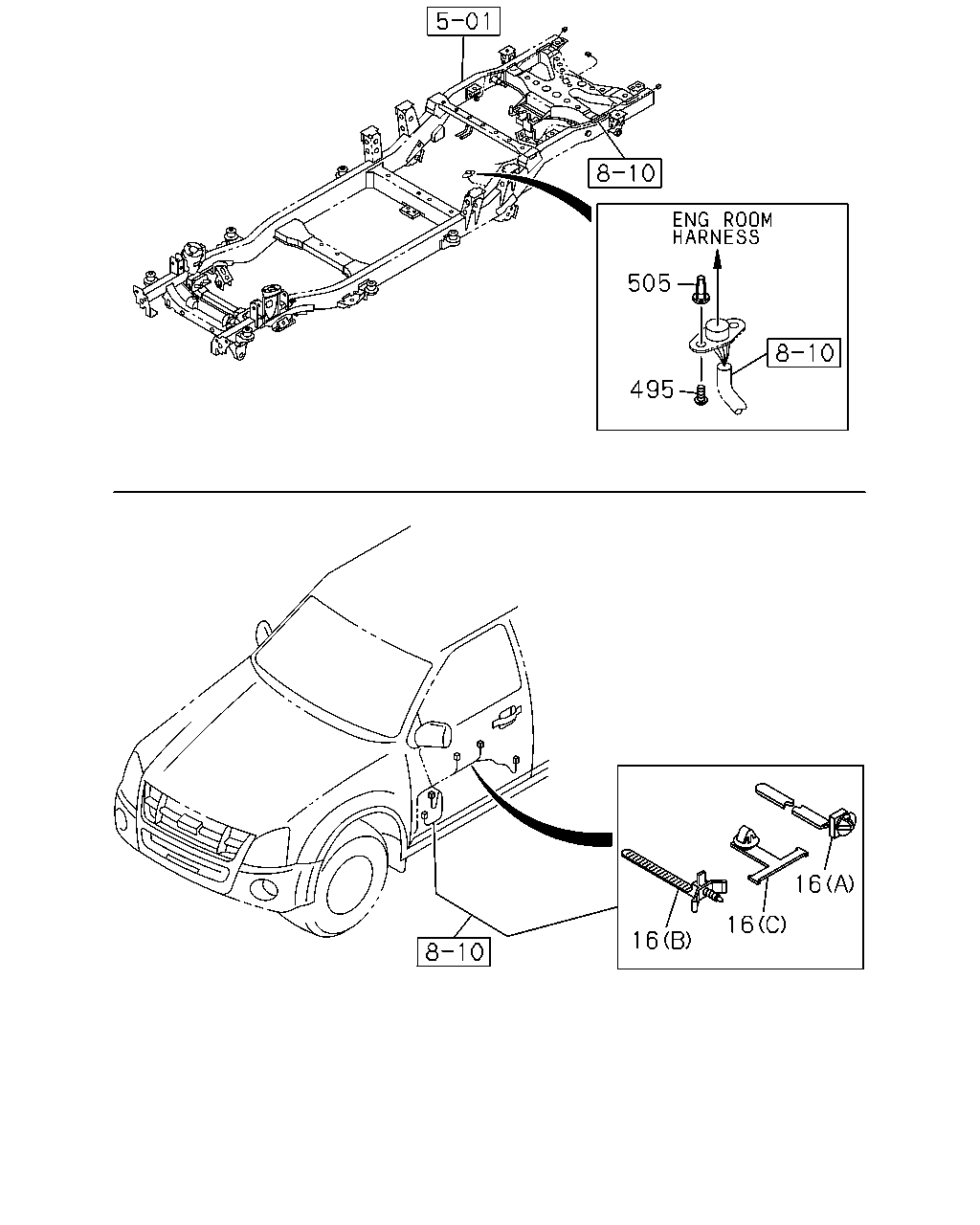

çizim 402048
505 495 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) L=135 		8-94473-399-0 02 1 1312-
16 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 02 1 1312-
16 CLIP; HARNESS
(A) L=155 IMA 		8-97173-307-0 06 1 1312-
495 BOLT; CABLE TO BODY
M5X14 IMA 		8-94120-095-0 02 1 1312-
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 IND 		8-94441-539-0 02 1 1312-

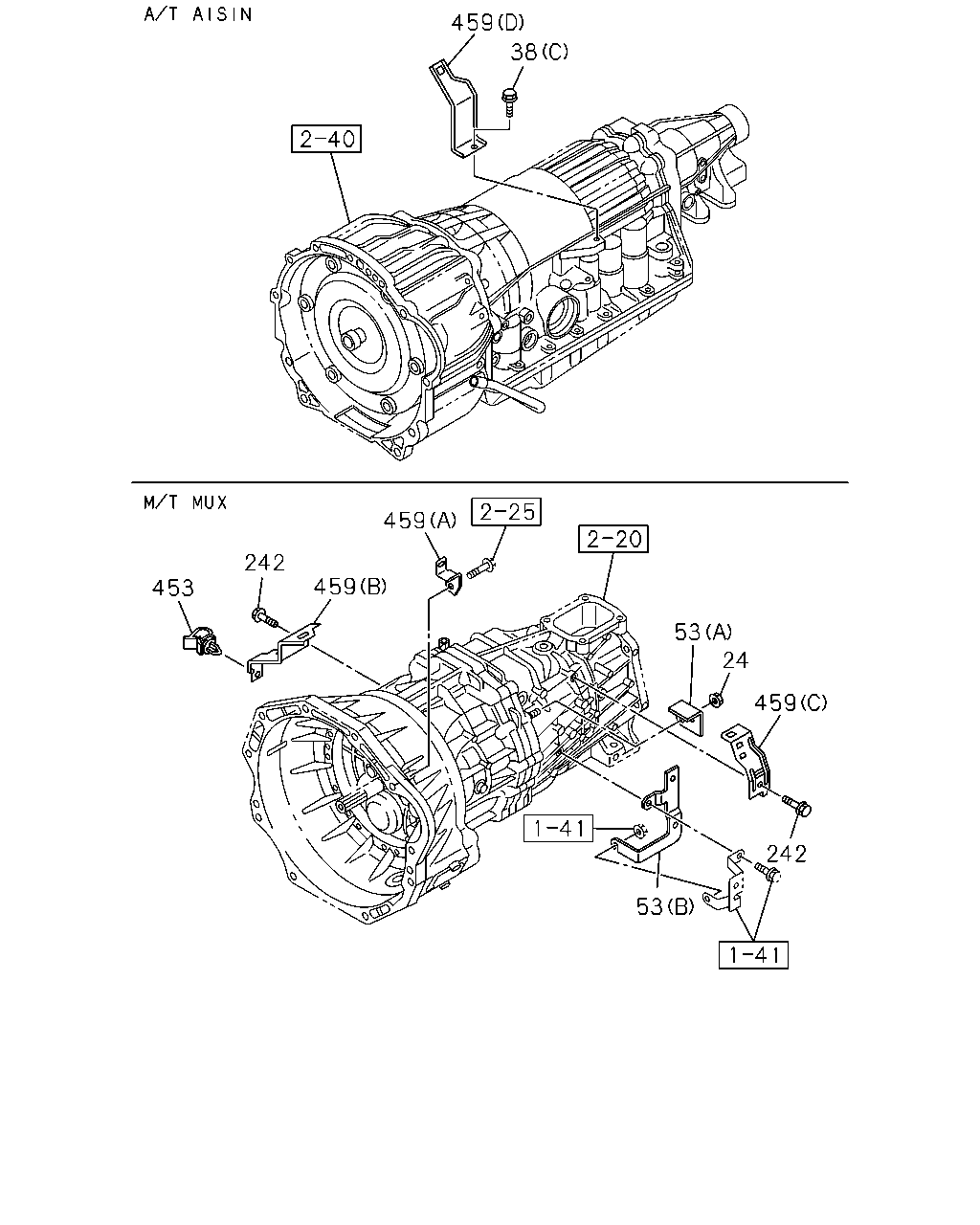

çizim 402054
459 459 242 453 459 53 24 459 242 53 38
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M/T MUX 5 SPEED 5S(MZJ) M6 FLANGE IMA 		0-91180-206-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE IMA 		0-28050-812-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE IMA 		0-28650-616-0 05 1 1312-
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 1312-
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 1312-
242 BOLT; BRKT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-
453 CLIP; CABLE HARNESS
M/T MUX 5 SPEED 5S(MZJ) ID=6.5 		5-09709-117-0 01 1 1312-
459 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97382-804-0 01 1 1312-
459 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98035-740-0 01 1 1312-
459 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98035-741-0 01 1 1312-
459 BRACKET; SUPPORT,HARNESS
A/T AISIN(RMD) (D) 		8-98050-720-0 01 1 1506-

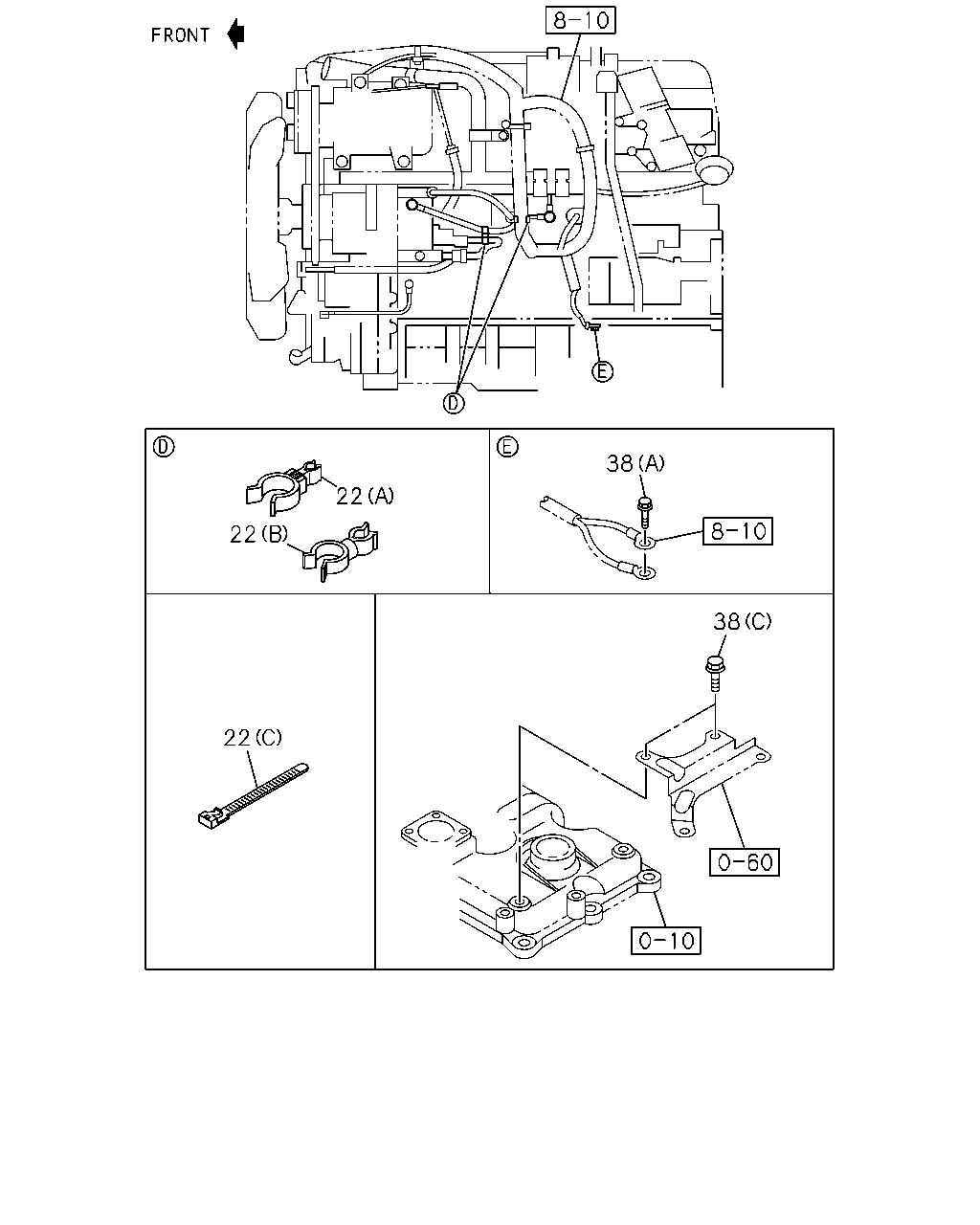

çizim 402538
22 22 38 38 22
BalonParca AdiParca NoAdetTipApplied Date
22 CLIP; ENG HARNESS
(B) ID=6 & 10 		8-94154-844-0 01 1 1312-
22 CLIP; ENG HARNESS
(A) ID=10 & 11 		8-94438-996-0 01 1 1312-
22 CLIP; ENG HARNESS
(C) L=140 		8-97920-656-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE IMA 		0-28050-812-0 01 1 1312-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE IMA 		0-28650-616-0 05 1 1312-
