8-10 — WIRING HARNESS AND FUSE (#132679) — 64 parça

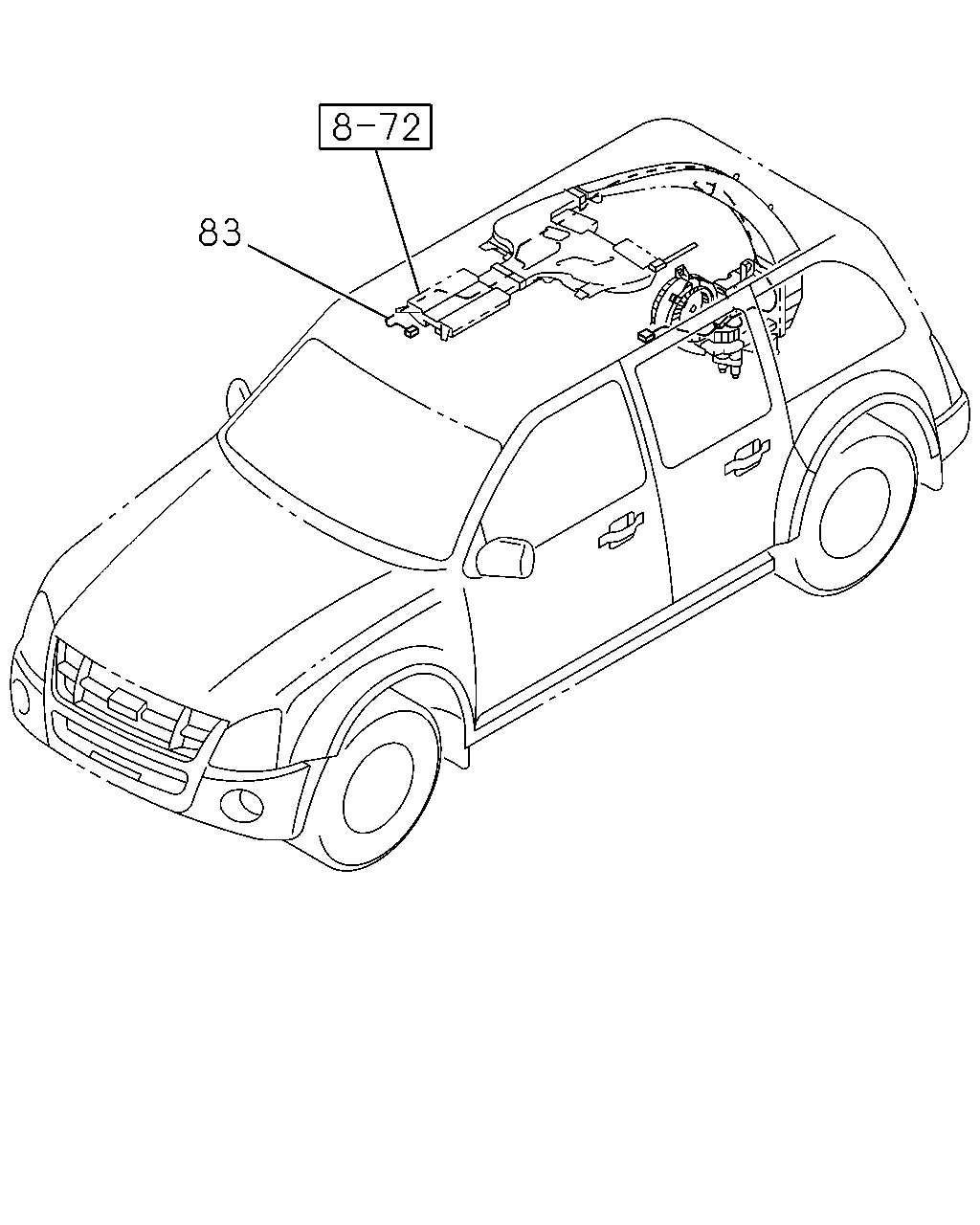

çizim 401682
83
BalonParca AdiParca NoAdetTipApplied Date
83 HARNESS; AIR CONDITIONER
REAR COOLER WO/HEATER<C69> 		8-97363-405-2 01 1 1312-

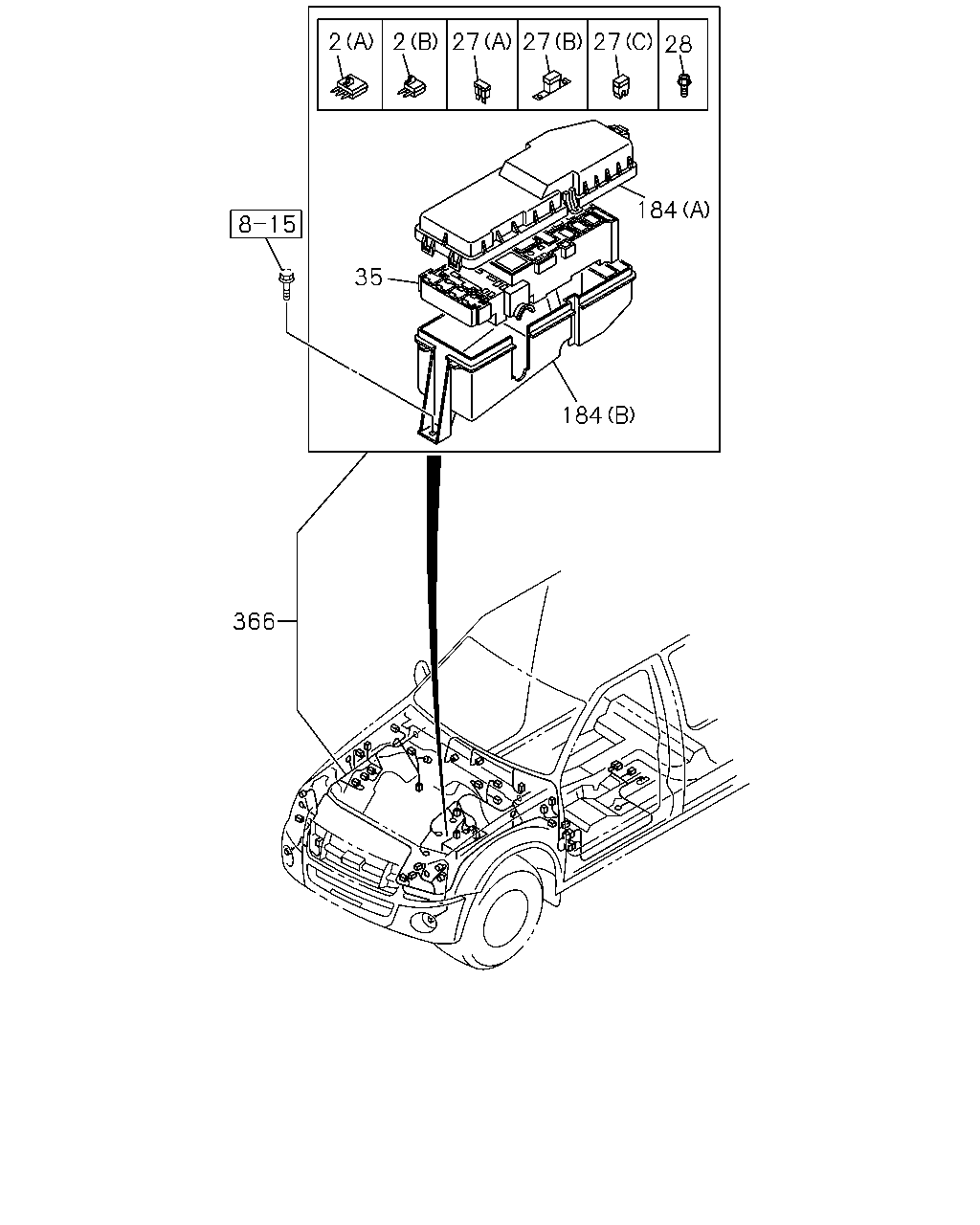

çizim 402034
2 2 27 27 27 28 184 35 184 366
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A IMA 		8-94422-639-1 02 1 1312-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A IMA 		8-94422-640-1 01 1 1312-
27 FUSE UNIT
(B) 120A WHITE IMA 		1-82516-028-1 01 1 1312-
27 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 13 1 1312-
27 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 01 1 1312-
27 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 02 1 1312-
27 FUSE UNIT
(C) 20A LIGHT BLUE 		8-97183-642-0 01 1 1312-
27 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 01 1 1312-
27 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 03 1 1312-
27 FUSE UNIT
(C) 60A YELLOW IMA 		8-97219-407-0 02 1 1312-
28 SCREW; FUSE BOX
IMA 		8-97249-192-0 02 1 1312-
35 BOX; RELAY & FUSE 8-97251-395-0 01 1 1312-
184 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 1312-
184 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 1312-
366 HARNESS; CABLE,ENG ROOM 8-98232-012-0 01 1 1312-1505
366 HARNESS; CABLE,ENG ROOM
M/T MUX 5 SPEED 5S(MZJ) 		8-98232-012-0 01 1 1506-
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) 		8-98297-551-0 01 1 1506-

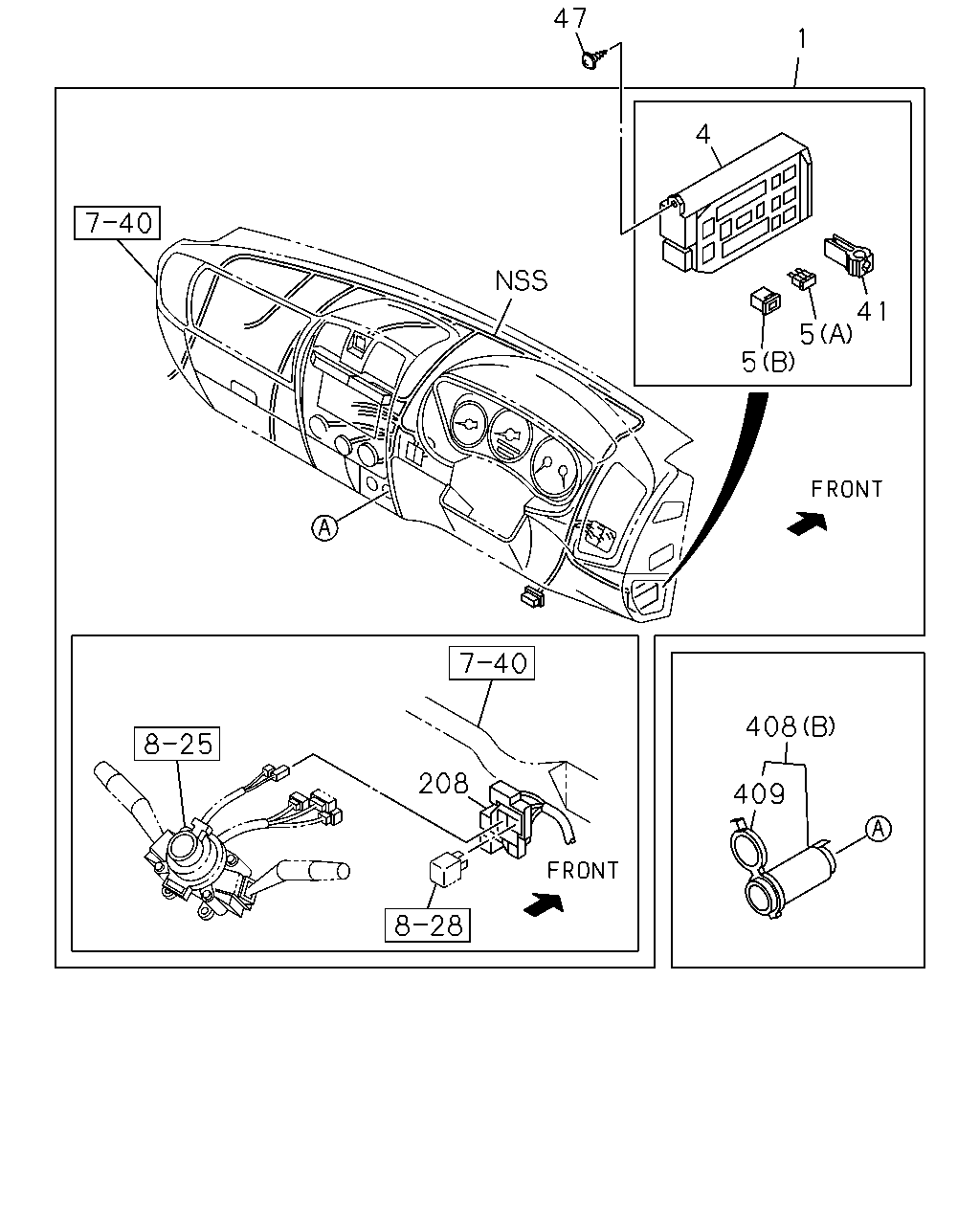

çizim 402536
41 5 5 1 4 47 208 408 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98232-013-0 01 1 1312-1501
1 HARNESS; CAB 8-98297-524-0 01 1 1502-1505
1 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) 		8-98297-524-0 01 1 1506-
1 HARNESS; CAB
A/T AISIN(RMD) 		8-98297-525-1 01 1 1506-
4 BOX ASM; FUSE,HARNESS 8-97245-601-0 01 1 1312-
5 FUSE; FACIA HARNESS
(A) 10A MINI RED 		8-97062-022-0 13 1 1312-
5 FUSE; FACIA HARNESS
(A) 15A MINI BLUE 		8-97062-023-0 05 1 1312-
5 FUSE; FACIA HARNESS
(A) 20A MINI YELLOW 		8-97062-024-0 04 1 1312-
5 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 01 1 1312-
5 FUSE; FACIA HARNESS
(B) 30A PINK 		8-97183-643-0 01 1 1312-
41 PULLER; FUSE 8-97103-388-0 01 1 1312-
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING IMA 		8-98167-449-0 01 1 1312-
208 HOLDER; CONNECTOR 8-97245-597-0 01 1 1312-
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 1312-
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 1312-
409 CAP; ACCESSORY SOCKET 8-97327-326-0 01 1 1312-

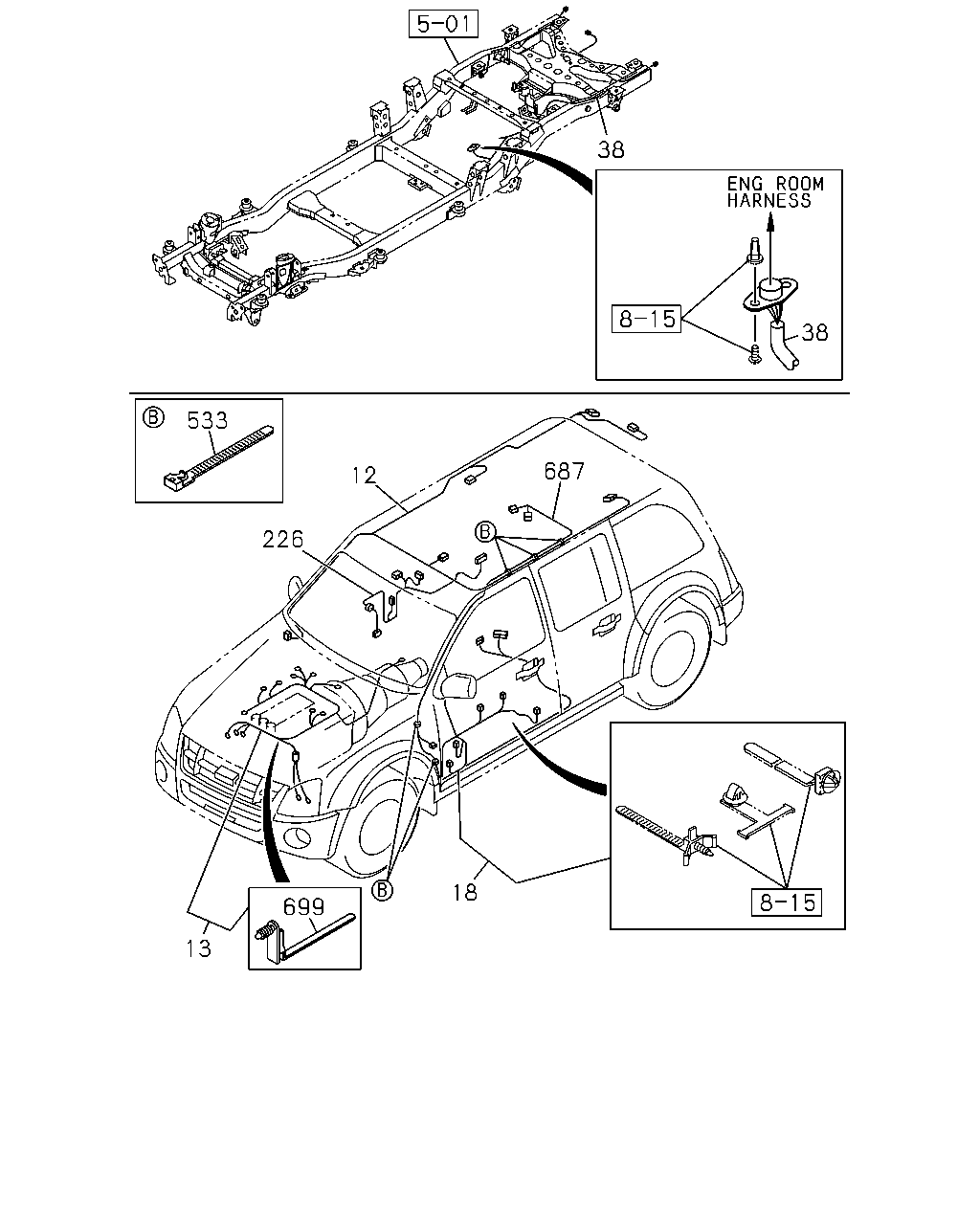

çizim 402581
38 38 12 687 226 533 18 13 699
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 8-98018-242-1 01 1 1312-
13 HARNESS; ENG 8-98067-911-1 01 1 1312-1505
13 HARNESS; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98067-911-1 01 1 1506-
13 HARNESS; ENG
A/T AISIN(RMD) 		8-98067-913-1 01 1 1506-
18 HARNESS; DOOR 8-98053-484-0 01 1 1312-
18 HARNESS; DOOR 8-98053-931-0 01 1 1312-
38 HARNESS; CHAS 8-98030-458-0 01 1 1312-
226 HARNESS; RR DOOR 8-98043-385-0 02 1 1312-
533 CLIP
L=140 		8-97920-656-0 05 1 1312-
687 HARNESS; VIDEO DISC PLYR 8-98023-146-1 01 1 1312-
699 CLIP; ENG HARNESS
L=140 		8-97122-360-0 01 1 1312-

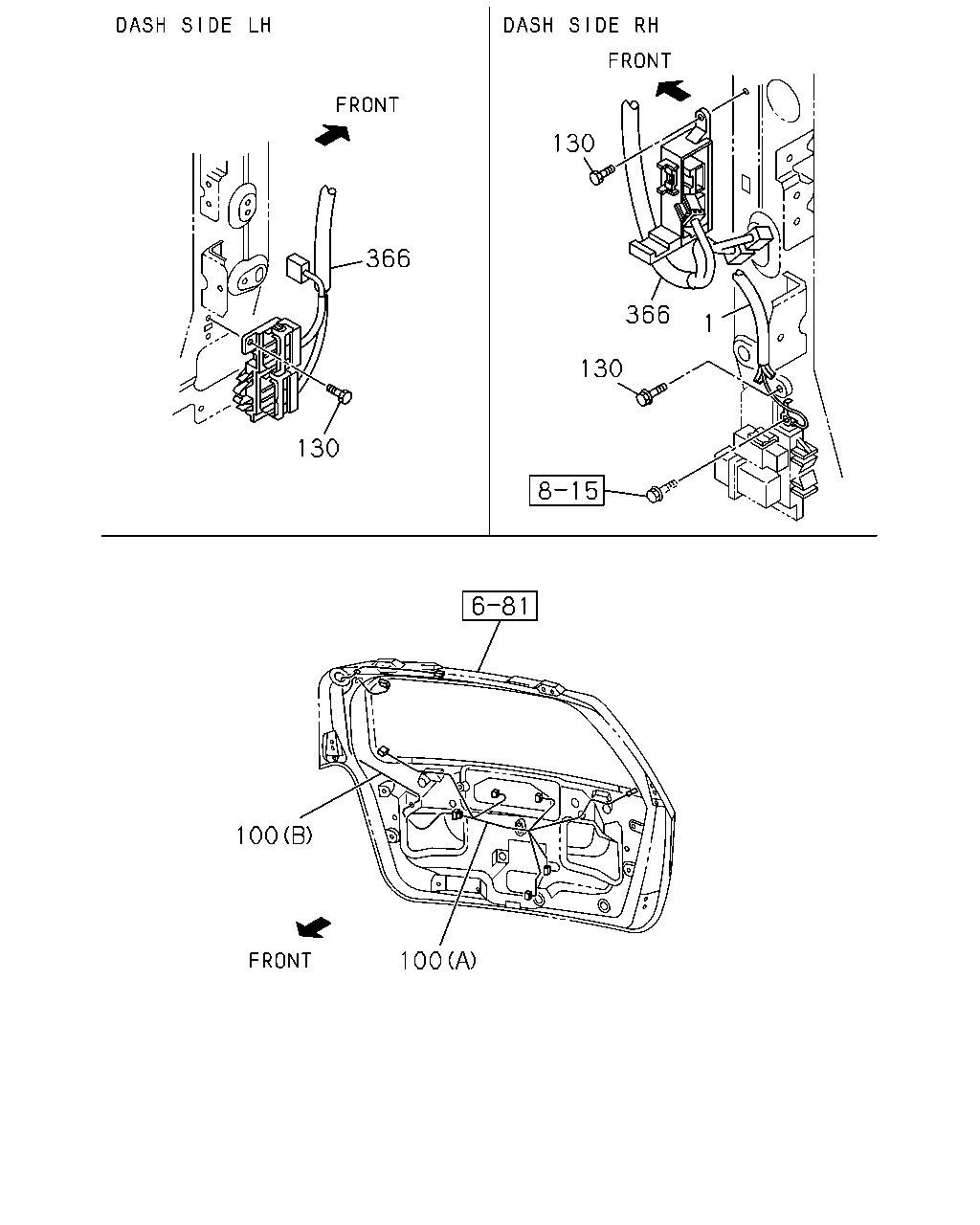

çizim 402598
366 130 366 1 130 130 100 100
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98232-013-0 01 1 1312-1501
1 HARNESS; CAB 8-98297-524-0 01 1 1502-1505
1 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) 		8-98297-524-0 01 1 1506-
1 HARNESS; CAB
A/T AISIN(RMD) 		8-98297-525-1 01 1 1506-
100 HARNESS; RR GATE
(B) 		8-97363-404-1 01 1 1312-
100 HARNESS; RR GATE
(A) 		8-98025-579-0 01 1 1312-
130 BOLT; HARNESS EARTH
M6X20 W/WASHER IMA 		8-98056-282-0 03 1 1312-
366 HARNESS; CABLE,ENG ROOM 8-98232-012-0 01 1 1312-1505
366 HARNESS; CABLE,ENG ROOM
M/T MUX 5 SPEED 5S(MZJ) 		8-98232-012-0 01 1 1506-
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) 		8-98297-551-0 01 1 1506-

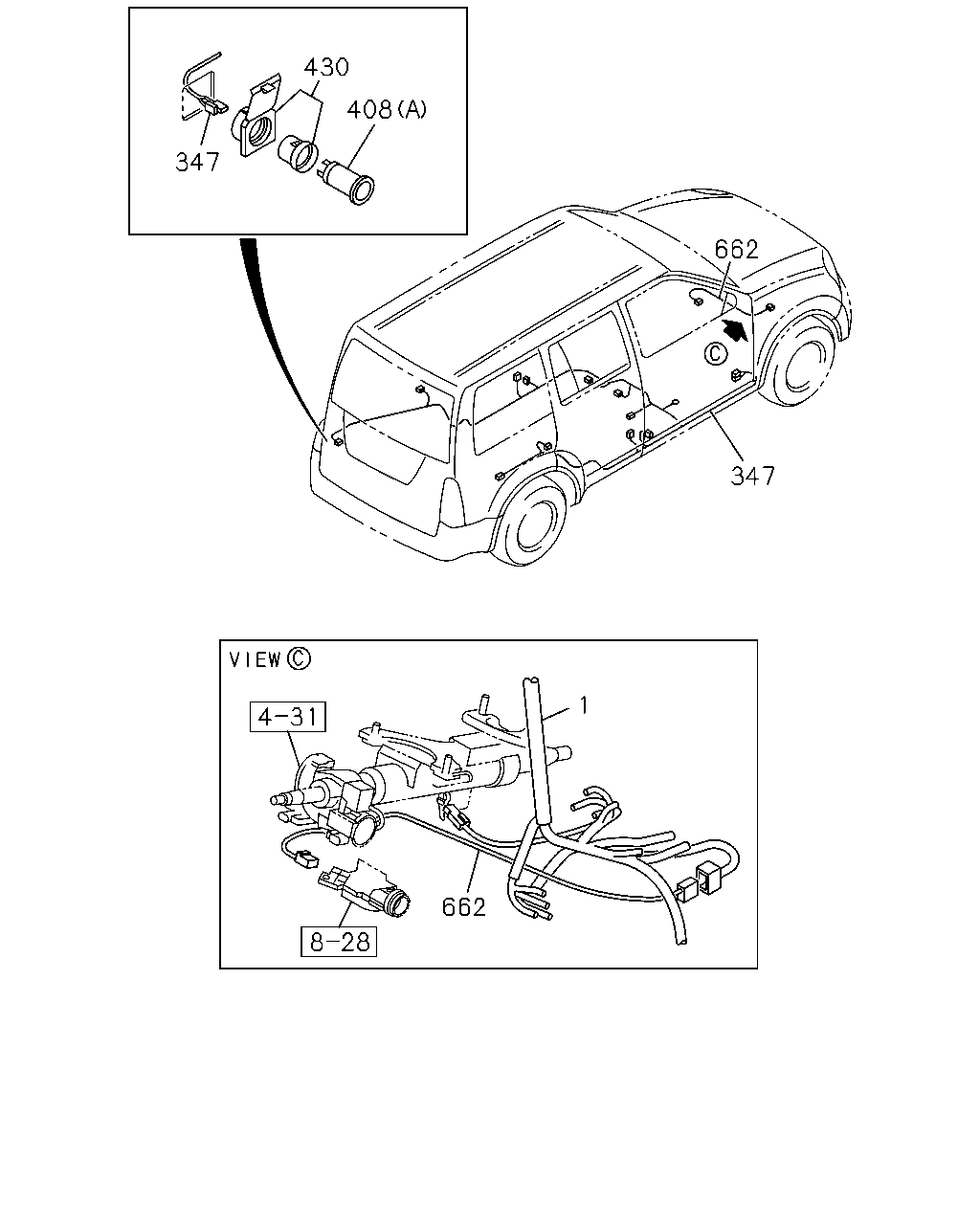

çizim 402628
430 347 408 347 662 1 662
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98232-013-0 01 1 1312-1501
1 HARNESS; CAB 8-98297-524-0 01 1 1502-1505
1 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) 		8-98297-524-0 01 1 1506-
1 HARNESS; CAB
A/T AISIN(RMD) 		8-98297-525-1 01 1 1506-
347 HARNESS; CABLE,RR BODY 8-98090-745-0 01 1 1312-
408 SOCKET ASM; ACCESSORY
(A) 		8-94382-451-1 01 1 1312-
408 SOCKET ASM; ACCESSORY
(B) 		8-97288-746-0 01 1 1312-
430 COVER ASM; SOCKET,ACCESSORY
BEIGE 		8-97404-679-0 01 1 1312-
662 HARNESS; IMMOBILIZER 8-98040-808-0 01 1 1312-
