8-03 — LAMP; REAR AND REAR SIDE (#132677) — 21 parça

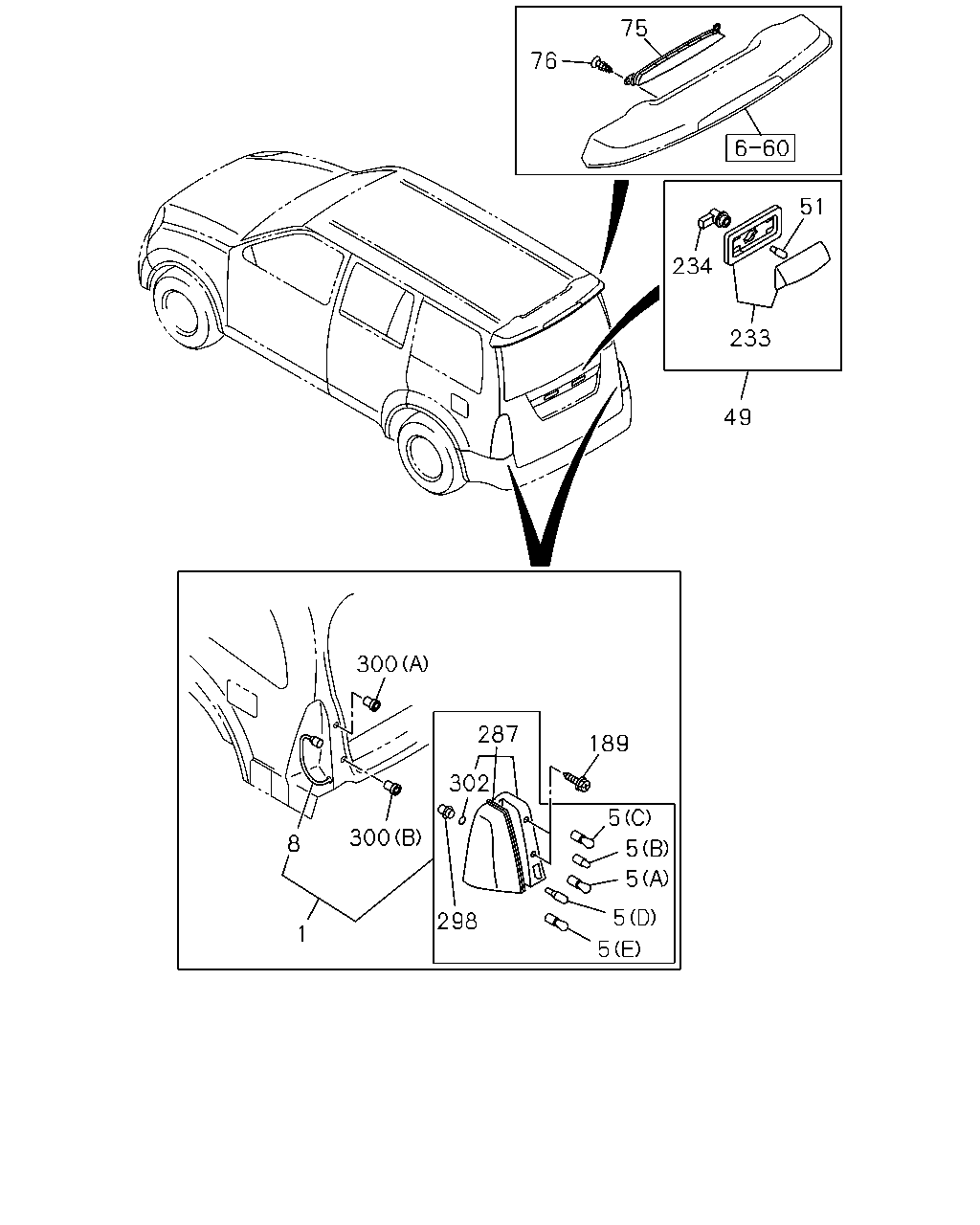

çizim 402439
5 5 5 5 5 298 300 8 1 300 287 302 189 49 233 234 51 75 76
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 8-98257-820-0 01 1 1312-
1 LAMP ASM; RR COMB 8-98257-821-0 01 1 1312-
5 BULB; RR COMB LAMP
(A) 12V 21W IMA 		8-94124-074-0 02 1 1312-
5 BULB; RR COMB LAMP
(C) 12V 21/5W IMA 		8-94125-959-0 02 1 1312-
5 BULB; RR COMB LAMP
(D) 12V 18W 		8-94372-897-0 02 1 1312-
5 BULB; RR COMB LAMP
(E) 12V 21W IMA 		8-97179-967-0 02 1 1312-
5 BULB; RR COMB LAMP
(B) 12V 5W 		8-98257-815-0 02 1 1312-
8 HARNESS; RR COMB LAMP 8-98001-463-0 02 1 1312-
49 LAMP; LICENSE PLATE 8-97373-083-1 02 1 1312-
51 BULB; LICENSE PLATE LAMP
12V 5W IMA 		8-94124-595-0 02 1 1312-
75 LAMP ASM; STOP,HIGHMOUNTED 8-97375-459-2 01 1 1312-
76 SCREW; STOP LAMP,HIGHMOUNTED
M5X16 		8-97373-865-0 02 1 1312-
189 BOLT; FIX
M6X18 W/LK&PL WASHER 		8-98061-682-0 04 1 1312-
233 LAMP UNIT; LICENSE PLATE 8-98000-860-0 02 1 1312-
234 SOCKET ASM; LICENSE PLATE LAMP 8-98000-862-0 02 1 1312-
287 LAMP UNIT; RR COMB 8-98001-465-0 01 1 1312-
287 LAMP UNIT; RR COMB 8-98001-466-0 01 1 1312-
298 CAP; BREATHER,RR COMB LAMP 8-98001-464-0 04 1 1312-
300 HOLDER; LAMP
(A) 		8-97175-217-0 02 1 1312-
300 HOLDER; LAMP
(B) 		8-98014-041-0 02 1 1312-
302 FILTER; BREATHER,RR COMB LAMP 8-98001-518-0 04 1 1312-
