◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#132675) — 18 parça

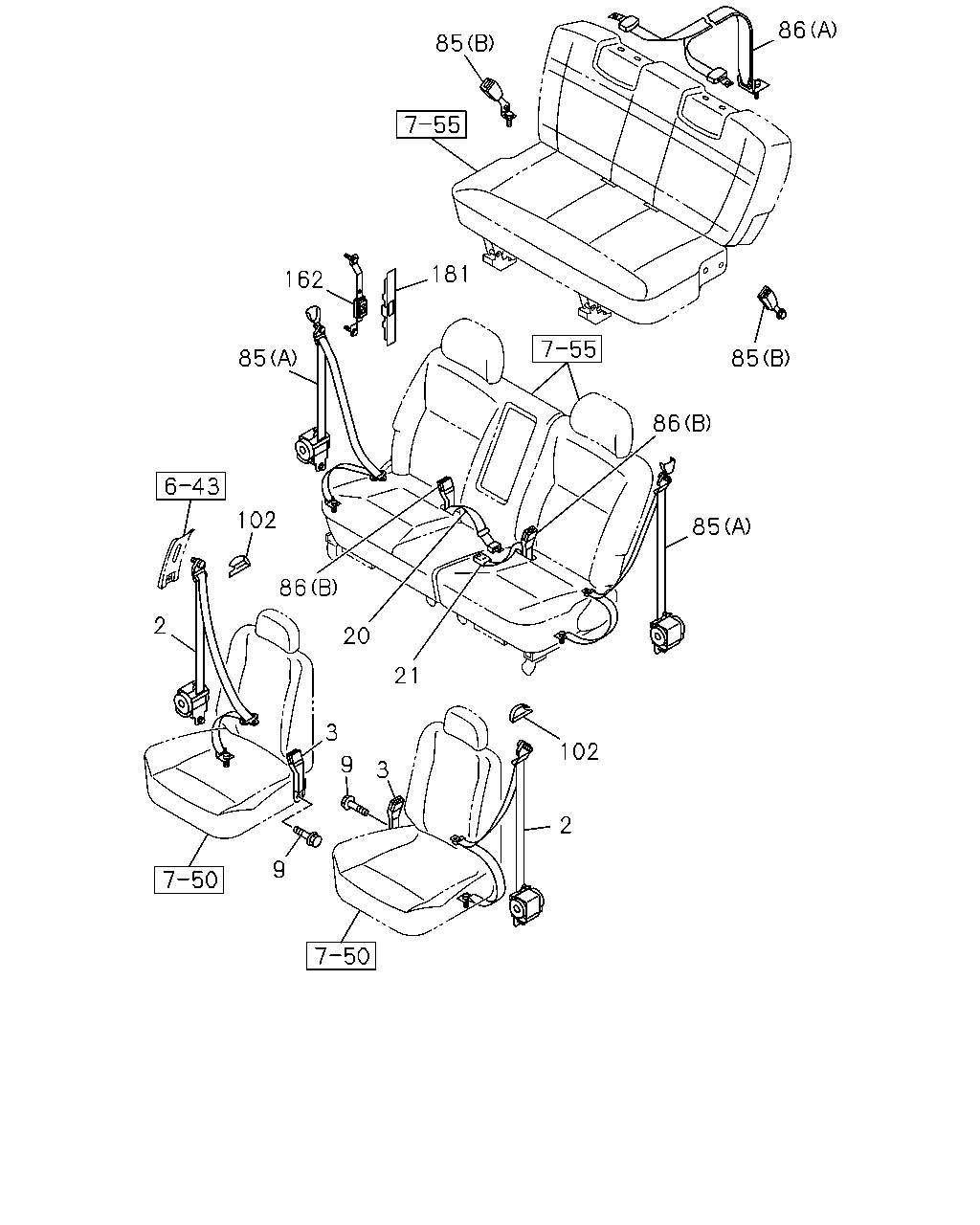

çizim 402386
86 85 162 181 85 86 85 85 102 86 20 21 102 2 3 9 3 9 2
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
BEIGE 		8-97425-249-0 02 1 1312-
3 BELT; SEAT,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97426-606-0 01 1 1312-
3 BELT; SEAT,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97426-607-0 01 1 1312-
9 BOLT; SEAT BELT ANCHOR
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> 		8-97332-665-0 02 1 1312-
20 BELT; RR SEAT CTR,TONGUE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97423-890-1 01 1 1312-1401
20 BELT; RR SEAT CTR,TONGUE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97428-436-0 01 1 1402-
21 BELT; RR SEAT CTR,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97407-778-0 01 1 1312-1401
21 BELT; RR SEAT CTR,BUCKLE SIDE
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE 		8-97428-438-0 01 1 1402-
85 BELT; SEAT,RR OUTER
(B) BEIGE 		8-97404-596-0 01 1 1312-
85 BELT; SEAT,RR OUTER
(B) BEIGE 		8-97404-597-0 01 1 1312-
85 BELT; SEAT,RR OUTER
(A) BEIGE 		8-97425-251-0 01 1 1312-
85 BELT; SEAT,RR OUTER
(A) BEIGE 		8-97425-252-0 01 1 1312-
86 BELT; SEAT,RR INNER
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97423-892-1 01 1 1312-1401
86 BELT; SEAT,RR INNER
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE 		8-97428-437-0 01 1 1402-
86 BELT; SEAT,RR INNER
LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE 		8-97425-339-0 02 1 1312-
102 COVER; SHOULDER ANCHOR
BEIGE 		8-97404-585-0 02 1 1312-
162 ADJUSTER; SEAT BELT
BEIGE 		8-97404-584-1 02 1 1312-
181 TRIM; SLIDER PLATE
BEIGE 		8-97404-586-1 02 1 1312-
