7-55 — REAR SEAT (#132674) — 111 parça

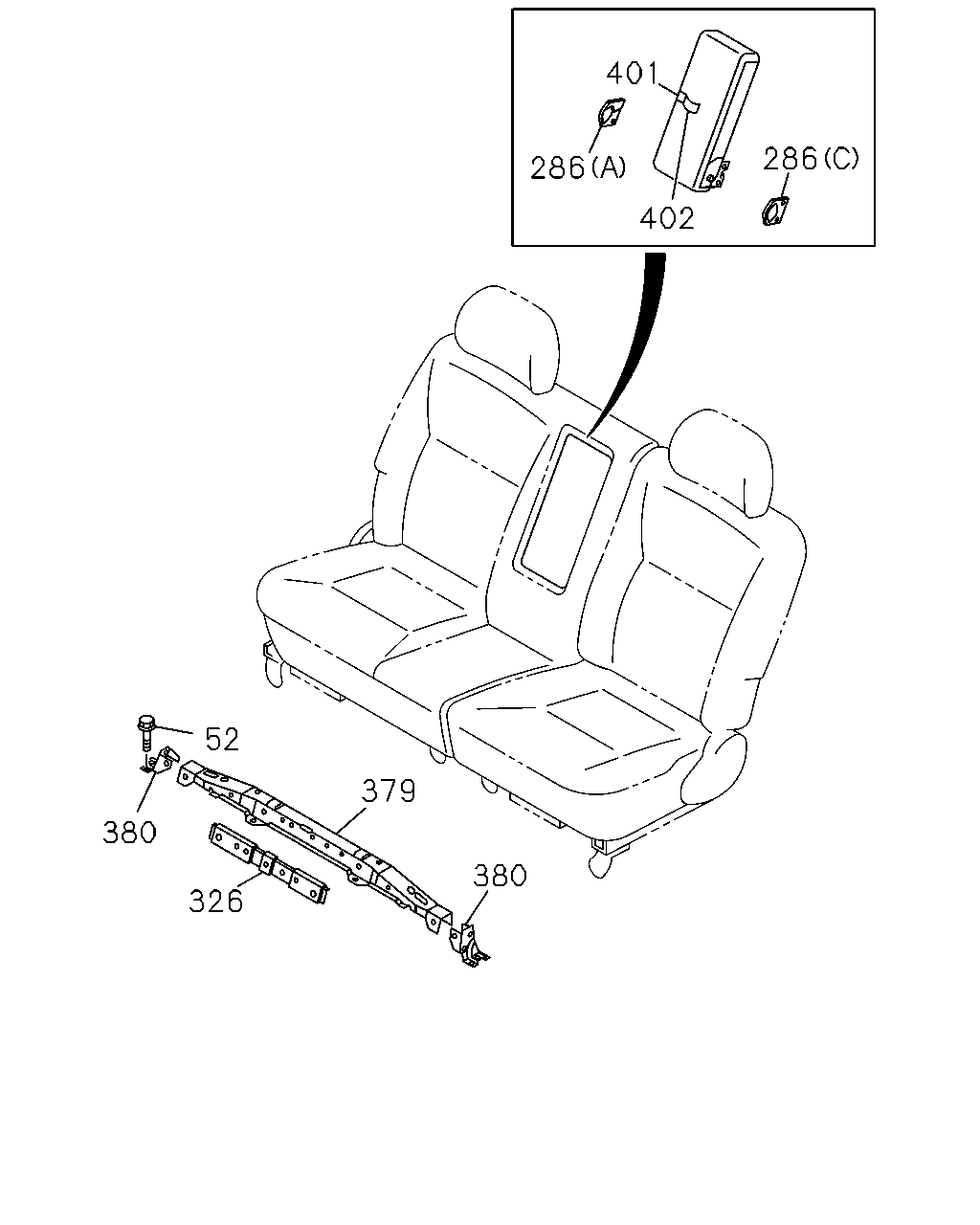

401 286 286 402 379 380 52 380 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; RR SEAT M8X16 FLANGE IMA	0-28050-816-0	07	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97404-815-1	01	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97407-869-0	01	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97407-870-0	01	1	1312-
326	REINFORCEMENT; RR SEAT	8-98032-249-0	01	1	1312-
379	RISER; RR SEAT,FRT	8-98030-675-0	01	1	1312-
380	RISER; RR SEAT,SIDE	8-97359-965-0	01	1	1312-
380	RISER; RR SEAT,SIDE	8-97359-966-0	01	1	1312-
401	PAD & FRAME ASM; ARM REST LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-947-1	01	1	1312-
402	TRIM COVER; ARM REST LEATHER SEAT<6TB> BEIGE	8-97407-124-1	01	1	1312-
402	TRIM COVER; ARM REST CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97407-121-1	01	1	1312-

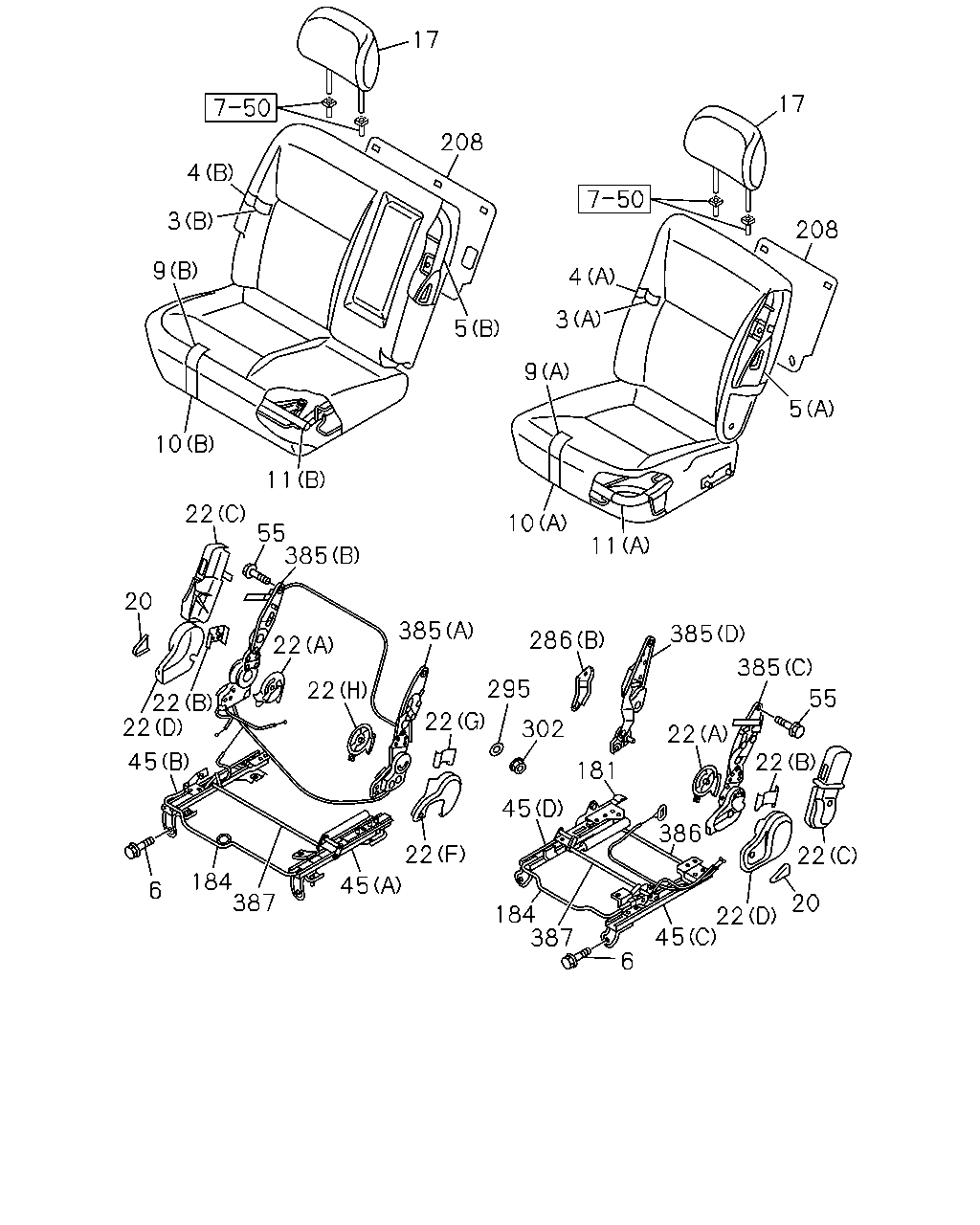

17 17 208 4 3 9 5 10 11 5 208 4 3 9 10 11 22 55 385 385 286 385 385 55 22 22 22 20 22 45 6 387 184 45 302 181 295 22 22 45 22 22 22 20 22 45 6 184 387 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	COVER; TRIM,RR SEAT BACK LEATHER SEAT<6TB> (B) BEIGE	8-97425-338-0	01	1	1312-
3	COVER; TRIM,RR SEAT BACK LEATHER SEAT<6TB> (A) BEIGE	8-97425-341-0	01	1	1312-
3	COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97425-343-0	01	1	1312-
3	COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97425-345-0	01	1	1312-
4	PAD; RR,SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98232-582-0	01	1	1312-
4	PAD; RR,SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98232-590-0	01	1	1312-
5	FRAME ASM; RR SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98232-581-0	01	1	1312-
5	FRAME ASM; RR SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98232-589-0	01	1	1312-
6	BOLT; RR SEAT M12X27.5 W/PL WASHER IMA	8-98050-319-0	08	1	1312-
9	COVER ASM; TRIM,RR,CUSHION LEATHER SEAT<6TB> (B) BEIGE	8-97407-105-1	01	1	1312-
9	COVER ASM; TRIM,RR,CUSHION LEATHER SEAT<6TB> (A) BEIGE	8-97426-499-0	01	1	1312-
9	COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97407-110-1	01	1	1312-
9	COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97426-498-0	01	1	1312-
10	PAD; CUSHION,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98038-151-1	01	1	1312-
10	PAD; CUSHION,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98238-922-0	01	1	1312-
11	FRAME ASM; CUSHION,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98232-592-0	01	1	1312-
11	FRAME ASM; CUSHION,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98238-919-0	01	1	1312-
17	REST; HD,RR SEAT LEATHER SEAT<6TB> BEIGE	8-97407-101-1	01	1	1312-
17	REST; HD,RR SEAT LEATHER SEAT<6TB> BEIGE	8-97407-106-1	01	1	1312-
17	REST; HD,RR SEAT CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97407-096-1	02	1	1312-
20	KNOB; RECLINING DEVICE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97404-818-2	01	1	1312-
20	KNOB; RECLINING DEVICE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97407-120-2	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97404-811-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97404-812-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97404-813-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE	8-97404-817-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE	8-97406-030-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE	8-97406-031-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97407-112-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97407-113-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97407-114-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (H) BEIGE	8-97407-116-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE	8-97407-117-1	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE	8-97407-118-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE	8-97407-119-3	01	1	1312-
45	ADJUSTER; RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D)	8-98232-584-0	01	1	1312-
45	ADJUSTER; RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C)	8-98232-585-0	01	1	1312-
45	ADJUSTER; RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98232-593-1	01	1	1312-
45	ADJUSTER; RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98232-594-0	01	1	1312-
55	BOLT; HINGE,RR SEAT	8-98003-870-0	08	1	1312-
181	BAND; STOPPER,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97407-287-0	01	1	1312-
184	HANDLE; SLIDER,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-198-0	01	1	1312-
184	HANDLE; SLIDER,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-211-0	01	1	1312-
208	BOARD; RR SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-162-0	01	1	1312-
208	BOARD; RR SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98043-261-0	01	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97404-815-1	01	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97407-869-0	01	1	1312-
286	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97407-870-0	01	1	1312-
295	WASHER; RR SEAT ID=12.5 OD=26	0-91610-612-0	01	1	1312-
302	NUT; RR SEAT M10 FLANGE IMA	0-91180-110-0	01	1	1312-
385	RECLINING; ADJ,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D)	8-98038-160-1	01	1	1312-
385	RECLINING; ADJ,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C)	8-98038-161-1	01	1	1312-
385	RECLINING; ADJ,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A)	8-98038-201-1	01	1	1312-
385	RECLINING; ADJ,RR SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B)	8-98239-005-0	01	1	1312-
386	SHAFT ASM; CONNECT 2ND RECLINING LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-163-0	01	1	1312-
387	SHAFT ASM; CONNECT 2ND CUSHION LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-197-0	01	1	1312-
387	SHAFT ASM; CONNECT 2ND CUSHION LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98038-210-0	01	1	1312-

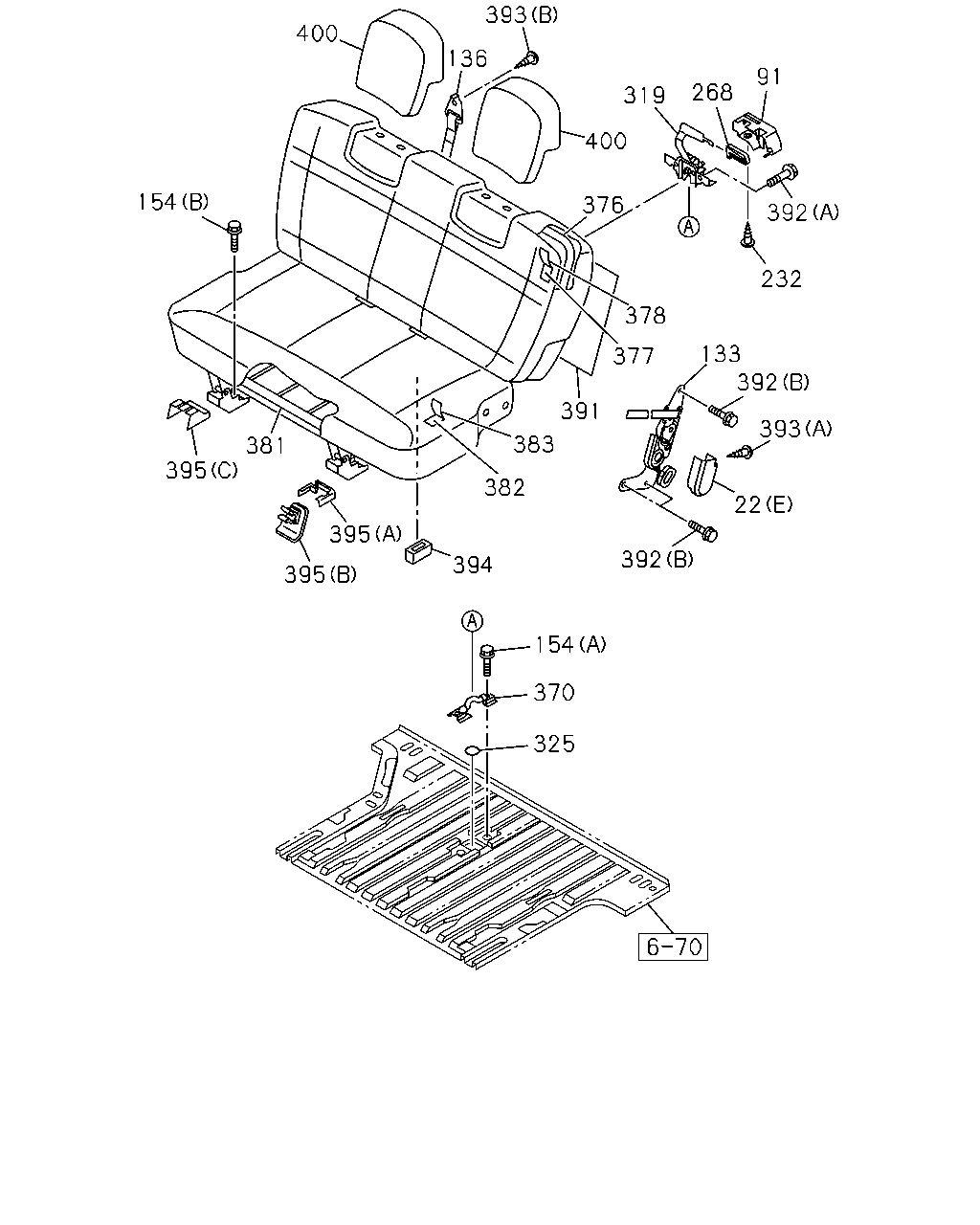

393 400 136 91 268 319 400 392 232 378 377 391 133 393 392 22 392 154 370 325 394 382 383 395 395 381 395 154 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97404-811-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97404-812-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97404-813-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE	8-97404-817-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE	8-97406-030-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (E) BEIGE	8-97406-031-3	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97407-112-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97407-113-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (C) BEIGE	8-97407-114-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (H) BEIGE	8-97407-116-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (G) BEIGE	8-97407-117-1	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (F) BEIGE	8-97407-118-0	01	1	1312-
22	COVER; RECLINING ADJ LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (D) BEIGE	8-97407-119-3	01	1	1312-
91	COVER; RR SEAT BACK BEIGE	8-97404-673-1	01	1	1312-
133	RECLINING; ADJ,RR SEAT,3RD LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97373-299-0	01	1	1312-
133	RECLINING; ADJ,RR SEAT,3RD LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97373-300-1	01	1	1312-
136	BAND; 3RD SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97406-032-0	01	1	1312-
154	BOLT; STRIKER TO FLOOR (A) M10X30 FLANGE IMA	0-28661-030-0	02	1	1312-
154	BOLT; STRIKER TO FLOOR (B)	8-98113-379-0	02	1	1312-
232	SCREW; RR SEAT M5X10	0-34218-510-0	02	1	1312-
268	KNOB; FLOOR LOCK BEIGE	8-97404-674-0	01	1	1312-
319	LOCK; SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97383-446-3	01	1	1312-
325	PLUG; RR SEAT OD=25 BLACK IMA	1-76798-019-0	01	1	1312-
370	STRIKER; SEAT	8-97354-544-1	01	1	1312-
376	FRAME ASM; 3RD SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98020-904-0	01	1	1312-
377	PAD; 3RD SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98250-532-0	01	1	1312-
378	COVER; TRIM,3RD SEAT BACK LEATHER SEAT<6TB> BEIGE	8-97428-117-0	01	1	1312-
378	COVER; TRIM,3RD SEAT BACK CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-113-0	01	1	1312-
381	FRAME; CUSHION 3RD LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98113-363-0	01	1	1312-
382	PAD; CUSHION 3RD LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98014-353-0	01	1	1312-
383	TRIM; CUSHION 3RD LEATHER SEAT<6TB> BEIGE	8-97428-118-0	01	1	1312-
383	TRIM; CUSHION 3RD CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-114-0	01	1	1312-
391	BOARD; 3RD SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97383-511-0	01	1	1312-
392	BOLT; 3RD SEAT (B)	8-98003-805-0	08	1	1312-
392	BOLT; 3RD SEAT (A)	8-98003-871-0	02	1	1312-
393	SCREW; 3RD SEAT (A)	8-98003-863-0	02	1	1312-
393	SCREW; 3RD SEAT (B)	8-98003-867-0	01	1	1312-
394	RUBBER; 3RD SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98002-196-0	02	1	1312-
395	COVER; 3RD SEAT (C) BEIGE	8-97404-968-0	01	1	1312-
395	COVER; 3RD SEAT (A) LOWER BEIGE	8-97404-969-0	01	1	1312-
395	COVER; 3RD SEAT (B) UPPER BEIGE	8-97404-970-0	01	1	1312-
400	REST; HD,3RD SEAT LEATHER SEAT<6TB> BEIGE	8-97428-120-0	02	1	1312-
400	REST; HD,3RD SEAT CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-115-0	02	1	1312-
