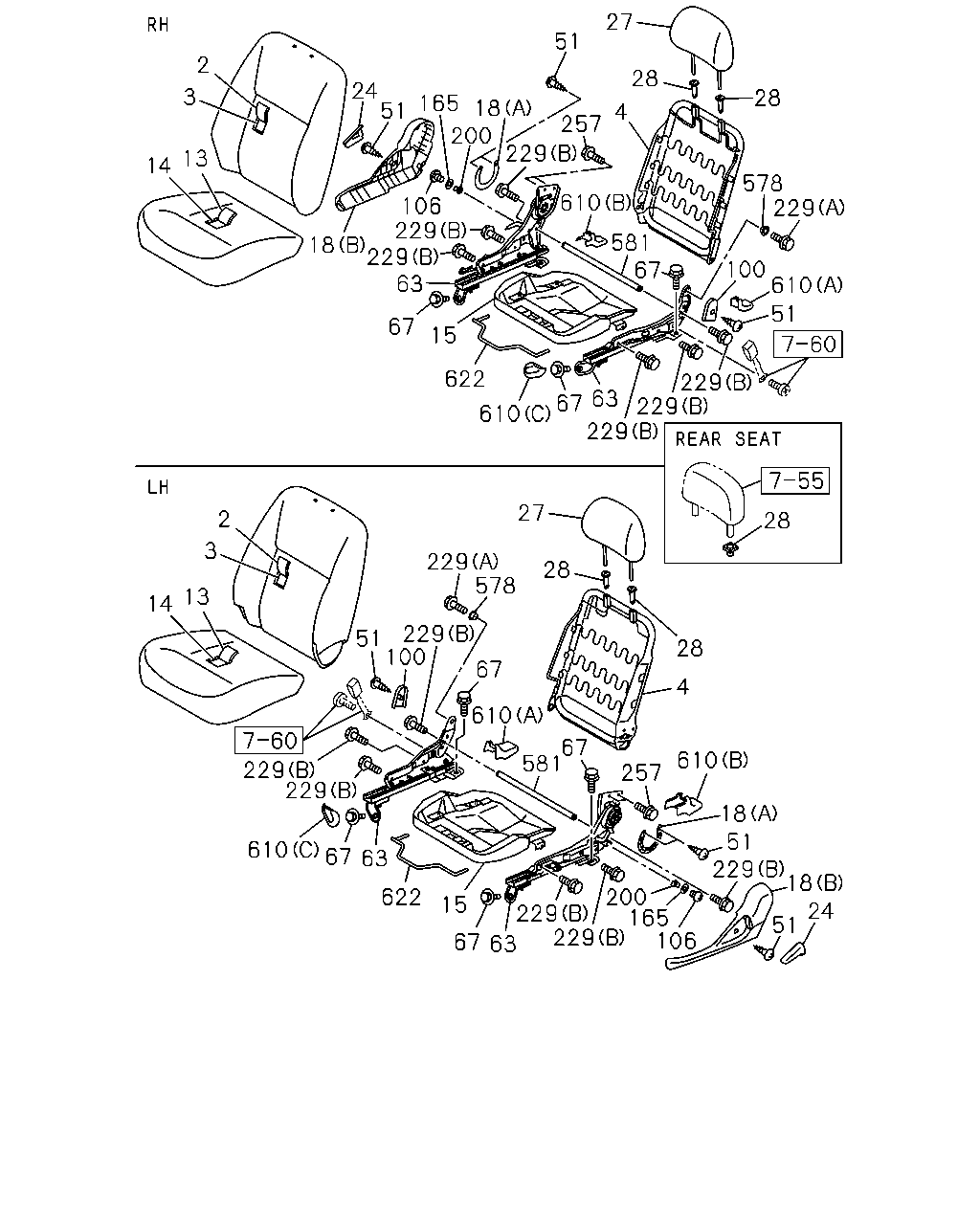

7-50 — FRONT SEAT (#132673) — 47 parça

27 28 28 578 100 229 610 51 229 229 229 63 67 610 622 15 67 63 229 229 106 18 24 51 165 200 18 51 257 229 4 610 581 67 13 14 3 2 28 27 28 28 4 610 257 67 581 610 67 229 578 229 100 51 2 3 13 14 229 229 610 67 63 622 15 67 63 229 200 165 106 51 24 18 229 51 18 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK LEATHER SEAT<6TB> BEIGE	8-97428-121-0	01	1	1312-
2	COVER; TRIM,FRT SEAT,BACK LEATHER SEAT<6TB> BEIGE	8-97428-125-0	01	1	1312-
2	COVER; TRIM,FRT SEAT,BACK CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-127-0	01	1	1312-
2	COVER; TRIM,FRT SEAT,BACK CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-131-0	01	1	1312-
3	PAD; FRT SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98250-895-0	01	1	1312-
3	PAD; FRT SEAT BACK LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98250-896-0	01	1	1312-
4	FRAME ASM; FRT SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98250-898-0	01	1	1312-
4	FRAME ASM; FRT SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-98250-899-0	01	1	1312-
13	COVER; TRIM,FRT SEAT,CUSHION LEATHER SEAT<6TB> BEIGE	8-97428-122-0	01	1	1312-
13	COVER; TRIM,FRT SEAT,CUSHION LEATHER SEAT<6TB> BEIGE	8-97428-126-0	01	1	1312-
13	COVER; TRIM,FRT SEAT,CUSHION CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-128-0	01	1	1312-
13	COVER; TRIM,FRT SEAT,CUSHION CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-132-0	01	1	1312-
14	PAD; FRT SEAT CUSHION LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97372-748-0	01	1	1312-
14	PAD; FRT SEAT CUSHION LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97372-749-0	01	1	1312-
15	FRAME; CUSHION,FRT SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97372-205-0	01	1	1312-
15	FRAME; CUSHION,FRT SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97372-206-0	01	1	1312-
18	COVER; RECLINING LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97406-014-1	01	1	1312-
18	COVER; RECLINING LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97406-015-0	01	1	1312-
18	COVER; RECLINING LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (B) BEIGE	8-97406-021-1	01	1	1312-
18	COVER; RECLINING LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> (A) BEIGE	8-97406-022-0	01	1	1312-
24	KNOB; RECLINING,FRT,SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97406-017-3	01	1	1312-
24	KNOB; RECLINING,FRT,SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97406-024-3	01	1	1312-
27	REST; HD,FRT SEAT LEATHER SEAT<6TB> BEIGE	8-97428-123-0	02	1	1312-
27	REST; HD,FRT SEAT CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97428-129-0	02	1	1312-
28	HOLDER; GUIDE,HD REST LOCK	8-98003-408-0	04	1	1312-
28	HOLDER; GUIDE,HD REST FREE	8-98003-409-0	04	1	1312-
51	SCREW; COVER	8-98003-863-0	10	1	1312-
63	ADJUSTER; SEAT SLIDE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> OUTER	8-97372-212-2	01	1	1312-
63	ADJUSTER; SEAT SLIDE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> INNER	8-97372-215-1	01	1	1312-
63	ADJUSTER; SEAT SLIDE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> OUTER	8-98023-685-0	01	1	1312-
63	ADJUSTER; SEAT SLIDE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> INNER	8-98023-687-0	01	1	1312-
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER IMA	8-98050-319-0	08	1	1312-
100	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97406-016-0	01	1	1312-
100	COVER; HINGE LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP> BEIGE	8-97406-023-0	01	1	1312-
106	SCREW	8-98003-868-0	02	1	1312-
165	WASHER; PL	8-98003-869-0	02	1	1312-
200	BRACKET; SEAT	8-98003-214-0	02	1	1312-
229	BOLT; HINGE,FRT SEAT (A)	8-98003-859-0	02	1	1312-
229	BOLT; HINGE,FRT SEAT (B)	8-98003-870-0	12	1	1312-
257	BOLT; RECLINING DEVICE	8-98003-805-0	04	1	1312-
578	BUSHING; HINGE LINK	8-98003-212-0	02	1	1312-
581	PIPE; SEAT LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97373-460-0	02	1	1312-
610	COVER; LEG,FRT SEAT (C) BLACK	8-97399-017-1	01	1	1312-
610	COVER; LEG,FRT SEAT (C) BLACK	8-97399-018-1	01	1	1312-
610	COVER; LEG,FRT SEAT (A) BEIGE	8-97404-665-2	02	1	1312-
610	COVER; LEG,FRT SEAT (B) BEIGE	8-97404-666-2	02	1	1312-
622	HANDLE; SEAT ADJUSTER LEATHER SEAT<6TB>,CLOTH SEAT MOQUETTE<8EP>	8-97373-459-0	02	1	1312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
