7-45 — CONSOLE BOX (#132672) — 52 parça

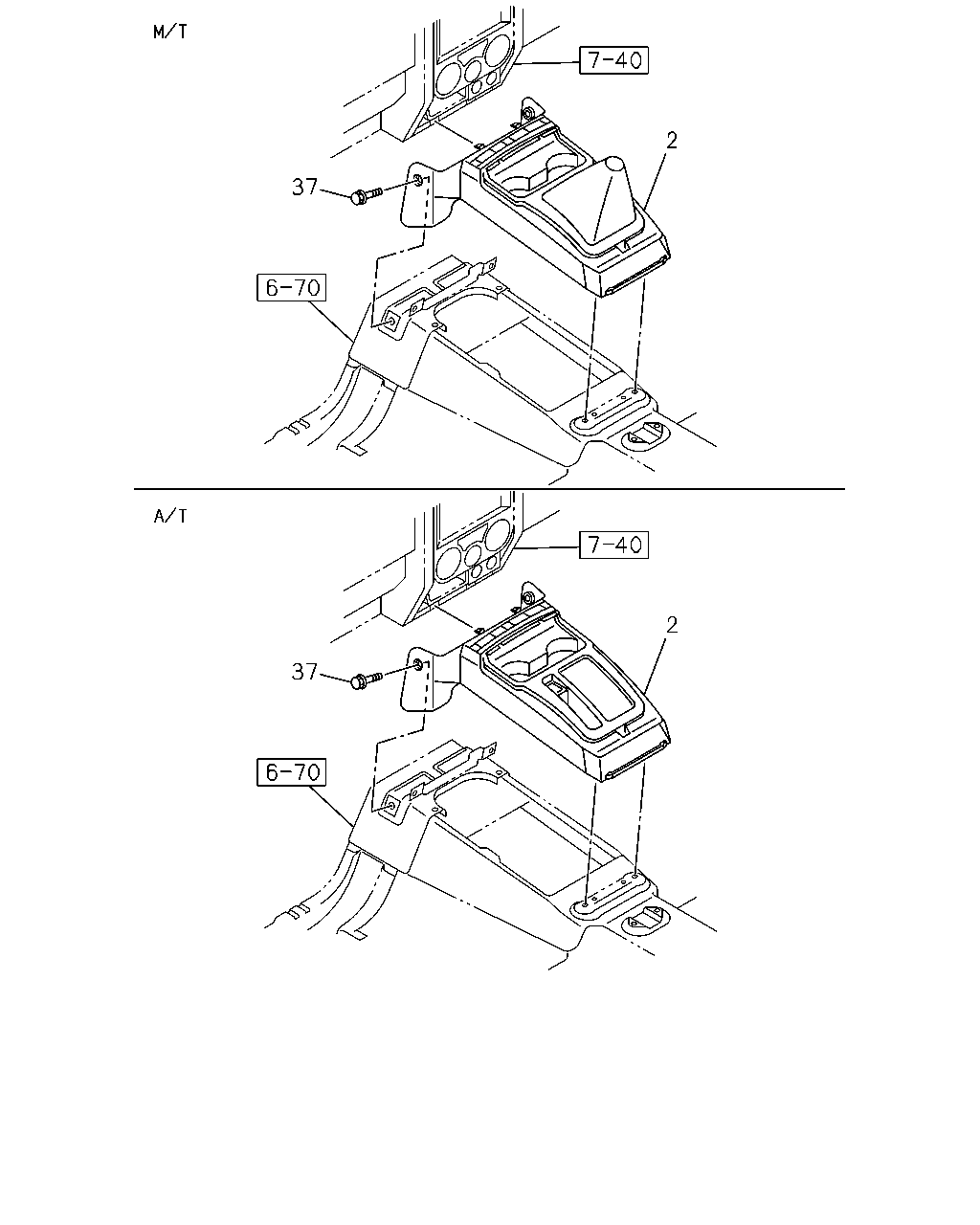

çizim 402411
37 2 37 2
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) BEIGE 		8-97407-084-1 01 1 1312-1412
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR DELUXE<B18> BEIGE 		8-97407-084-1 01 1 1501-
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) EXC. INTERIOR DELUXE<B18> BEIGE 		8-97418-097-1 01 1 1501-1501
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> BEIGE 		8-97418-097-1 01 1 1502-
2 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) WOOD GRAIN TRIM<7FB> BEIGE 		8-97466-244-0 01 1 1502-
2 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR DELUXE<B18> BEIGE 		8-97406-896-1 01 1 1506-
2 CONSOLE; CENTER
A/T AISIN(RMD) WOOD GRAIN TRIM<7FB> BEIGE 		8-97466-245-0 01 1 1506-
2 CONSOLE; CENTER
A/T AISIN(RMD) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> BEIGE 		8-97418-096-1 01 1 1506-
37 SCREW; CONSOLE
M5X16 IMA 		8-98167-220-0 02 1 1312-

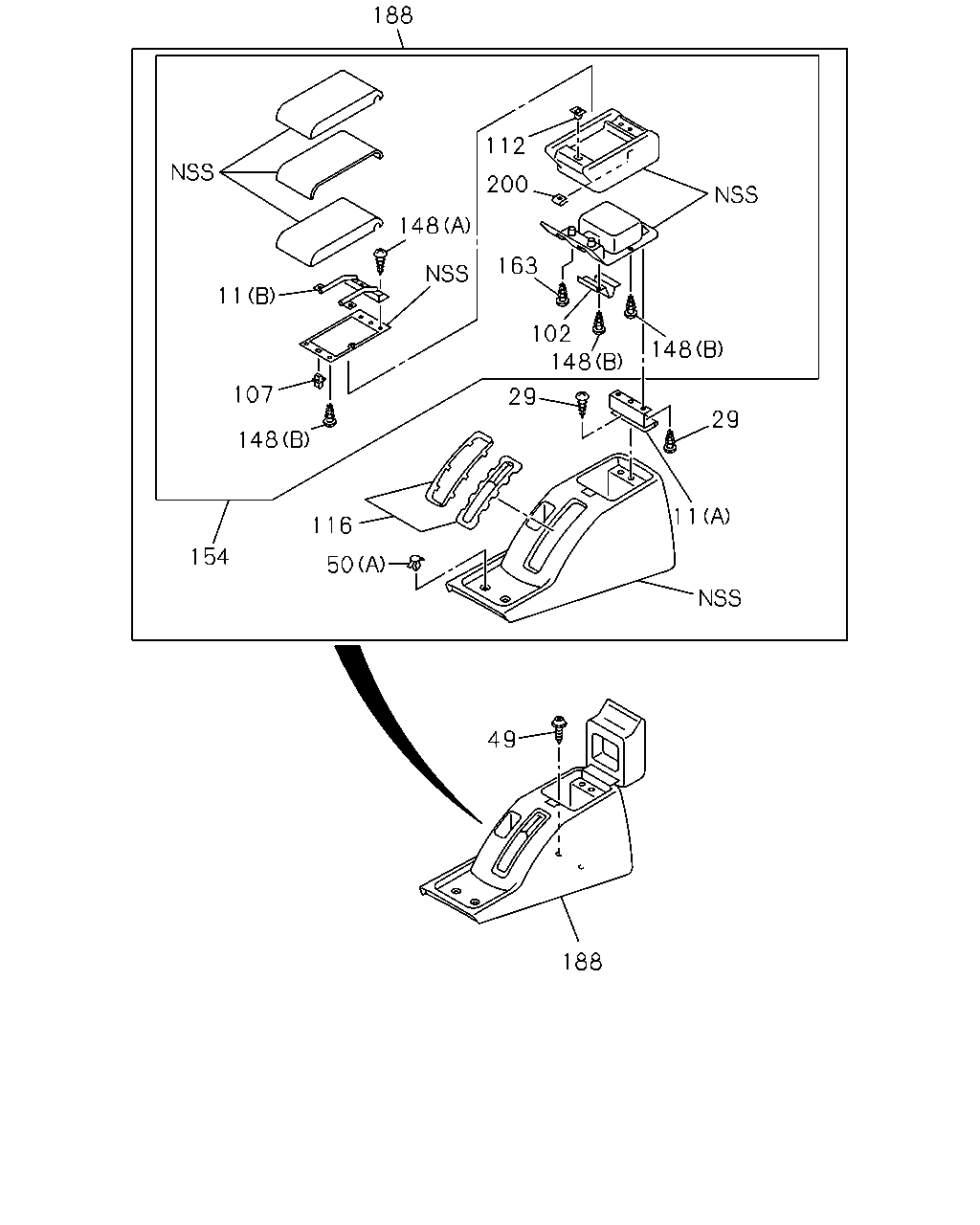

çizim 402423
11 29 148 148 102 163 200 112 188 11 107 148 116 154 50 29 148 49 188
BalonParca AdiParca NoAdetTipApplied Date
11 HINGE; CONSOLE LID
(A) 		8-97349-645-0 01 1 1312-
11 HINGE; CONSOLE LID
(B) 		8-97349-646-0 01 1 1312-
29 SCREW; HINGE
M5X16 		8-94279-312-0 05 1 1312-
49 SCREW; CONSOLE
M5X16 IMA 		8-98167-220-0 02 1 1312-
50 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 1312-
50 CLIP; CONSOLE
(C) 		8-97388-958-0 02 1 1312-
50 CLIP; CONSOLE
(B) BEIGE 		8-97404-621-0 02 1 1312-
102 LOCK ASM; RR CONSOLE 8-97349-650-0 01 1 1312-
107 LOCK; LID,RR CONSOLE 8-97349-644-0 01 1 1312-
112 LOCK; HOLE,RR CONSOLE 8-97349-643-0 01 1 1312-
116 COVER; HOLE,CONSOLE,RR
BEIGE 		8-97422-809-0 01 1 1312-
148 SCREW; LID,CONSOLE
(B) M4X14 		8-97349-647-0 13 1 1312-
148 SCREW; LID,CONSOLE
(A) M5X14 		8-97349-872-0 03 1 1312-
154 LID ASM; RR CONSOLE
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-956-1 01 1 1312-
154 LID ASM; RR CONSOLE
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-813-0 01 1 1312-
163 RUBBER; CUSHION,PARCEL BOX LID 8-97349-682-0 02 1 1312-
188 CONSOLE; RR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-600-1 01 1 1312-
188 CONSOLE; RR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97422-774-0 01 1 1312-
200 NUT; SPIRE,SPR LID 8-97349-642-0 03 1 1312-

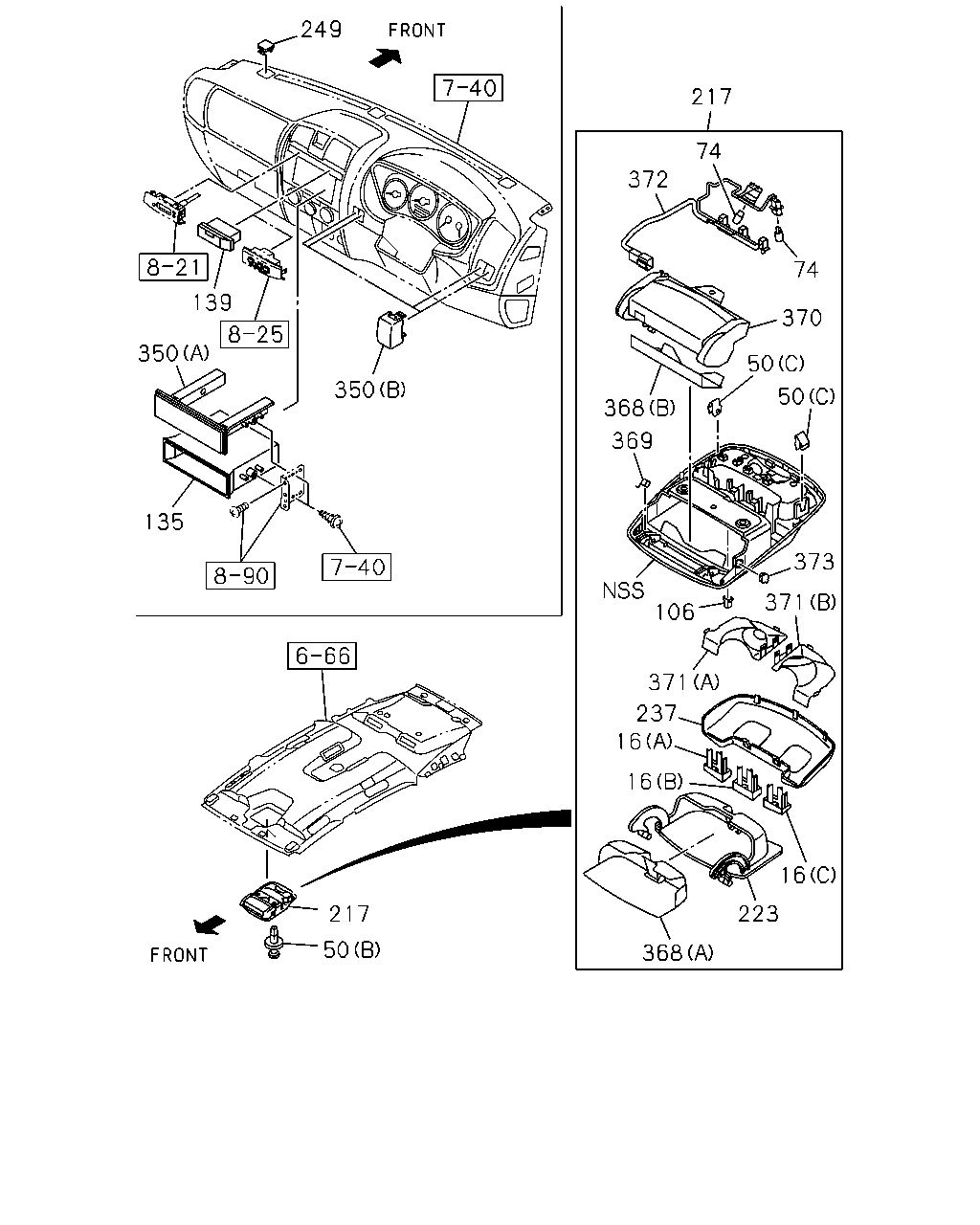

çizim 498337
373 16 223 16 16 371 106 237 371 369 50 50 368 372 217 74 74 249 139 350 135 350 217 50 370 368
BalonParca AdiParca NoAdetTipApplied Date
16 KNOB ASM
(A) BEIGE 		8-97404-793-1 01 1 1312-
16 KNOB ASM
(B) BEIGE 		8-97404-794-1 01 1 1312-
16 KNOB ASM
(C) BEIGE 		8-97404-795-1 01 1 1312-
50 CLIP; CONSOLE
(A) 		8-97355-734-0 02 1 1312-
50 CLIP; CONSOLE
(C) 		8-97388-958-0 02 1 1312-
50 CLIP; CONSOLE
(B) BEIGE 		8-97404-621-0 02 1 1312-
74 BULB; CONSOLE 8-97388-953-0 02 1 1312-
106 LOCK; CONSOLE LID 8-97388-944-0 01 1 1312-
135 BOX; CONSOLE,LWR
DARK GRAY 		8-97396-595-0 01 1 1312-
139 BOX; CONSOLE,UPR
LIGHT GRAY 		8-97403-311-2 01 1 1312-
217 CONSOLE; HEADER
BEIGE 		8-97404-620-3 01 1 1312-
223 LID; HEADER CONSOLE
BEIGE 		8-97404-792-0 01 1 1312-
237 LENS; HEADER CONSOLE 8-97371-299-0 01 1 1312-
249 COVER
BLACK 		8-97422-663-0 03 1 1312-
350 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 1312-
350 COVER; CONSOLE
EXC. REAR COOLER WO/HEATER<C69> (B) DARK GRAY 		8-97396-598-0 01 1 1312-
368 SHEET; CASE,HEADER CONSOLE
(A) 		8-97388-945-0 01 1 1312-
368 SHEET; CASE,HEADER CONSOLE
(B) 		8-97388-948-0 01 1 1312-
369 SPRING; LID,HEADER CONSOLE 8-97388-946-0 01 1 1312-
370 CASE; HEADER CONSOLE 8-97388-947-0 01 1 1312-
371 REFLECTOR; LAMP,HEADER CONSOLE
(A) 		8-97388-949-0 01 1 1312-
371 REFLECTOR; LAMP,HEADER CONSOLE
(B) 		8-97388-950-0 01 1 1312-
372 HARNESS ASM; SWITCH,HEADER CONSOLE 8-97388-951-0 01 1 1312-
373 DAMPER; LID,HEADER CONSOLE 8-97388-954-0 01 1 1312-
