◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#132670) — 13 parça

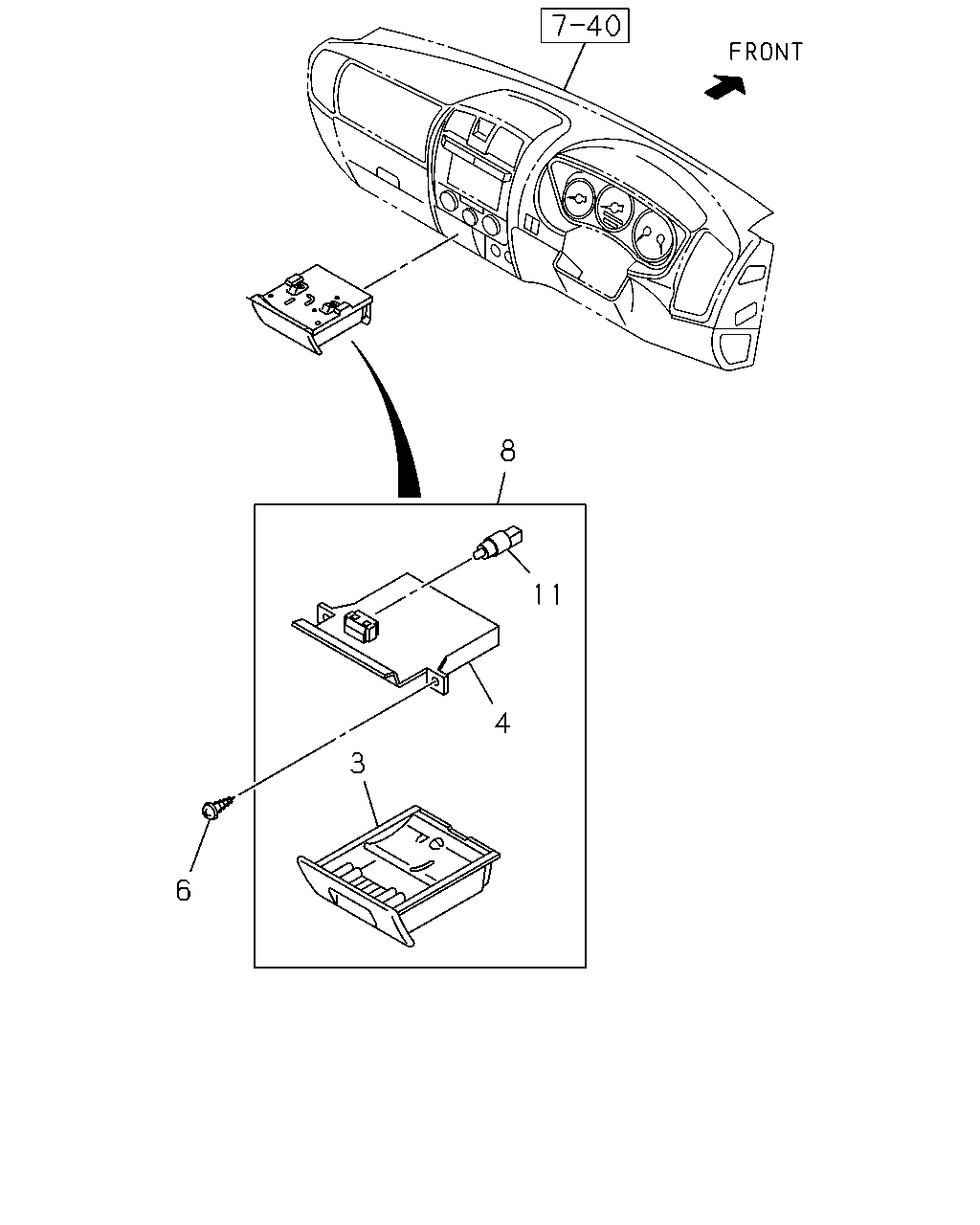

çizim 401708
8 11 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
3 CASE ASM; ASH TRAY INNER 8-98044-026-0 01 1 1312-1412
3 CASE ASM; ASH TRAY INNER
INTERIOR DELUXE<B18> 		8-98044-026-0 01 1 1501-
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR DELUXE<B18> 		8-98149-240-0 01 1 1501-1501
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> 		8-98149-240-0 01 1 1502-
3 CASE ASM; ASH TRAY INNER
WOOD GRAIN TRIM<7FB> 		8-98297-977-0 01 1 1502-
4 CASE ASM; ASH TRAY OUTER 8-98044-027-0 01 1 1312-
6 SCREW; ASH TRAY
M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-
8 TRAY ASM; ASH 8-98034-823-0 01 1 1312-1412
8 TRAY ASM; ASH
INTERIOR DELUXE<B18> 		8-98034-823-0 01 1 1501-
8 TRAY ASM; ASH
EXC. INTERIOR DELUXE<B18> 		8-98149-230-0 01 1 1501-1501
8 TRAY ASM; ASH
EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> 		8-98149-230-0 01 1 1502-
8 TRAY ASM; ASH
WOOD GRAIN TRIM<7FB> 		8-98297-972-0 01 1 1502-
11 BULB; ASH TRAY 8-97308-651-0 01 1 1312-
