◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#132669) — 68 parça

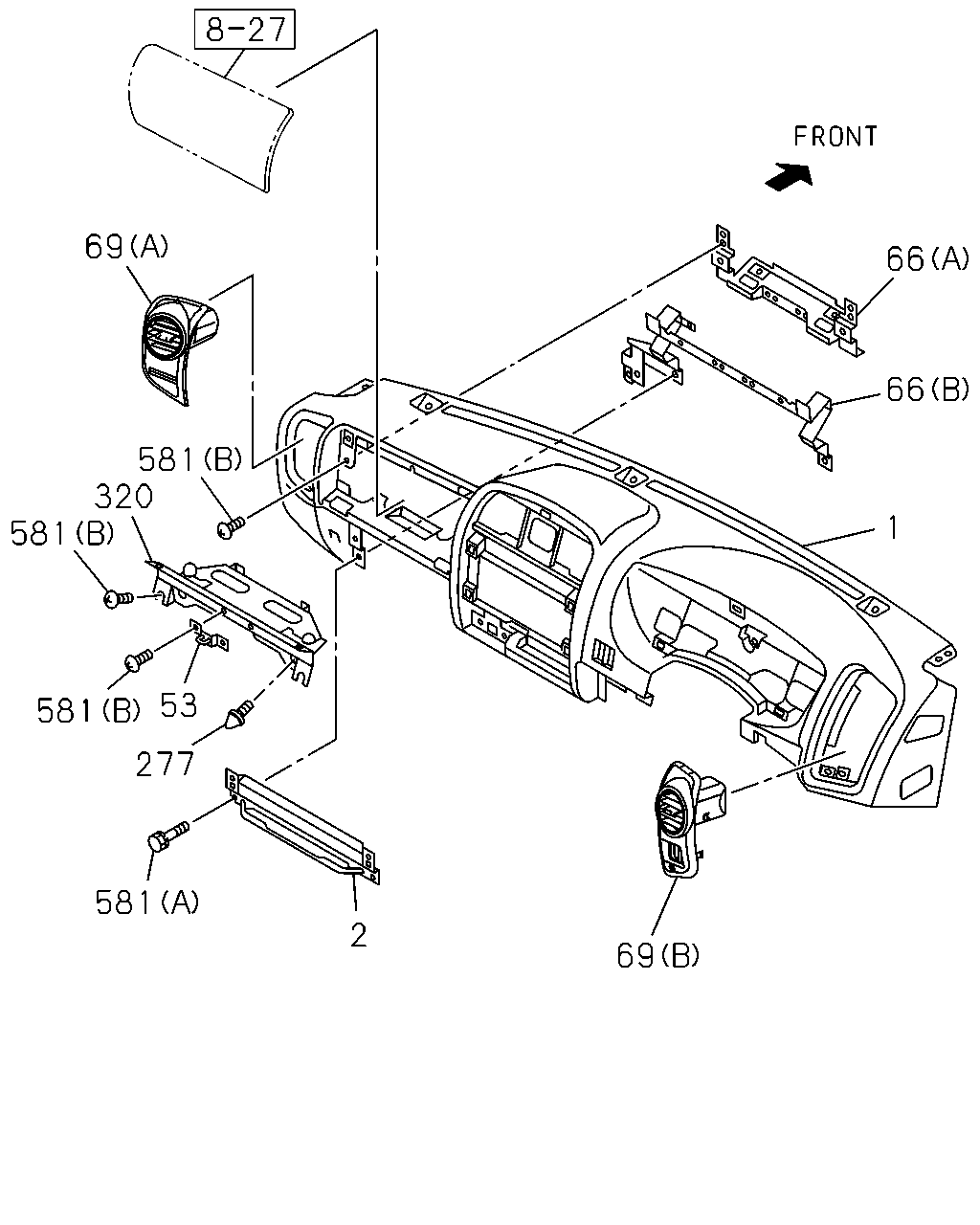

çizim 402383
66 66 1 69 2 581 277 581 53 581 581 69 320
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
BLACK 		8-97426-493-0 01 1 1312-
2 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 1312-
53 STRIKER; GLOVE BOX 8-97308-646-0 01 1 1312-
66 REINFORCEMENT; INST PANEL
(A) 		8-97308-641-0 01 1 1312-
66 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 1312-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98034-825-2 01 1 1312-1412
69 GRILLE; SIDE,AIR OUTLET
INTERIOR DELUXE<B18> (A) 		8-98034-825-2 01 1 1501-
69 GRILLE; SIDE,AIR OUTLET
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18> (A) 		8-98156-366-0 01 1 1501-1501
69 GRILLE; SIDE,AIR OUTLET
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (A) 		8-98156-366-0 01 1 1502-
69 GRILLE; SIDE,AIR OUTLET
WOOD GRAIN TRIM<7FB> (A) 		8-98297-971-0 01 1 1502-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98034-827-2 01 1 1312-1412
69 GRILLE; SIDE,AIR OUTLET
INTERIOR DELUXE<B18> (B) 		8-98034-827-2 01 1 1501-
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR DELUXE<B18> (B) 		8-98154-837-0 01 1 1501-1501
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (B) 		8-98154-837-0 01 1 1502-
69 GRILLE; SIDE,AIR OUTLET
WOOD GRAIN TRIM<7FB> (B) 		8-98297-989-0 01 1 1502-
277 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 1312-
320 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 1312-
581 SCREW
(A) M6X20 W/WASHER IMA 		8-98056-282-0 03 1 1312-
581 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 11 1 1312-1412
581 SCREW
INTERIOR DELUXE<B18> (B) M5X16 TAPPING 		8-98061-683-0 11 1 1501-1501
581 SCREW
INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (B) M5X16 TAPPING 		8-98061-683-0 11 1 1502-
581 SCREW
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18> (B) M5X16 TAPPING 		8-98061-683-0 13 1 1501-1501
581 SCREW
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (B) M5X16 TAPPING 		8-98061-683-0 13 1 1502-
581 SCREW
RADIO DELETE(UL5) (C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-
581 SCREW
(C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-

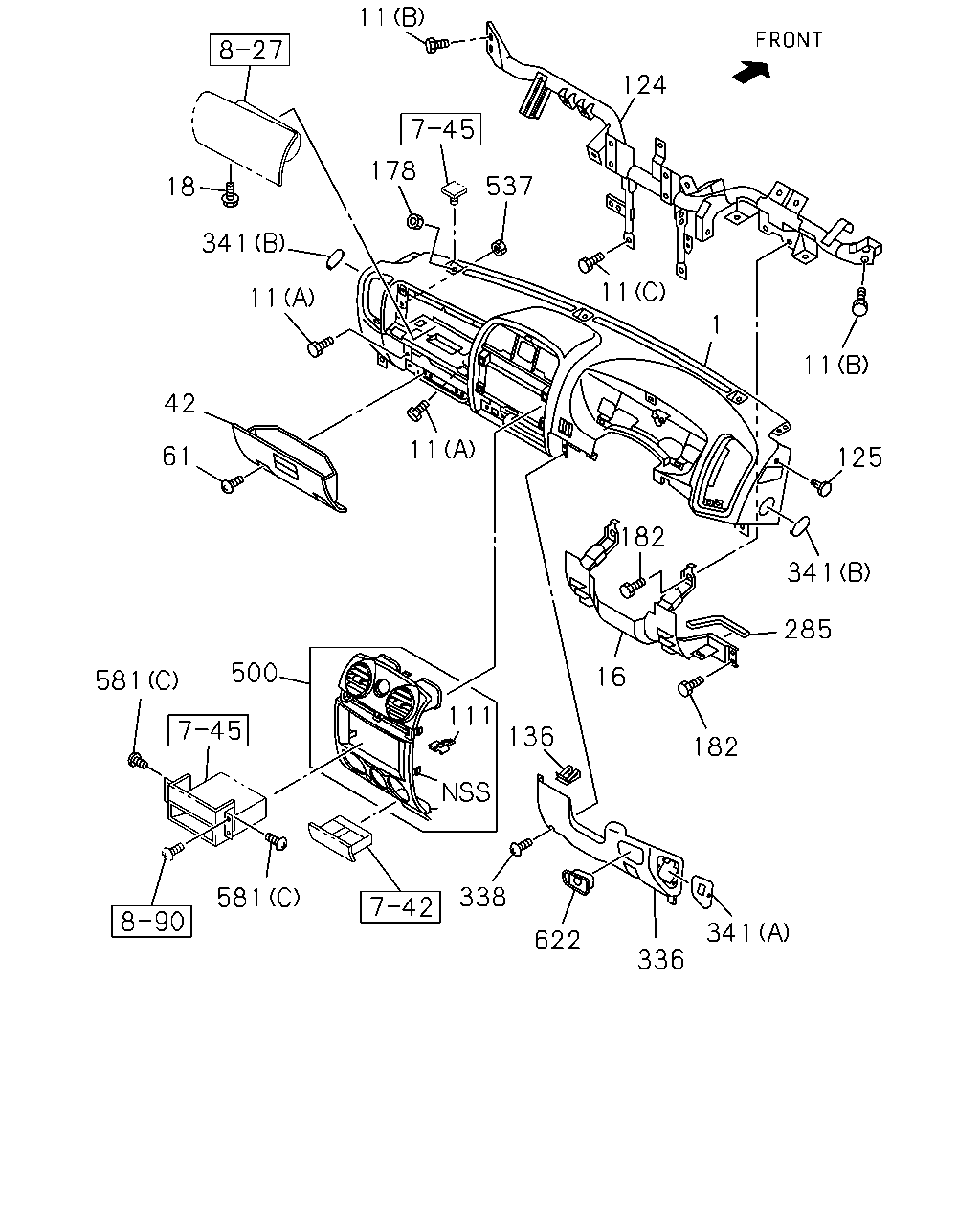

çizim 402410
11 178 537 124 1 11 125 11 182 16 182 285 341 341 336 622 338 111 136 581 500 581 61 42 11 11 341 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
BLACK 		8-97426-493-0 01 1 1312-
11 BOLT; INST PNL
(A) M6X20 W/WASHER IMA 		8-98056-282-0 06 1 1312-
11 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 1312-
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER IMA 		8-98057-965-0 04 1 1312-
16 BRACKET; INST PNL 8-98043-124-0 01 1 1312-
18 BOLT; BRKT
M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 1312-
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 1312-1501
42 BOX; GLOVE,INST PNL
BEIGE 		8-97466-316-0 01 1 1502-
61 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1312-
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-97137-828-0 06 1 1312-1412
111 CLIP; CLUSTER PANEL,GRILLE
INTERIOR DELUXE<B18> T=0.5 		8-97137-828-0 06 1 1501-
111 CLIP; CLUSTER PANEL,GRILLE
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18> T=0.5 		8-98061-356-0 06 1 1501-1501
111 CLIP; CLUSTER PANEL,GRILLE
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> T=0.5 		8-98061-356-0 06 1 1502-
111 CLIP; CLUSTER PANEL,GRILLE
WOOD GRAIN TRIM<7FB> T=0.5 		8-98061-356-0 06 1 1502-
124 REINFORCEMENT; INST PNL,UPR 8-98110-168-0 01 1 1312-
125 CLIP; INST PANEL 8-97310-401-0 01 1 1312-
136 CLIP; INST COVER
T=0.5 		8-98061-356-0 04 1 1312-
178 NUT; INST PANEL
M6 FLANGE IMA 		8-98055-704-0 03 1 1312-
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER IMA 		8-98056-282-0 04 1 1312-
285 FINISHER; INST PANEL
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1312-
336 COVER; INST PANEL SIDE
BLACK 		8-97422-814-0 01 1 1312-1501
336 COVER; INST PANEL SIDE
BEIGE 		8-97466-317-0 01 1 1502-
338 SCREW; COVER
M5X16 TAPPING 		8-98167-214-0 01 1 1312-
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 1312-
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 1312-
341 LID; FUSE BOX
(A) BLACK 		8-97422-818-0 01 1 1312-1501
341 LID; FUSE BOX
(A) BEIGE 		8-97466-318-0 01 1 1502-
500 CLUSTER; INST CENTER 8-98237-635-0 01 1 1312-1412
500 CLUSTER; INST CENTER
INTERIOR DELUXE<B18> 		8-98237-635-0 01 1 1501-
500 CLUSTER; INST CENTER
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18> 		8-98237-636-0 01 1 1501-1501
500 CLUSTER; INST CENTER
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> 		8-98237-636-0 01 1 1502-
500 CLUSTER; INST CENTER
WOOD GRAIN TRIM<7FB> 		8-98297-988-0 01 1 1502-
537 NUT; BRKT
M6 W/DISHED WASHER 		8-98073-372-0 02 1 1312-
581 SCREW
(A) M6X20 W/WASHER IMA 		8-98056-282-0 03 1 1312-
581 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 11 1 1312-1412
581 SCREW
INTERIOR DELUXE<B18> (B) M5X16 TAPPING 		8-98061-683-0 11 1 1501-1501
581 SCREW
INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (B) M5X16 TAPPING 		8-98061-683-0 11 1 1502-
581 SCREW
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18> (B) M5X16 TAPPING 		8-98061-683-0 13 1 1501-1501
581 SCREW
AM/FM,CLOCK,CD PLAYER(U1C) EXC. INTERIOR DELUXE<B18>,WOOD GRAIN TRIM<7FB> (B) M5X16 TAPPING 		8-98061-683-0 13 1 1502-
581 SCREW
RADIO DELETE(UL5) (C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-
581 SCREW
(C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-
622 BOX; IDLE CONT
BLACK 		8-97422-820-0 01 1 1312-1501
622 BOX; IDLE CONT
BEIGE 		8-97466-319-0 01 1 1502-
