Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

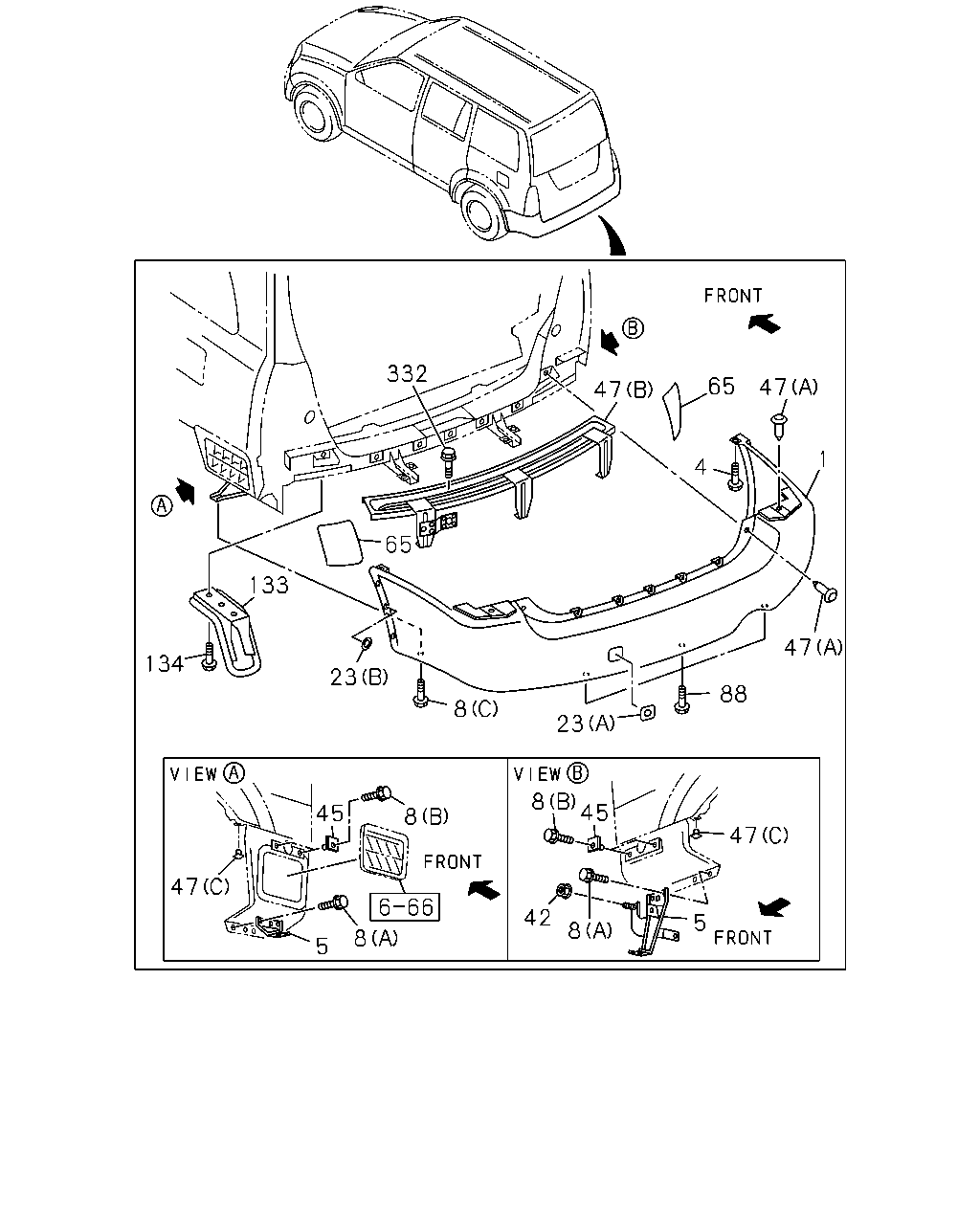

6-90 — REAR BUMPER
(#132664) — 19 parça
47
4
65
47
1
47
88
23
8
23
133
134
65
332
8
8
45
47
5
8
5
47
45
8
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER; RR
PLEASE PAINT TO MATCH BODY COLOR
8-97387-956-0
01
1
1312-
4
BOLT; BUMPER
M6X20 TAPPING W/PL WASHER IMA
8-98167-444-0
02
1
1312-
5
SUPPORT; RR BUMPER
8-97361-377-1
01
1
1312-
5
SUPPORT; RR BUMPER
8-97361-378-1
01
1
1312-
8
BOLT; RR SIDE BUMPER
(A) M6X16 FLANGE IMA
0-28650-616-0
04
1
1312-
8
BOLT; RR SIDE BUMPER
(C) M6X12 FLANGE
8-98049-359-0
02
1
1312-
8
BOLT; RR SIDE BUMPER
(B) M6X20 TAPPING W/PL WASHER IMA
8-98167-444-0
04
1
1312-
23
COVER; RR BUMPER,HOLE
(B)
8-97387-938-0
06
1
1312-
23
COVER; RR BUMPER,HOLE
(A) GRAY
8-97369-486-1
01
1
1312-
42
NUT; RR SIDE BUMPER
M6 FLANGE IMA
0-91180-106-0
01
1
1312-
45
REINFORCEMENT; RR BUMPER
8-97363-878-0
04
1
1312-
47
RETAINER; BUMPER RR CENTER
(C) D=9.7X9.7 L=8 IMA
8-94222-314-0
02
1
1312-
47
RETAINER; BUMPER RR CENTER
(A) IMA
8-97301-188-0
09
1
1312-
47
RETAINER; BUMPER RR CENTER
(B)
8-97353-959-3
01
1
1312-
65
GUARD; CHIP,RR BUMPER
8-98151-490-0
02
1
1312-
88
BOLT; RET TO BODY
M6X12 FLANGE
8-98049-359-0
03
1
1312-
133
HOOK
8-97944-091-0
01
1
1312-
134
BOLT; HOOK
M10X30 FLANGE IMA
0-28661-030-0
03
1
1312-
332
BOLT; STEP
M8X25 FLANGE
8-98048-998-0
04
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
