◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#132662) — 15 parça

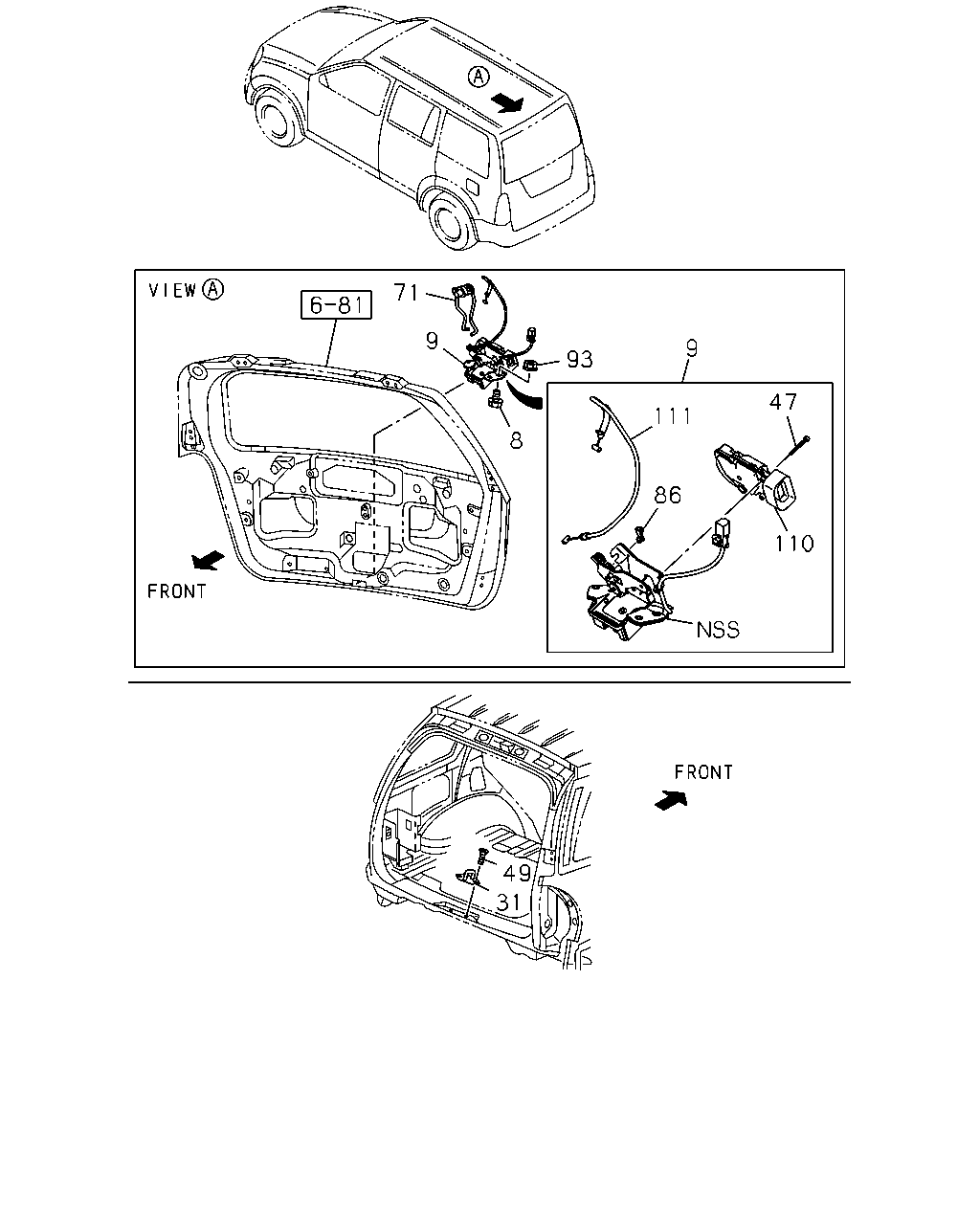

çizim 402052
71 9 8 93 9 47 110 86 111 49 31
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; TAIL GATE LOCK
M6X16 FLANGE IMA 		0-28450-616-0 03 1 1312-
9 LOCK; TRUNK LID 8-98050-416-0 01 1 1312-
31 STRIKER; TAIL GATE 8-98050-331-0 01 1 1312-
47 SCREW; TAIL GATE LK 8-97388-312-0 03 1 1312-
49 SCREW; STRIKER TO TAIL GATE
M8X20 W/TORQUES 		8-98049-356-0 02 1 1312-
71 LINK; TAIL GATE 8-97363-363-2 01 1 1312-
86 HOLDER; LINK ROD 8-97388-310-0 01 1 1312-
93 NUT; LOCK
M8 FLANGE 		8-98049-361-0 04 1 1312-
110 ACTUATOR; TAIL GATE LK 8-97388-311-0 01 1 1312-
111 CABLE; TAIL GATE LK 8-97388-313-0 01 1 1312-

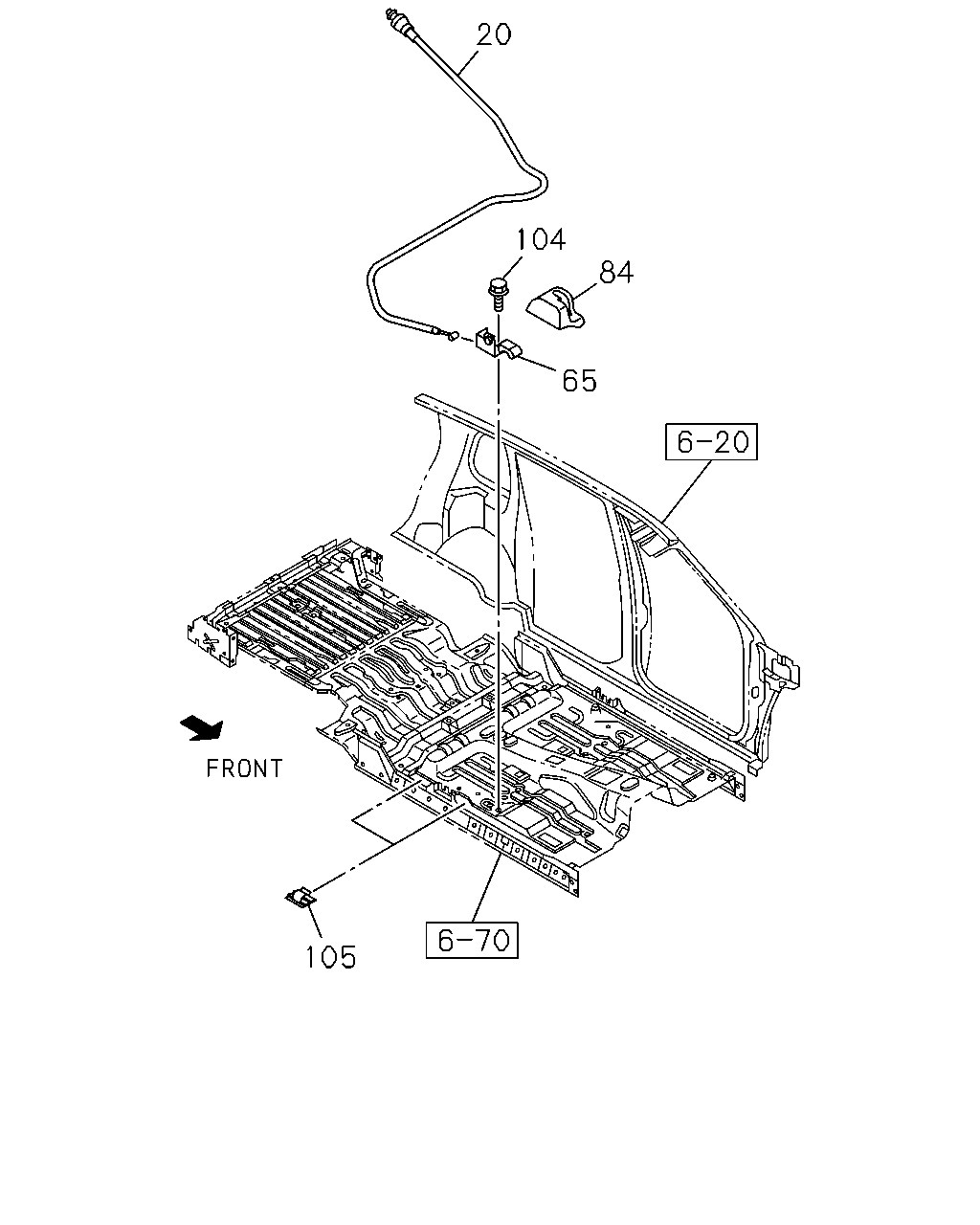

çizim 402379
20 104 65 84 105
BalonParca AdiParca NoAdetTipApplied Date
20 CABLE; TRUNK LID & FUEL FILLER 8-97361-255-0 01 1 1312-
65 KNOB; FUEL FILLER DOOR
DARK GRAY 		8-97405-953-0 01 1 1312-
84 COVER; BRKT
BEIGE 		8-97404-676-2 01 1 1312-
104 BOLT; KNOB
M6X16 FLANGE IMA 		0-28650-616-0 02 1 1312-
105 CLIP; CABLE,FUEL LID OPENER
ID=7 IMA 		8-98158-303-0 04 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
