51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-83 - BACK DOOR LOCK AND HANDLE
▶
6-83 — BACK DOOR LOCK AND HANDLE
(#132660) — 21 parça
◀

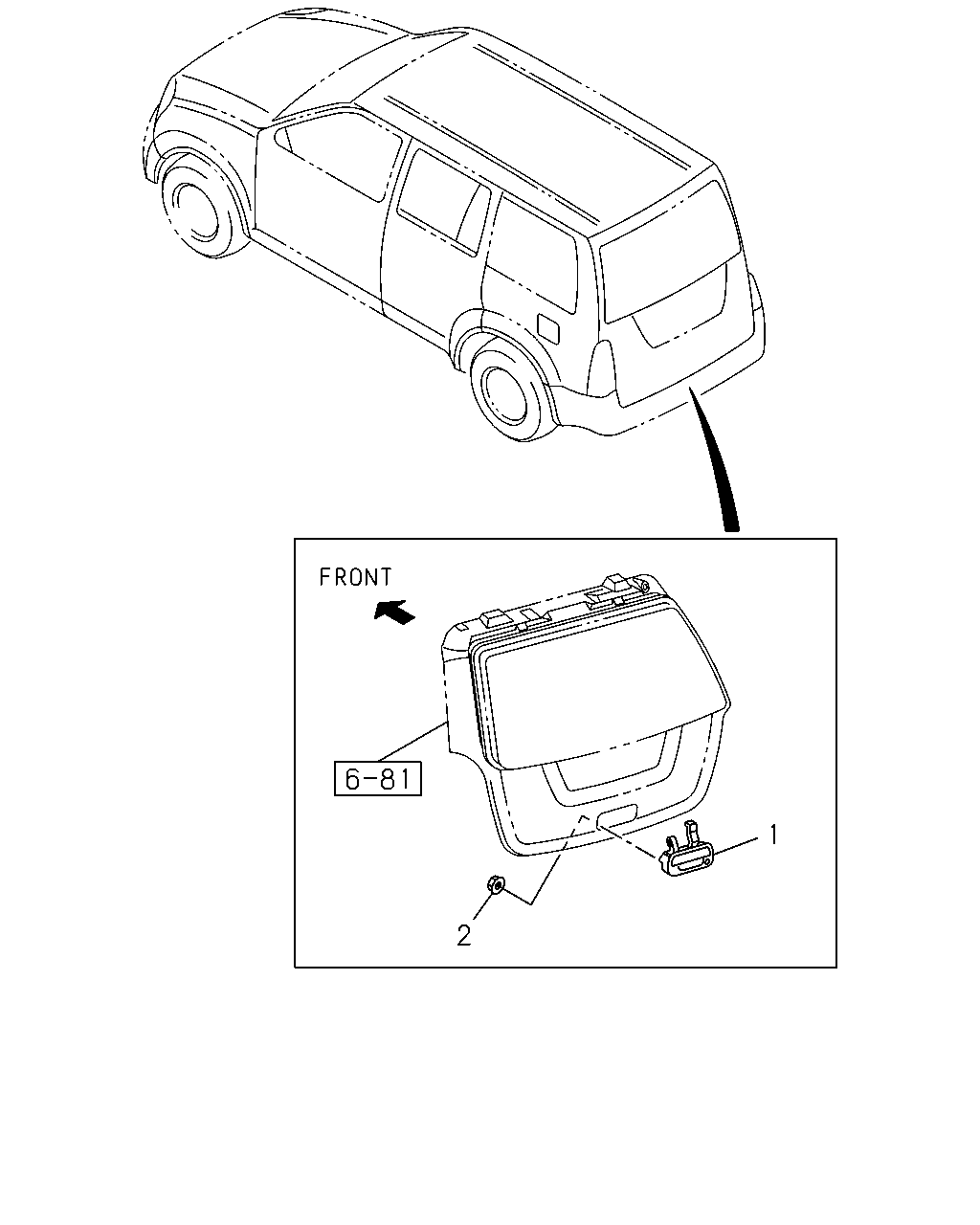

[683A] NO.2 (2 parça)

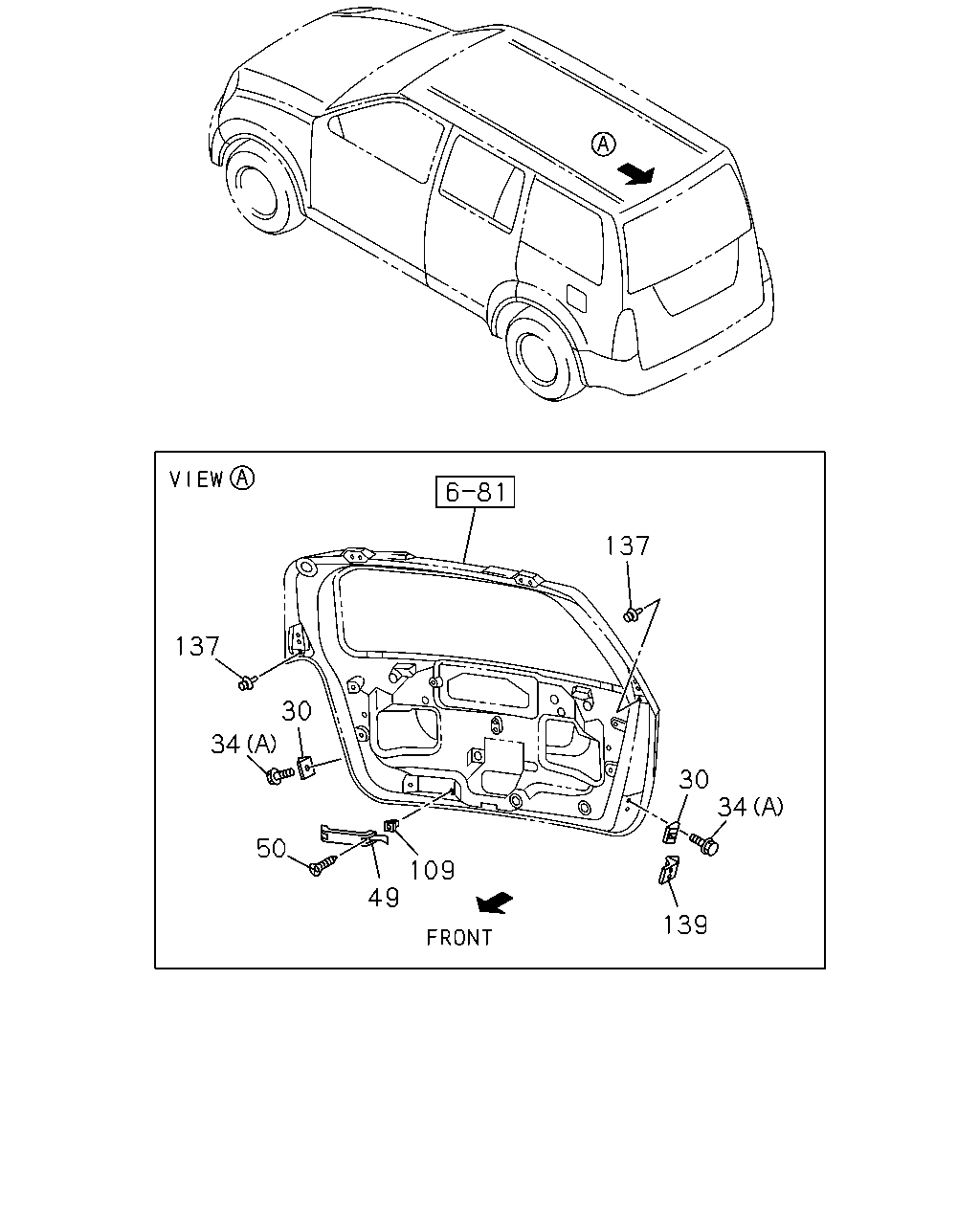

[683A] NO.1 (8 parça)

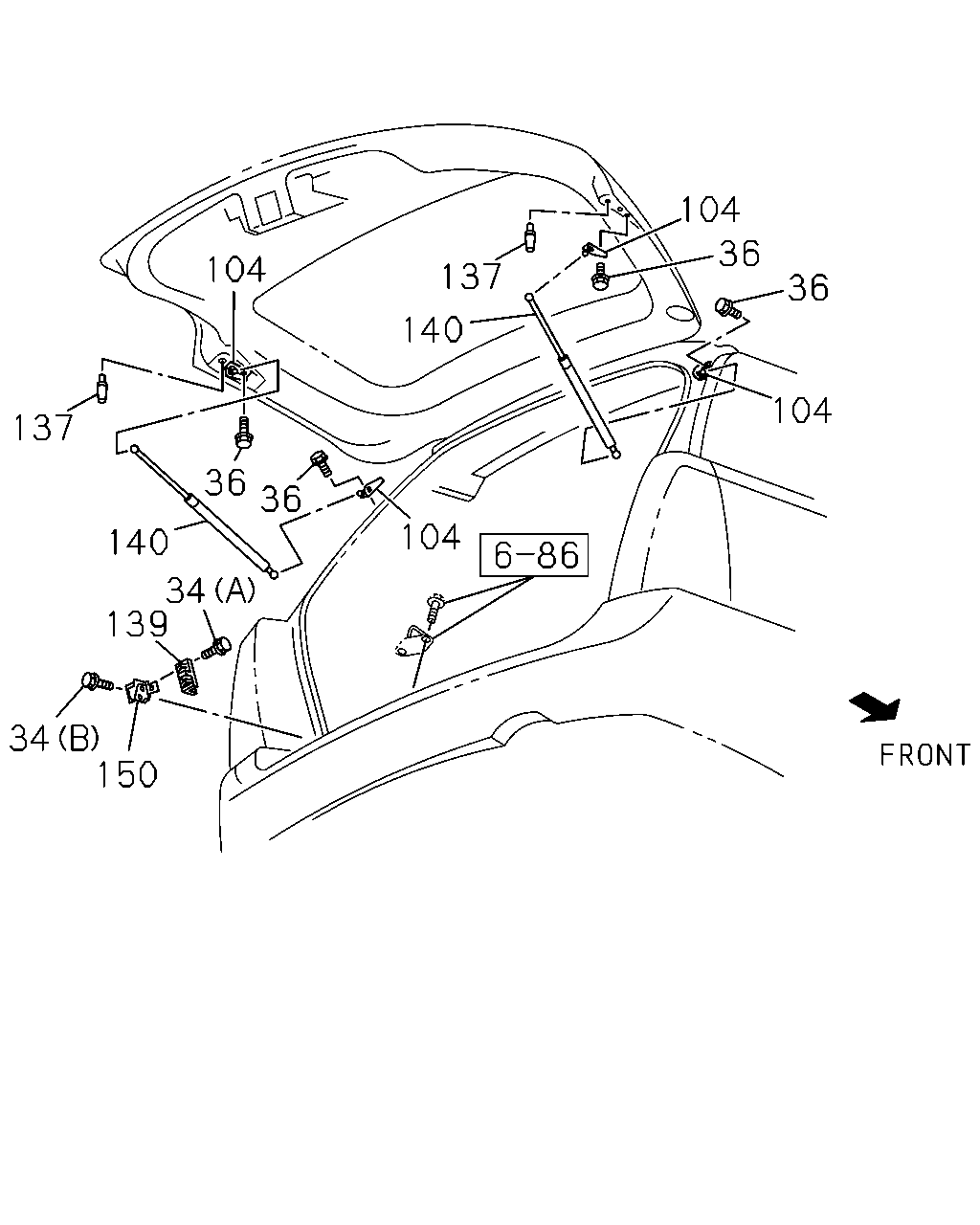

[683A] NO.3 (11 parça)
▶
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,BACK DOOR
8-98252-799-0
01
1
1312-
2
NUT; HANDLE TO BACK DOOR
M6 FLANGE IMA
8-98049-362-0
02
1
1312-
137
30
137
34
50
49
109
30
34
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
DOVETAIL; BACK DOOR
8-97234-389-3
02
1
1312-
34
BOLT; DOVETAIL TO BACK DOOR
(B) M6X18
8-98056-280-0
06
1
1312-
34
BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER
8-98125-360-0
06
1
1312-
49
GRIP; ASSIST BACK DOOR
BEIGE
8-97404-658-0
01
1
1312-
50
SCREW; ASSIST GRIP
M6X30 TAPPING
0-71040-630-0
02
1
1312-
109
GROMMET; SCREW
8-94159-130-0
02
1
1312-
137
CUSHION; BACK DOOR
8-97258-864-0
02
1
1312-
139
DOVETAIL; BODY
8-97234-392-0
02
1
1312-
104
36
36
104
137
140
104
137
140
139
34
36
36
104
34
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
BOLT; DOVETAIL TO BACK DOOR
(B) M6X18
8-98056-280-0
06
1
1312-
34
BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER
8-98125-360-0
06
1
1312-
36
BOLT; LINK
M6X16 FLANGE IMA
8-98049-357-0
08
1
1312-
104
BRACKET
8-97367-642-0
02
1
1312-
104
BRACKET
8-97367-643-0
02
1
1312-
137
CUSHION; BACK DOOR
8-97258-864-0
02
1
1312-
139
DOVETAIL; BODY
8-97234-392-0
02
1
1312-
140
STAY; TAIL GATE
8-98089-811-0
01
1
1312-
140
STAY; TAIL GATE
8-98089-812-0
01
1
1312-
150
BRACKET; STOPPER
8-97360-740-1
01
1
1312-
150
BRACKET; STOPPER
8-97360-741-1
01
1
1312-
