◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#132654) — 58 parça

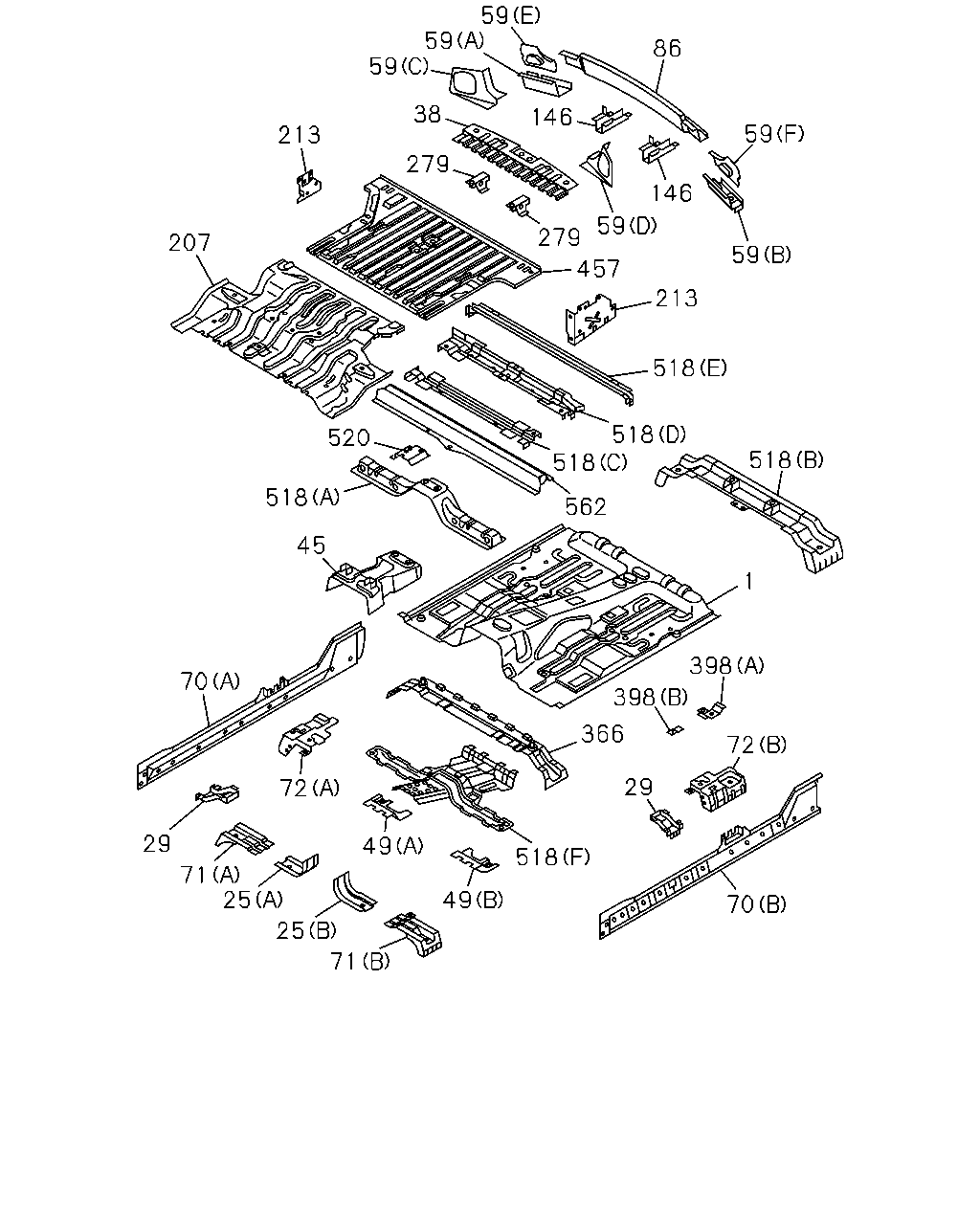

çizim 401824
70 72 398 398 366 518 49 49 72 29 71 25 25 71 70 45 518 520 518 562 518 518 213 59 518 1 29 207 213 59 59 59 38 279 279 59 146 457 59 86 146
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
M/T MUX 5 SPEED 5S(MZJ) 		8-97357-509-0 01 1 1312-1505
1 PANEL; FLOOR 8-97357-509-0 01 1 1506-
25 REINFORCEMENT; FRAME FLOOR,FRT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97235-810-1 01 1 1312-1505
25 REINFORCEMENT; FRAME FLOOR,FRT
(A) 		8-97235-810-1 01 1 1506-
25 REINFORCEMENT; FRAME FLOOR,FRT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97235-811-1 01 1 1312-1505
25 REINFORCEMENT; FRAME FLOOR,FRT
(B) 		8-97235-811-1 01 1 1506-
29 GUSSET
M/T MUX 5 SPEED 5S(MZJ) 		8-97349-433-0 02 1 1312-1505
29 GUSSET 8-97349-433-0 02 1 1506-
38 CLOSING; RR END 8-97361-196-0 01 1 1312-
45 REINFORCEMENT; TUNNEL,FRT
M/T MUX 5 SPEED 5S(MZJ) 		8-98152-774-0 01 1 1312-
45 REINFORCEMENT; TUNNEL,FRT
A/T AISIN(RMD) 		8-97380-608-0 01 1 1506-
49 BRACKET; HEAT PROTECTOR,FRT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97334-434-0 01 1 1312-1505
49 BRACKET; HEAT PROTECTOR,FRT
(A) 		8-97334-434-0 01 1 1506-
49 BRACKET; HEAT PROTECTOR,FRT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97334-435-0 01 1 1312-1505
49 BRACKET; HEAT PROTECTOR,FRT
(B) 		8-97334-435-0 01 1 1506-
59 EXTENSION; RR END CLOSING
(A) 		8-97359-896-2 01 1 1312-
59 EXTENSION; RR END CLOSING
(B) 		8-97359-897-2 01 1 1312-
59 EXTENSION; RR END CLOSING
(C) 		8-97359-909-1 01 1 1312-
59 EXTENSION; RR END CLOSING
(D) 		8-97359-910-1 01 1 1312-
59 EXTENSION; RR END CLOSING
(E) 		8-97360-043-0 01 1 1312-
59 EXTENSION; RR END CLOSING
(F) 		8-97360-044-0 01 1 1312-
70 PANEL; ROCKER INNER
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97361-194-2 01 1 1312-1505
70 PANEL; ROCKER INNER
(A) 		8-97361-194-2 01 1 1506-
70 PANEL; ROCKER INNER
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97361-195-2 01 1 1312-1505
70 PANEL; ROCKER INNER
(B) 		8-97361-195-2 01 1 1506-
71 BRACKET; CAB MTG,CENTER
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97363-846-0 01 1 1312-1505
71 BRACKET; CAB MTG,CENTER
(A) 		8-97363-846-0 01 1 1506-
71 BRACKET; CAB MTG,CENTER
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97363-847-0 01 1 1312-1505
71 BRACKET; CAB MTG,CENTER
(B) 		8-97363-847-0 01 1 1506-
72 BRACKET; CAB MTG,RR
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97367-941-0 01 1 1312-1505
72 BRACKET; CAB MTG,RR
(A) 		8-97367-941-0 01 1 1506-
72 BRACKET; CAB MTG,RR
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97367-942-0 01 1 1312-1505
72 BRACKET; CAB MTG,RR
(B) 		8-97367-942-0 01 1 1506-
86 BAR; RR END 8-97359-891-0 01 1 1312-
146 BRACKET; RR BUMPER,RR FLOOR 8-97359-893-0 02 1 1312-
207 PANEL; FLOOR,RR CTR 8-98032-797-0 01 1 1312-
213 PANEL; RR FLOOR SIDE 8-97360-776-1 01 1 1312-
213 PANEL; RR FLOOR SIDE 8-97362-624-4 01 1 1312-
279 REINFORCEMENT 8-97359-892-1 02 1 1312-
366 BAR ASM; FRT SEAT MTG
M/T MUX 5 SPEED 5S(MZJ) 		8-97359-914-2 01 1 1312-1505
366 BAR ASM; FRT SEAT MTG 8-97359-914-2 01 1 1506-
398 BRACKET; PIPE SUPPORT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97333-851-1 01 1 1312-1505
398 BRACKET; PIPE SUPPORT
(A) 		8-97333-851-1 01 1 1506-
398 BRACKET; PIPE SUPPORT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97360-719-0 01 1 1312-1505
398 BRACKET; PIPE SUPPORT
(B) 		8-97360-719-0 01 1 1506-
457 PAN; LUG FLOOR 8-97359-862-3 01 1 1312-
518 SILL; FLOOR
M/T MUX 5 SPEED 5S(MZJ) (F) 		8-97371-000-0 01 1 1312-1505
518 SILL; FLOOR
(F) 		8-97371-000-0 01 1 1506-
518 SILL; FLOOR
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98030-677-0 01 1 1312-1505
518 SILL; FLOOR
(B) 		8-98030-677-0 01 1 1506-
518 SILL; FLOOR
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98048-087-0 01 1 1312-1505
518 SILL; FLOOR
(A) 		8-98048-087-0 01 1 1506-
518 SILL; FLOOR
(D) 		8-97359-873-1 01 1 1312-
518 SILL; FLOOR
(E) 		8-97359-882-2 01 1 1312-
518 SILL; FLOOR
(C) 		8-98107-511-0 01 1 1312-
520 BRACKET; FUEL LID OPENER
M/T MUX 5 SPEED 5S(MZJ) 		8-97236-152-2 01 1 1312-1505
520 BRACKET; FUEL LID OPENER 8-97236-152-2 01 1 1506-
562 REINFORCEMENT; FLOOR 8-98236-476-1 01 1 1312-
