Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

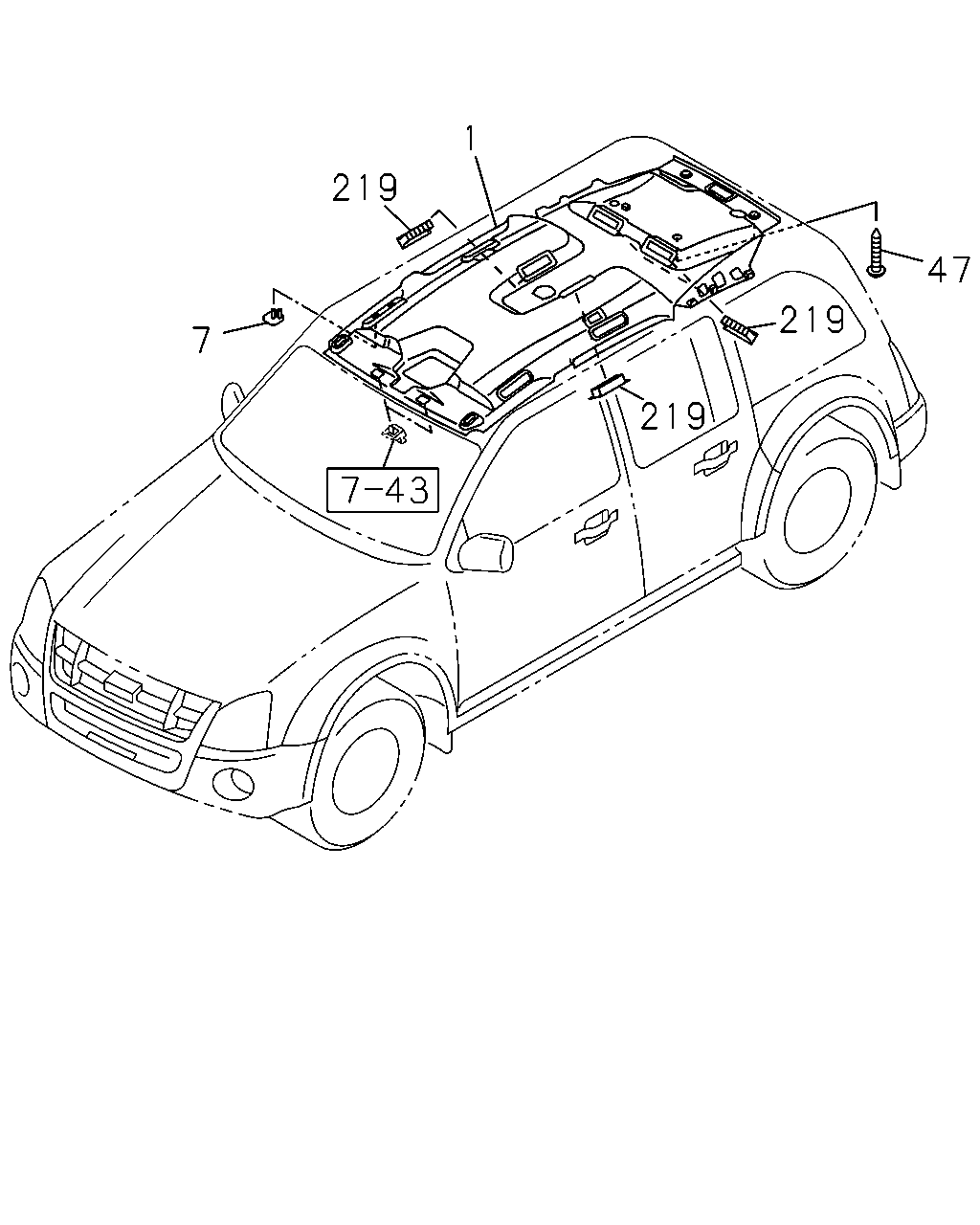

6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#132653) — 13 parça
◀
[666A] NO.1 (6 parça)
[666A] NO.2 (7 parça)
▶
219
1
7
219
219
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
REAR COOLER WO/HEATER<C69> BEIGE
8-97404-622-4
01
1
1312-
1
LINING; HD
EXC. REAR COOLER WO/HEATER<C69> BEIGE
8-97404-623-4
01
1
1312-
7
RETAINER; HEADLINING RAIL
BEIGE
8-97404-625-0
02
1
1312-
47
CLIP; HEADLINING
REAR COOLER WO/HEATER<C69> BEIGE
8-97404-624-0
04
1
1312-
47
CLIP; HEADLINING
EXC. REAR COOLER WO/HEATER<C69> BEIGE
8-97404-624-0
05
1
1312-
219
GRILLE; RR COOLER
REAR COOLER WO/HEATER<C69> BEIGE
8-97404-797-2
04
1
1312-
29
29
218
218
218
218
218
218
218
218
218
218
216
66
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
DEADENER; ROOF PANEL
8-97369-873-1
02
1
1312-
66
GRILLE; AIR OUTLET
8-97360-901-1
01
1
1312-
216
GROMMET; HOLE
OD=19 IMA
8-97365-823-0
04
1
1312-
218
INSULATOR; ROOF
(A)
8-97367-329-0
06
1
1312-
218
INSULATOR; ROOF
(B)
8-97367-330-1
01
1
1312-
218
INSULATOR; ROOF
(C)
8-97367-331-0
01
1
1312-
218
INSULATOR; ROOF
(D)
8-98022-396-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
