◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#132652) — 130 parça

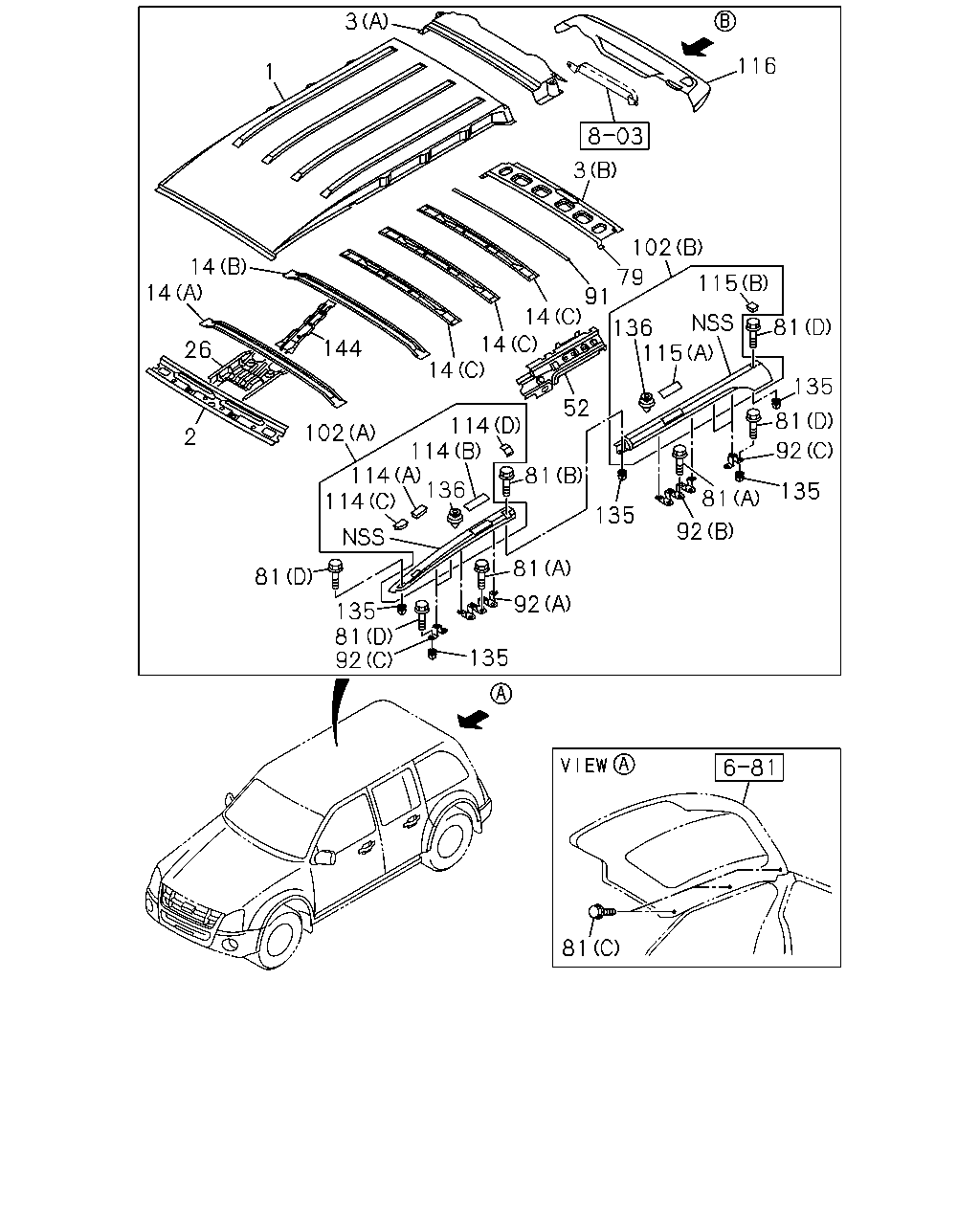

çizim 401949
1 3 3 116 14 14 26 144 102 2 114 114 81 135 81 92 135 92 81 135 115 81 136 91 79 102 14 14 14 114 114 81 135 81 92 135 92 81 115 81 136 52
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF 8-97945-083-0 01 1 1312-
2 PANEL; ROOF,CENTER 8-98050-942-0 01 1 1312-
3 PANEL; ROOF,RR
(A) 		8-97360-747-0 01 1 1312-
3 PANEL; ROOF,RR
(B) 		8-97360-755-1 01 1 1312-
14 SUPPORT; ROOF
(A) 		8-97360-752-1 01 1 1312-
14 SUPPORT; ROOF
(C) 		8-97367-975-1 01 1 1312-
14 SUPPORT; ROOF
(B) 		8-97945-206-0 01 1 1312-
26 BRACKET; ROOF REINF 8-97360-751-2 01 1 1312-
52 PANEL; ROOF,SIDE 8-97360-731-2 01 1 1312-
52 PANEL; ROOF,SIDE 8-97360-732-2 01 1 1312-
79 REINFORCEMENT; ROOF PANEL,RR 8-97363-460-0 01 1 1312-
81 BOLT; ROOF
(B) M5X12 TAPPING 		8-97375-238-0 02 1 1312-
81 BOLT; ROOF
(C) M6X16 FLANGE IMA 		8-98049-357-0 03 1 1312-
81 BOLT; ROOF
(A) M8X16 		8-98142-293-0 12 1 1312-
81 BOLT; ROOF
(D) M5X12 TAPPING 		8-98163-584-0 20 1 1312-
91 SEAL; ROOF SIDE 8-94199-115-0 02 1 1312-
92 BRACKET; ROOF RAIL
(A) 		8-97354-115-0 02 1 1312-
92 BRACKET; ROOF RAIL
(B) 		8-97354-116-0 02 1 1312-
92 BRACKET; ROOF RAIL
(C) 		8-97354-117-0 08 1 1312-
102 RAIL ASM; ROOF
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-072-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-073-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) DARK BLUE 		8-97416-074-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) DARK BLUE 		8-97416-075-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97418-873-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97418-875-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) GRAY 		8-97418-877-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) GRAY 		8-97418-879-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97418-874-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97418-876-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97418-878-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97418-880-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97406-905-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97406-915-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLACK 		8-97406-925-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLACK 		8-97406-935-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97406-904-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97406-914-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97406-924-0 01 1 1312-
102 RAIL ASM; ROOF
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97406-934-0 01 1 1312-
102 RAIL ASM; ROOF
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-377-1 01 1 1312-
102 RAIL ASM; ROOF
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-378-1 01 1 1312-
102 RAIL ASM; ROOF
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-379-1 01 1 1312-
102 RAIL ASM; ROOF
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-380-1 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-081-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) DARK BLUE 		8-97416-082-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) DARK BLUE 		8-97416-083-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) DARK BLUE 		8-97416-084-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-086-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) DARK BLUE 		8-97416-087-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) DARK BLUE 		8-97416-088-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) DARK BLUE 		8-97416-089-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97419-183-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) GRAY 		8-97419-184-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) GRAY 		8-97419-185-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) GRAY 		8-97419-186-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) GRAY 		8-97419-193-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) GRAY 		8-97419-194-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) GRAY 		8-97419-195-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97419-238-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97419-188-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97419-189-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) WHITE 		8-97419-190-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) WHITE 		8-97419-191-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97419-197-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) WHITE 		8-97419-198-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) WHITE 		8-97419-199-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97419-239-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) BLACK 		8-97401-332-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) BLACK 		8-97401-335-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97401-341-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97401-347-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) BLACK 		8-97401-350-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) BLACK 		8-97401-353-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLACK 		8-97401-388-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLACK 		8-97401-395-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) SILVER 		8-97401-331-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) SILVER 		8-97401-334-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97401-340-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97401-346-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) SILVER 		8-97401-349-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (D) SILVER 		8-97401-352-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97401-390-0 01 1 1312-
114 COVER; ROOF RAIL FRT
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97401-394-0 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98242-385-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98242-386-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98242-387-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98242-388-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-391-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-392-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-393-1 01 1 1312-
114 COVER; ROOF RAIL FRT
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-397-1 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-091-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) DARK BLUE 		8-97416-092-0 02 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR NAUTILUS BLUE MICA(521) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK BLUE 		8-97416-094-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97419-201-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) GRAY 		8-97419-202-0 02 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR MINERAL GRAY MET(530) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) GRAY 		8-97419-207-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97419-204-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97419-205-0 02 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR SILKY WHITE PEARL(531) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) WHITE 		8-97419-209-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLACK 		8-97401-362-0 02 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97401-400-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) BLACK 		8-97401-406-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97401-361-0 02 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97401-398-0 01 1 1312-
115 COVER; ROOF RAIL RR
BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) SILVER 		8-97401-404-0 01 1 1312-
115 COVER; ROOF RAIL RR
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-389-1 02 1 1312-
115 COVER; ROOF RAIL RR
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-394-1 01 1 1312-
115 COVER; ROOF RAIL RR
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-395-1 01 1 1312-
116 SPOILER; ROOF RR
PLEASE PAINT TO MATCH BODY COLOR 		8-97388-764-0 01 1 1312-
135 GROMMET; ROOF
D=7.9X7.9 L=11.4 M5 		8-94367-528-0 22 1 1312-
136 CLIP; ROOF RAIL 8-97385-917-0 16 1 1312-
144 BRACKET; ROOF 8-97945-223-0 01 1 1312-

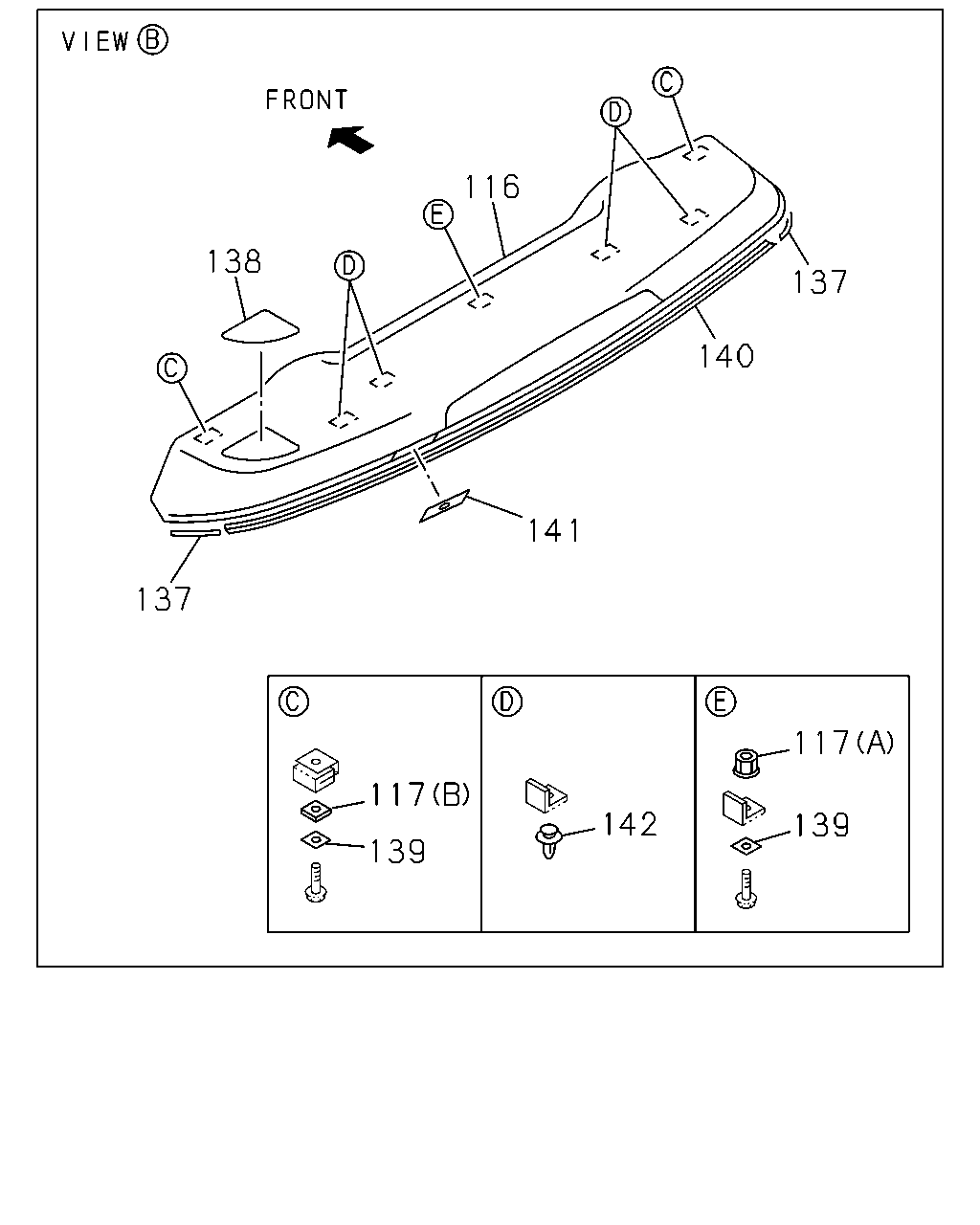

çizim 402319
140 137 116 138 137 117 139 142 117 139 141
BalonParca AdiParca NoAdetTipApplied Date
116 SPOILER; ROOF RR
PLEASE PAINT TO MATCH BODY COLOR 		8-97388-764-0 01 1 1312-
117 NUT; SPOILER
(A) 		8-97388-772-0 01 1 1312-
117 NUT; SPOILER
(B) 		8-97388-773-0 02 1 1312-
137 SPONGE; SPOILER 8-97388-767-0 02 1 1312-
138 COVER; SPOILER
BODY COLOR NAUTILUS BLUE MICA(521) DARK BLUE 		8-97416-078-0 01 1 1312-
138 COVER; SPOILER
BODY COLOR MINERAL GRAY MET(530) GRAY 		8-97418-922-0 01 1 1312-
138 COVER; SPOILER
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97418-923-0 01 1 1312-
138 COVER; SPOILER
BODY COLOR STARRY BLACK MICA(935) BLACK 		8-97401-574-0 01 1 1312-
138 COVER; SPOILER
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-573-0 01 1 1312-
139 SEAL; SPOILER 8-97388-771-0 03 1 1312-
140 FINISHER; SPOILER 8-97388-770-0 01 1 1312-
141 CAP; SPOILER
BODY COLOR NAUTILUS BLUE MICA(521) DARK BLUE 		8-97416-079-1 01 1 1312-
141 CAP; SPOILER
BODY COLOR MINERAL GRAY MET(530) GRAY 		8-97418-924-1 01 1 1312-
141 CAP; SPOILER
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97418-925-1 01 1 1312-
141 CAP; SPOILER
BODY COLOR STARRY BLACK MICA(935) BLACK 		8-97401-579-1 01 1 1312-
141 CAP; SPOILER
BODY COLOR STERLING SILVER MET(936) SILVER 		8-97401-578-1 01 1 1312-
142 CLIP; SPOILER 8-97388-774-0 04 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
