6-52 — REAR DOOR LOCK AND HANDLE (#132650) — 30 parça

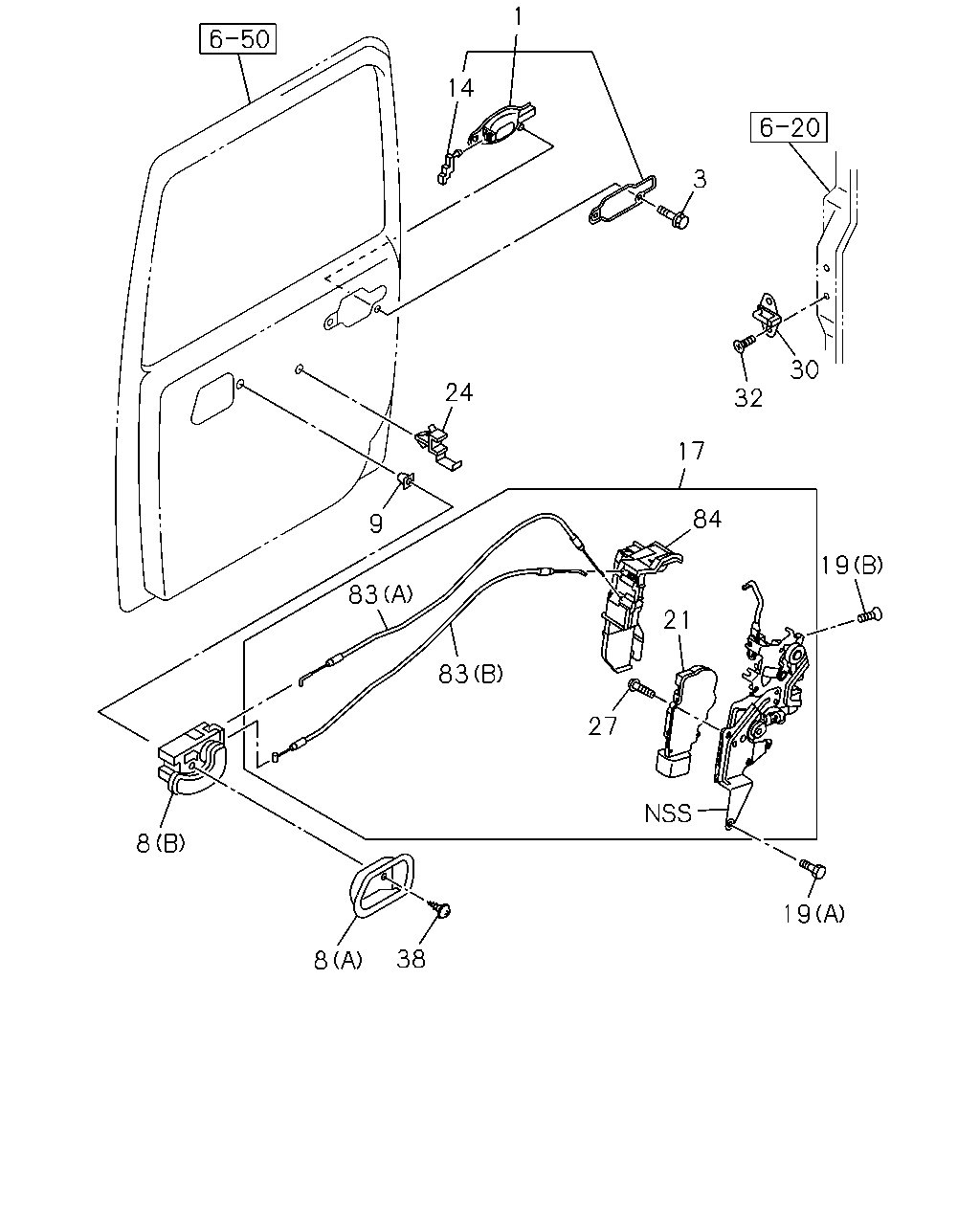

çizim 402246
19 38 8 8 83 83 9 24 1 14 3 30 32 17 84 19 21 27
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR
KD PREPARATORY PACK VAR.4<7TV> 		8-98050-621-0 01 1 1312-
1 HANDLE; OUTSIDE,RR DOOR
KD PREPARATORY PACK VAR.4<7TV> 		8-98050-622-0 01 1 1312-
1 HANDLE; OUTSIDE,RR DOOR
EXC. KD PREPARATORY PACK VAR.4<7TV> PRIMER 		8-98152-984-0 01 1 1312-
1 HANDLE; OUTSIDE,RR DOOR
EXC. KD PREPARATORY PACK VAR.4<7TV> PRIMER 		8-98152-985-0 01 1 1312-
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE IMA 		8-98048-996-0 04 1 1312-
8 HANDLE; INSIDE,RR DOOR
(A) BEIGE 		8-97404-656-1 01 1 1312-
8 HANDLE; INSIDE,RR DOOR
(A) BEIGE 		8-97404-657-1 01 1 1312-
8 HANDLE; INSIDE,RR DOOR
(B) BEIGE 		8-97408-558-1 01 1 1312-
8 HANDLE; INSIDE,RR DOOR
(B) BEIGE 		8-97408-559-1 01 1 1312-
9 GROMMET; SCREW,INSIDE HANDLE
IMA 		8-94152-494-0 02 1 1312-
14 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 1312-
14 HOLDER; DOOR LK ROD
YELLOW 		8-97333-304-0 01 1 1312-
17 LOCK; DOOR,RR DOOR 8-98030-090-1 01 1 1312-
17 LOCK; DOOR,RR DOOR 8-98030-091-1 01 1 1312-
19 BOLT; RR DOOR LOCK
(A) M6X8 FLANGE IMA 		8-98048-996-0 02 1 1312-
19 BOLT; RR DOOR LOCK
(B) M6X20 		8-98049-000-0 06 1 1312-
21 ACTUATOR; RR DOOR LOCK 8-97351-081-0 01 1 1312-1502
21 ACTUATOR; RR DOOR LOCK
IMA 		8-98292-018-0 01 1 1503-
21 ACTUATOR; RR DOOR LOCK 8-97351-082-0 01 1 1312-1502
21 ACTUATOR; RR DOOR LOCK
IMA 		8-98292-017-0 01 1 1503-
24 ANTIRATTLER; DOOR INSIDE HANDLE
IMA 		8-97251-932-0 02 1 1312-
27 SCREW; RR DOOR LOCK
IMA 		8-97349-997-0 04 1 1312-
30 STRIKER; RR DOOR
IMA 		8-98012-203-0 02 1 1312-
32 SCREW; DOOR STRIKER
M8X35 IMA 		8-98049-360-0 04 1 1312-
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 		8-94152-495-0 02 1 1312-
83 CABLE ASM; LOCK CONTROL
(B) 		8-97388-938-0 02 1 1312-
83 CABLE ASM; LOCK CONTROL
(A) 		8-97388-939-0 01 1 1312-
83 CABLE ASM; LOCK CONTROL
(A) 		8-97388-940-0 01 1 1312-
84 COVER; DOOR LOCK 8-97351-079-1 01 1 1312-
84 COVER; DOOR LOCK 8-97351-080-1 01 1 1312-
