Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

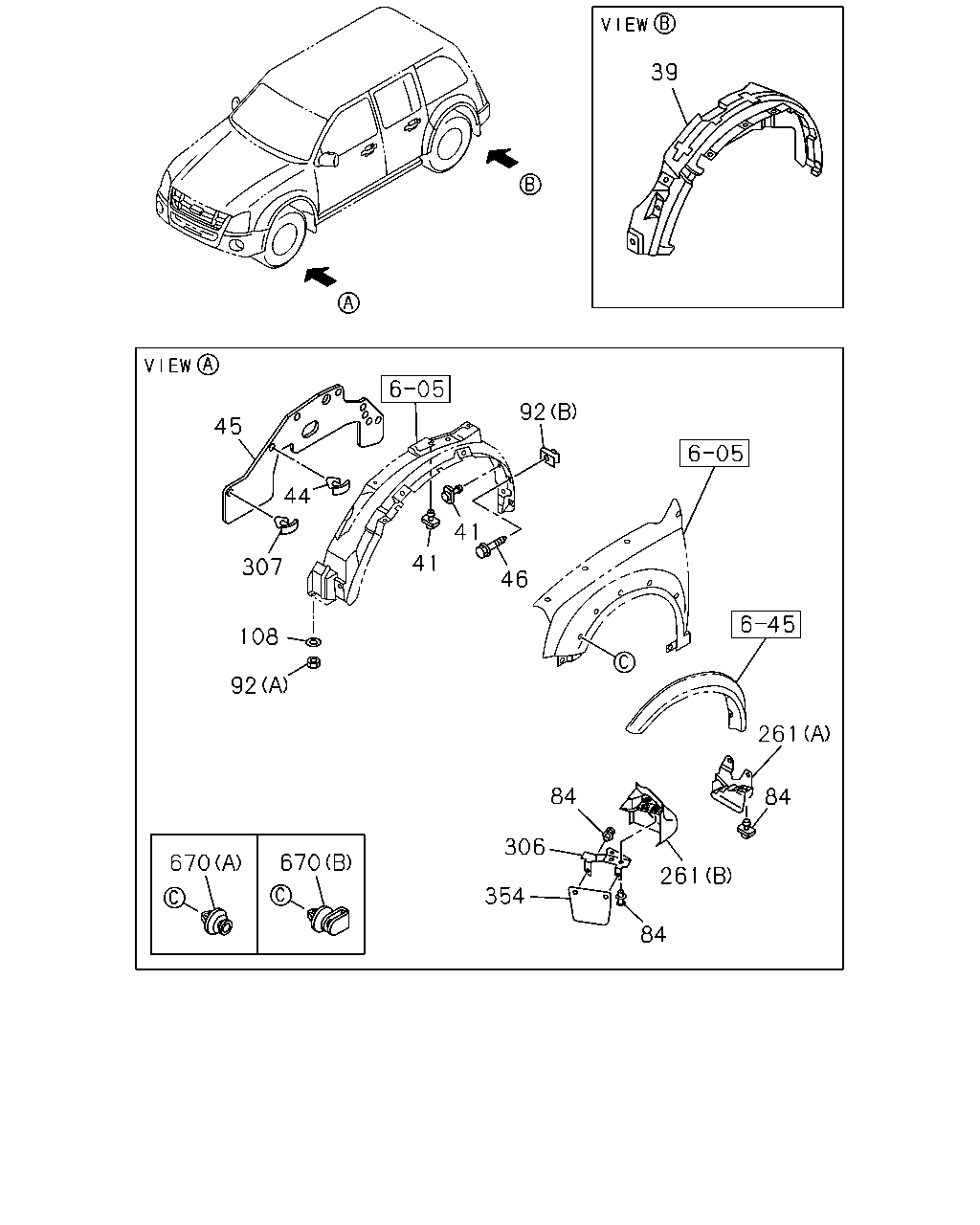

6-47 — MUD GUARD AND INSULATOR
(#132647) — 26 parça
39
92
46
41
41
44
45
307
108
92
670
670
354
306
84
84
261
84
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
LINER; FENDER
REAR
8-97354-337-2
01
1
1312-
39
LINER; FENDER
REAR
8-97354-338-2
01
1
1312-
41
RIVET; INNER LINER
IMA
8-94221-150-0
28
1
1312-
44
CLIP; ANCHOR
OD=22 L=10.7 IMA
8-94215-211-0
10
1
1312-
45
COVER; MUD,FENDER SKIRT
8-97235-460-1
01
1
1312-
45
COVER; MUD,FENDER SKIRT
8-97235-462-0
01
1
1312-
46
SCREW; INNER LINER
M6X20 TAPPING
8-98048-999-0
12
1
1312-
84
RIVET; MUD GUARD
SIDE STEP<6TC> NATURAL
8-97384-015-0
08
1
1312-
84
RIVET; MUD GUARD
SIDE STEP<6TC> BLACK
8-98023-678-0
04
1
1312-
84
RIVET; MUD GUARD
EXC. SIDE STEP<6TC> NATURAL
8-97384-015-0
06
1
1312-
92
NUT; MUD COVER
(B) IMA
8-97125-519-0
12
1
1312-
92
NUT; MUD COVER
(A) M6 CAP NUT IMA
8-98049-850-0
02
1
1312-
108
WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 IMA
8-98049-851-0
02
1
1312-
261
RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (B)
8-98024-177-0
01
1
1312-
261
RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (B)
8-98024-189-0
01
1
1312-
261
RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (B)
8-98240-051-0
01
1
1312-
261
RUBBER; FRT,MUD GUARD
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (B)
8-98243-589-0
01
1
1312-
261
RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A)
8-98024-148-0
01
1
1312-
261
RUBBER; FRT,MUD GUARD
EXC. SIDE STEP<6TC> (A)
8-98024-149-0
01
1
1312-
306
BRACKET; MUD GUARD
SIDE STEP<6TC>
8-98024-191-0
01
1
1312-
306
BRACKET; MUD GUARD
SIDE STEP<6TC>
8-98024-192-0
01
1
1312-
307
RETAINER
IMA
8-98050-462-0
02
1
1312-
354
PLATE; MUD GUARD
SIDE STEP<6TC>
8-98024-195-0
01
1
1312-
354
PLATE; MUD GUARD
SIDE STEP<6TC>
8-98141-371-0
01
1
1312-
670
FASTENER
(A)
8-98023-676-0
06
1
1312-
670
FASTENER
(B)
8-98023-691-0
04
1
1312-
