◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#132646) — 30 parça

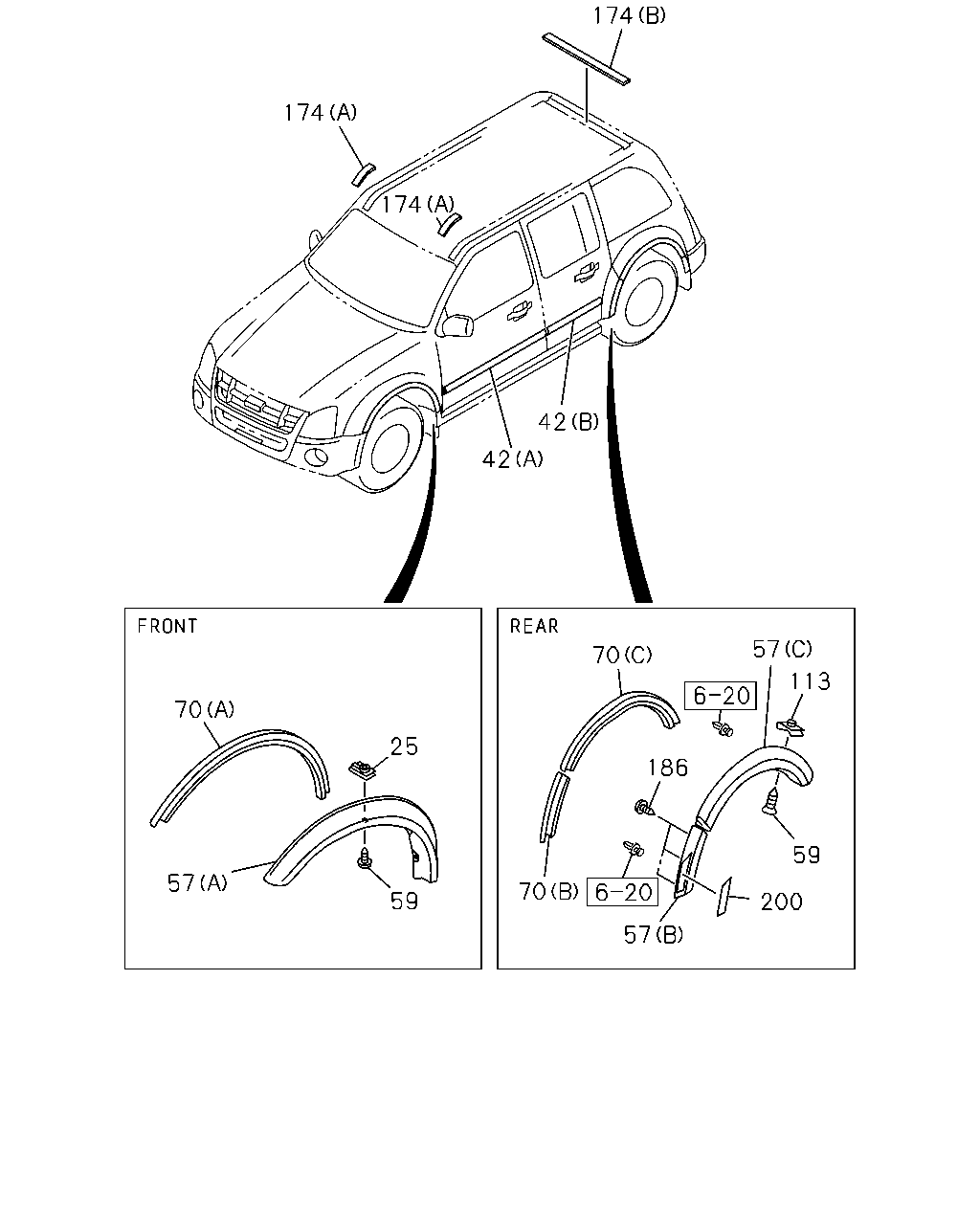

çizim 402258
174 174 174 42 42 70 57 25 59 70 186 57 113 59 200 57 70
BalonParca AdiParca NoAdetTipApplied Date
25 NUT; SPIRE,MOLDING
IMA 		8-97125-519-0 04 1 1312-
42 MOLDING; ROCKER
BODY SIDE MOLDING<B85> (A) 		8-98176-250-0 01 1 1312-
42 MOLDING; ROCKER
BODY SIDE MOLDING<B85> (A) 		8-98176-251-0 01 1 1312-
42 MOLDING; ROCKER
BODY SIDE MOLDING<B85> (B) 		8-98176-256-0 01 1 1312-
42 MOLDING; ROCKER
BODY SIDE MOLDING<B85> (B) 		8-98176-257-0 01 1 1312-
57 MOLDING; WHEEL ARCH
(B) REAR PRIMER 		8-97388-934-0 01 1 1312-
57 MOLDING; WHEEL ARCH
(B) REAR PRIMER 		8-97388-935-0 01 1 1312-
57 MOLDING; WHEEL ARCH
(C) REAR PRIMER 		8-97388-936-0 01 1 1312-
57 MOLDING; WHEEL ARCH
(C) REAR PRIMER 		8-97388-937-0 01 1 1312-
57 MOLDING; WHEEL ARCH
(A) FRONT PRIMER 		8-98024-166-1 01 1 1312-
57 MOLDING; WHEEL ARCH
(A) FRONT PRIMER 		8-98024-171-1 01 1 1312-
59 SCREW; MOLDING
M6X20 TAPPING 		8-98048-999-0 10 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR STARRY BLACK MICA(935) (C) DARK GRAY 		8-97416-894-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR STARRY BLACK MICA(935) (C) DARK GRAY 		8-97416-895-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR STARRY BLACK MICA(935) (B) DARK GRAY 		8-97416-896-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR STARRY BLACK MICA(935) (B) DARK GRAY 		8-97416-897-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR STARRY BLACK MICA(935) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) DARK GRAY 		8-97407-256-0 02 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR SILKY WHITE PEARL(531),BODY COLOR STERLING SILVER MET(936) (C) LIGHT GRAY 		8-97401-421-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR SILKY WHITE PEARL(531),BODY COLOR STERLING SILVER MET(936) (C) LIGHT GRAY 		8-97401-423-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR SILKY WHITE PEARL(531),BODY COLOR STERLING SILVER MET(936) (B) LIGHT GRAY 		8-97401-428-0 01 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR SILKY WHITE PEARL(531),BODY COLOR STERLING SILVER MET(936) (B) LIGHT GRAY 		8-97401-430-0 01 1 1312-
70 FINISHER; FENDER MOLDING
KD PREPARATORY PACK VAR.4<7TV> (A) LIGHT GRAY 		8-97407-208-0 02 1 1312-
70 FINISHER; FENDER MOLDING
BODY COLOR SILKY WHITE PEARL(531),BODY COLOR STERLING SILVER MET(936) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) LIGHT GRAY 		8-97407-208-0 02 1 1312-
113 NUT; MOLDING
IMA 		8-97125-519-0 06 1 1312-
174 MOLDING; ROOF
(A) 		8-97356-610-0 01 1 1312-
174 MOLDING; ROOF
(A) 		8-97356-611-0 01 1 1312-
174 MOLDING; ROOF
(B) 		8-97364-583-1 01 1 1312-
186 BOLT; MOLDING
M5X14 TAPPING W/PL WASHER IMA 		0-74160-514-0 06 1 1312-
200 PROTECTOR; WHEEL ARCH
EXC. SIDE STEP<6TC> 		8-97370-500-0 01 1 1312-
200 PROTECTOR; WHEEL ARCH
EXC. SIDE STEP<6TC> 		8-97370-501-0 01 1 1312-
