◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#132645) — 30 parça

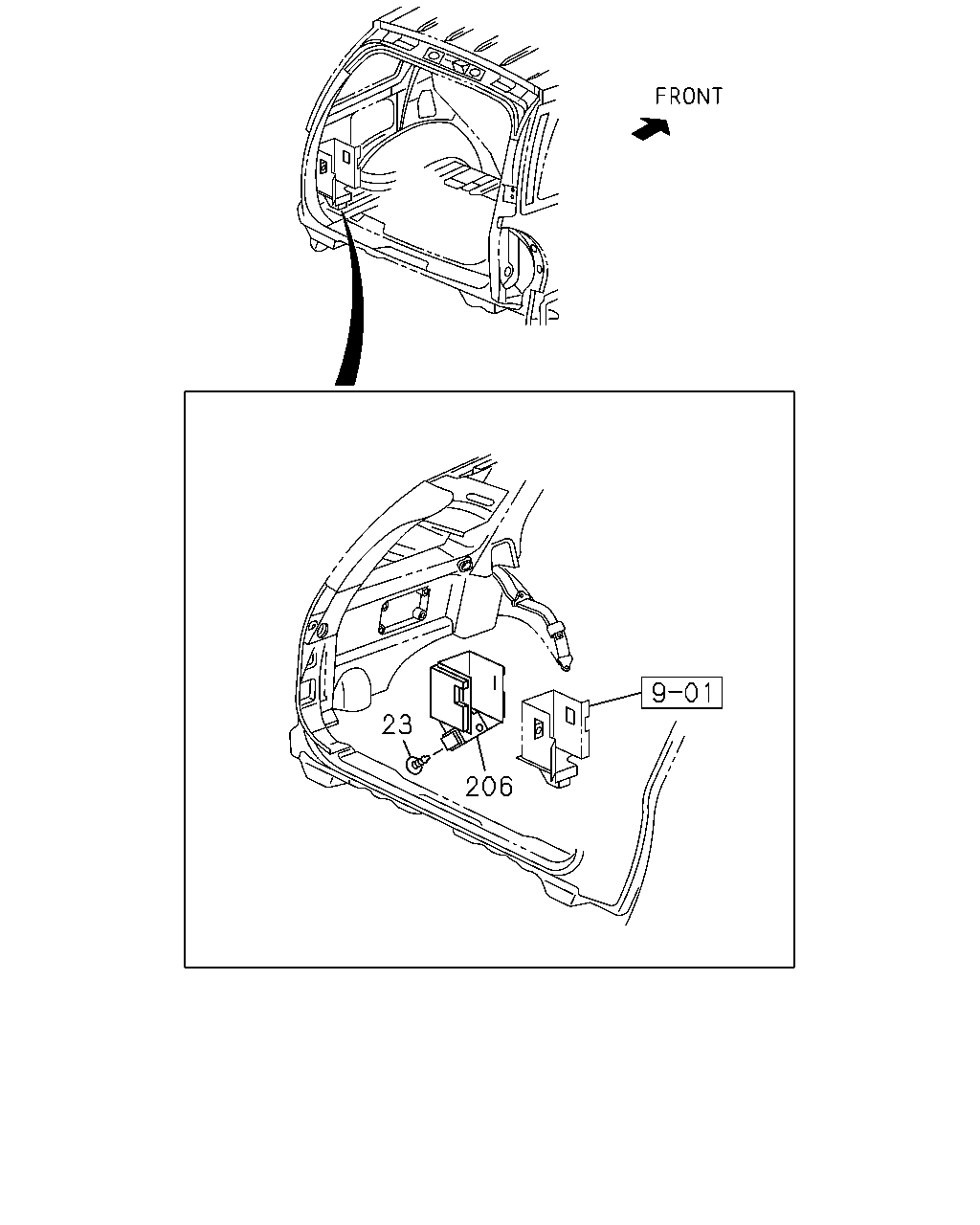

çizim 402137
206 23
BalonParca AdiParca NoAdetTipApplied Date
23 RETAINER; QTR
L=19 BLACK 		8-94363-776-0 02 1 1312-
206 INSULATOR; QTR TRIM 8-97376-625-1 01 1 1312-

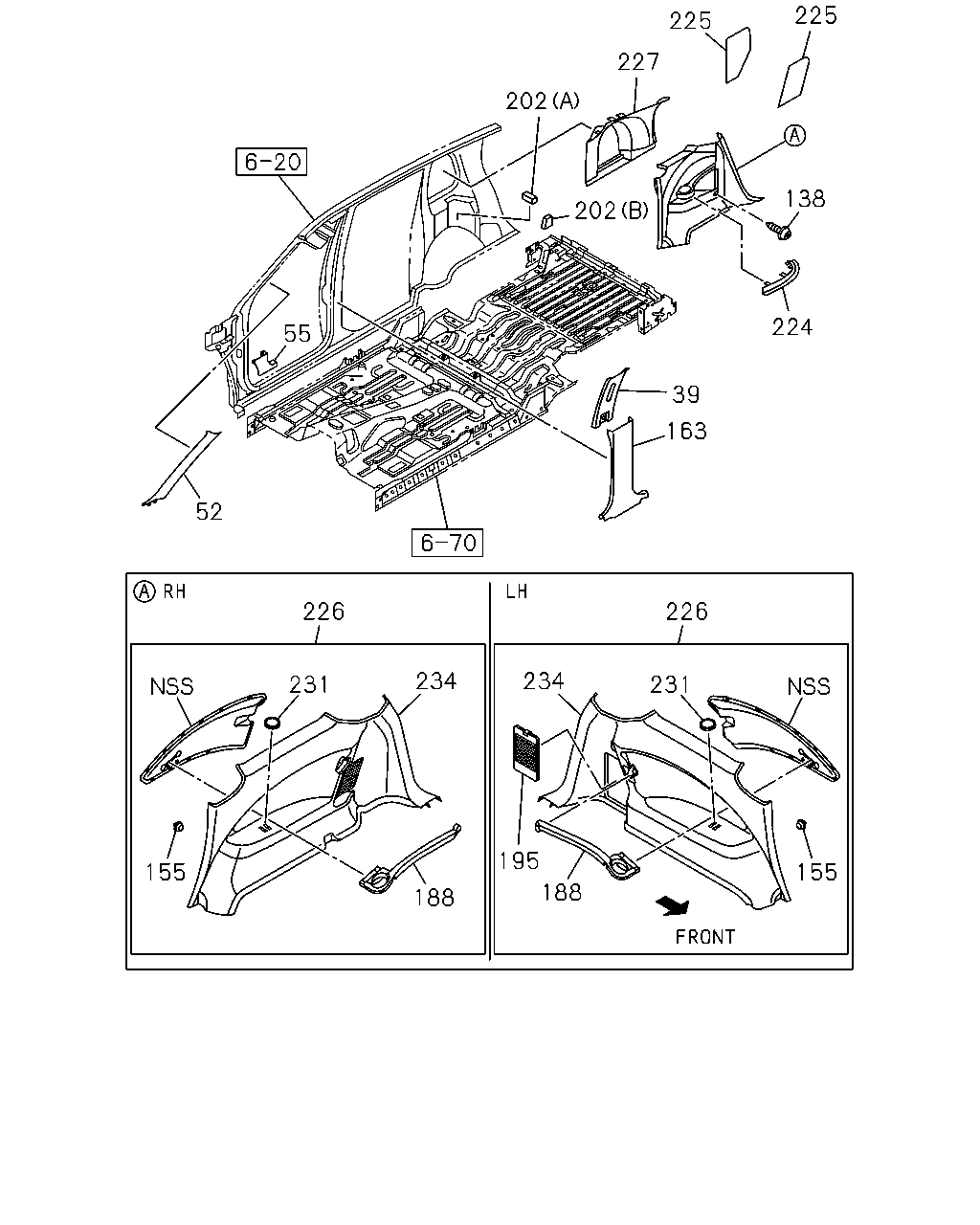

çizim 402245
224 138 225 225 227 202 202 39 163 52 55 226 234 231 155 188 234 231 226 195 188 155
BalonParca AdiParca NoAdetTipApplied Date
39 COVER; TRIM,CENTER PILLAR
BEIGE 		8-97404-629-0 01 1 1312-
39 COVER; TRIM,CENTER PILLAR
BEIGE 		8-97404-630-0 01 1 1312-
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97408-874-0 01 1 1312-
52 COVER; TRIM,FRT PILLAR
BEIGE 		8-97408-875-0 01 1 1312-
55 PAD; TRIM,DASH SIDE
BEIGE 		8-97404-610-0 01 1 1312-
55 PAD; TRIM,DASH SIDE
BEIGE 		8-97404-611-0 01 1 1312-
138 SCREW; TRIM COVER
M6X20 W/PL WASHER 		1-09981-376-0 06 1 1312-
155 CLIP; TRIM,QUARTER
H=16.7 		8-97022-017-0 10 1 1312-
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE 		8-97404-631-3 01 1 1312-
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE 		8-97404-632-3 01 1 1312-
188 BAR; GUARD
BEIGE 		8-97425-956-2 01 1 1312-
188 BAR; GUARD
BEIGE 		8-97425-962-2 01 1 1312-
195 LID; JACK & TOOL
BEIGE 		8-97425-961-2 01 1 1312-
202 SEAL; CENTER PILLAR
(A) IMA 		8-97362-561-0 04 1 1312-
202 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 02 1 1312-
224 COVER; ARM REST,RR QTR
BEIGE 		8-97404-633-1 01 1 1312-
224 COVER; ARM REST,RR QTR
BEIGE 		8-97404-634-1 01 1 1312-
225 COVER; ARM REST,FT QTR
BEIGE 		8-97404-635-0 01 1 1312-
225 COVER; ARM REST,FT QTR
BEIGE 		8-97404-636-0 01 1 1312-
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE 		8-97405-026-0 01 1 1312-
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE 		8-97405-027-0 01 1 1312-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-956-0 01 1 1312-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-957-0 01 1 1312-
227 TRIM ASM; QTR UPR
BEIGE 		8-97404-641-0 01 1 1312-
227 TRIM ASM; QTR UPR
BEIGE 		8-97404-642-0 01 1 1312-
231 RUBBER 8-97371-339-0 02 1 1312-
234 TRIM; QTR
BEIGE 		8-97425-955-2 01 1 1312-
234 TRIM; QTR
BEIGE 		8-97425-960-2 01 1 1312-
