6-35 — FRONT DOOR TRIM (#132643) — 20 parça

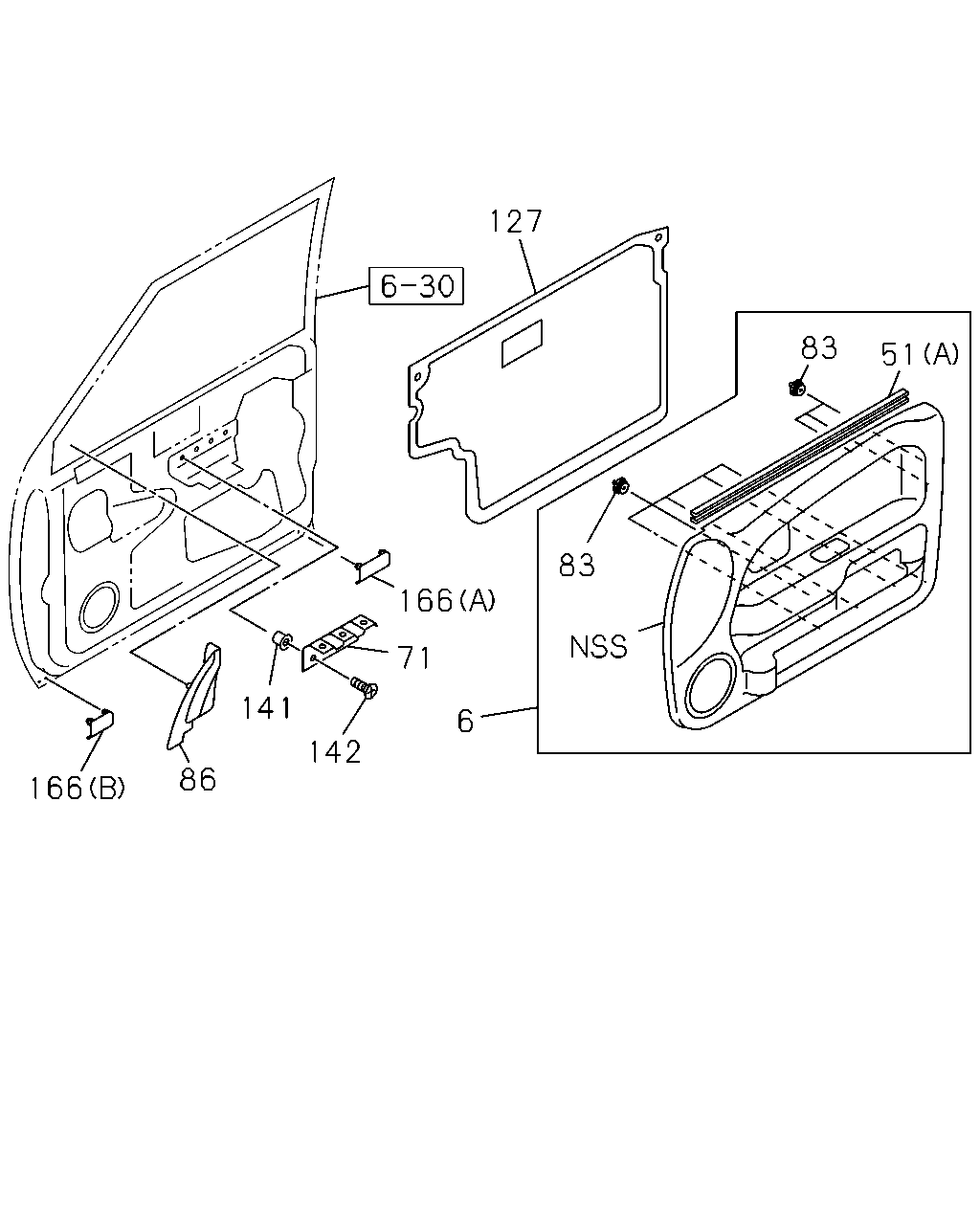

çizim 402217
83 51 83 127 166 71 6 142 141 86 166
BalonParca AdiParca NoAdetTipApplied Date
6 TRIM; DOOR,UPR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-652-0 01 1 1312-
6 TRIM; DOOR,UPR
CLOTH TRIM COVER<7PG> BEIGE 		8-97404-653-0 01 1 1312-
6 TRIM; DOOR,UPR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-958-0 01 1 1312-
6 TRIM; DOOR,UPR
EXC. CLOTH TRIM COVER<7PG> BEIGE 		8-97406-959-0 01 1 1312-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 1312-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 1312-
51 WEATHERSTRIP; FRONT DOOR
(B) BEIGE 		8-97404-643-0 02 1 1312-
71 BRACKET; ARM REST 8-97238-106-2 02 1 1312-
83 CLIP; DOOR TRIM
H=16.7 		8-97022-017-0 16 1 1312-
86 COVER ASM; DOOR POCKET
BLACK 		8-97298-455-2 01 1 1312-
86 COVER ASM; DOOR POCKET
BLACK 		8-97298-456-2 01 1 1312-
127 SEAL; DOOR INNER 8-97373-016-1 01 1 1312-
127 SEAL; DOOR INNER 8-97373-017-1 01 1 1312-
141 GROMMET; SCREW,LWR COVER
IMA 		8-94152-494-0 04 1 1312-
142 SCREW; LWR COVER,DOOR TRIM
M5X14 		8-94152-495-0 04 1 1312-
166 PLUG; HOLE
(A) 		8-98009-499-0 02 1 1312-
166 PLUG; HOLE
(B) 		8-98009-500-0 02 1 1312-

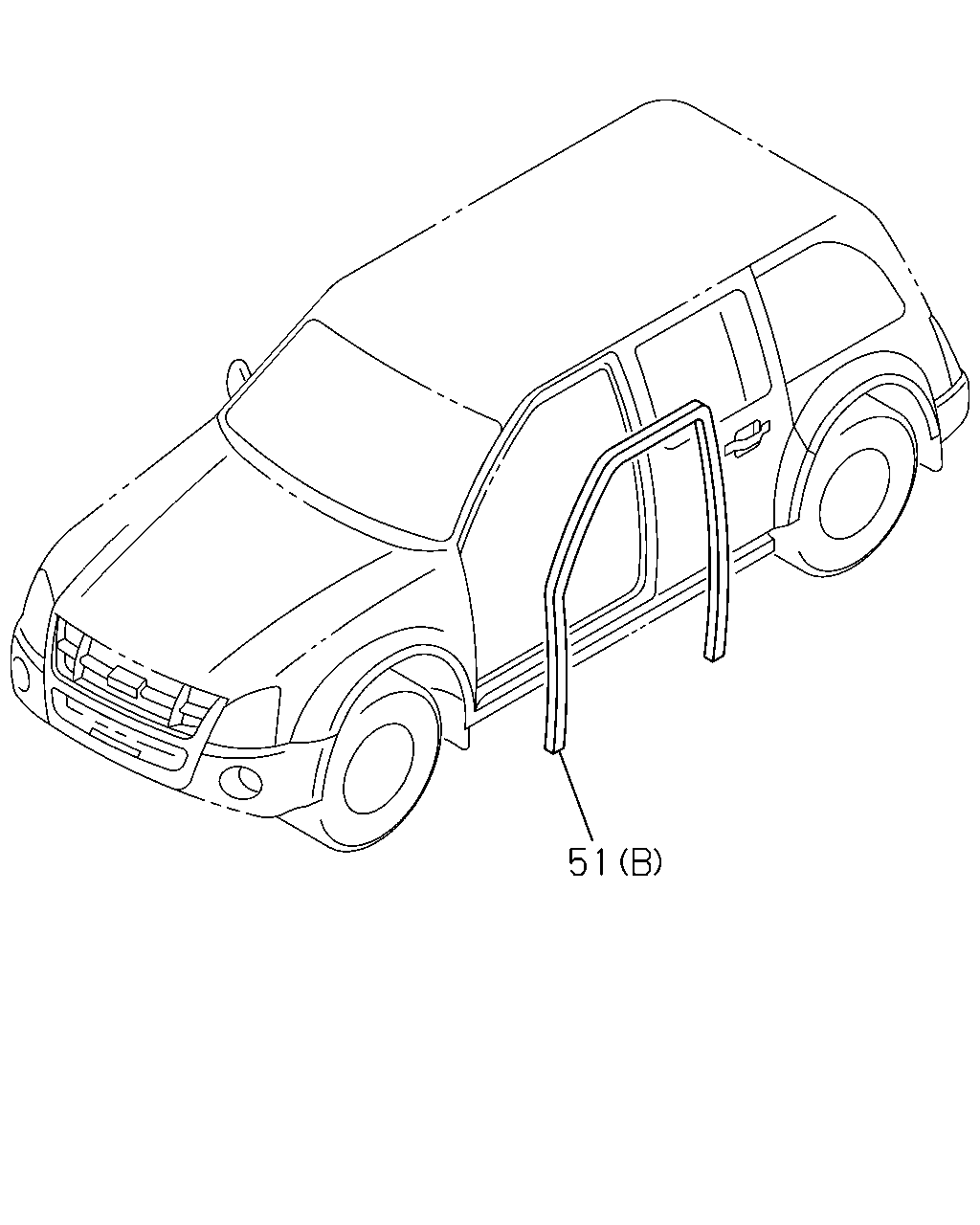

çizim 402218
51
BalonParca AdiParca NoAdetTipApplied Date
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 1312-
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 1312-
51 WEATHERSTRIP; FRONT DOOR
(B) BEIGE 		8-97404-643-0 02 1 1312-
