6-32 — FRONT DOOR LOCK AND HANDLE (#132642) — 34 parça

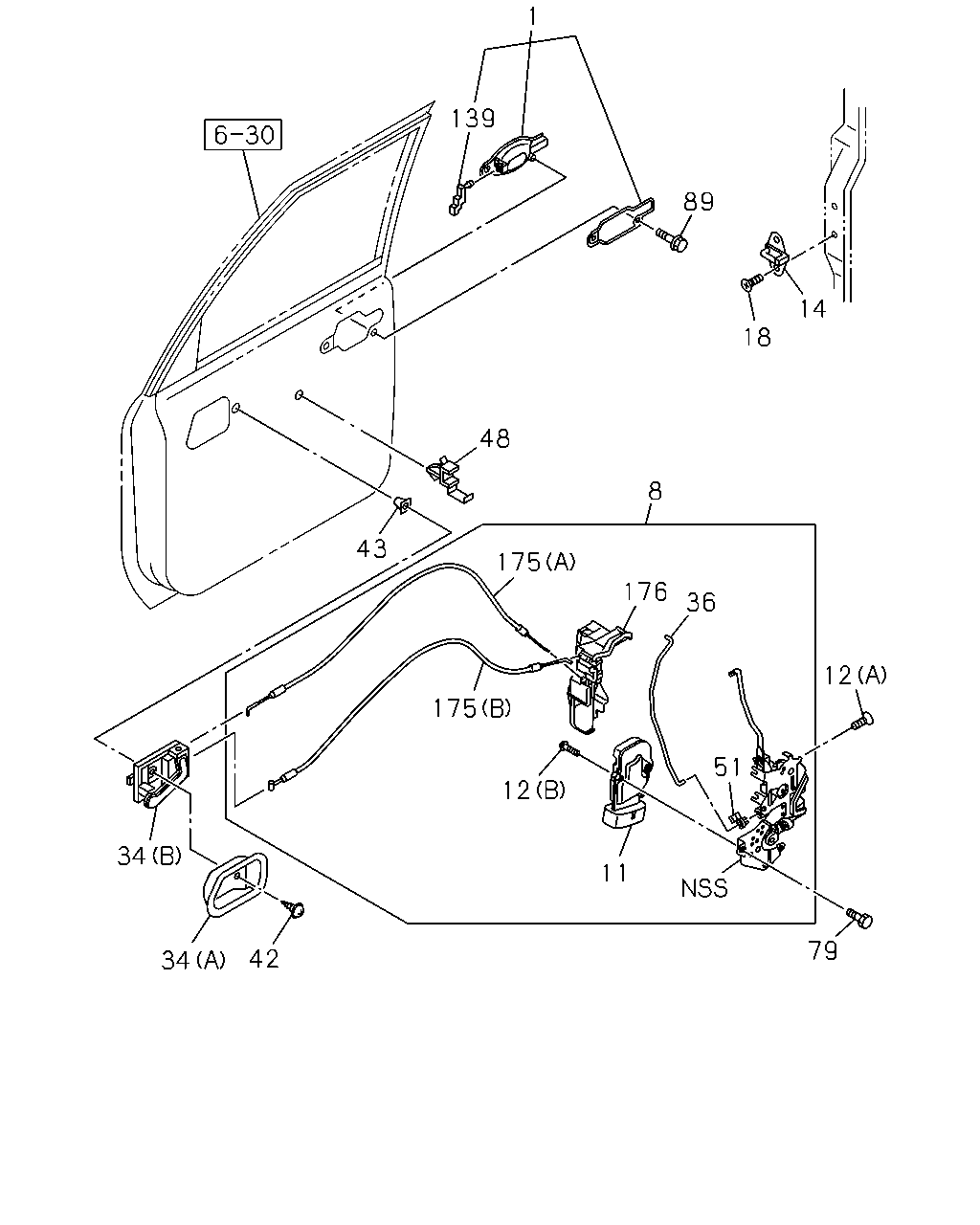

çizim 402360
1 139 89 18 14 12 8 48 43 175 176 36 51 175 12 11 79 42 34 34
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
KD PREPARATORY PACK VAR.4<7TV> 		8-98050-609-0 01 1 1312-
1 HANDLE; OUTSIDE,FRT DOOR
KD PREPARATORY PACK VAR.4<7TV> 		8-98050-610-0 01 1 1312-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. KD PREPARATORY PACK VAR.4<7TV> PRIMER 		8-98152-982-0 01 1 1312-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. KD PREPARATORY PACK VAR.4<7TV> PRIMER 		8-98152-983-0 01 1 1312-
8 LOCK; DOOR,FRT DOOR 8-98012-187-1 01 1 1312-
8 LOCK; DOOR,FRT DOOR 8-98169-046-1 01 1 1312-
11 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 1312-1502
11 ACTUATOR; DOOR LK,FRT
IMA 		8-98292-012-0 01 1 1503-
11 ACTUATOR; DOOR LK,FRT 8-97349-995-0 01 1 1312-1502
11 ACTUATOR; DOOR LK,FRT
IMA 		8-98292-013-0 01 1 1503-
12 SCREW; DOOR LK
(B) IMA 		8-97349-997-0 04 1 1312-
12 SCREW; DOOR LK
(A) M6X20 		8-98049-000-0 06 1 1312-
14 STRIKER; FRT DOOR
IMA 		8-98012-203-0 02 1 1312-
18 SCREW; DOOR STRIKER
M8X35 IMA 		8-98049-360-0 04 1 1312-
34 HANDLE; INSIDE,FRT DOOR
(A) BEIGE 		8-97404-656-1 01 1 1312-
34 HANDLE; INSIDE,FRT DOOR
(A) BEIGE 		8-97404-657-1 01 1 1312-
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97408-558-1 01 1 1312-
34 HANDLE; INSIDE,FRT DOOR
(B) BEIGE 		8-97408-559-1 01 1 1312-
36 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 1312-
36 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 1312-
42 SCREW; TAPPING,INSIDE LEVER
M5X14 		8-94152-495-0 02 1 1312-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
IMA 		8-94152-494-0 02 1 1312-
48 ANTIRATTLER; DOOR LINK
IMA 		8-97251-932-0 02 1 1312-
51 SNAP; FRT DOOR LOCK CONT ROD
IMA 		8-97349-985-0 01 1 1312-
51 SNAP; FRT DOOR LOCK CONT ROD
IMA 		8-97349-986-0 01 1 1312-
79 BOLT; DOOR LK ACTUATOR
M6X8 FLANGE IMA 		8-98048-996-0 02 1 1312-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE IMA 		8-98048-996-0 04 1 1312-
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 1312-
139 HOLDER; ROD,DOOR HANDLE
YELLOW 		8-97333-304-0 01 1 1312-
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-987-0 01 1 1312-
175 CABLE ASM; LOCK CONTROL
(B) 		8-97349-988-0 01 1 1312-
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-989-0 02 1 1312-
176 COVER; DOOR LOCK 8-97349-991-1 01 1 1312-
176 COVER; DOOR LOCK
IMA 		8-97349-992-0 01 1 1312-
