◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#132641) — 31 parça

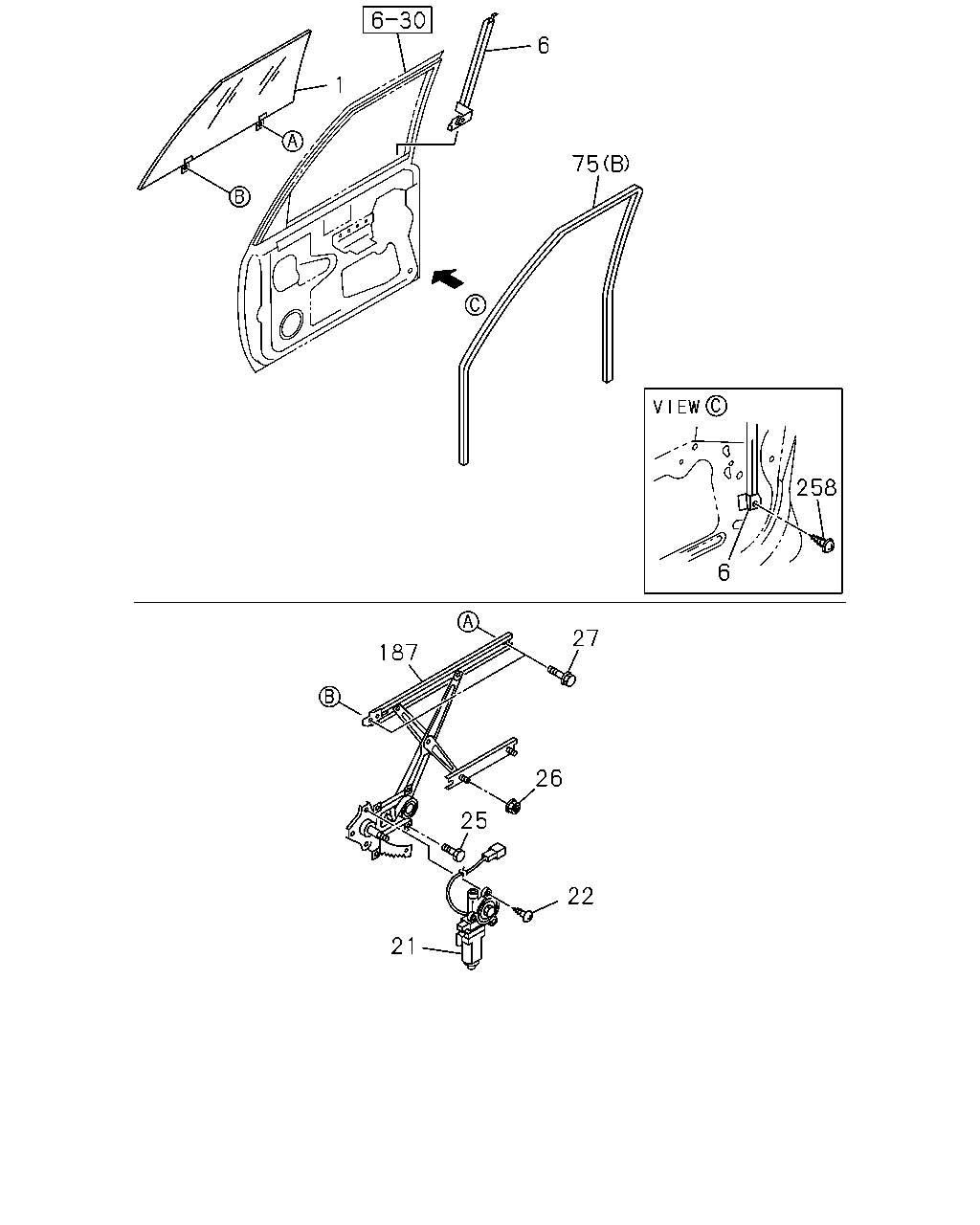

çizim 402274
258 6 27 187 25 21 22 26 75 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 8-98130-012-0 01 1 1312-
1 GLASS; FRT DOOR 8-98130-013-0 01 1 1312-
6 CHANNEL; DOOR GLASS 8-97241-126-1 01 1 1312-
6 CHANNEL; DOOR GLASS 8-97241-127-1 01 1 1312-
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98196-059-0 01 1 1312-
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98196-060-0 01 1 1312-
22 SCREW; POWER WINDOW MOTOR 8-98009-809-0 06 1 1312-
25 BOLT; WINDOW REG
M6X10 FLANGE IMA 		8-98188-381-0 06 1 1312-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE IMA 		8-98049-362-0 04 1 1312-
27 BOLT; GLASS FIX
M6X10 FLANGE IMA 		8-98188-381-0 04 1 1312-
75 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(C) 		8-97357-597-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(C) 		8-97357-598-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 1312-
187 REGULATOR ASM; DOOR 8-98009-810-3 01 1 1312-
187 REGULATOR ASM; DOOR 8-98009-811-3 01 1 1312-
258 BOLT; CHANNEL
M6X8 FLANGE IMA 		8-98048-996-0 02 1 1312-

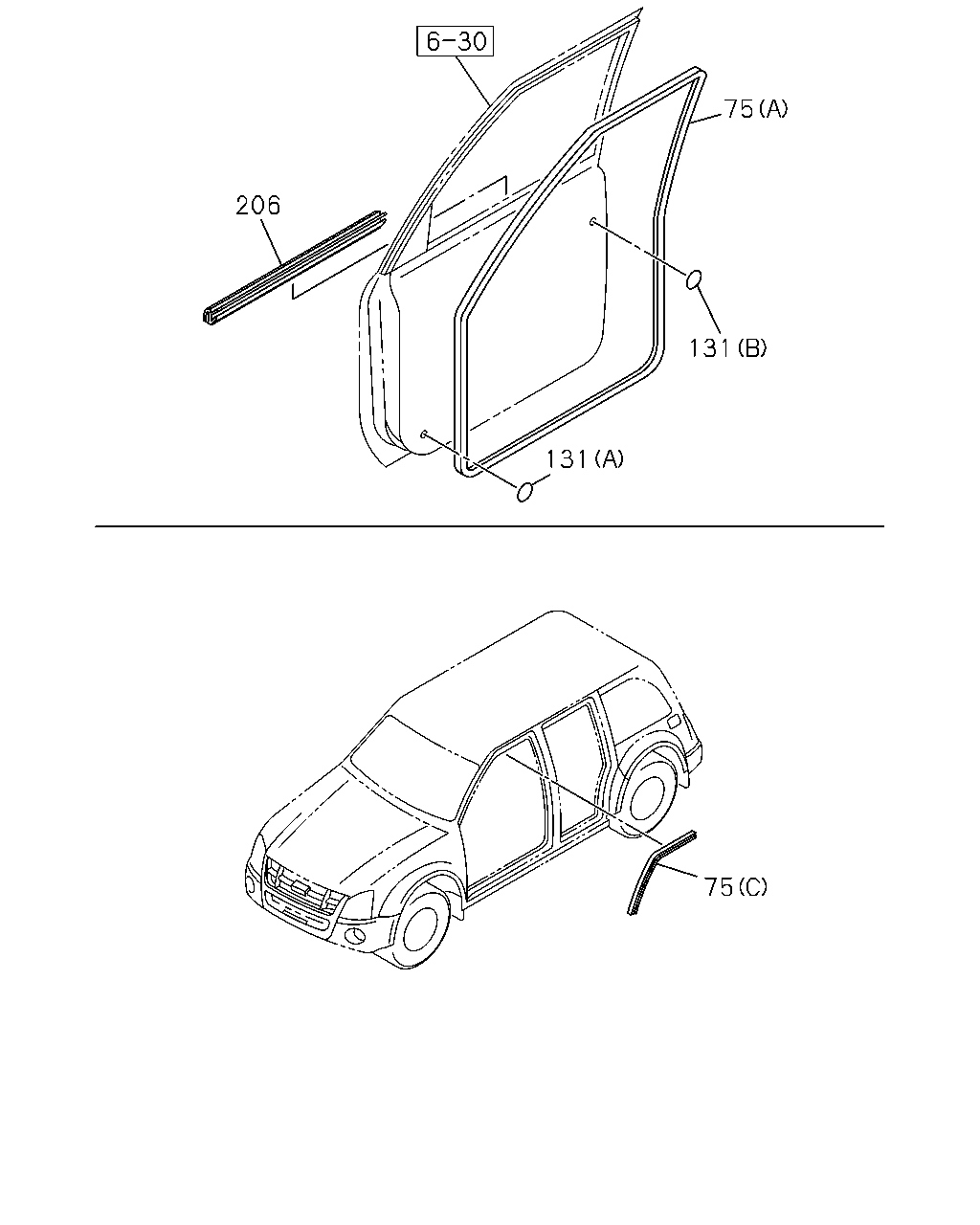

çizim 402304
131 206 75 131 75
BalonParca AdiParca NoAdetTipApplied Date
75 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(C) 		8-97357-597-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(C) 		8-97357-598-1 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 1312-
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 1312-
131 SEAL; FRT DOOR
(A) OD=25 BLACK IMA 		1-76798-019-0 04 1 1312-
131 SEAL; FRT DOOR
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1312-
206 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> 		8-98152-889-0 01 1 1312-
206 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> 		8-98152-890-0 01 1 1312-
206 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-221-0 01 1 1312-
206 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-222-0 01 1 1312-
