Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

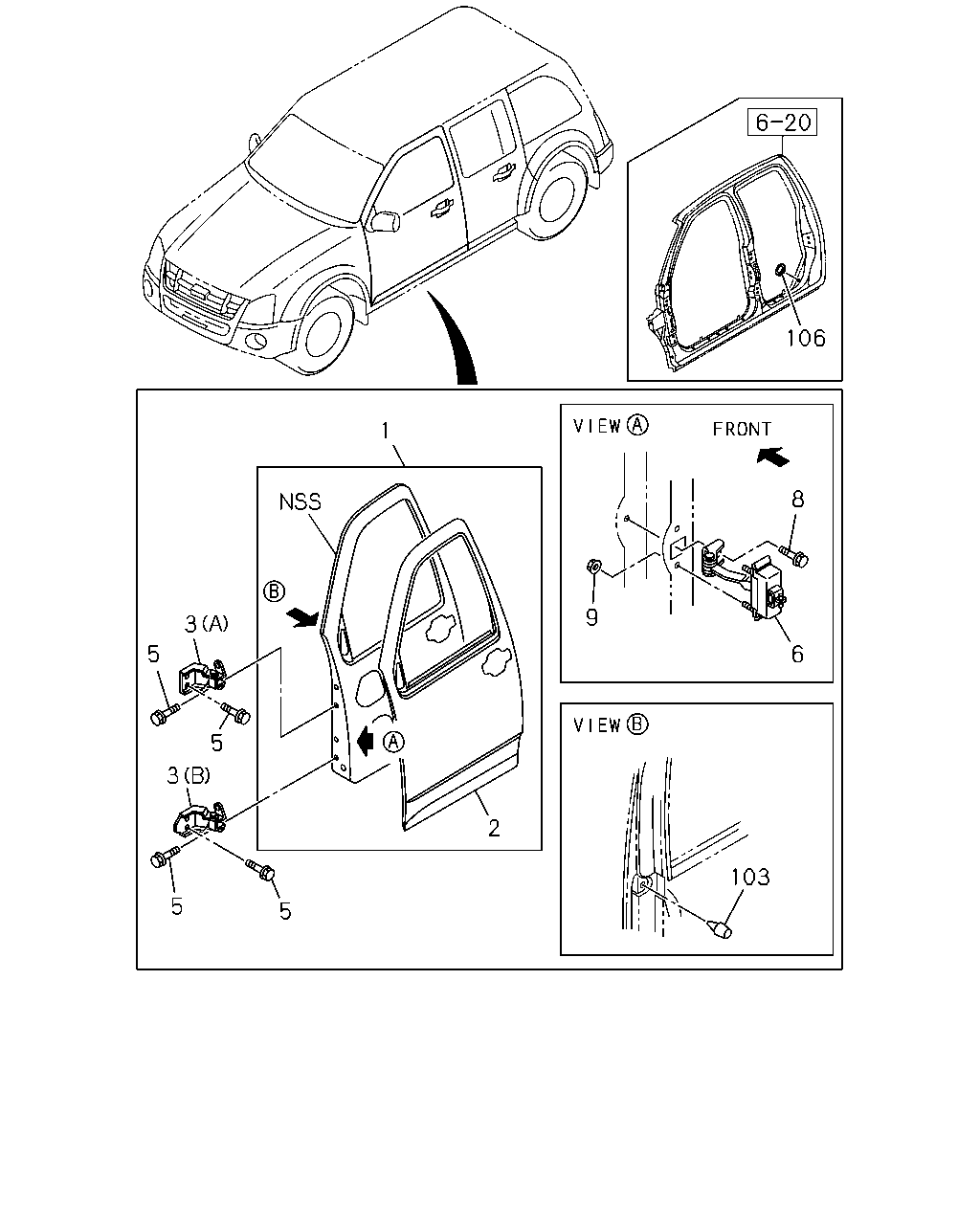

6-30 — FRONT DOOR AND HINGE
(#132640) — 15 parça
106
8
6
9
103
5
2
5
3
5
1
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98231-504-0
01
1
1312-
1
DOOR ASM; FRT,WO/TRIM
8-98231-505-0
01
1
1312-
2
PANEL; FRT DOOR OUTER
8-97365-986-0
01
1
1312-
2
PANEL; FRT DOOR OUTER
8-97365-987-0
01
1
1312-
3
HINGE; DOOR FRT
(A) UPPER
8-98057-546-0
01
1
1312-
3
HINGE; DOOR FRT
(A) UPPER
8-98057-547-0
01
1
1312-
3
HINGE; DOOR FRT
(B) LOWER
8-98057-548-0
01
1
1312-
3
HINGE; DOOR FRT
(B) LOWER
8-98057-549-0
01
1
1312-
5
BOLT; HINGE
M8X23 FLANGE IMA
8-98005-842-0
08
1
1312-
5
BOLT; HINGE
M8X23 FLANGE IMA
8-98005-842-0
08
1
1312-
6
ARM; CHECK,FRT DOOR
8-97369-016-0
02
1
1312-
8
BOLT; CHECK ARM
M8X23 IMA
8-98166-694-0
02
1
1312-
9
NUT; CHECK ARM
M6 FLANGE IMA
8-98049-362-0
04
1
1312-
103
PROTECTOR; FRT DOOR
8-97301-795-1
02
1
1312-
106
GROMMET; PROTECTOR
IMA
8-94279-724-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
