6-20 — SIDE PANEL AND STEP (#132639) — 83 parça

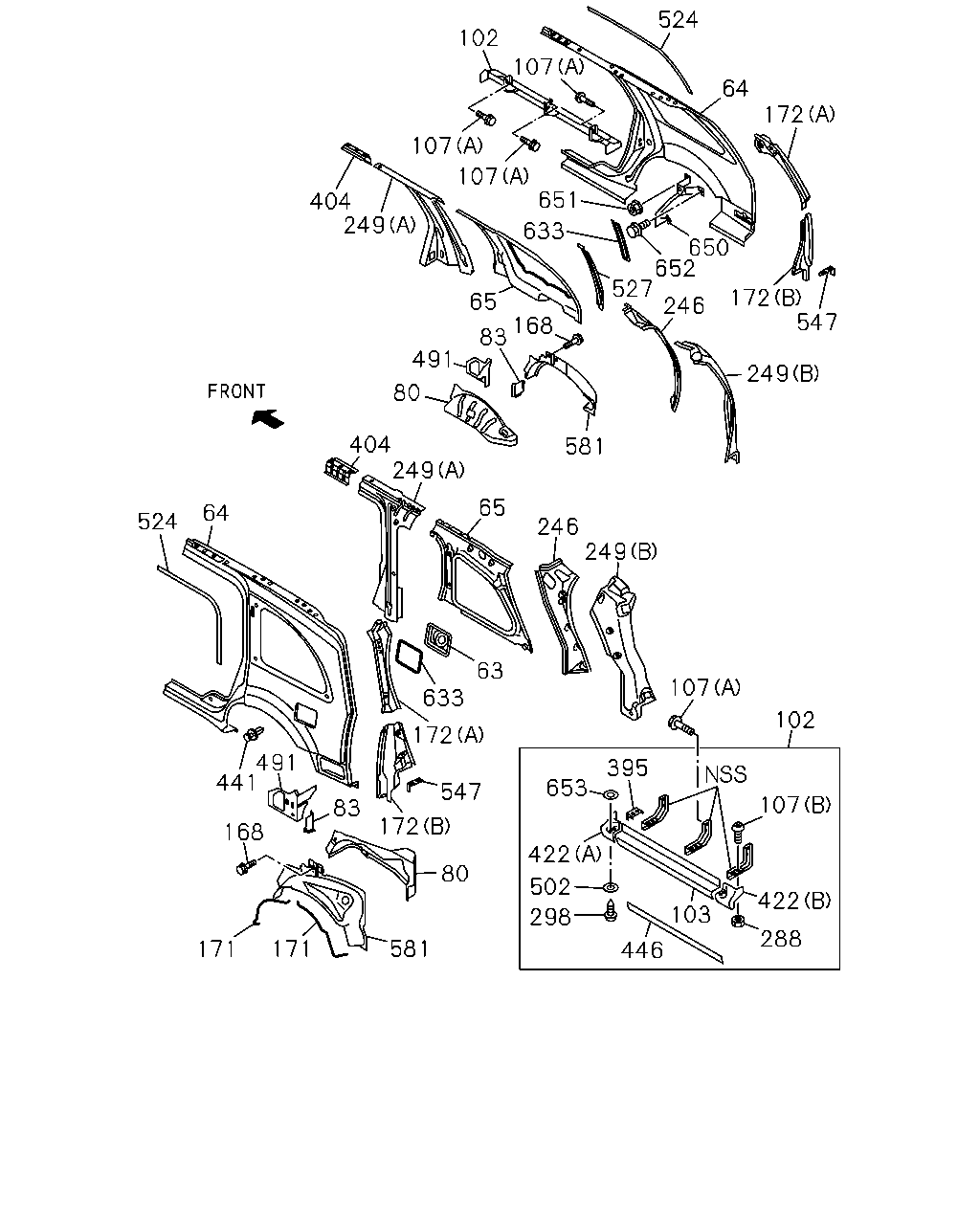

çizim 401844
249 172 246 547 650 652 527 633 651 107 107 107 102 524 64 172 168 65 249 404 491 83 80 404 581 65 249 246 249 107 102 107 395 653 422 502 103 422 288 446 298 80 172 172 63 633 581 171 171 168 83 491 441 524 547 64
BalonParca AdiParca NoAdetTipApplied Date
63 PANEL; FUEL FILLER RECESS 8-97360-535-1 01 1 1312-
64 PANEL; QUARTER OUTER 8-97360-482-6 01 1 1312-
64 PANEL; QUARTER OUTER 8-97360-483-5 01 1 1312-
65 PANEL; QUARTER,INNER 8-97945-079-0 01 1 1312-
65 PANEL; QUARTER,INNER 8-97945-080-0 01 1 1312-
80 PANEL; WHEEL HOUSE,INNER 8-97361-263-3 01 1 1312-
80 PANEL; WHEEL HOUSE,INNER 8-97361-264-2 01 1 1312-
83 COVER; ROCKER RR 8-97360-650-1 01 1 1312-
83 COVER; ROCKER RR 8-97360-651-1 01 1 1312-
102 STEP; BODY SIDE
PRIMER 		8-98252-779-0 01 1 1312-
102 STEP; BODY SIDE
PRIMER 		8-98252-780-0 01 1 1312-
103 PLATE; STEP
SIDE STEP<6TC> 		8-98000-399-0 01 1 1312-
103 PLATE; STEP
SIDE STEP<6TC> 		8-98000-401-0 01 1 1312-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) M8X25 FLANGE 		8-98048-998-0 12 1 1312-
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) 		8-98000-549-0 20 1 1312-
168 BOLT; BODY SIDE PANEL
M6X11 		8-97808-812-0 05 1 1312-
171 SEAL; FUEL FILLER RECESS 8-97170-322-0 02 1 1312-
172 EXTENSION; QUARTER PANEL
(A) 		8-97360-508-5 01 1 1312-
172 EXTENSION; QUARTER PANEL
(A) 		8-97360-509-5 01 1 1312-
172 EXTENSION; QUARTER PANEL
(B) 		8-97364-037-1 01 1 1312-
172 EXTENSION; QUARTER PANEL
(B) 		8-97364-040-1 01 1 1312-
246 PANEL; RR PILLAR,INNER 8-97360-725-0 01 1 1312-
246 PANEL; RR PILLAR,INNER 8-97360-726-0 01 1 1312-
249 REINFORCEMENT; RR PILLAR
(A) 		8-97360-525-5 01 1 1312-
249 REINFORCEMENT; RR PILLAR
(A) 		8-97360-526-5 01 1 1312-
249 REINFORCEMENT; RR PILLAR
(B) 		8-97360-707-0 01 1 1312-
249 REINFORCEMENT; RR PILLAR
(B) 		8-97360-708-0 01 1 1312-
288 NUT; STEP
SIDE STEP<6TC> 		8-98000-548-0 20 1 1312-
298 SCREW; SIDE STEP
SIDE STEP<6TC> 		8-98000-429-0 16 1 1312-
395 BRACKET; SIDE STEP
SIDE STEP<6TC> 		8-98000-426-0 04 1 1312-
404 BRACKET 8-97360-519-0 01 1 1312-
404 BRACKET 8-97360-520-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-205-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98242-207-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-208-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98242-209-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) PRIMER 		8-98249-954-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) PRIMER 		8-98249-955-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (B) PRIMER 		8-98249-956-0 01 1 1312-
422 COVER; SIDE STEP
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> (B) PRIMER 		8-98249-957-0 01 1 1312-
441 CLIP 8-97388-933-0 14 1 1312-
446 FINISHER; STEP
SIDE STEP<6TC> KD PREPARATORY PACK VAR.4<7TV> 		8-98242-210-0 02 1 1312-
446 FINISHER; STEP
SIDE STEP<6TC> EXC. KD PREPARATORY PACK VAR.4<7TV> PRIMER 		8-98249-958-0 02 1 1312-
491 EXTENSION; WHL,FRT 8-97360-661-1 01 1 1312-
491 EXTENSION; WHL,FRT 8-97361-269-2 01 1 1312-
502 WASHER; NYLON
SIDE STEP<6TC> 		8-98000-550-0 08 1 1312-
524 RAIL; DRIP RR 8-97360-513-1 01 1 1312-
524 RAIL; DRIP RR 8-97360-514-1 01 1 1312-
527 STIFFENER; QTR OUTER 8-97360-523-0 01 1 1312-
547 BRACKET; RR STEP 8-97360-654-0 01 1 1312-
547 BRACKET; RR STEP 8-97360-655-0 01 1 1312-
581 PANEL; WHEEL HOUSE,OUTER 8-97361-266-3 01 1 1312-
581 PANEL; WHEEL HOUSE,OUTER 8-97361-267-5 01 1 1312-
633 SEALER 8-97170-322-0 04 1 1312-
650 BRACKET; ARM REST,RR QTR 8-97364-045-1 01 1 1312-
651 NUT; ARM REST BRKT,RR QTR
M6 FLANGE IMA 		8-98055-704-0 01 1 1312-
652 BOLT; ARM REST BRKT,RR QTR
M6X25 FLANGE 		0-28450-625-0 02 1 1312-
653 NUT; PLATE
SIDE STEP<6TC> 		8-98000-428-0 08 1 1312-

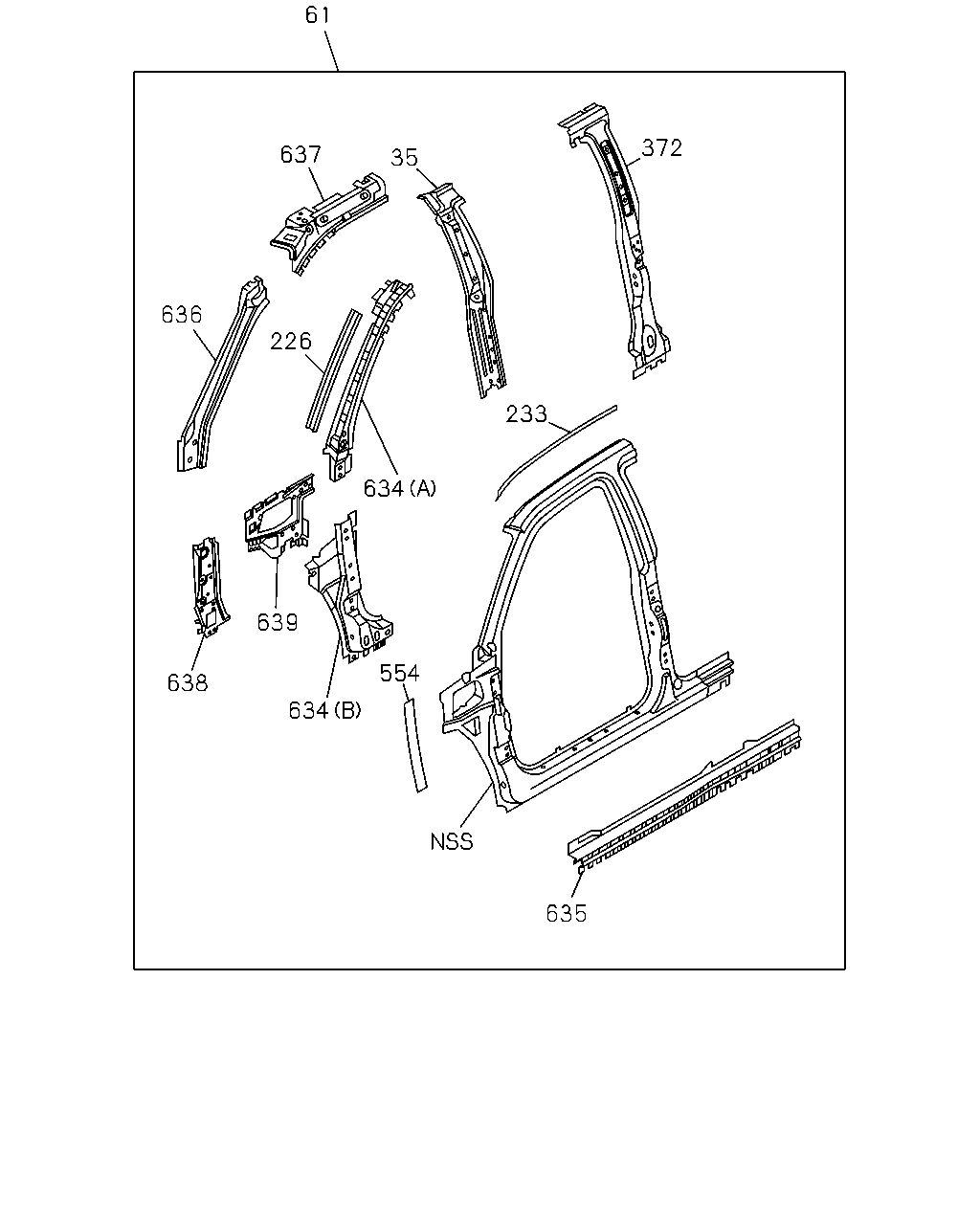

çizim 402288
635 554 634 639 638 634 233 226 636 637 35 61 372
BalonParca AdiParca NoAdetTipApplied Date
35 PANEL; CENTER PILLAR,INNER 8-97360-737-0 01 1 1312-
35 PANEL; CENTER PILLAR,INNER 8-97360-738-0 01 1 1312-
61 PANEL; SIDE OUTER 8-97945-085-0 01 1 1312-
61 PANEL; SIDE OUTER 8-97945-086-0 01 1 1312-
226 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 1312-
226 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 1312-
233 RAIL; RR ROOF 8-97360-516-0 01 1 1312-
233 RAIL; RR ROOF 8-97360-517-0 01 1 1312-
372 REINFORCEMENT; CENTER PILLAR 8-97360-542-0 01 1 1312-
372 REINFORCEMENT; CENTER PILLAR 8-97360-543-0 01 1 1312-
554 SEAL; INNER BODY 8-94199-115-0 02 1 1312-
634 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 1312-
634 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 1312-
634 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 1312-
634 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 1312-
635 REINFORCEMENT; ROCKER 8-97235-045-1 01 1 1312-
635 REINFORCEMENT; ROCKER 8-97235-054-1 01 1 1312-
636 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 1312-
636 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 1312-
637 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 1312-
637 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 1312-
638 PANEL; DASH SIDE INNER 8-97235-084-1 01 1 1312-
638 PANEL; DASH SIDE INNER 8-97235-085-1 01 1 1312-
639 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 1312-
639 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 1312-
