51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶
6-10 — ENGINE HOOD AND LOCK
(#132637) — 36 parça
◀

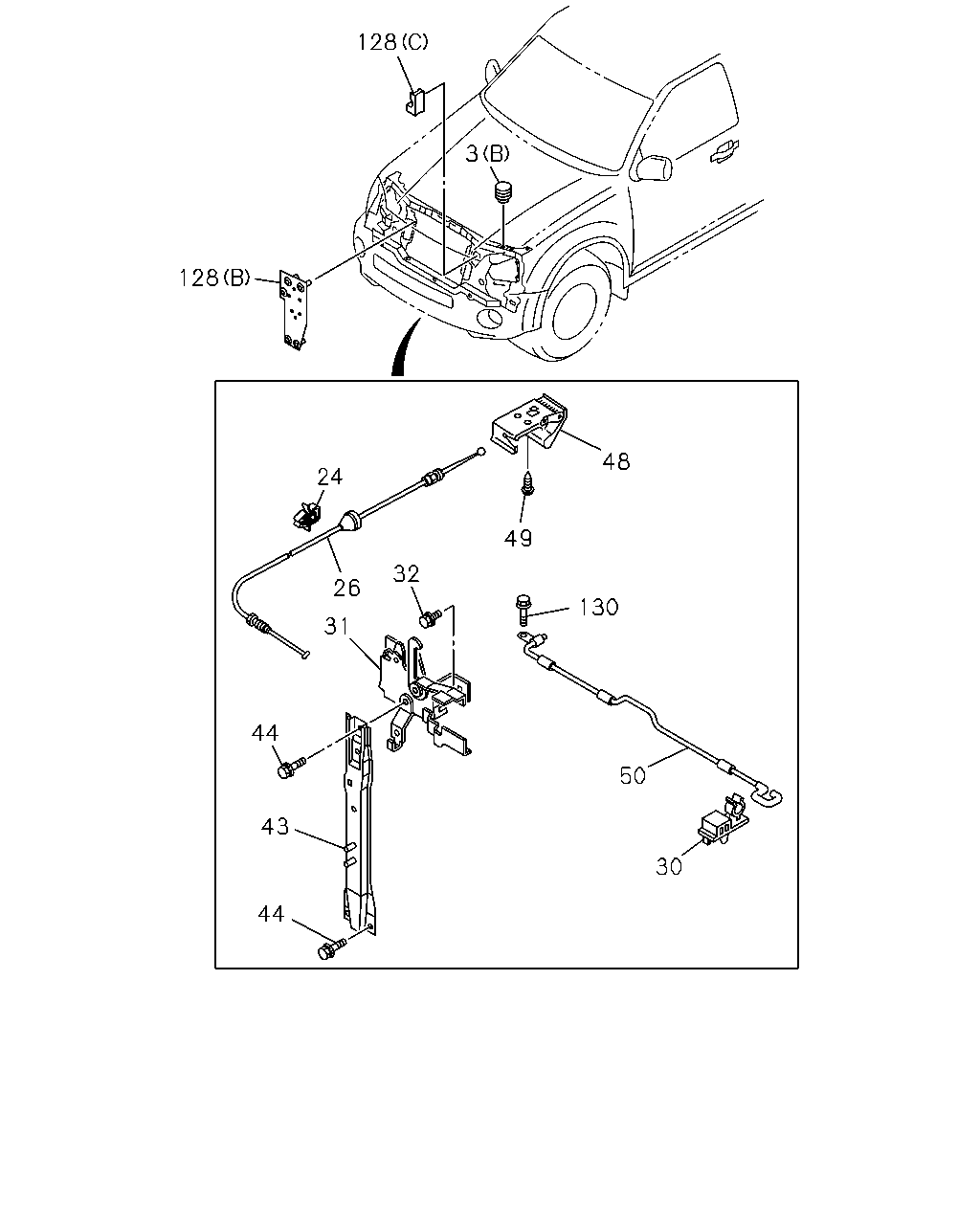

[610A] CABLE;ENG HOOD (16 parça)

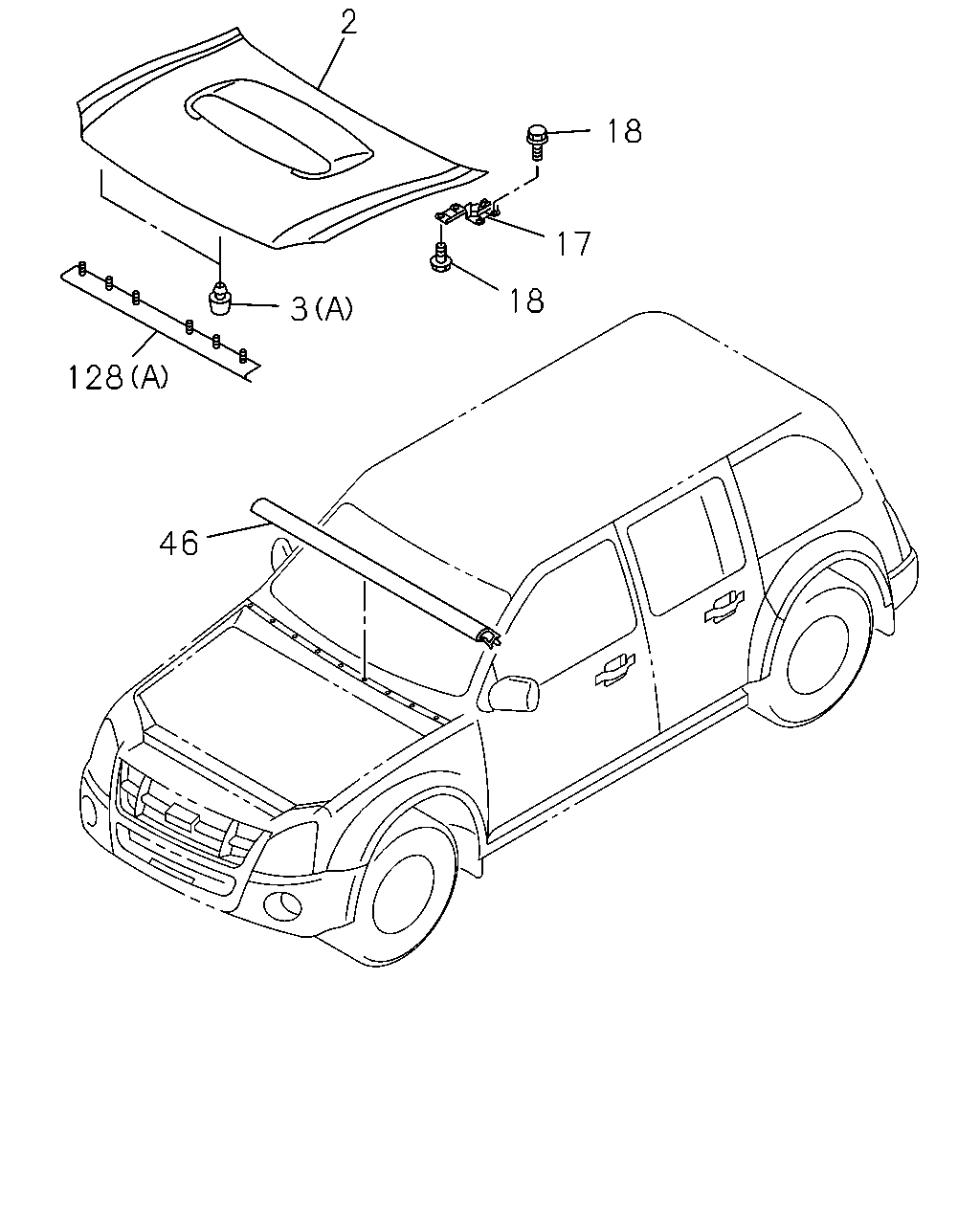

[610A] ENG HOOD (11 parça)
[610A] AIR SCOOP (9 parça)
▶
30
50
130
49
48
32
26
24
31
44
43
44
128
128
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BUFFER; ENG HOOD,FRT
(B)
8-97311-876-0
02
1
1312-
3
BUFFER; ENG HOOD,FRT
(A) IMA
8-97948-266-0
02
1
1312-
24
CLIP; CONT CABLE
IMA
8-97182-405-0
02
1
1312-
26
CABLE; ENG HOOD CONT
8-98072-367-0
01
1
1312-
30
CLIP; SUPPORT ROD,HOOD
IMA
8-97301-356-0
01
1
1312-
31
LOCK; ENG HOOD
8-97235-915-1
01
1
1312-
32
BOLT; HOOD LK
M6X20 W/PL WASHER IMA
8-97370-668-0
02
1
1312-
43
STAY; ENG HOOD,FRT END
8-98031-229-0
01
1
1312-
44
BOLT; STAY,HOOD
M6X20 W/PL WASHER IMA
8-97370-668-0
04
1
1312-
48
LEVER; ENG HOOD
DARK GRAY
8-97411-781-0
01
1
1312-
49
SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING IMA
8-98167-449-0
02
1
1312-
50
ROD; SUPPORT,ENG HOOD
8-98044-500-0
01
1
1312-
128
SEAL; PLATFORM
(C)
8-97372-864-0
01
1
1312-
128
SEAL; PLATFORM
(B)
8-98023-875-0
01
1
1312-
128
SEAL; PLATFORM
(A)
8-98024-523-0
01
1
1312-
130
BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE IMA
0-28650-625-0
01
1
1312-
46
3
128
18
17
18
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PANEL; ENG HOOD
8-98046-693-0
01
1
1312-
3
BUFFER; ENG HOOD,FRT
(B)
8-97311-876-0
02
1
1312-
3
BUFFER; ENG HOOD,FRT
(A) IMA
8-97948-266-0
02
1
1312-
17
HINGE; ENG HOOD
8-98050-664-0
01
1
1312-
17
HINGE; ENG HOOD
8-98050-665-0
01
1
1312-
18
BOLT; HINGE
M8X16 IMA
8-98056-122-0
04
1
1312-
18
BOLT; HINGE
M8X16 IMA
8-98056-122-0
04
1
1312-
46
SEAL; ENG HOOD
8-97380-860-0
01
1
1312-
128
SEAL; PLATFORM
(C)
8-97372-864-0
01
1
1312-
128
SEAL; PLATFORM
(B)
8-98023-875-0
01
1
1312-
128
SEAL; PLATFORM
(A)
8-98024-523-0
01
1
1312-
152
8
147
2
154
5
155
8
153
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PANEL; ENG HOOD
8-98046-693-0
01
1
1312-
5
SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR SILKY WHITE PEARL(531), BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) PRIMER
8-98057-978-0
01
1
1312-
8
SEAL; AIR SCOOP
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR SILKY WHITE PEARL(531), BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936) (B)
8-98056-056-0
01
1
1312-
8
SEAL; AIR SCOOP
(A)
8-98007-126-3
01
1
1312-
147
CLIP; COVER
OD=22 L=10.7 IMA
8-94215-211-0
06
1
1312-
152
NUT; HOOD
M6 FLANGE IMA
0-91180-106-0
04
1
1312-
153
STOPPER; SEAL
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR SILKY WHITE PEARL(531), BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936)
8-98056-058-0
03
1
1312-
154
STUD
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR SILKY WHITE PEARL(531), BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936)
8-98056-035-0
04
1
1312-
155
FASTENER; AIR SCOOP
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR MINERAL GRAY MET(530),BODY COLOR SILKY WHITE PEARL(531), BODY COLOR STARRY BLACK MICA(935),BODY COLOR STERLING SILVER MET(936)
8-98056-037-0
01
1
1312-
