◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#132635) — 18 parça

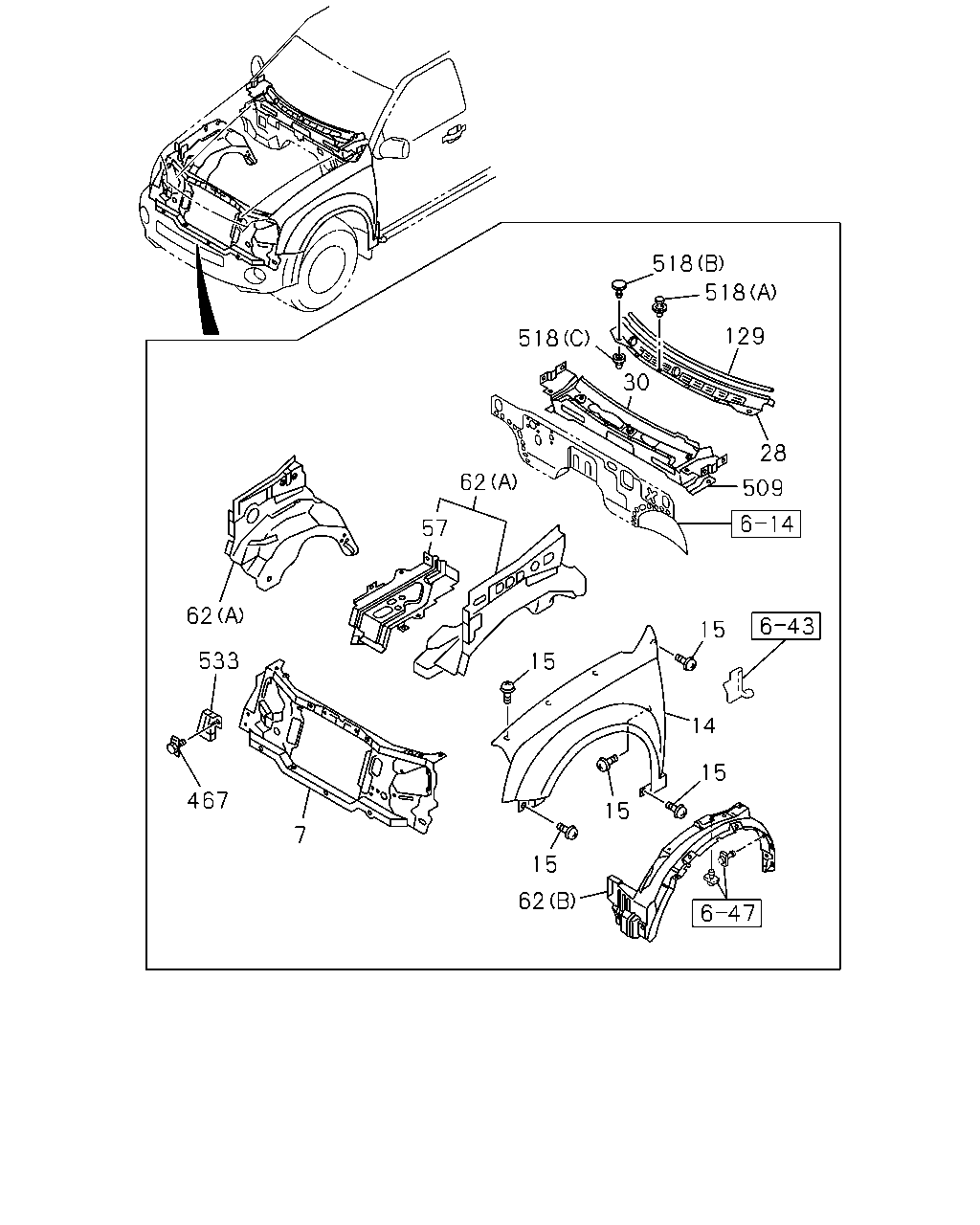

çizim 402414
518 518 518 129 28 509 15 62 57 15 62 533 467 7 15 15 15 14 62 30
BalonParca AdiParca NoAdetTipApplied Date
7 PANEL; DEFLECTOR 8-97387-380-0 01 1 1312-
14 FENDER; FRT 8-97387-363-0 01 1 1312-
14 FENDER; FRT 8-97387-364-0 01 1 1312-
15 BOLT; FENDER
M6X15 W/LK&PL WASHER IMA 		8-98167-615-0 16 1 1312-
28 COVER; DASH COWL 8-98009-237-0 01 1 1312-
30 PANEL; COWL UPR 8-98061-608-0 01 1 1312-
57 TRAY; BATTERY 8-97326-537-1 01 1 1312-
62 PANEL; WHEEL HOUSE
(B) 		8-98007-131-3 01 1 1312-
62 PANEL; WHEEL HOUSE
(B) 		8-98007-132-3 01 1 1312-
62 PANEL; WHEEL HOUSE
(A) 		8-98074-558-0 01 1 1312-
62 PANEL; WHEEL HOUSE
(A) 		8-98074-559-0 01 1 1312-
129 FINISHER; COWL COVER 8-97333-282-2 01 1 1312-
467 RIVET; PLASTIC,DRIP MOLDING
IMA 		8-94221-150-0 01 1 1312-
509 PANEL; DASH 8-98061-610-0 01 1 1312-
518 SCREW; BRKT,COWL COVER
(A) 		8-97013-997-0 03 1 1312-
518 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 1312-
518 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 1312-
533 SEAL; FRT PANEL 8-97316-861-0 01 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
