Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

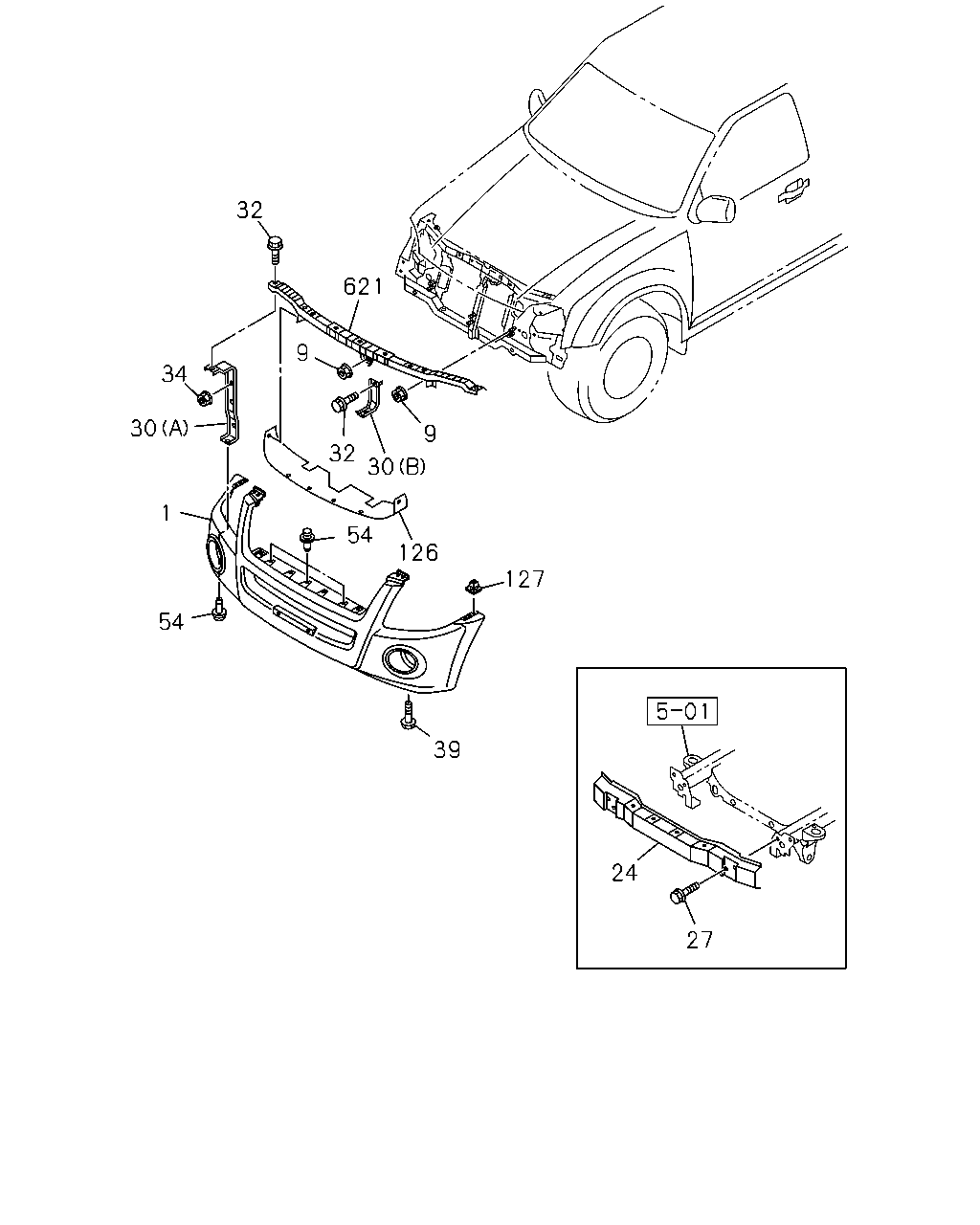

6-01 — FRONT BUMPER
(#132633) — 14 parça
32
621
9
9
32
54
30
126
127
39
54
1
30
34
24
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
KD PREPARATORY PACK VAR.4<7TV> PLEASE PAINT TO MATCH BODY COLOR
8-98185-694-0
01
1
1312-
1
BUMPER ASM; FRT
EXC. KD PREPARATORY PACK VAR.4<7TV> PLEASE PAINT TO MATCH BODY COLOR
8-98158-620-0
01
1
1312-
9
NUT; REINF,FRT BUMPER
M6 FLANGE IMA
0-91180-106-0
06
1
1312-
24
BAR; FRT BUMPER
8-97367-044-0
01
1
1312-
27
BOLT; BUMPER TO BACK BAR
M10X25 FLANGE IMA
0-28661-025-0
04
1
1312-
30
BRACKET; FRT BUMPER
(A)
8-98062-652-0
02
1
1312-
30
BRACKET; FRT BUMPER
(B)
8-98062-655-0
02
1
1312-
32
BOLT; BRKT,BUMPER
M6X16 FLANGE IMA
0-28650-616-0
04
1
1312-
34
NUT; BRKT,BUMPER
M6 FLANGE IMA
0-91180-106-0
04
1
1312-
39
BOLT; BUMPER TO BODY
M6X20 TAPPING W/PL WASHER IMA
8-98167-444-0
02
1
1312-
54
RETAINER; FRT BUMPER
IMA
8-97301-188-0
07
1
1312-
126
SEAL; BUMPER
8-98007-149-1
01
1
1312-
127
NUT; FRT BUMPER
D=9.7X9.7 L=8 IMA
8-94222-314-0
02
1
1312-
621
SUPPORT; FRT BUMPER
8-98060-774-0
01
1
1312-
