5-01 — FRAME AND OTHER PARTS (#132628) — 41 parça

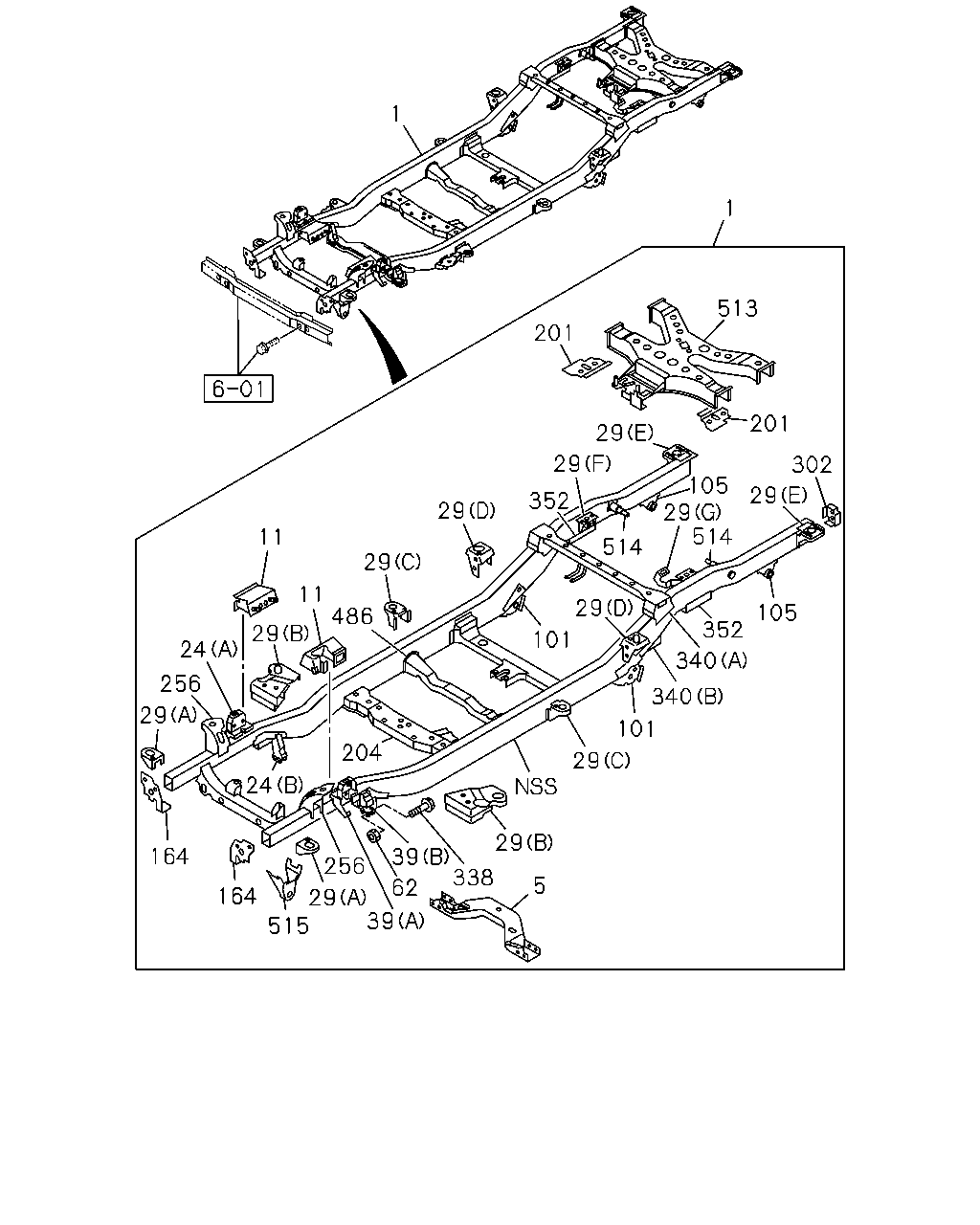

çizim 402014
5 201 513 29 1 29 29 352 201 29 302 105 352 340 340 101 29 29 39 338 62 39 256 29 515 164 164 24 204 101 514 105 29 514 29 486 11 11 29 24 256 29 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM 8-98149-913-0 01 1 1312-1505
1 FRAME ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98149-913-0 01 1 1506-
1 FRAME ASM
A/T AISIN(RMD) 		8-98149-914-0 01 1 1506-
5 MEMBER; CROSS,SUSPENSION 8-97942-423-3 01 1 1312-
11 BRACKET; ENG MTG 8-97942-345-4 01 1 1312-
11 BRACKET; ENG MTG 8-97943-947-0 01 1 1312-
24 BRACKET; FRT SPR,FRT
(A) 		8-97942-356-3 01 1 1312-
24 BRACKET; FRT SPR,FRT
(B) 		8-97946-328-0 01 1 1312-
29 BRACKET; CAB MTG
(B) 		8-97941-772-2 01 1 1312-
29 BRACKET; CAB MTG
(B) 		8-97941-773-2 01 1 1312-
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1312-
29 BRACKET; CAB MTG
(D) 		8-97942-382-4 01 1 1312-
29 BRACKET; CAB MTG
(D) 		8-97942-383-3 01 1 1312-
29 BRACKET; CAB MTG
(E) 		8-97943-923-1 02 1 1312-
29 BRACKET; CAB MTG
(F) 		8-97943-924-1 01 1 1312-
29 BRACKET; CAB MTG
(G) 		8-97943-925-1 01 1 1312-
29 BRACKET; CAB MTG
(C) 		8-97944-956-0 02 1 1312-
39 BRACKET; FRT SPR,RR
(A) 		8-97942-357-3 01 1 1312-
39 BRACKET; FRT SPR,RR
(B) 		8-97946-329-0 01 1 1312-
62 NUT; MBR
M10 FLANGE IMA 		0-91180-210-0 04 1 1312-
101 BRACKET; RR SPR,FRT 8-97945-356-0 01 1 1312-
101 BRACKET; RR SPR,FRT 8-97945-357-0 01 1 1312-
105 BRACKET; RR SPR,RR 8-97942-294-0 02 1 1312-
164 PLATE; FRT 8-98123-934-0 01 1 1312-
164 PLATE; FRT 8-98123-935-0 01 1 1312-
201 GUSSET; C/MBR 8-97942-405-1 01 1 1312-
201 GUSSET; C/MBR 8-97942-406-1 01 1 1312-
204 MEMBER; CROSS,TRANS MTG 8-97944-122-2 01 1 1312-1505
204 MEMBER; CROSS,TRANS MTG
M/T MUX 5 SPEED 5S(MZJ) 		8-97944-122-2 01 1 1506-
204 MEMBER; CROSS,TRANS MTG
A/T AISIN(RMD) 		8-97944-123-2 01 1 1506-
256 BRACKET; S/ABS 8-97944-313-0 01 1 1312-
256 BRACKET; S/ABS 8-97944-314-0 01 1 1312-
302 REINFORCEMENT; S/MBR 8-97944-090-1 01 1 1312-
338 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE 		8-97943-909-0 04 1 1312-
340 BRACKET; FUEL TANK
(A) 		8-97942-278-3 01 1 1312-
340 BRACKET; FUEL TANK
(B) 		8-97942-397-3 01 1 1312-
352 BRACKET; BUMPER RUBBER 8-97943-926-1 02 1 1312-
486 MEMBER; CROSS,HIGHT CONT BRKT 8-97942-371-6 01 1 1312-
513 MEMBER; CROSS,SPEAR TIRE 8-97942-404-9 01 1 1312-
514 PIN; S/ABS 8-97942-395-1 02 1 1312-
515 HOOK 8-97942-363-1 01 1 1312-
