◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#132627) — 9 parça

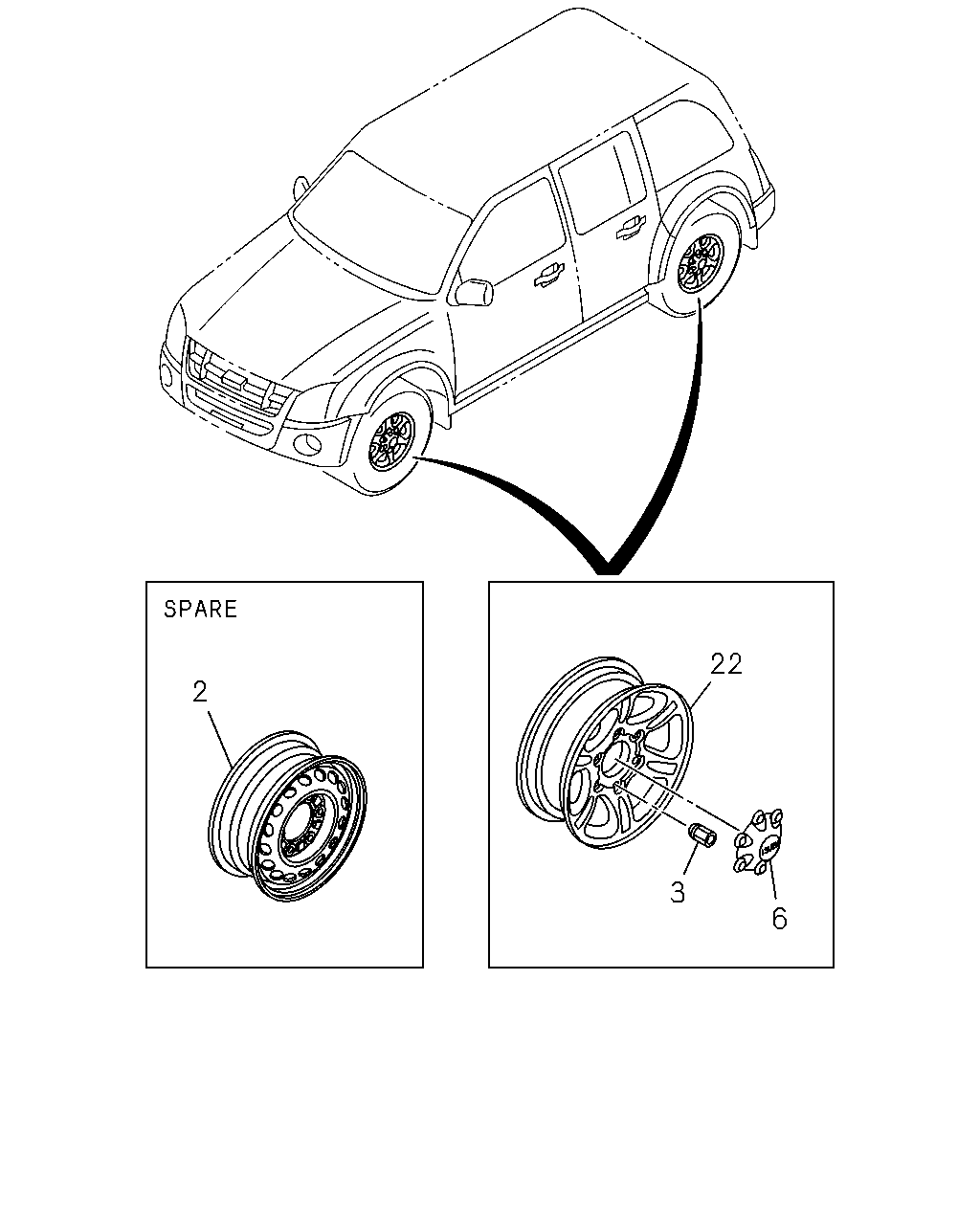

çizim 401968
22 3 6 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
SPARE 		8-98218-141-0 01 1 1312-
3 NUT; WHEEL,FRT AXLE
M12 H=23 IMA 		8-98101-983-0 24 1 1312-
6 CAP; WHEEL
DISC WHEEL 16X7 ALUMI HIGH LUMINANCE SILVER<CVJ>, DISC WHEEL 16X7 ALUMI CHROME<PX2> ISUZU MARK 		8-97945-399-0 04 1 1312-
6 CAP; WHEEL
DISC WHEEL 16X7 ALUMI DARK GRAY<CWC> ISUZU MARK 		8-98116-111-0 04 1 1312-
6 CAP; WHEEL
DISC WHEEL 16X7 ALUMI SILVER<PX0> ISUZU MARK 		8-97374-697-0 04 1 1312-
22 WHEEL; DISC,AL
DISC WHEEL 16X7 ALUMI HIGH LUMINANCE SILVER<CVJ> FRONT,REAR 		8-98218-156-0 04 1 1312-
22 WHEEL; DISC,AL
DISC WHEEL 16X7 ALUMI DARK GRAY<CWC> FRONT,REAR 		8-98218-157-0 04 1 1312-
22 WHEEL; DISC,AL
DISC WHEEL 16X7 ALUMI SILVER<PX0> FRONT,REAR 		8-98218-144-0 04 1 1312-
22 WHEEL; DISC,AL
DISC WHEEL 16X7 ALUMI CHROME<PX2> FRONT,REAR 		8-98218-145-0 04 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
