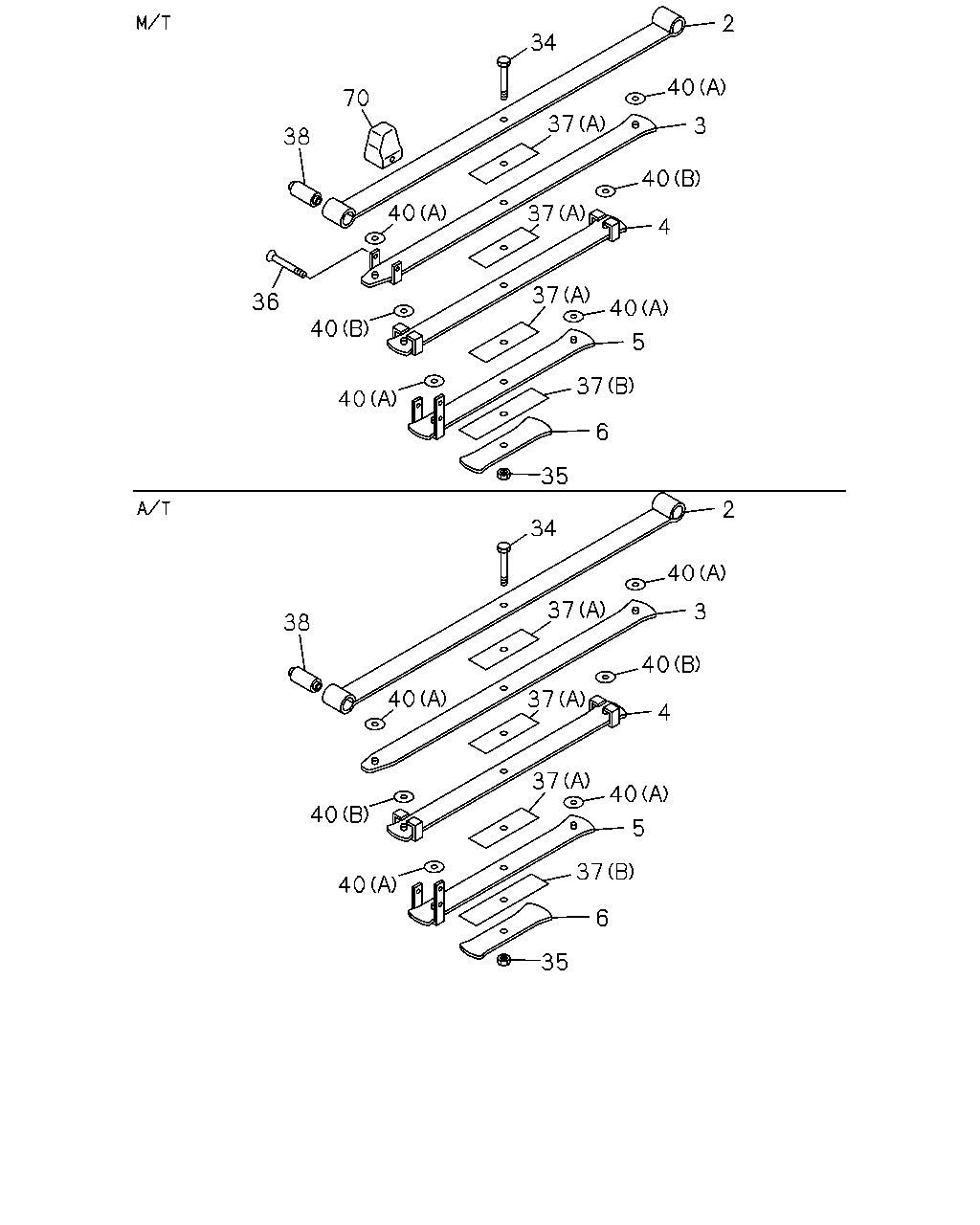

4-65 — REAR LEAF SPRING (#132626) — 15 parça

38 70 34 36 40 37 40 2 37 40 40 37 40 37 6 35 34 37 38 40 40 40 37 40 37 40 4 3 40 4 2 37 40 35 6 5 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97945-322-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-827-0	8-97945-323-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-828-0	8-97945-324-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97945-325-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97945-326-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97945-327-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-94370-682-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IMA ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97945-821-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-97946-828-0	8-94468-262-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (B) ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97379-117-0	01	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-827-0, B = 8-97946-828-0	8-97360-246-0	02	1	-
70	RUBBER; LEAF SPR,RR ASM PART: B = 8-97946-828-0	8-97945-329-0	01	1	-
