Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

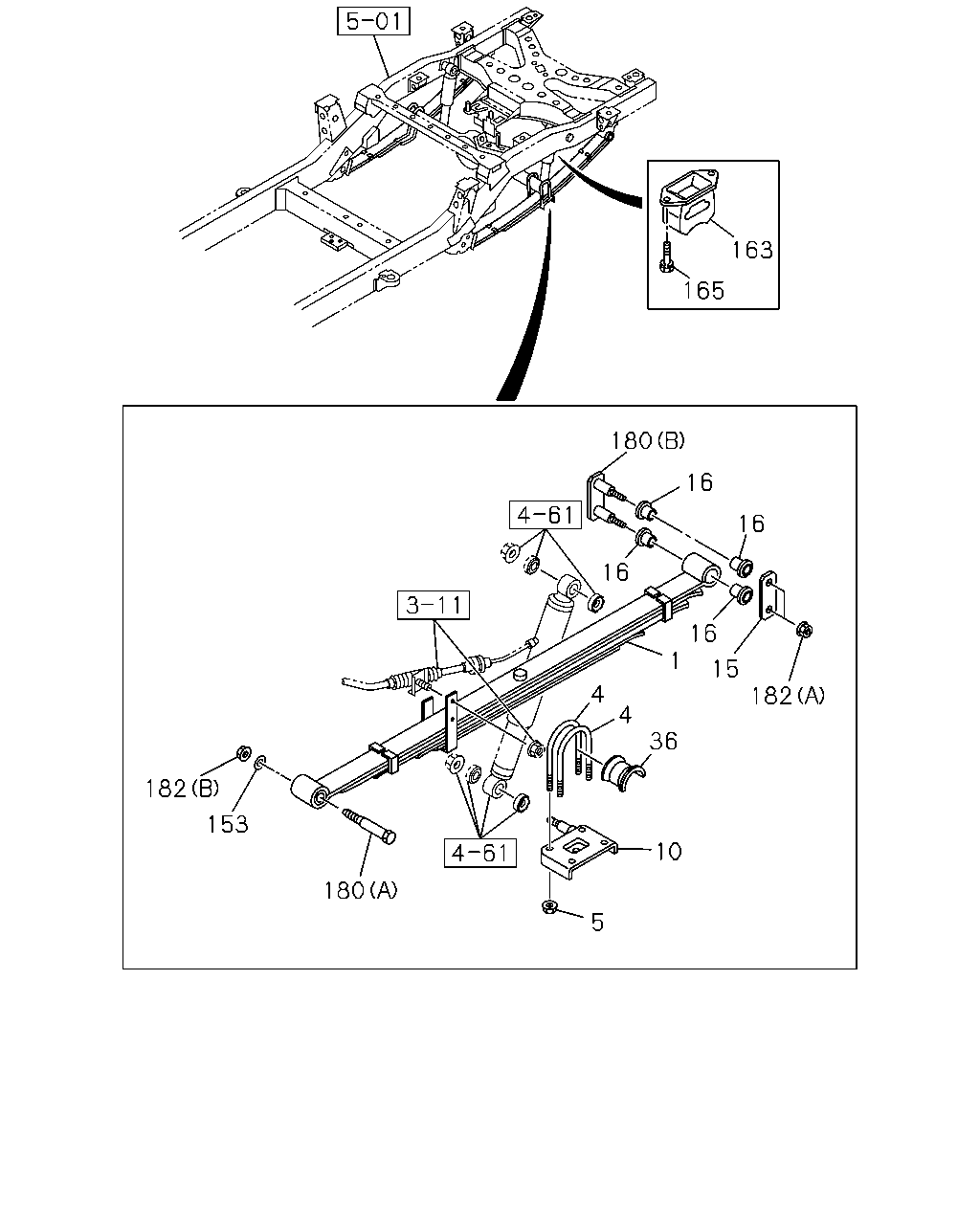

4-60 — REAR SUSPENSION
(#132624) — 17 parça
163
165
180
16
16
16
16
15
182
36
4
4
180
153
82
5
10
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-97946-828-0
02
1
1312-1505
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S(MZJ)
8-97946-828-0
02
1
1506-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN(RMD)
8-97946-827-0
02
1
1506-
4
U-BOLT; RR SPR
8-97248-620-1
04
1
1312-
5
NUT; U-BOLT,RR SPR
M14 FLANGE IMA
8-97245-635-0
08
1
1312-
10
CLAMP; LWR,RR SPR
8-97365-391-0
01
1
1312-
10
CLAMP; LWR,RR SPR
8-97365-393-0
01
1
1312-
15
SHACKLE; RR SPR
IMA
8-98005-815-0
02
1
1312-
16
BUSHING; SHACKLE,RR SPR
IMA
8-97357-492-0
08
1
1312-
36
SEAT; HELPER RUBBER,RR SPR
8-98005-878-0
02
1
1312-
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30 IMA
8-98005-921-0
02
1
1312-
163
RUBBER; HELPER,RR SPR
8-97366-990-0
02
1
1312-
165
BOLT; HELPER RUBBER
M10X16 FLANGE
0-28051-016-0
04
1
1312-
180
PIN; RR SPR
(A) M14X106
8-97245-647-0
02
1
1312-
180
PIN; RR SPR
(B) IMA
8-98005-814-0
02
1
1312-
182
NUT; PIN,RR SPR
(A) M14 FLANGE IMA
0-91180-114-0
04
1
1312-
182
NUT; PIN,RR SPR
(B) M14 FLANGE IMA
8-97245-651-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
