◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#132622) — 17 parça

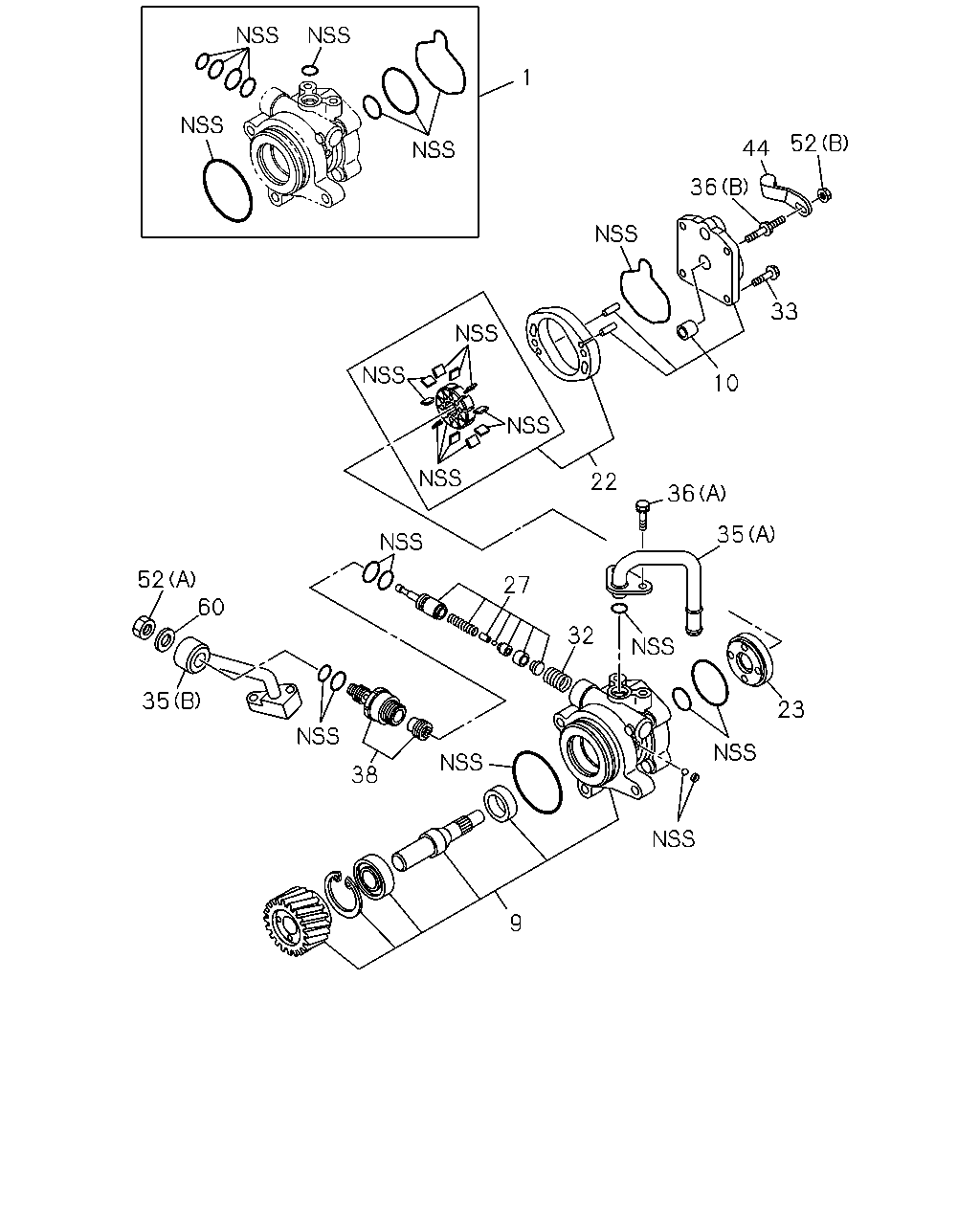

çizim 401585
1 52 60 35 38 27 52 44 36 33 10 22 36 35 32 9 23
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97946-698-0 		8-98002-698-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97946-698-0 		8-98002-697-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97946-698-0 		8-97946-689-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97946-698-0 		8-97946-615-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97946-698-0 		8-97184-728-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97946-698-0 		8-98034-043-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-97946-698-0 		8-97184-766-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97946-698-0 		8-98028-773-0 03 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97946-698-0 		8-97946-174-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97946-698-0 		8-98033-924-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: A = 8-97946-698-0 		8-98028-783-0 02 1 -
36 BOLT; CONN,PIPE
(B) ASM PART: A = 8-97946-698-0 		8-98034-052-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-97946-698-0 		8-97943-866-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
ASM PART: A = 8-97946-698-0 		8-98034-047-0 01 1 -
52 NUT; OIL PUMP
(A) ASM PART: A = 8-97946-698-0 		8-98034-050-0 01 1 -
52 NUT; OIL PUMP
(B) ASM PART: A = 8-97946-698-0 		8-98034-051-0 01 1 -
60 WASHER; LK,OIL PUMP
ASM PART: A = 8-97946-698-0 		8-98034-048-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
