Sayfa 4-40 - Isuzu EPC

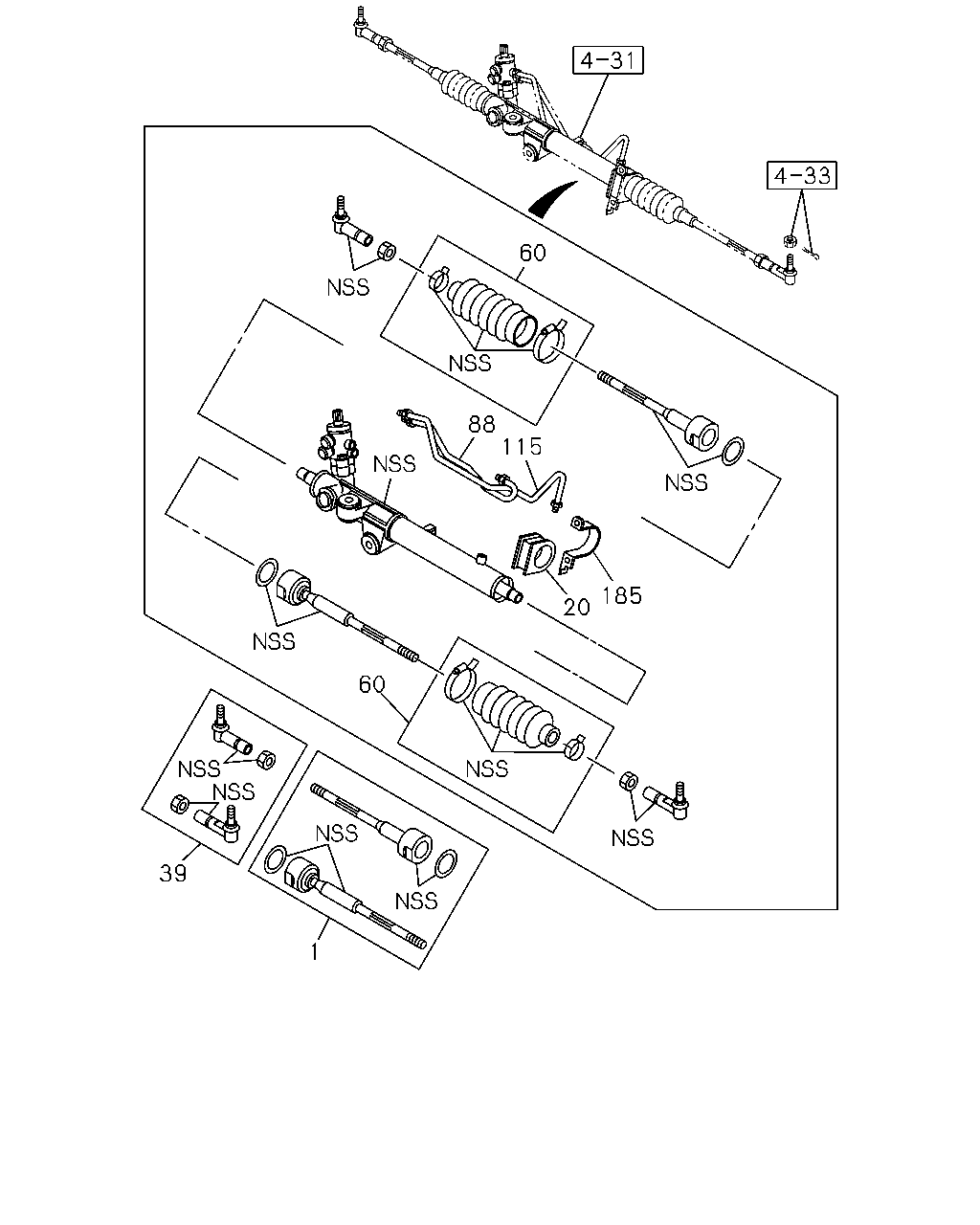

4-40 — STEERING UNIT (#132621) — 7 parça

60 88 60 39 1 115 185 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-98101-779-0	8-98056-550-0	01	1	-
20	RUBBER; MTG ASM PART: A = 8-98101-779-0	8-97945-426-0	01	1	-
39	ROD END ASM; OUTER ASM PART: A = 8-98101-779-0	8-98056-551-0	01	1	-
60	BOOT KIT; STRG HSG ASM PART: A = 8-98101-779-0	8-97945-423-0	02	1	-
88	PIPE; HSG TO VLV ASM PART: A = 8-98101-779-0	8-97945-428-0	01	1	-
115	PIPE; HSG TO VLV ASM PART: A = 8-98101-779-0	8-97945-427-0	01	1	-
185	BRACKET; P/S ASM PART: A = 8-98101-779-0	8-97945-425-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
