3-41 — REAR BRAKE POWER CHAMBER (#13262) — 96 parça

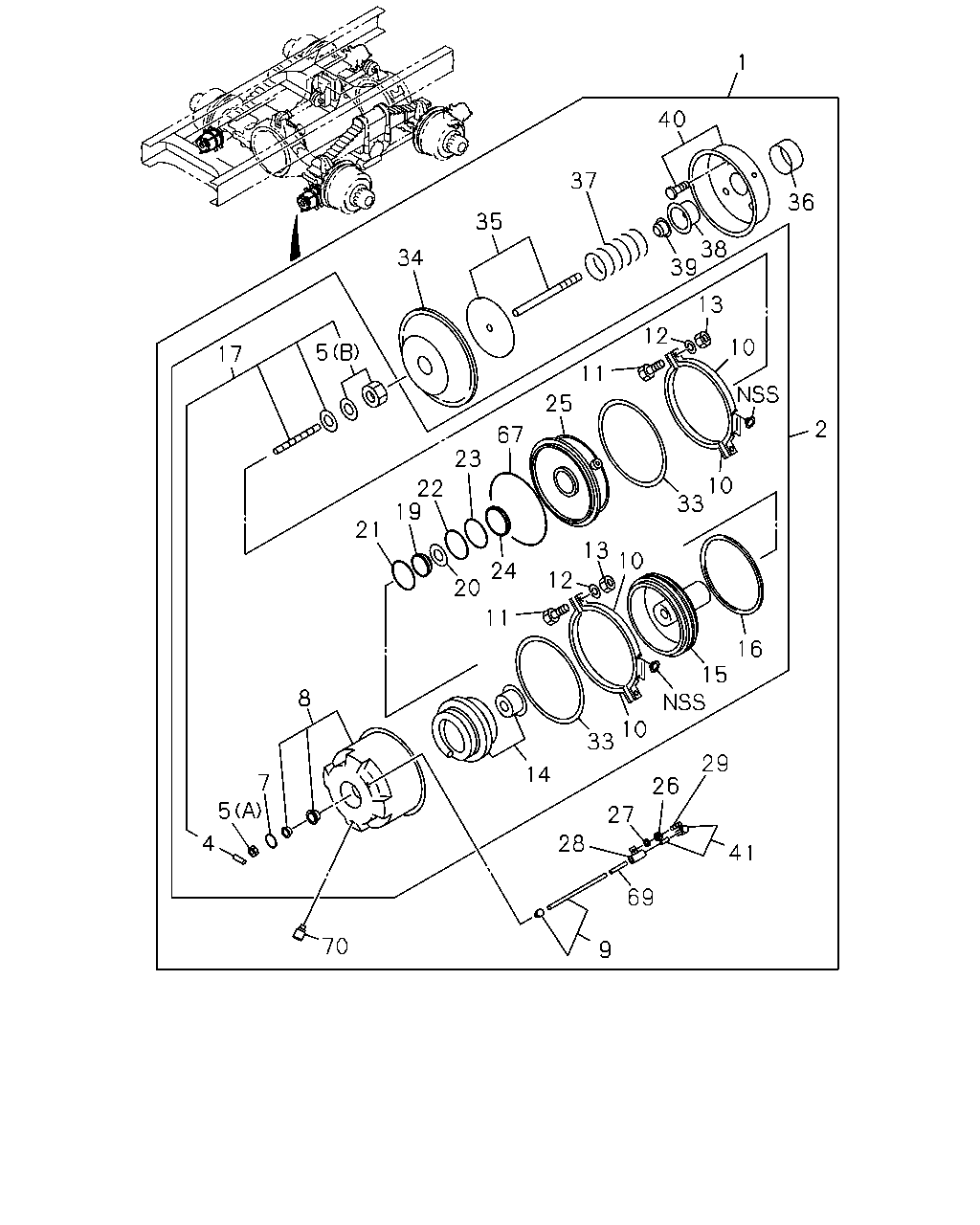

çizim 22398
1 40 37 36 35 38 39 34 13 12 10 5 17 11 25 2 67 23 10 33 22 19 21 13 10 24 12 20 11 16 15 8 10 33 29 14 7 26 5 27 28 4 41 69 70 9
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-018-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-018-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-019-0 01 1 0105-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-019-0 01 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0105-
7 GASKET 1-48259-055-0 02 1 0105-
7 GASKET 1-48259-055-0 02 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-070-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-069-1 01 1 0105-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0105-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0105-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0105-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0105-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0105-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0105-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0105-
14 SPRING & SEAT SET 1-48259-037-0 02 1 0105-
14 SPRING & SEAT SET 1-48259-037-0 02 1 0105-
15 PISTON 1-48262-005-0 02 1 0105-
15 PISTON 1-48262-005-0 02 1 0105-
16 GASKET 1-48259-048-0 02 1 0105-
16 GASKET 1-48259-048-0 02 1 0105-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-
19 COVER; PISTON 1-48269-011-0 02 1 0105-
19 COVER; PISTON 1-48269-011-0 02 1 0105-
20 RING; RET 1-48259-060-0 02 1 0105-
20 RING; RET 1-48259-060-0 02 1 0105-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0105-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-086-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-086-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-085-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-085-0 01 1 0105-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0105-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0105-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0105-
34 DIAPHRAGM 1-48252-010-0 02 1 0105-
34 DIAPHRAGM 1-48252-010-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0105-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0105-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-068-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48259-068-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-067-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48259-067-1 01 1 0105-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0105-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0105-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-

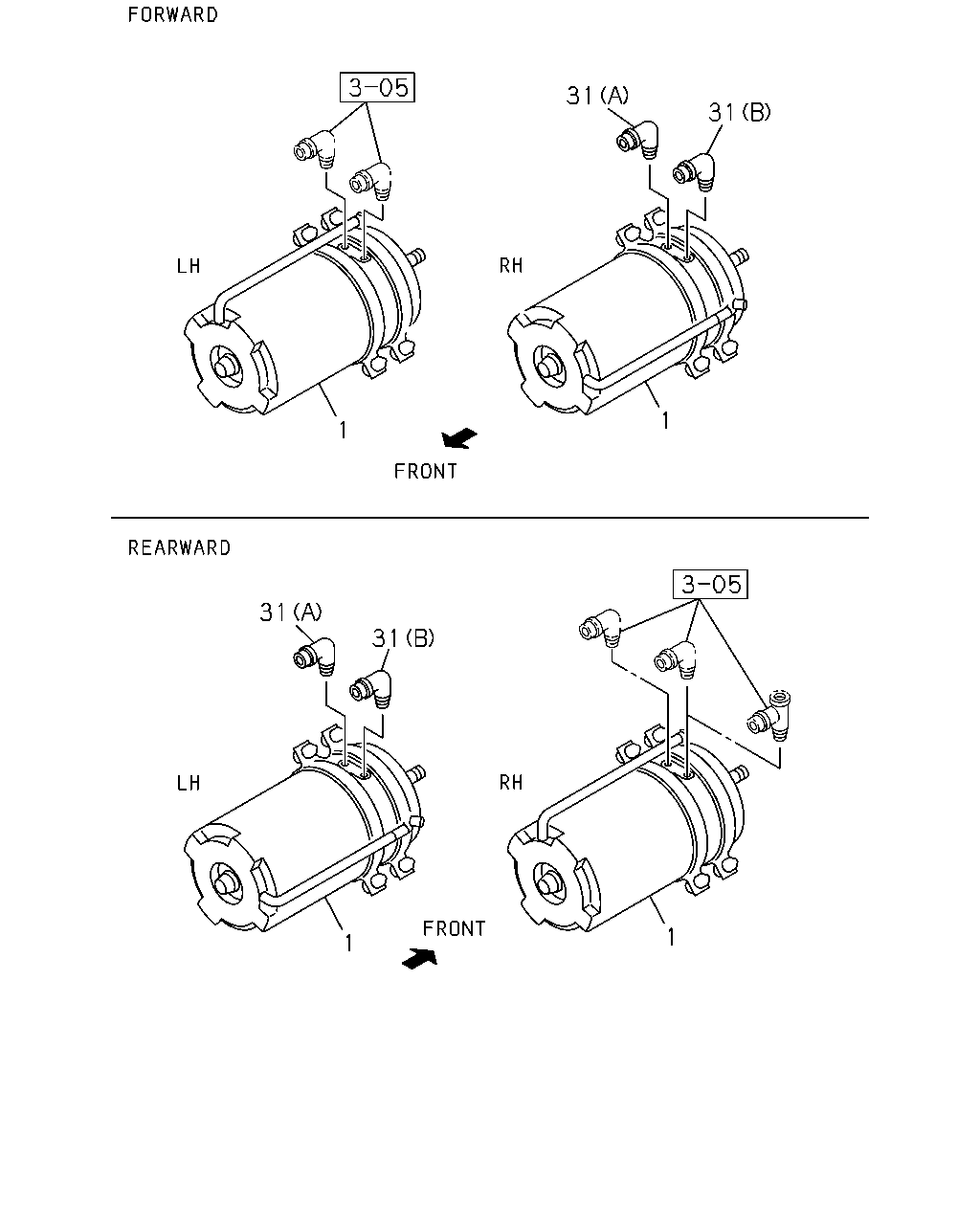

çizim 81082
31 31 1 1 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-180-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-181-2 01 1 0105-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
31 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
