4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#132619) — 24 parça

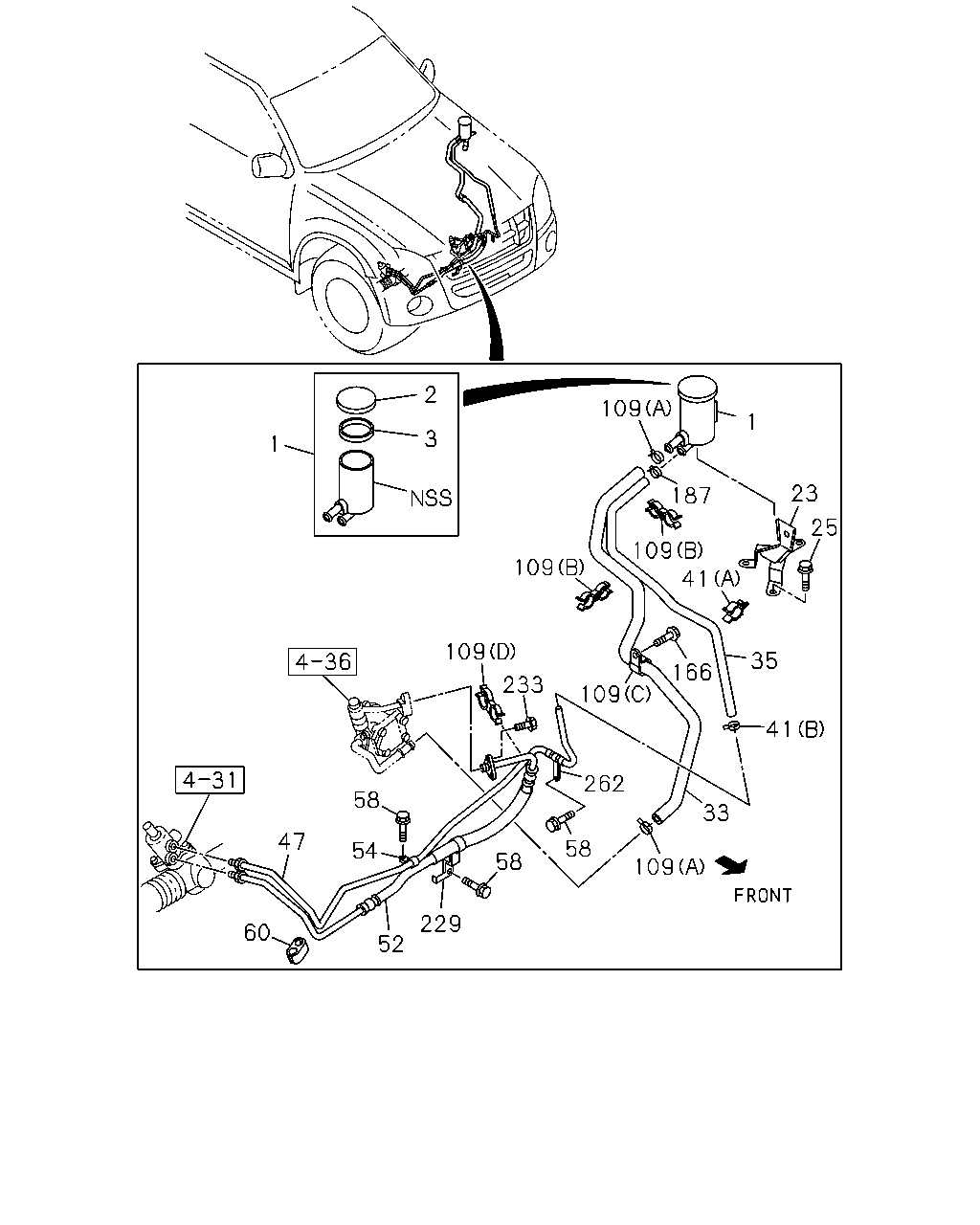

çizim 401556
2 109 109 1 1 1 3 109 187 166 109 41 33 109 58 58 233 41 262 58 47 35 23 25 54 229 52 60
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S
IMA 		8-97234-350-0 01 1 1312-
2 CAP; OIL TANK,P/S
IMA 		8-97349-476-0 01 1 1312-
3 GASKET; OIL TANK,P/S
IMA 		8-97349-477-0 01 1 1312-
23 BRACKET; OIL TANK,P/S 8-97234-380-1 01 1 1312-
25 BOLT; OIL TANK BRKT
M6X16 FLANGE IMA 		0-28650-616-0 03 1 1312-
33 HOSE; RUBBER,POWER STRG 8-97943-485-1 01 1 1312-
35 HOSE; RETURN,P/S TANK 8-97234-899-2 01 1 1312-
41 CLIP; HOSE,P/S
(A) ID=17 IMA 		8-94382-792-1 01 1 1312-
41 CLIP; HOSE,P/S
(B) ID=16 IMA 		8-98030-682-0 01 1 1312-
47 PIPE; RETURN 8-97944-598-0 01 1 1312-
52 HOSE; FLEX,P/S CONT VLV 8-97944-578-0 01 1 1312-
54 CLIP; OIL PIPE
ID=11 L=16 		0-95235-022-0 01 1 1312-
58 BOLT; CLIP
M6X16 FLANGE IMA 		0-28650-616-0 01 1 1312-
58 BOLT; CLIP
M6X16 FLANGE IMA 		0-28650-616-0 02 1 1312-
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 IMA 		8-94252-455-2 01 1 1312-
109 CLIP; RUBBER HOSE
(B) ID=17.5 & 21 IMA 		8-97177-580-0 02 1 1312-
109 CLIP; RUBBER HOSE
(D) ID=21 & 9.8 IMA 		8-97309-945-0 01 1 1312-
109 CLIP; RUBBER HOSE
(A) ID=20.8 IMA 		8-97944-127-0 02 1 1312-
109 CLIP; RUBBER HOSE
(C) ID=24 L=32 		8-98006-816-0 01 1 1312-
166 BOLT; CLIP
M8X16 FLANGE IMA 		0-28050-816-0 01 1 1312-
187 CLIP; P/S OIL PIPE
ID=16 IMA 		8-98030-682-0 01 1 1312-
229 BRACKET; HOSE,POWER STRG 8-97944-610-0 01 1 1312-
233 BOLT; PIPE CLIP,P/S
M6X16 FLANGE IMA 		0-28650-616-0 02 1 1312-
262 CLIP; P/S PIPE
ID=11 L=50 		0-95235-082-0 01 1 1312-
