51506 - UCR RHD (INDIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

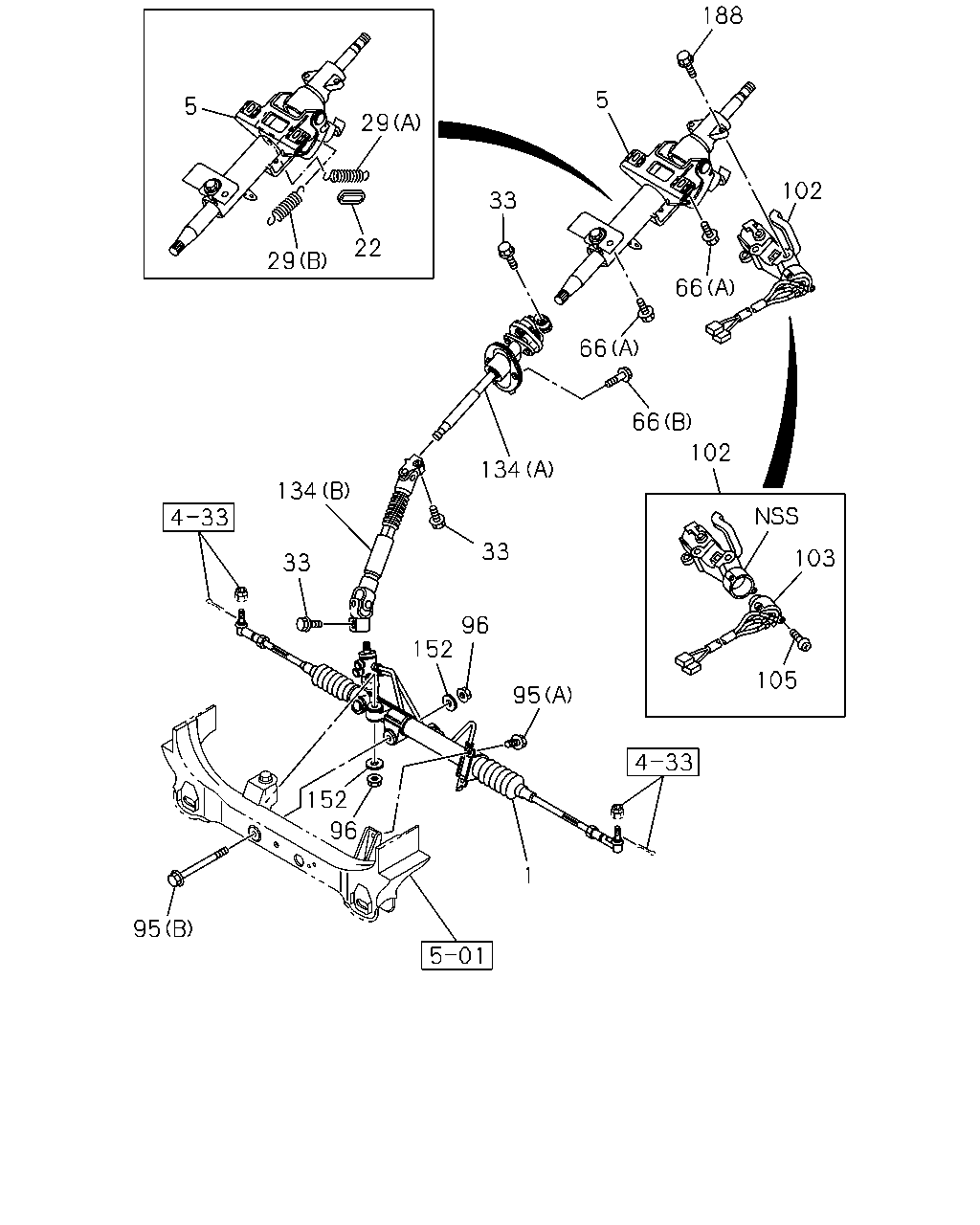

4-31 — STEERING COLUMN AND SHAFT
(#132617) — 21 parça
5
29
22
29
33
5
188
102
66
66
134
66
103
105
95
96
152
33
33
134
95
152
96
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98101-779-0
01
1
1312-
5
COLUMN; STRG
8-97945-772-0
01
1
1312-
22
BUSHING; STRG COLUMN
8-97349-938-0
01
1
1312-
29
SPRING; COLUMN
(A)
8-97349-937-0
01
1
1312-
29
SPRING; COLUMN
(B)
8-97349-939-0
01
1
1312-
33
BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE IMA
8-97249-320-0
01
1
1312-
33
BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE IMA
8-97249-320-0
02
1
1312-
66
BOLT; STRG COLUMN
(A) M8X30 FLANGE IMA
0-28650-830-0
04
1
1312-
66
BOLT; STRG COLUMN
(B)
8-97249-319-1
02
1
1312-
95
BOLT; STRG UNIT
(A) M12X30 FLANGE IMA
0-28661-230-0
02
1
1312-
95
BOLT; STRG UNIT
(B) M16X195 W/PL WASHER
8-97245-661-0
01
1
1312-
96
NUT; STRG UNIT
M16 IMA
0-91110-516-0
02
1
1312-
102
LOCK ASM; STRG
8-97349-940-0
01
1
1312-1505
102
LOCK ASM; STRG
M/T MUX 5 SPEED 5S(MZJ)
8-97349-940-0
01
1
1506-
102
LOCK ASM; STRG
A/T AISIN(RMD)
8-97945-767-0
01
1
1506-
103
SWITCH; IGNITION
8-97350-071-0
01
1
1312-
105
SCREW; IGN SW
8-97349-945-0
02
1
1312-
134
SHAFT; STRG,2ND
(B)
8-97358-237-0
01
1
1312-
134
SHAFT; STRG,2ND
(A)
8-98108-809-0
01
1
1312-
152
WASHER; LK,STRG UNIT
ID=16.5 OD=45
8-97944-809-0
02
1
1312-
188
BOLT; TORQUE,STEERING
8-98133-262-0
02
1
1312-
