51506 - UCR RHD (INDIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#132616) — 33 parça
◀

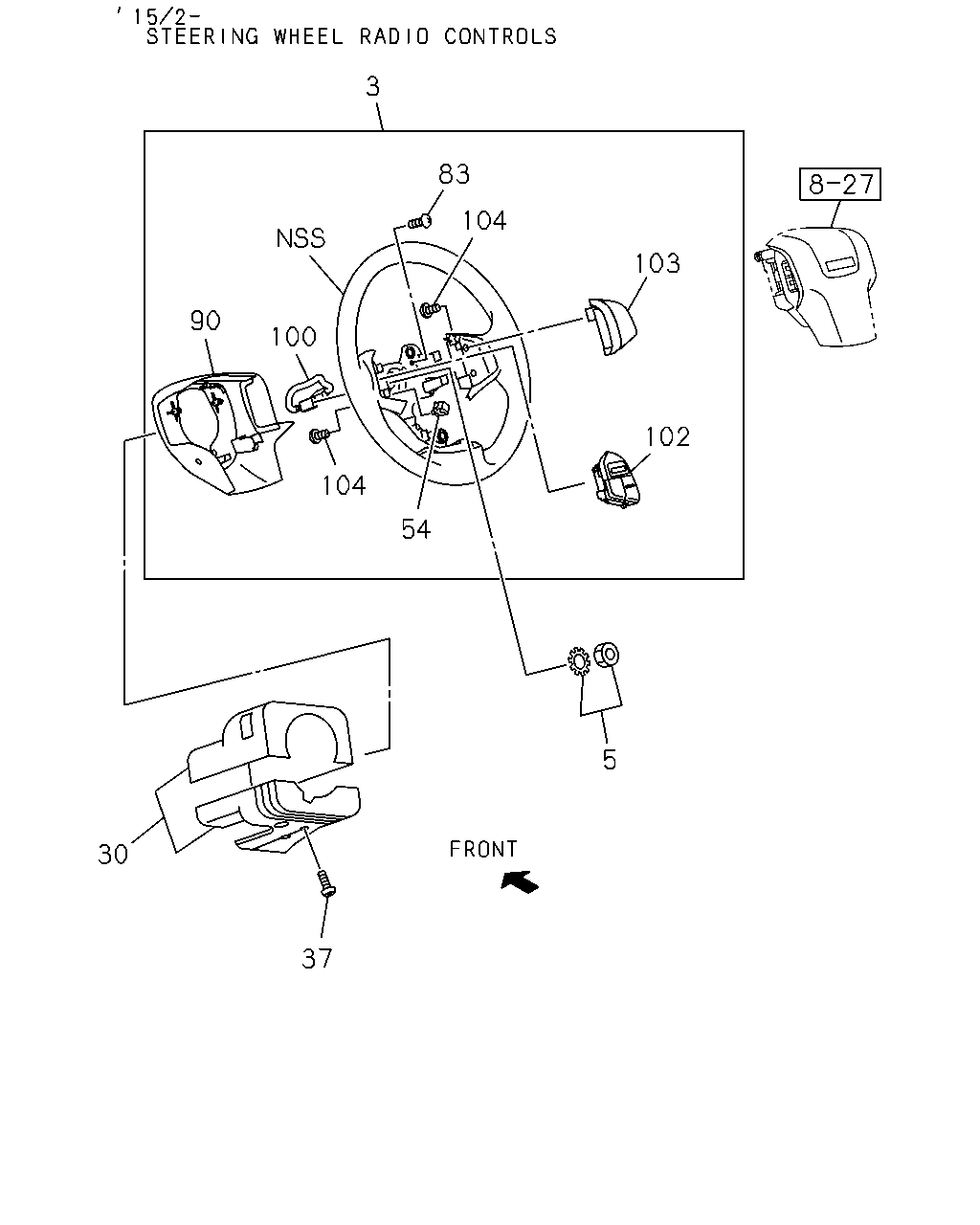

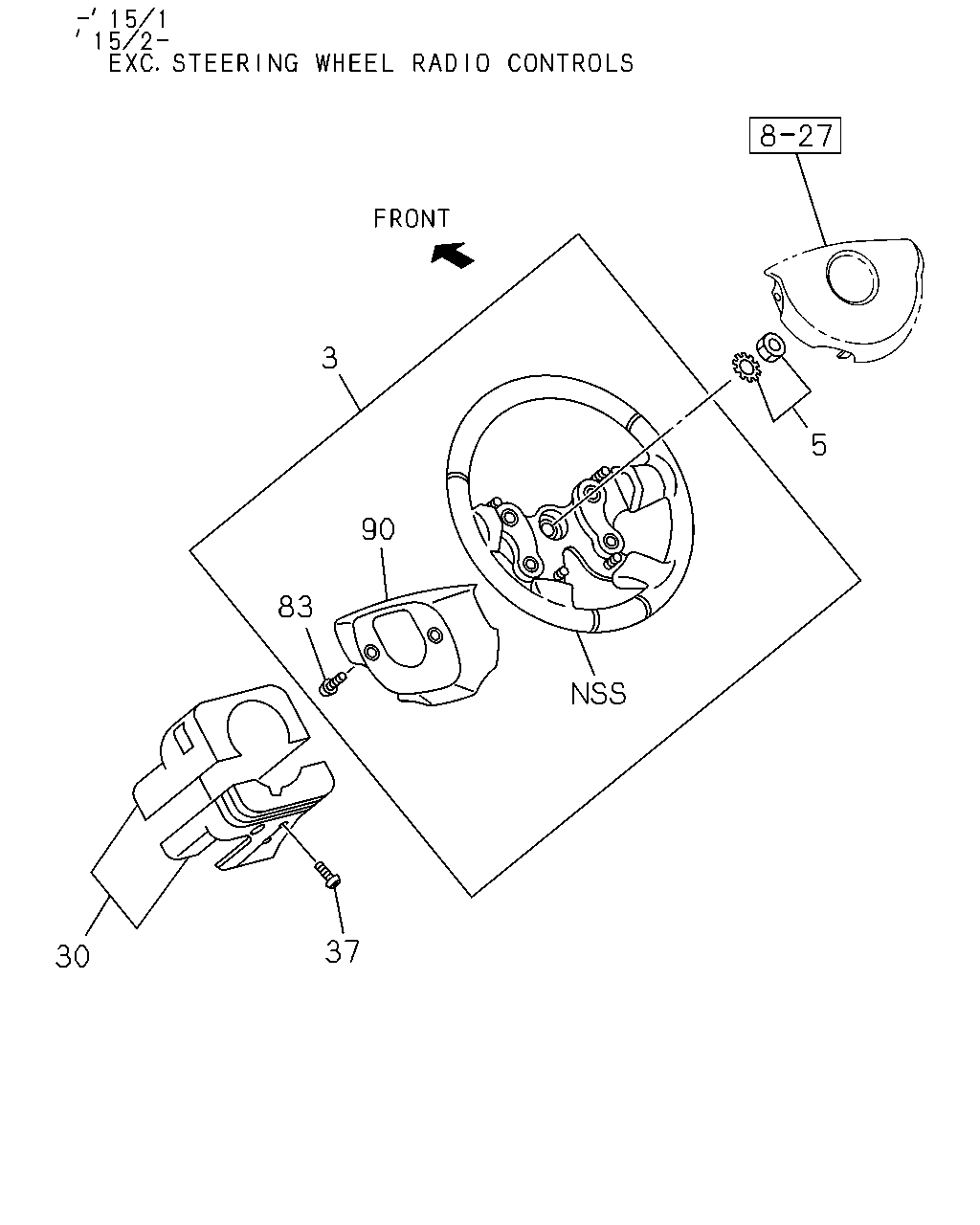

[430A] NO.1 (14 parça)
[430A] NO.2 (19 parça)
▶
5
3
90
83
37
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY
8-97406-954-2
01
1
1312-1501
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97406-954-2
01
1
1502-
3
WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY
8-97403-688-2
01
1
1312-1501
3
WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97403-688-2
01
1
1502-
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97424-481-0
01
1
1502-
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA
8-94455-487-1
01
1
1312-
30
COWL; STEERING
DARK GRAY
8-97422-708-0
01
1
1312-
37
SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER IMA
0-36230-412-0
03
1
1312-
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>
8-97350-038-0
02
1
1312-1501
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE>
8-97350-038-0
02
1
1502-
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING IMA
0-71240-410-0
02
1
1502-
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY
8-97403-937-1
01
1
1312-1501
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97403-937-1
01
1
1502-
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK IMA
8-97416-856-1
01
1
1502-
3
83
104
103
102
54
104
100
90
30
37
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY
8-97406-954-2
01
1
1312-1501
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97406-954-2
01
1
1502-
3
WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY
8-97403-688-2
01
1
1312-1501
3
WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97403-688-2
01
1
1502-
3
WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK
8-97424-481-0
01
1
1502-
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA
8-94455-487-1
01
1
1312-
30
COWL; STEERING
DARK GRAY
8-97422-708-0
01
1
1312-
37
SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER IMA
0-36230-412-0
03
1
1312-
54
CLIP; HARNESS
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> IMA
8-98165-703-0
01
1
1502-
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>
8-97350-038-0
02
1
1312-1501
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE>
8-97350-038-0
02
1
1502-
83
SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING IMA
0-71240-410-0
02
1
1502-
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY
8-97403-937-1
01
1
1312-1501
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. STEERING WHEEL RADIO CONTROLS<8NE> DARK GRAY
8-97403-937-1
01
1
1502-
90
COVER ASM; STRG WHEEL,LWR
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK IMA
8-97416-856-1
01
1
1502-
100
HARNESS; STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> IMA
8-98108-695-0
01
1
1502-
102
SWITCH ASM; AUDIO CONT,STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>
8-98196-493-0
01
1
1502-
103
BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>
8-98196-497-0
01
1
1502-
104
SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING IMA
0-71240-410-0
04
1
1502-
