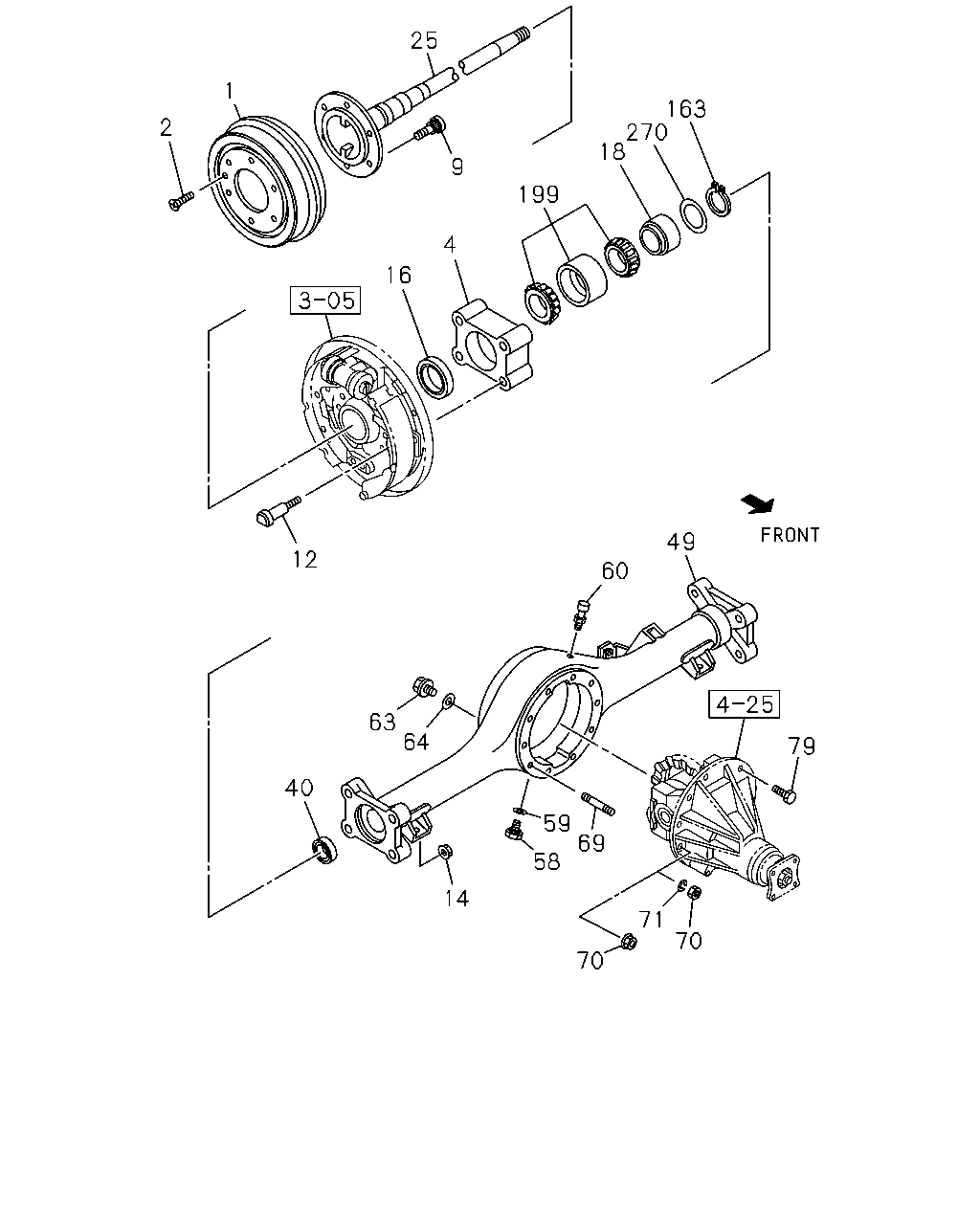

4-20 — REAR AXLE CASE AND SHAFT
(#132614) — 28 parça
163
270
18
199
9
25
1
2
4
16
12
63
64
60
40
49
69
59
58
14
70
71
79
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
8-98030-385-0
02
1
1312-
2
BOLT; BRK DRUM
M6X16 CK-HEAD IMA
0-36410-616-0
02
1
1312-
4
HOLDER; BRG,AXLE SHAFT
8-97562-780-0
02
1
1312-
9
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD IMA
8-97944-831-1
12
1
1312-
12
BOLT; BRG HOLDER TO CASE
8-98038-350-0
08
1
1312-
14
NUT; BRG HOLDER TO CASE
M12 FLANGE IMA
0-91180-212-0
08
1
1312-
16
SEAL; OIL,RR HUB,OUTER
8-97216-792-0
02
1
1312-
18
RETAINER; RR AXLE
IMA
8-98009-341-0
02
1
1312-
25
SHAFT; AXLE,RR
8-97944-442-0
02
1
1312-
40
SEAL; OIL,REAR AXLE
IMA
8-97323-297-0
02
1
1312-
49
CASE; RR AXLE
8-98036-685-1
01
1
1312-
58
PLUG; DRAIN,AXLE CASE
M16X12.5 IMA
8-97307-060-0
01
1
1312-
59
GASKET; DRAIN PLUG
ID=16.2 OD=24 IMA
9-09571-416-0
01
1
1312-
60
BREATHER; RR AXLE CASE
L=29 IMA
8-98006-960-0
01
1
1312-
63
PLUG; OIL FILLER,AXLE CASE
IMA
8-97307-059-1
01
1
1312-
64
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 IMA
8-94462-734-0
01
1
1312-
69
STUD; AXLE CASE
M10X31 L=43 IMA
8-98022-413-0
02
1
1312-
70
NUT; CARRIER
M10
0-91110-510-0
02
1
1312-1509
70
NUT; CARRIER
M10 FLANGE IMA
0-91180-210-0
02
1
1510-
71
WASHER; LK,FINAL DRIVE SETTING
ID=10.2
0-91510-810-0
02
1
1312-1509
79
BOLT; COVER TO CASE
M10X30 W/LK WASHER
0-50561-030-0
07
1
1312-1509
79
BOLT; COVER TO CASE
M10X30 FLANGE IMA
0-28061-030-0
07
1
1510-
79
BOLT; COVER TO CASE
M10X90 W/LK WASHER
0-50561-090-0
01
1
1312-1509
79
BOLT; COVER TO CASE
M10X90 IMA
0-28061-090-0
01
1
1510-
163
RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 IMA
9-09180-042-0
AR
1
1312-
163
RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 IMA
9-09952-253-0
AR
1
1312-
199
BEARING; RR AXLE
IMA
8-97216-797-2
02
1
1312-
270
SHIM; RETAINER
T=0.24 IMA
9-41519-109-0
AR
1
1312-
