Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

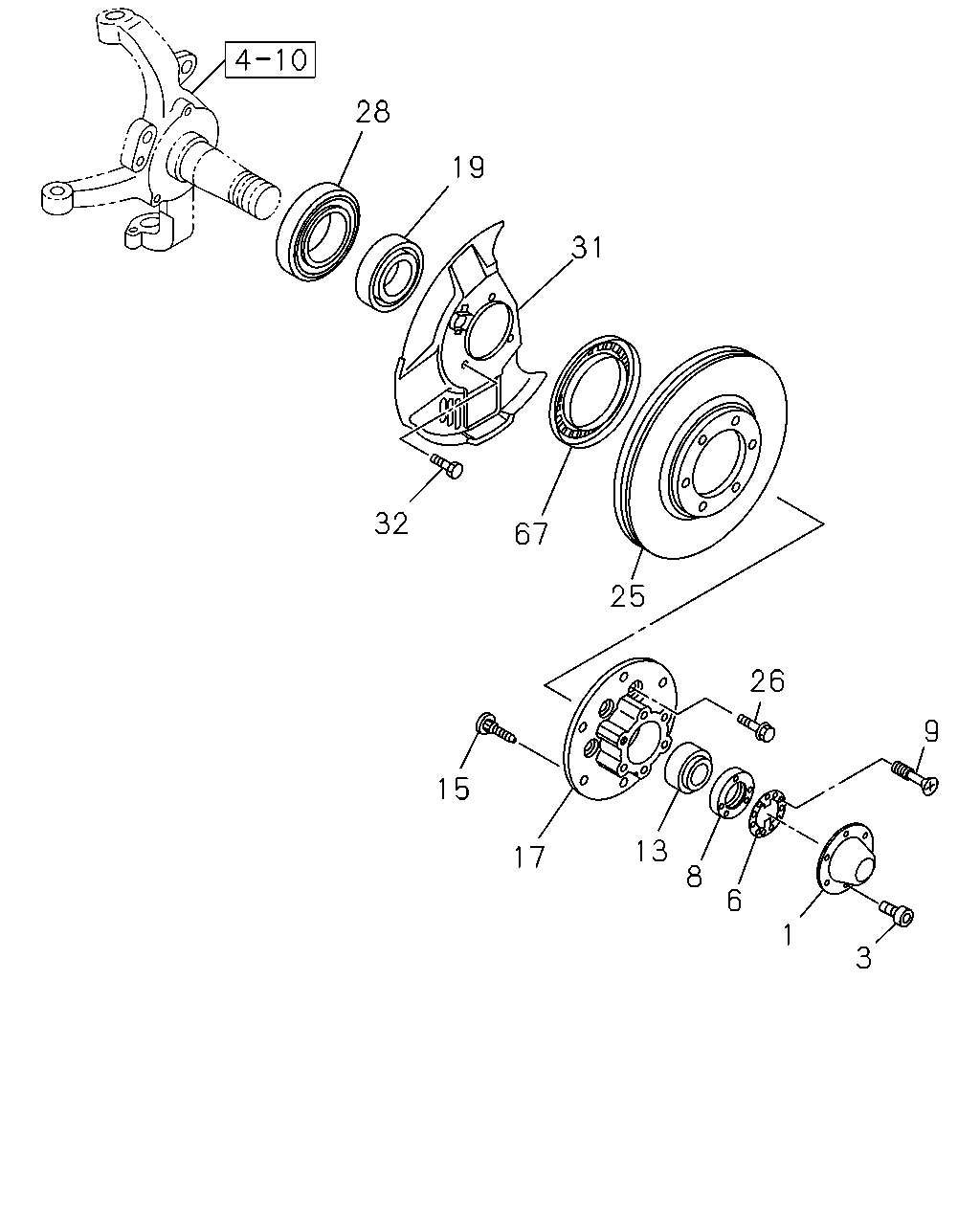

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#132613) — 16 parça
28
31
19
32
67
25
26
9
3
1
6
8
13
17
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
IMA
8-97944-565-0
02
1
1312-
3
BOLT; HUB CAP,FRT WHEEL
M10X20 IMA
0-20951-020-0
12
1
1312-
6
WASHER; LK,FRT HUB
T=1.8 OD=65 IMA
8-94442-398-0
02
1
1312-
8
NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 IMA
8-94442-399-1
02
1
1312-
9
SCREW; ADJ,NUT
M4X8 CK-HEAD IMA
8-98008-301-0
06
1
1312-
13
BEARING; HUB OUTER,FRT AXLE
NSK IMA
8-94227-041-0
02
1
1312-
15
PIN; WHEEL,FRT AXLE
M12X37.5 IMA
8-97944-564-1
12
1
1312-
17
HUB; FRT AXLE
IMA
8-98054-665-0
02
1
1312-
19
BEARING; HUB INNER,FRT AXLE
NSK IMA
8-94258-819-0
02
1
1312-
25
ROTOR; DISC BRK,FRT
8-97360-677-2
02
1
1312-
26
BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE IMA
8-98006-065-0
12
1
1312-
28
SEAL; OIL,FRT HUB
IMA
8-98036-594-0
02
1
1312-
31
COVER; DUST,FRT BRAKE
8-97327-611-0
01
1
1312-
31
COVER; DUST,FRT BRAKE
8-97327-612-0
01
1
1312-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER IMA
8-98006-352-0
06
1
1312-
67
ROTOR; SENSOR
IMA
8-97238-280-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
