◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#132612) — 16 parça

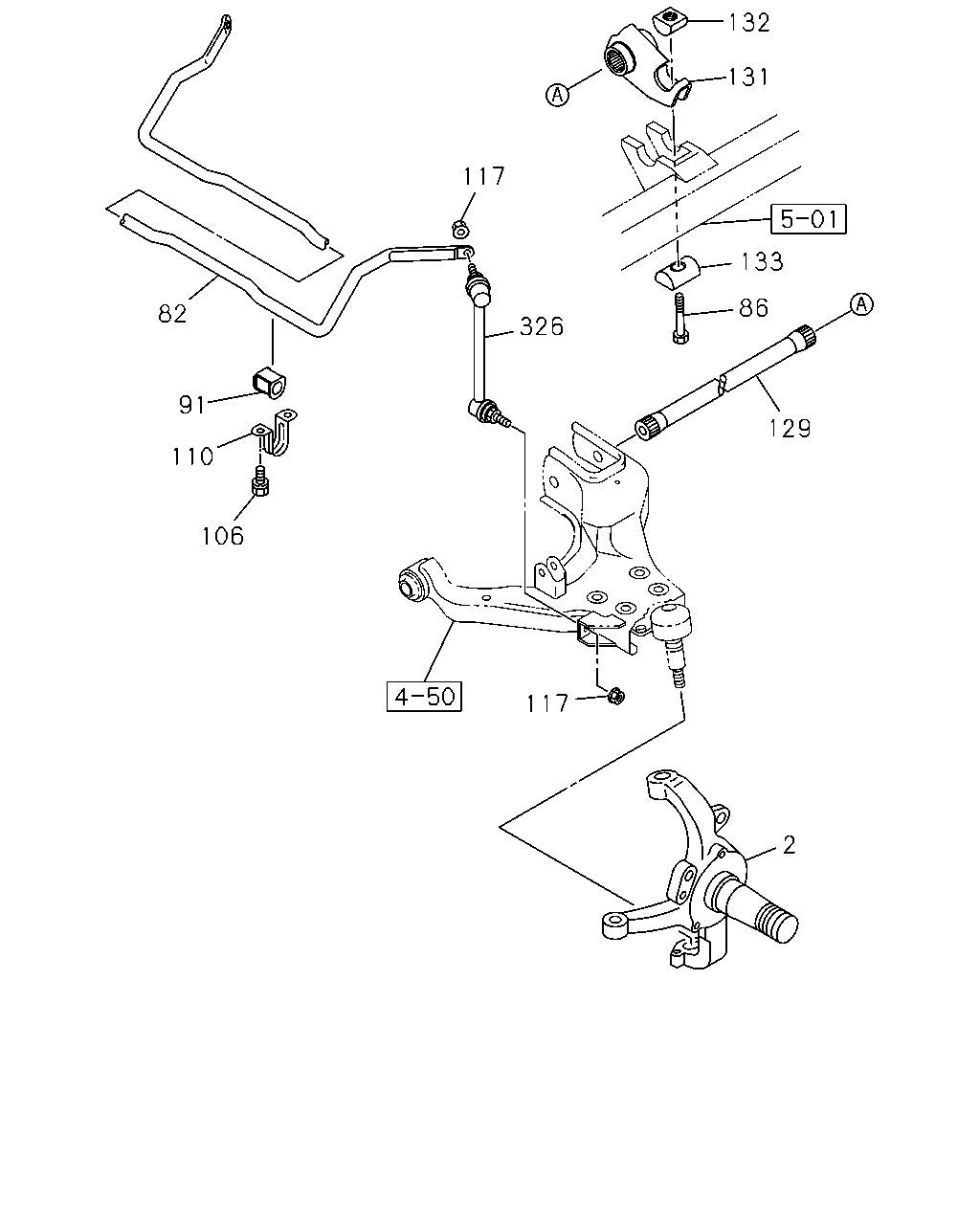

çizim 401612
82 91 110 106 117 326 117 2 129 86 133 131 132
BalonParca AdiParca NoAdetTipApplied Date
2 KNUCKLE; FRT AXLE 8-97943-626-1 01 1 1312-
2 KNUCKLE; FRT AXLE 8-97943-627-1 01 1 1312-
82 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 1312-
86 BOLT; TORSION BAR,HEIGHT CONT
M18X160 		8-97354-887-0 02 1 1312-
91 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 1312-
106 BOLT; CAP FIX
M8X25 FLANGE IMA 		0-28650-825-0 04 1 1312-
110 CLAMP; STAB TO ROD 8-98005-922-0 02 1 1312-
117 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 04 1 1312-
129 BAR; TORSION,FRT SUSP 8-97235-864-0 01 1 1312-
129 BAR; TORSION,FRT SUSP 8-97235-865-0 01 1 1312-
131 ARM; HEIGHT CONT 8-98005-919-0 01 1 1312-
131 ARM; HEIGHT CONT 8-98005-920-0 01 1 1312-
132 COLLAR; TORSION BAR 8-98005-877-0 02 1 1312-
133 SEAT; TORSION BAR,HEIGHT CONT 8-98005-824-0 02 1 1312-
326 LINK ASM; STABILIZER
IMA 		8-97944-568-0 01 1 1312-
326 LINK ASM; STABILIZER
IMA 		8-97944-569-0 01 1 1312-
