◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#132611) — 33 parça

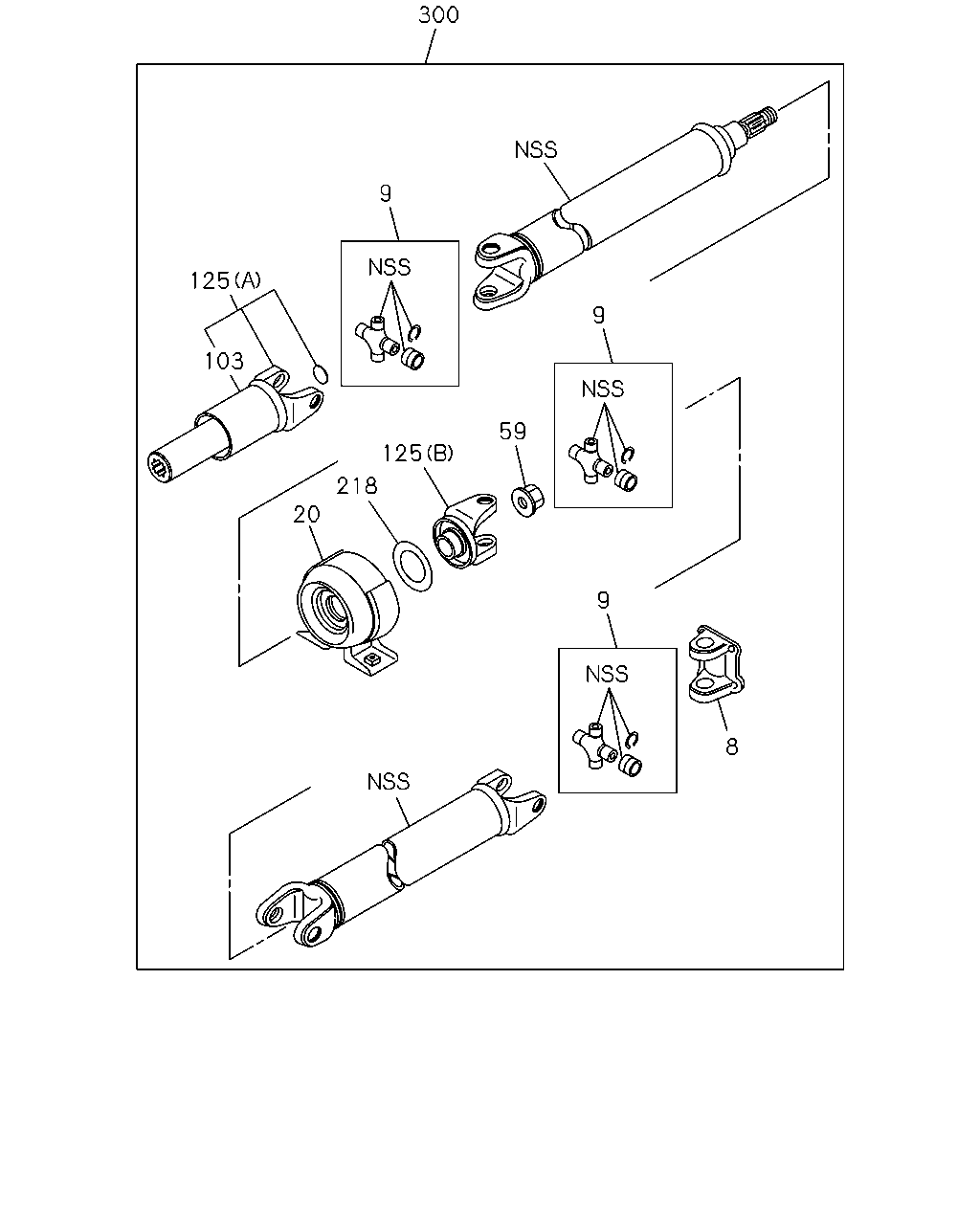

çizim 401605
300 9 9 59 125 218 20 8 9 103 125
BalonParca AdiParca NoAdetTipApplied Date
8 YOKE; FLANGE,PROP SHAFT 8-97943-048-0 01 1 1312-1407
8 YOKE; FLANGE,PROP SHAFT
IMA 		8-97948-771-0 01 1 1408-1505
8 YOKE; FLANGE,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) IMA 		8-97948-771-0 01 1 1506-
8 YOKE; FLANGE,PROP SHAFT
A/T AISIN(RMD) IMA 		8-97948-770-0 01 1 1506-
9 JOURNAL ASM; PROP SHAFT
IMA 		8-97947-643-0 03 1 1312-1505
9 JOURNAL ASM; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) IMA 		8-97947-643-0 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
A/T AISIN(RMD) IMA 		8-97947-642-0 03 1 1506-
20 BEARING ASM; CTR,PROP SHAFT 8-97946-253-0 01 1 1312-1505
20 BEARING ASM; CTR,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) 		8-97946-253-0 01 1 1506-
20 BEARING ASM; CTR,PROP SHAFT
A/T AISIN(RMD) 		8-97946-254-0 01 1 1506-
59 NUT; RET TO SUPPORT
IMA 		8-97947-557-0 01 1 1312-
103 BOOT; PROP SHAFT
IMA 		8-97940-114-0 01 1 1312-1505
103 BOOT; PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) IMA 		8-97940-114-0 01 1 1506-
103 BOOT; PROP SHAFT
A/T AISIN(RMD) 		8-97942-134-0 01 1 1506-
125 YOKE ASM; SPLINED,PROP SHAFT
(B) 		8-97947-664-0 01 1 1312-1505
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97947-664-0 01 1 1506-
125 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-726-0 01 1 1312-1505
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97947-726-0 01 1 1506-
125 YOKE ASM; SPLINED,PROP SHAFT
A/T AISIN(RMD) (B) IMA 		8-97947-663-0 01 1 1506-
125 YOKE ASM; SPLINED,PROP SHAFT
A/T AISIN(RMD) (A) 		8-97947-989-0 01 1 1506-
218 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 IMA 		8-97192-641-0 01 1 1312-
300 SHAFT ASM; PROP,RR
L=1783 		8-97947-563-0 01 1 1312-1407
300 SHAFT ASM; PROP,RR
L=1783 		8-97948-713-0 01 1 1408-1505
300 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) L=1783 		8-97948-713-0 01 1 1506-
300 SHAFT ASM; PROP,RR
A/T AISIN(RMD) L=1711.5 		8-97948-732-0 01 1 1506-
çizim 401664
120 90 300 147 89
BalonParca AdiParca NoAdetTipApplied Date
89 NUT; YOKE TO RR AXLE
M10 FLANGE IMA 		8-97246-900-0 04 1 1312-
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 IMA 		8-97246-901-0 04 1 1312-
120 BOLT; YOKE TO RR AXLE
M10X29 IMA 		8-97246-859-0 04 1 1312-
147 BOLT; CENTER BRG MTG
M12X25 FLANGE 		0-28761-225-0 02 1 1312-
300 SHAFT ASM; PROP,RR
L=1783 		8-97947-563-0 01 1 1312-1407
300 SHAFT ASM; PROP,RR
L=1783 		8-97948-713-0 01 1 1408-1505
300 SHAFT ASM; PROP,RR
M/T MUX 5 SPEED 5S(MZJ) L=1783 		8-97948-713-0 01 1 1506-
300 SHAFT ASM; PROP,RR
A/T AISIN(RMD) L=1711.5 		8-97948-732-0 01 1 1506-
