◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#132609) — 31 parça

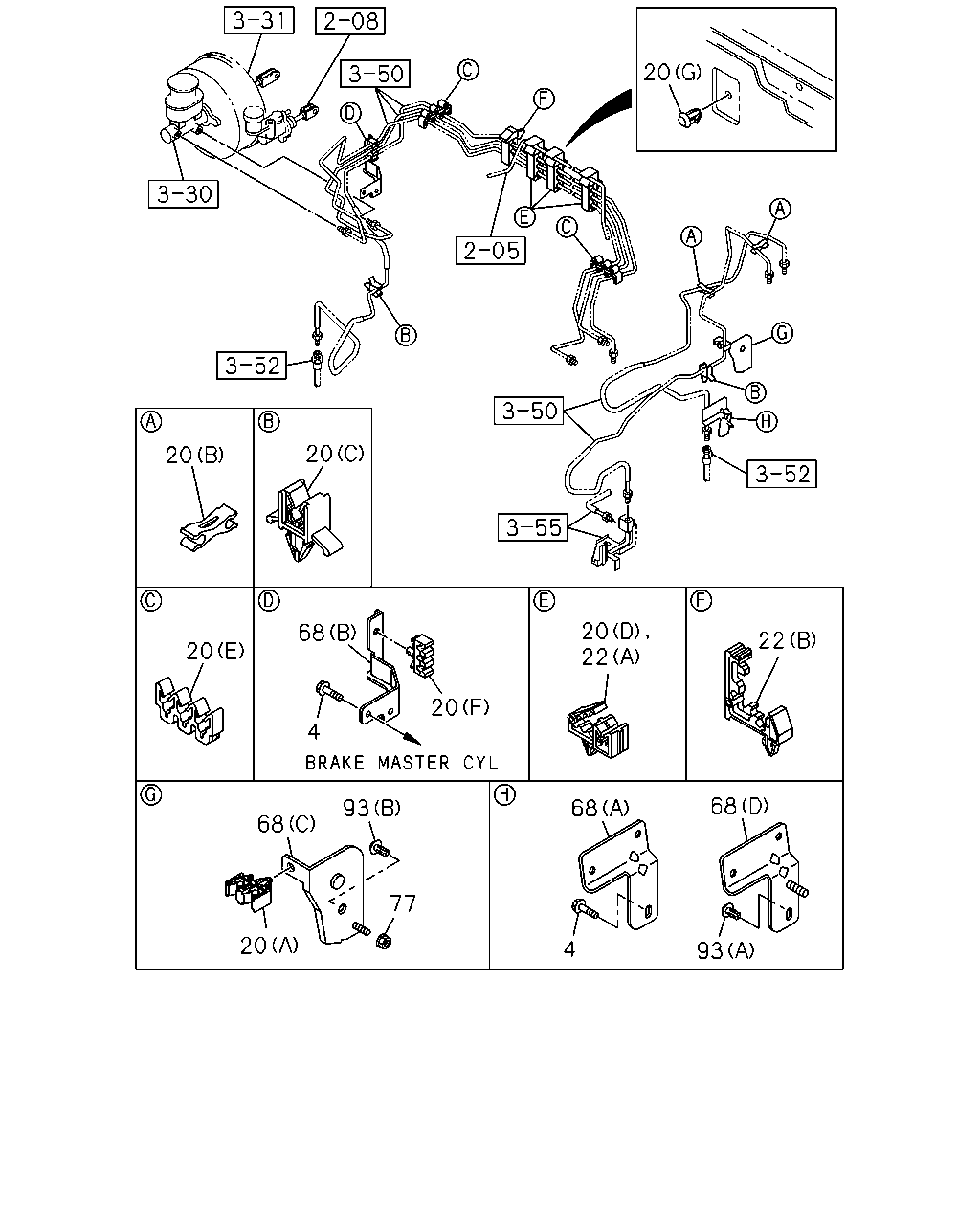

çizim 401479
20 20 20 20 68 20 20 22 22 68 93 68 68 20 4 93 4 77
BalonParca AdiParca NoAdetTipApplied Date
4 BOLT; BRKT
M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 02 1 1312-
20 CLIP; BRK PIPE
(E) ID=4.8X3 IMA 		8-94487-369-0 02 1 1312-
20 CLIP; BRK PIPE
(F) ID=4.76X3 IMA 		8-97216-721-1 01 1 1312-
20 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97249-904-0 01 1 1312-
20 CLIP; BRK PIPE
(A) ID=4.76X2 		8-97249-905-0 01 1 1312-
20 CLIP; BRK PIPE
(H) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 03 1 1312-
20 CLIP; BRK PIPE
(C) ID=4.76 IMA 		8-97300-443-0 02 1 1312-
20 CLIP; BRK PIPE
(G) 		8-97310-401-0 01 1 1312-
20 CLIP; BRK PIPE
(I) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1312-
22 CLIP; PIPE TO FRAME
(A) ID=10 & 4.76X3 		8-97249-904-0 01 1 1312-
22 CLIP; PIPE TO FRAME
(B) 		8-97255-709-0 01 1 1312-
68 BRACKET; CLIP
(A) 		8-98034-935-0 01 1 1312-1505
68 BRACKET; CLIP
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98034-935-0 01 1 1506-
68 BRACKET; CLIP
(B) 		8-97944-656-1 01 1 1312-
68 BRACKET; CLIP
(C) 		8-98006-970-0 01 1 1312-
68 BRACKET; CLIP
A/T AISIN(RMD) (D) 		8-98036-122-0 01 1 1506-
77 NUT; BRKT,OIL PIPE
M6 FLANGE IMA 		0-91180-106-0 01 1 1312-1505
77 NUT; BRKT,OIL PIPE
M6 FLANGE IMA 		0-91180-106-0 01 1 1506-
77 NUT; BRKT,OIL PIPE
A/T AISIN(RMD) M6 FLANGE IMA 		0-91180-106-0 01 1 1506-
93 CLIP; BRKT
(B) OD=25 		8-94279-810-0 01 1 1312-
93 CLIP; BRKT
A/T AISIN(RMD) (A) OD=18 IMA 		8-94269-290-0 01 1 1506-

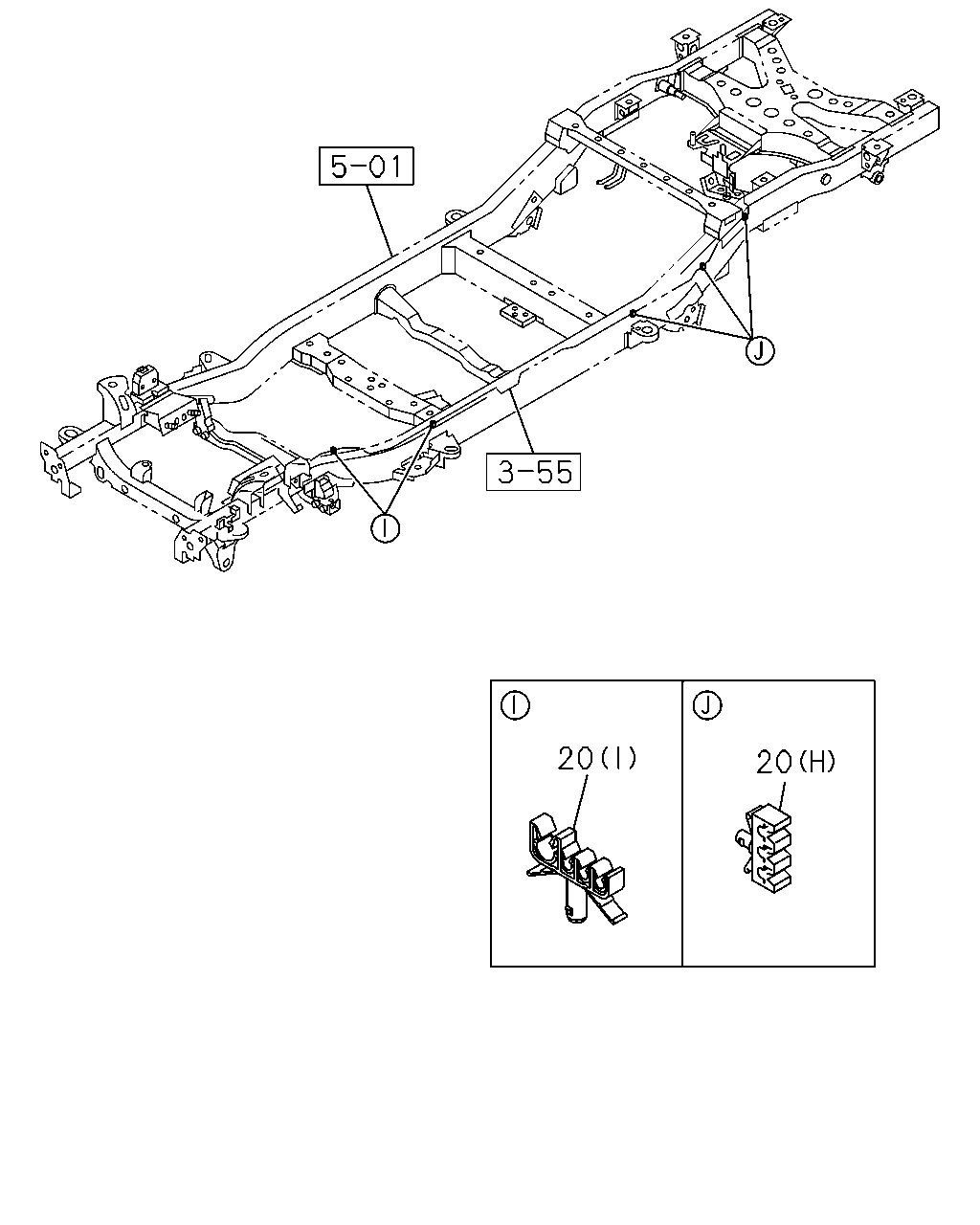

çizim 401801
20 20
BalonParca AdiParca NoAdetTipApplied Date
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 02 1 1312-
20 CLIP; BRK PIPE
(E) ID=4.8X3 IMA 		8-94487-369-0 02 1 1312-
20 CLIP; BRK PIPE
(F) ID=4.76X3 IMA 		8-97216-721-1 01 1 1312-
20 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97249-904-0 01 1 1312-
20 CLIP; BRK PIPE
(A) ID=4.76X2 		8-97249-905-0 01 1 1312-
20 CLIP; BRK PIPE
(H) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 03 1 1312-
20 CLIP; BRK PIPE
(C) ID=4.76 IMA 		8-97300-443-0 02 1 1312-
20 CLIP; BRK PIPE
(G) 		8-97310-401-0 01 1 1312-
20 CLIP; BRK PIPE
(I) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1312-
