51506 - UCR RHD (INDIA)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

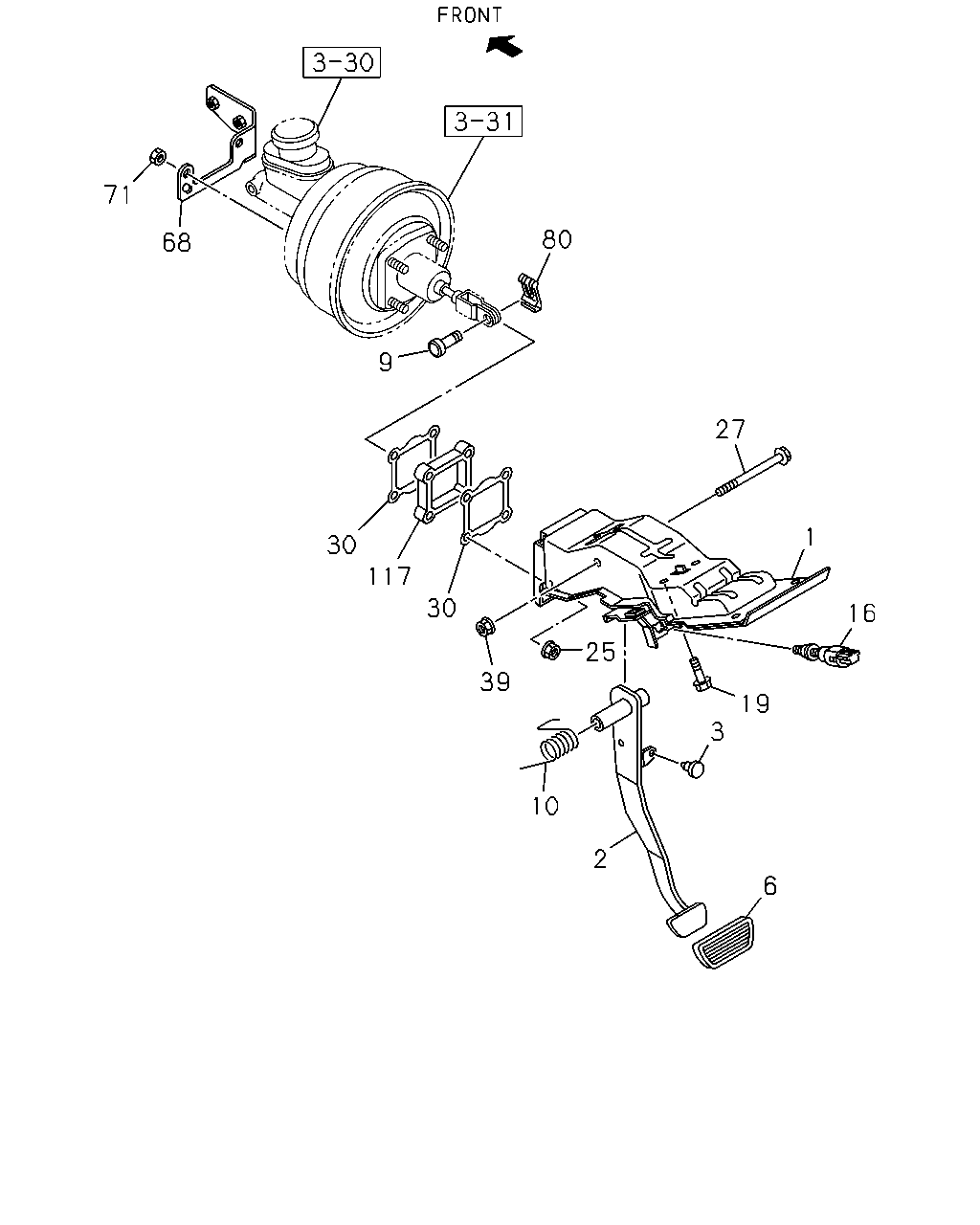

3-10 — BRAKE PEDAL AND CONTROL
(#132602) — 20 parça
71
68
9
80
27
1
16
3
19
6
2
10
25
39
30
117
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-97947-991-0
01
1
1312-
2
PEDAL; BRK
8-97947-992-0
01
1
1312-1505
2
PEDAL; BRK
M/T MUX 5 SPEED 5S(MZJ)
8-97947-992-0
01
1
1506-
2
PEDAL; BRK
A/T AISIN(RMD)
8-98292-685-0
01
1
1506-
3
STOPPER; BRK PEDAL
8-97302-035-0
01
1
1312-
6
COVER; BRK PEDAL
IMA
8-97318-799-0
01
1
1312-1505
6
COVER; BRK PEDAL
M/T MUX 5 SPEED 5S(MZJ) IMA
8-97318-799-0
01
1
1506-
6
COVER; BRK PEDAL
A/T AISIN(RMD)
8-97263-035-0
01
1
1506-
9
PIN; JAW JOINT
IMA
8-97311-602-0
01
1
1312-
10
SPRING; RETURN,BRK PEDAL
8-97387-812-0
01
1
1312-
16
SWITCH; STOP LAMP
8-97301-684-0
01
1
1312-
19
BOLT; BRKT
M8X20 FLANGE IMA
0-28650-820-0
02
1
1312-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE IMA
8-97581-233-0
04
1
1312-
27
SHAFT; BRK PEDAL
8-97304-171-0
01
1
1312-
30
GASKET; M/VAC TO BODY
8-97943-457-0
02
1
1312-
39
NUT; STOPPER LK
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1312-
68
BRACKET; SERVO TO DASH PANEL
8-98007-772-0
01
1
1312-
71
NUT; BRK M/CYL
8-98031-675-0
02
1
1312-
80
PIN; SNAP,BRK PEDAL
IMA
8-98007-161-0
01
1
1312-
117
SPACER; M/VAC TO BODY
8-98008-278-0
01
1
1312-
