Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
3 - Brakes, Brake System
▶

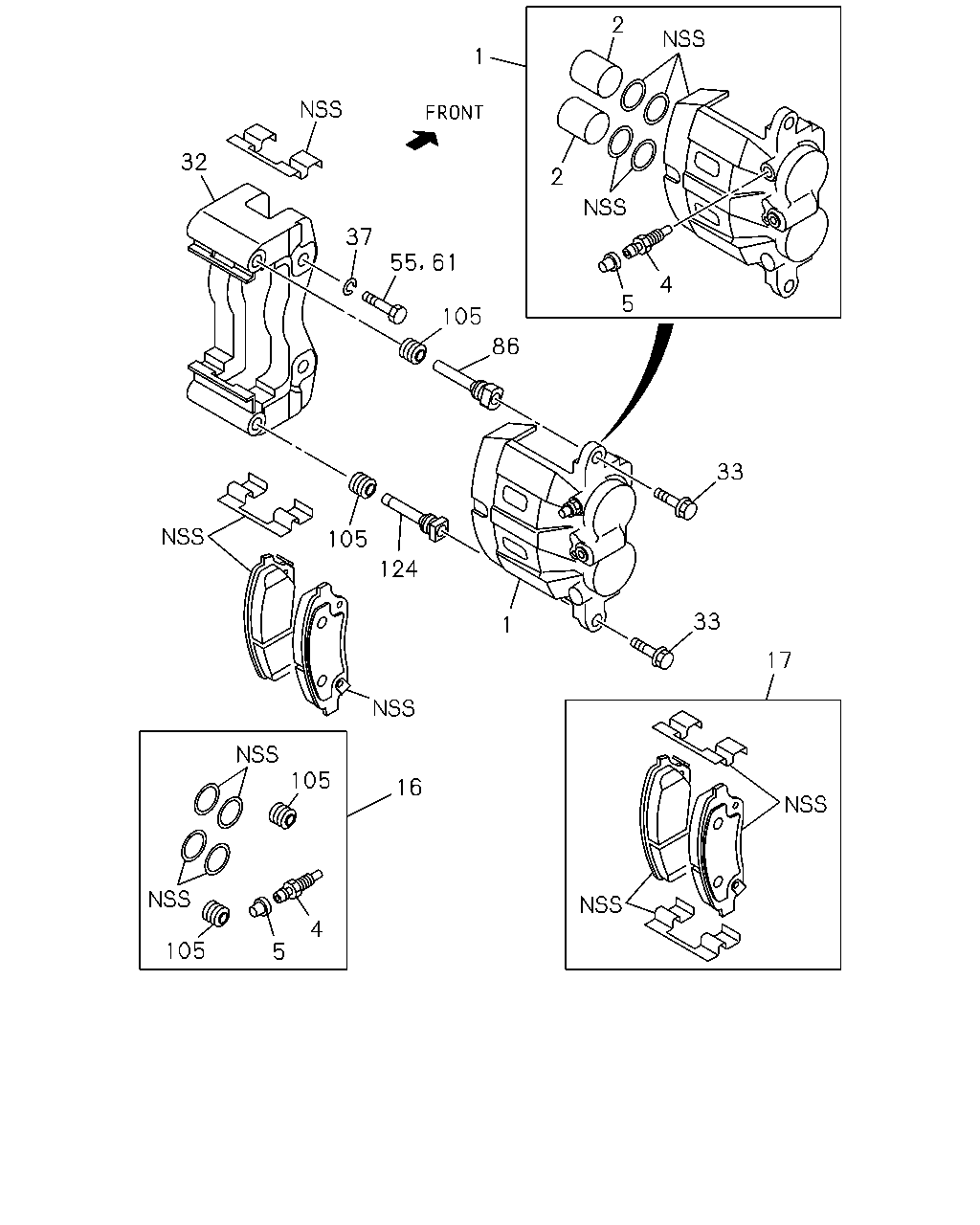

3-02 - FRONT DISC BRAKE CALIPER
▶
3-02 — FRONT DISC BRAKE CALIPER
(#132600) — 15 parça
32
37
55
61
105
86
33
33
124
105
1
2
2
4
5
1
17
16
105
105
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
IMA
8-98077-996-0
01
1
1312-
1
CALIPER; FRT DISC BRK
IMA
8-98077-997-0
01
1
1312-
2
PISTON; CALIPER,DISC BRK,FRT
IMA
8-98078-000-0
04
1
1312-
4
SCREW; BLEEDER,DISC BRK,FRT
IMA
8-98050-476-0
02
1
1312-
5
CAP; BLEEDER,DISC BRK,FRT
IMA
8-98050-479-0
02
1
1312-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
IMA
8-98079-105-0
01
1
1312-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97947-996-0
01
1
1312-
32
SUPPORT; FRT DISC BRK
8-98078-168-0
02
1
1312-
33
BOLT; SUPPORT BRKT TO DISC BRK
IMA
8-98078-192-0
04
1
1312-
37
WASHER; LK
ID=14.2 IMA
0-91510-814-0
04
1
1312-
55
BOLT; SUPPORT BRKT TO DISC BRK
IMA
8-98037-731-0
02
1
1312-
61
BOLT; SUPPORT BRKT TO KNUCKLE
IMA
8-98037-731-0
02
1
1312-
86
PIN; GUIDE
IMA
8-98078-175-0
02
1
1312-
105
BOOT; CALIPER
IMA
8-98078-193-0
04
1
1312-
124
PIN ASM; W/BUSH
IMA
8-98078-176-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
