◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#132598) — 41 parça

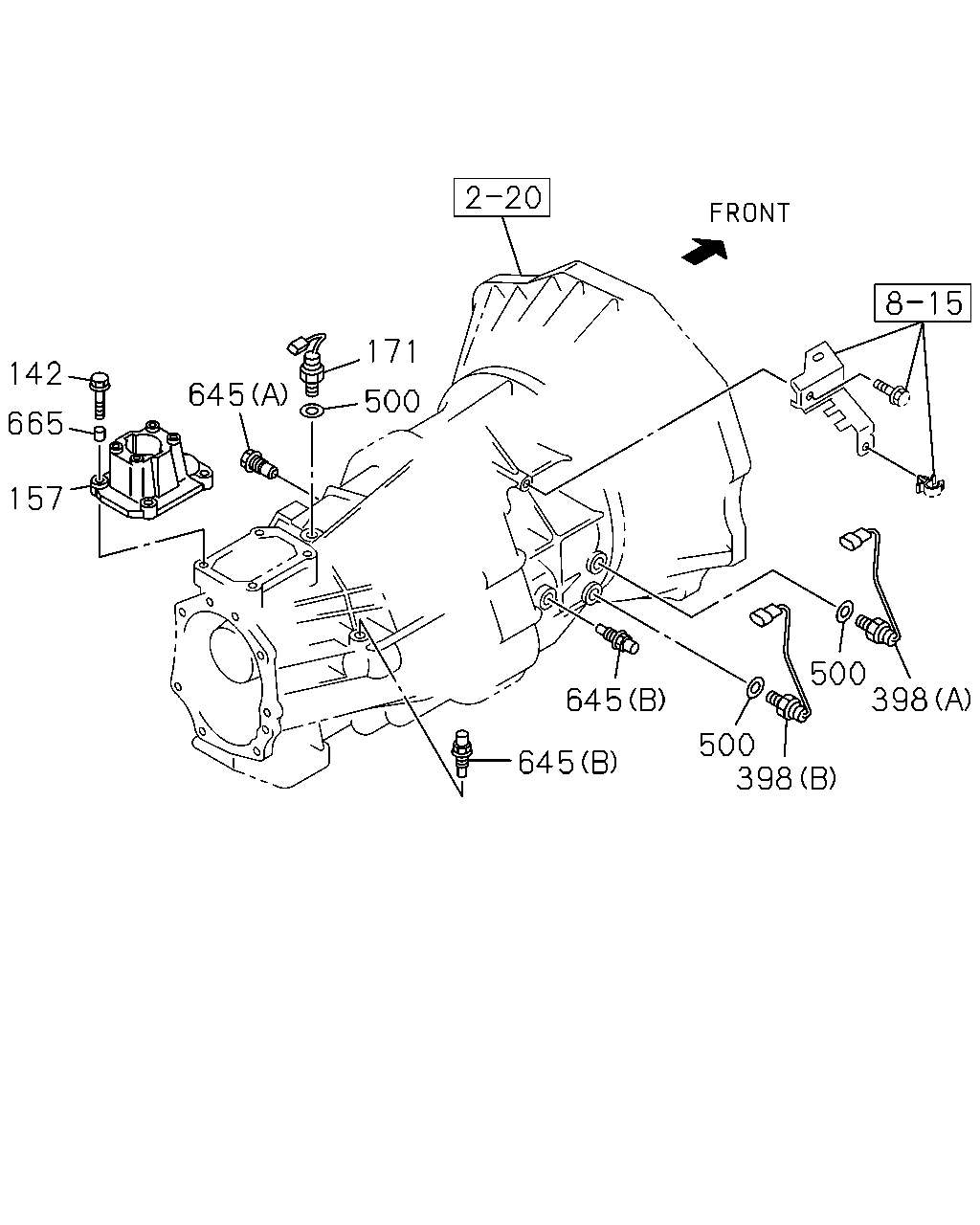

çizim 401821
142 665 157 645 171 500 398 500 398 500 645 645
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
M8X35 FLANGE IMA 		0-28650-835-0 04 1 1312-
157 BOX; QUAD,TRANS 8-97362-383-0 01 1 1312-
171 SWITCH; NEUTRAL 8-97358-606-0 01 1 1312-1405
171 SWITCH; NEUTRAL 8-98180-974-0 01 1 1406-
398 SWITCH; REV LAMP
(B) 		8-98037-159-0 01 1 1312-1405
398 SWITCH; REV LAMP
(B) 		8-98181-801-0 01 1 1406-
398 SWITCH; REV LAMP
(A) 		8-98037-160-0 01 1 1312-1405
398 SWITCH; REV LAMP
(A) 		8-98180-973-0 01 1 1406-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 IMA 		9-09571-414-0 03 1 1312-
645 DETENT ASM
(A) 		8-97362-469-2 01 1 1312-
645 DETENT ASM
(B) 		8-98019-536-0 02 1 1312-
665 DOWEL
OD=11 L=8 		9-11229-058-1 02 1 1312-

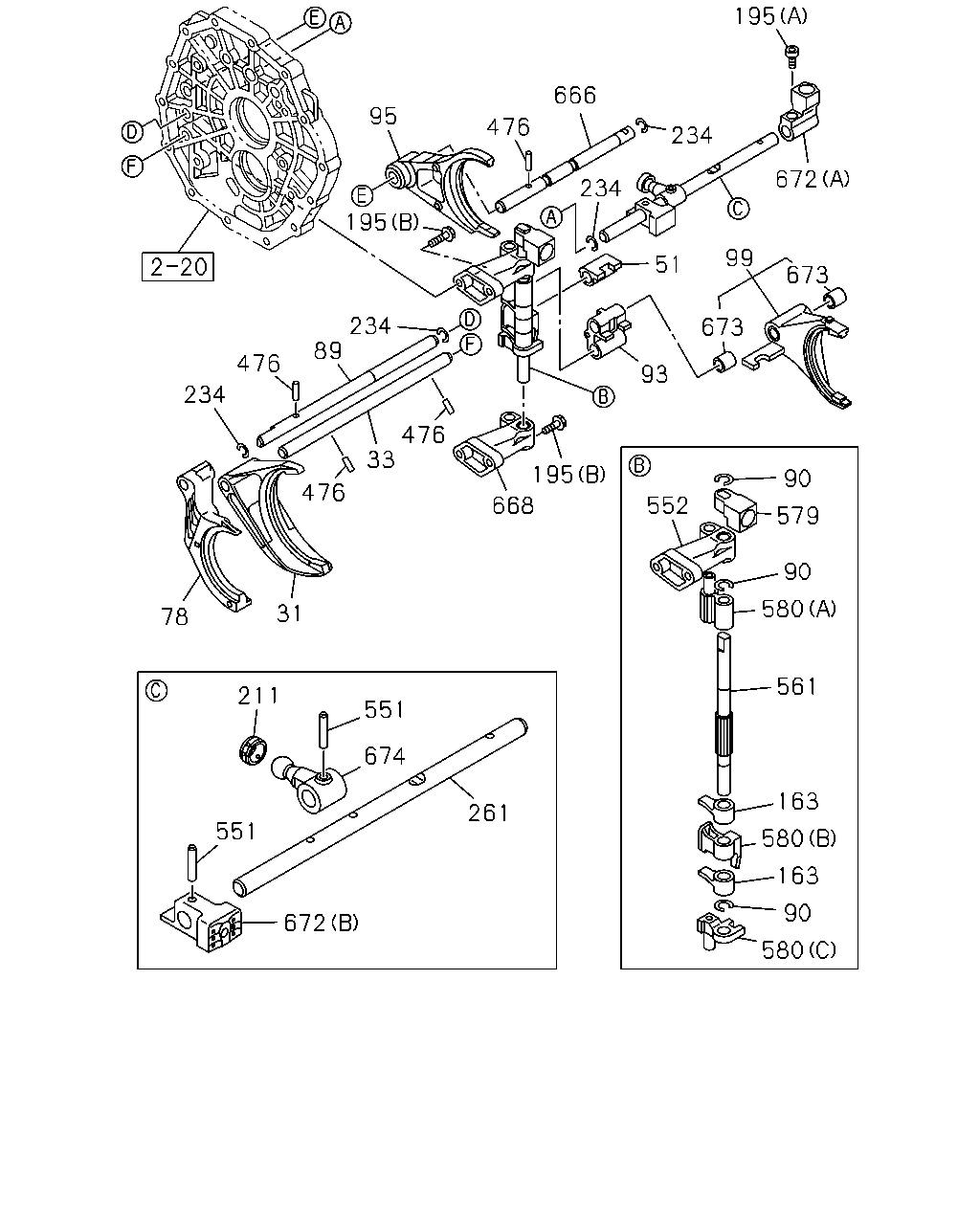

çizim 401996
580 163 90 580 561 163 580 579 90 552 90 261 672 551 674 551 211 78 31 668 195 476 33 476 234 476 89 234 93 673 673 99 51 672 195 666 234 234 476 95 195
BalonParca AdiParca NoAdetTipApplied Date
31 ARM; SHIFT,LOW & 2ND 8-97362-435-0 01 1 1312-
33 ROD; SHIFT,LOW & 2ND 8-97362-441-0 01 1 1312-
51 BLOCK; SHIFT,1ST & 2ND 8-98186-703-0 01 1 1312-
78 ARM; SHIFT,REV 8-97362-434-1 01 1 1312-
89 ROD; SHIFT,REV 8-97362-440-1 01 1 1312-
90 RING; SNAP,SHIFT ROD
ID=12 IMA 		8-94460-357-0 03 1 1312-
93 BLOCK; SHIFT,REV & 5TH 8-98004-541-1 01 1 1312-
95 ARM; SHIFT,5TH 8-97362-436-1 01 1 1312-
99 ARM; SHIFT,4TH & 3RD 8-97362-439-2 01 1 1312-
163 LEVER; SELECT,INTERNAL 8-98052-461-0 02 1 1312-
195 BOLT
(A) M8X8.5 TAPER 		8-97250-975-0 01 1 1312-
195 BOLT
(B) M8X30 FLANGE 		8-98034-764-0 04 1 1312-
211 SEAT; BALL 8-98073-812-0 01 1 1312-
234 RING; SNAP
ID=12 IMA 		8-94460-357-0 04 1 1312-
261 ROD; GEAR CONT 8-97362-444-0 01 1 1312-
476 PIN; SHIFT ROD
D=4.2 L=25 IMA 		8-94171-541-0 04 1 1312-
551 PIN; SPRING
D=4.2 L=25 IMA 		8-94171-541-0 02 1 1312-
552 BRACKET 8-97362-465-1 01 1 1312-
561 ROD; SHIFT 8-98052-463-0 01 1 1312-
579 BLOCK; SHIFT,ROD GUIDE 8-97362-447-2 01 1 1312-
580 BLOCK; INTERLOCK
(A) 		8-97362-461-1 01 1 1312-
580 BLOCK; INTERLOCK
(B) 		8-98052-462-0 01 1 1312-
580 BLOCK; INTERLOCK
(C) 		8-98186-700-0 01 1 1312-
666 ROD; GEAR SHIFT,3RD,4TH & 4TH 8-97362-442-2 01 1 1312-
668 BRACKET; SHIFT ROD 8-97362-465-1 01 1 1312-
672 BLOCK; SHIFT,T/M CONTROL
(A) 		8-97362-467-0 01 1 1312-
672 BLOCK; SHIFT,T/M CONTROL
(B) 		8-98083-873-0 01 1 1312-
673 BEARING; SHIFT ARM 8-97362-853-0 02 1 1312-
674 LEVER; CONT 8-97362-466-0 01 1 1312-
