2-26 — MANUAL TRANSMISSION GEAR (#132597) — 72 parça

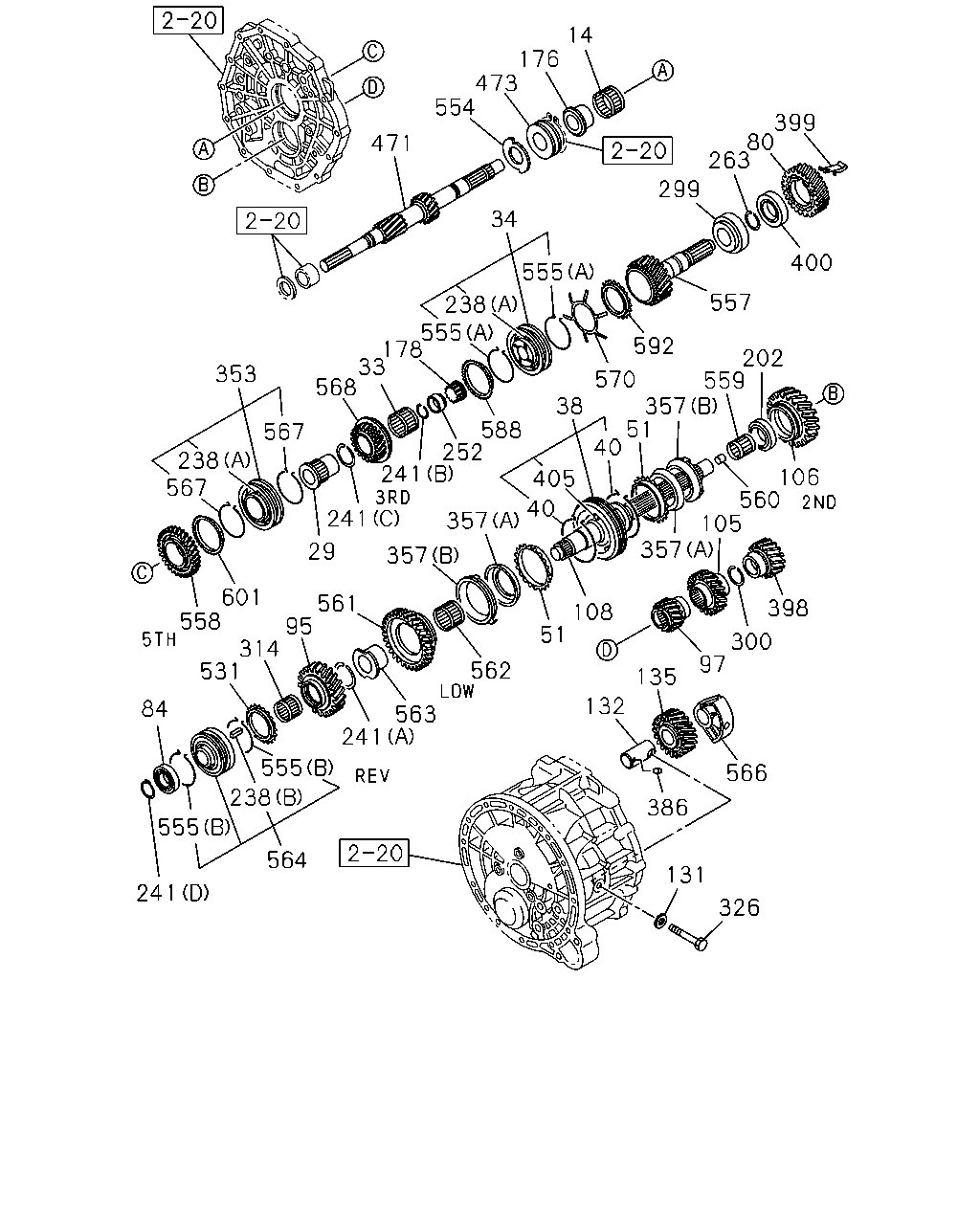

çizim 401799
471 554 473 176 14 353 238 567 567 568 33 178 555 238 34 555 299 263 80 399 400 557 592 570 38 588 252 241 241 29 601 558 531 84 314 95 561 357 357 405 40 40 51 357 559 202 555 241 238 555 564 241 563 51 562 108 357 105 560 106 135 132 97 300 398 386 566 131 326
BalonParca AdiParca NoAdetTipApplied Date
14 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1312-
29 COLLAR; 3RD GEAR 8-97362-568-1 01 1 1312-
33 BEARING; NEEDLE,3RD GEAR
NSK IMA 		1-09811-028-1 01 1 1312-
34 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1312-
38 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1312-
40 SPRING; INSERT,LOW & 2ND
IMA 		8-94448-045-0 02 1 1312-
51 RING; BLOCK,LOW & 2ND
Z=36 IMA 		8-98115-804-0 02 1 1312-
80 GEAR; SPD DRIVE
Z=7 		8-98004-532-0 01 1 1312-
84 BEARING; COUNTER SHAFT,FRT 8-97362-724-0 01 1 1312-
95 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1312-
97 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1312-
105 GEAR; 3RD,COUNTER
Z=31 		8-98233-612-0 01 1 1312-
106 GEAR; 2ND,COUNTER
Z=38 		8-98210-236-0 01 1 1312-
108 SHAFT; COUNTER
Z=26-34-26-26 		8-98023-108-1 01 1 1312-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA 		9-09571-412-0 01 1 1312-
132 SHAFT; REV 8-98023-113-0 01 1 1312-
135 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1312-
176 COLLAR; 5TH GEAR 8-97362-567-0 01 1 1312-
178 BEARING; NEEDLE,MAINSHAFT 8-97362-869-0 01 1 1312-
202 BEARING; COUNTER GEAR 8-97362-725-0 01 1 1312-
238 INSERT
(B) 		8-94249-576-2 03 1 1312-
238 INSERT
(A) 		8-98004-522-0 06 1 1312-
241 RING; SNAP
(A) ID=34.4 T=1.9 		8-97254-735-0 01 1 1312-
241 RING; SNAP
(B) ID=27.1 T=1.9 		8-97362-871-0 01 1 1312-
241 RING; SNAP
(B) ID=27.1 T=2.1 		8-97362-872-0 01 1 1312-
241 RING; SNAP
(B) ID=27.1 T=2.3 		8-97362-873-0 01 1 1312-
241 RING; SNAP
(C) ID=37 T=1.95 		8-98004-523-1 01 1 1312-
241 RING; SNAP
(C) ID=37 T=2.1 		8-98004-524-1 01 1 1312-
241 RING; SNAP
(D) ID=27.9 IMA 		9-09180-030-0 01 1 1312-
252 SPACER 8-98024-456-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.1 		8-98004-525-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.2 		8-98004-526-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.3 		8-98004-527-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.4 		8-98004-528-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.5 		8-98004-529-0 01 1 1312-
263 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.6 		8-98004-530-0 01 1 1312-
299 BEARING; OUTPUT SHAFT FRT 8-97362-722-0 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.3 		8-98024-222-1 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.5 		8-98024-223-1 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.7 		8-98024-224-1 01 1 1312-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1312-
326 BOLT; REV SHAFT
M12X70 		9-92621-270-0 01 1 1312-
353 SYNCHRONIZER; 5TH 8-98004-511-1 01 1 1312-
357 RING
(B) OD=95.8 IMA 		8-94363-056-0 02 1 1312-
357 RING
(A) OD=90.0 IMA 		8-98115-793-0 02 1 1312-
386 PIN; REV SHAFT
OD=4 L=8 		9-08160-408-0 01 1 1312-
398 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1312-
399 CLIP; SPEEDOMETER DRIVE GEAR
IMA 		8-94310-229-0 01 1 1312-
400 BEARING; OUTPUT SHAFT RR 8-97362-723-0 01 1 1312-
405 INSERT; SYN,LOW & 2ND
IMA 		8-94363-062-1 03 1 1312-
471 SHAFT; INPUT 8-98049-345-1 01 1 1312-
473 BEARING; INPUT SHAFT 8-97362-721-1 01 1 1312-
531 RING; BLOCK,REV
OD=74 		8-98037-846-0 01 1 1312-
554 IMPELLER; OIL 8-97362-730-0 01 1 1312-
555 SPRING; INSERT
(A) IMA 		5-33264-012-0 02 1 1312-
555 SPRING; INSERT
(B) 		8-97109-690-0 02 1 1312-
557 GEAR; OUTPUT
Z=31-27 		8-98210-238-0 01 1 1312-
558 GEAR; 5TH,INPUT SHAFT
Z=46 		8-98233-610-0 01 1 1312-
559 BEARING; NEEDLE,LOW & 2ND 8-97362-727-0 01 1 1312-
560 RING; DUM 8-97078-729-1 01 1 1312-
561 GEAR; LOW,COUNTER
Z=45 		8-98210-235-0 01 1 1312-
562 BEARING; NEEDLE,LOW & 2ND 8-97362-727-0 01 1 1312-
563 COLLAR; 1ST GEAR 8-97362-569-1 01 1 1312-
564 SYNCHRONIZER; REV 8-97362-496-1 01 1 1312-
566 BRACKET; REV IDLER 8-97362-516-0 01 1 1312-
567 SPRING; INSERT,5TH
IMA 		5-33264-012-0 02 1 1312-
568 GEAR; 3RD,INPUT SHAFT
Z=28 		8-98233-608-0 01 1 1312-
570 SPRING; PLATE 8-98072-467-2 01 1 1312-
588 RING; BLOCK,3RD
Z=36 		8-98052-559-0 01 1 1312-
592 RING; BLOCK,4TH 8-98197-460-0 01 1 1312-
601 RING; BLOCK,5TH 8-98197-460-0 01 1 1312-1407
601 RING; BLOCK,5TH 8-98283-241-0 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
