51506 - UCR RHD (INDIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#132596) — 44 parça
Tümü

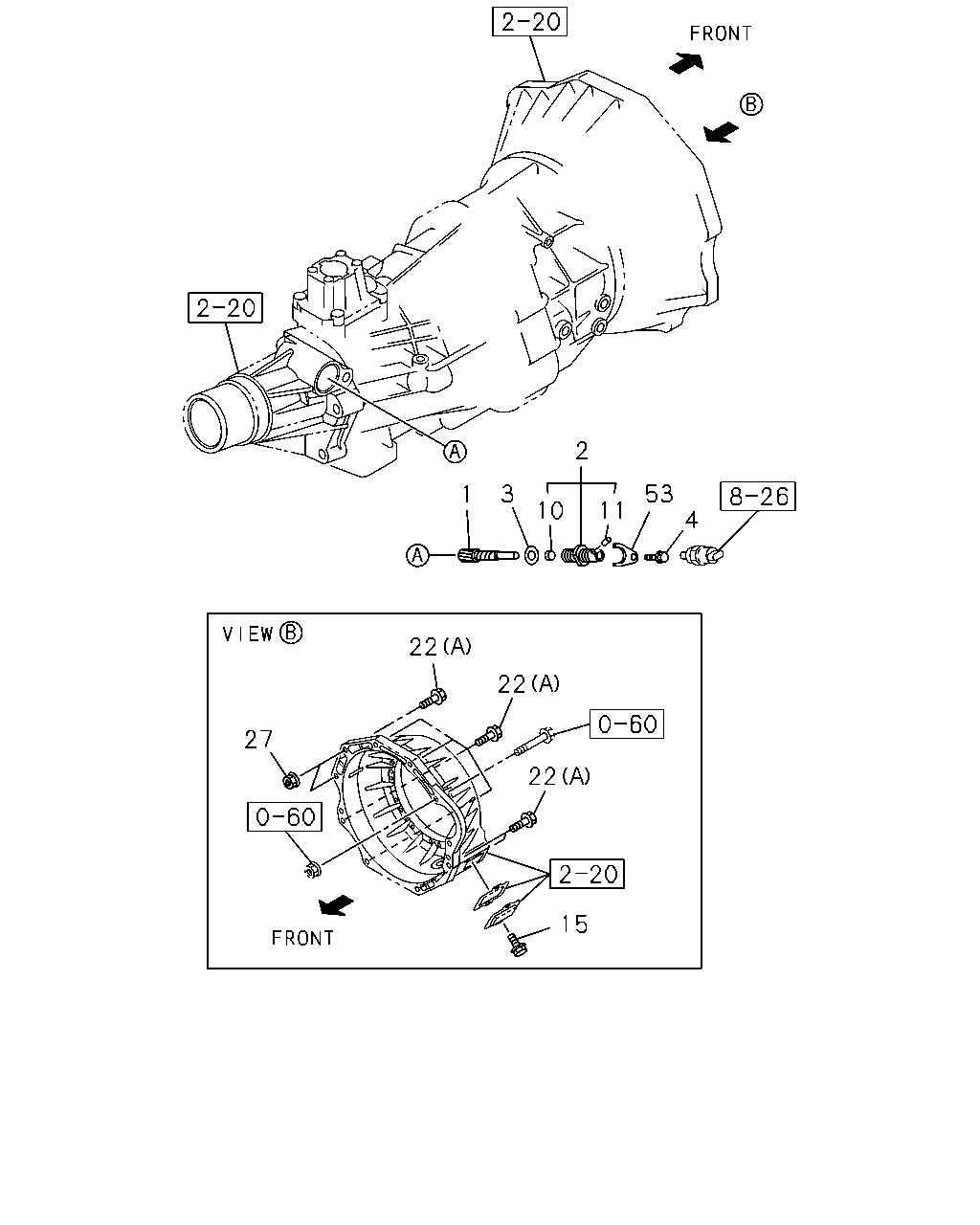

A - M/T MUX 5 SPEED 5S

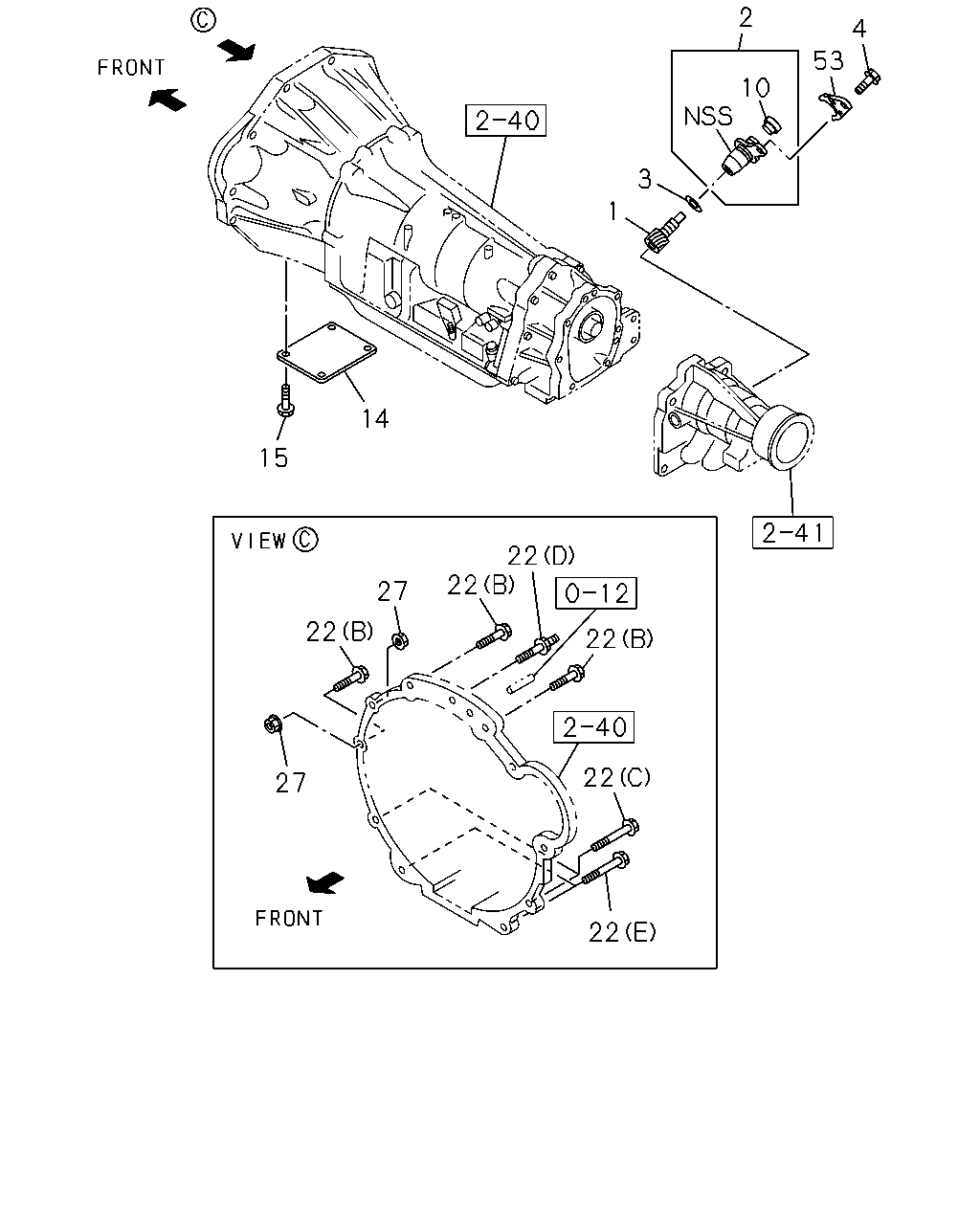

B - A/T AISIN
◀
[225A] M/T (21 parça)
[225A] A/T (23 parça)
▶
3
10
2
11
53
4
22
27
22
22
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
IMA
8-97021-133-4
01
1
1312-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-97181-543-0
01
1
1506-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 IMA
9-09921-100-0
01
1
1312-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=19
8-97181-545-0
01
1
1506-
●
4
BOLT; RET,DRIVEN GEAR
M8X20 FLANGE IMA
0-28050-820-0
01
1
1312-
●
4
BOLT; RET,DRIVEN GEAR
M8X14 W/WASHER
8-94480-043-0
01
1
1506-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK IMA
8-97131-328-1
01
1
1312-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-94480-040-0
01
1
1506-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). JTEKT
8-97181-544-0
01
1
1506-
●
11
FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA
8-94446-571-1
01
1
1312-
●
15
BOLT; UNDER COVER TO TRANS
M6X12 FLANGE IMA
0-28050-612-0
02
1
1312-
●
15
BOLT; UNDER COVER TO TRANS
M6X16 FLANGE IMA
0-28650-616-0
04
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(A) M12X50 FLANGE
0-28051-250-0
08
1
1312-
●
22
BOLT; TRANS CASE TO ENG
(B) M10X40 FLANGE IMA
0-28051-040-0
03
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(E) M12X45 FLANGE
0-28051-245-0
02
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(D) M10X20,M10X40 L=70
8-98005-380-0
01
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(C) M12X176 FLANGE
8-98005-381-0
02
1
1506-
●
27
NUT; CLU HSG TO TRANS
M12 FLANGE IMA
0-91180-112-0
02
1
1312-
●
27
NUT; CLU HSG TO TRANS
M10 FLANGE IMA
0-91180-110-0
02
1
1506-
●
53
PLATE; LOCK,DRIVEN GEAR
IMA
8-98035-572-0
01
1
1312-
●
53
PLATE; LOCK,DRIVEN GEAR
8-94479-720-0
01
1
1506-
●
2
53
4
3
1
10
15
14
22
22
27
22
27
22
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=18
8-98004-535-0
01
1
1312-
●
1
GEAR; DRIVEN,SPD
Z=17
8-98056-402-0
01
1
1506-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
IMA
8-97021-133-4
01
1
1312-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-97181-543-0
01
1
1506-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 IMA
9-09921-100-0
01
1
1312-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=19
8-97181-545-0
01
1
1506-
●
4
BOLT; RET,DRIVEN GEAR
M8X20 FLANGE IMA
0-28050-820-0
01
1
1312-
●
4
BOLT; RET,DRIVEN GEAR
M8X14 W/WASHER
8-94480-043-0
01
1
1506-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK IMA
8-97131-328-1
01
1
1312-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-94480-040-0
01
1
1506-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). JTEKT
8-97181-544-0
01
1
1506-
●
14
COVER; UNDER,TRANS
8-98049-857-0
01
1
1506-
●
15
BOLT; UNDER COVER TO TRANS
M6X12 FLANGE IMA
0-28050-612-0
02
1
1312-
●
15
BOLT; UNDER COVER TO TRANS
M6X16 FLANGE IMA
0-28650-616-0
04
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(A) M12X50 FLANGE
0-28051-250-0
08
1
1312-
●
22
BOLT; TRANS CASE TO ENG
(B) M10X40 FLANGE IMA
0-28051-040-0
03
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(E) M12X45 FLANGE
0-28051-245-0
02
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(D) M10X20,M10X40 L=70
8-98005-380-0
01
1
1506-
●
22
BOLT; TRANS CASE TO ENG
(C) M12X176 FLANGE
8-98005-381-0
02
1
1506-
●
27
NUT; CLU HSG TO TRANS
M12 FLANGE IMA
0-91180-112-0
02
1
1312-
●
27
NUT; CLU HSG TO TRANS
M10 FLANGE IMA
0-91180-110-0
02
1
1506-
●
53
PLATE; LOCK,DRIVEN GEAR
IMA
8-98035-572-0
01
1
1312-
●
53
PLATE; LOCK,DRIVEN GEAR
8-94479-720-0
01
1
1506-
●
