2-20 — MANUAL TRANSMISSION ASM AND CASE (#132595) — 51 parça

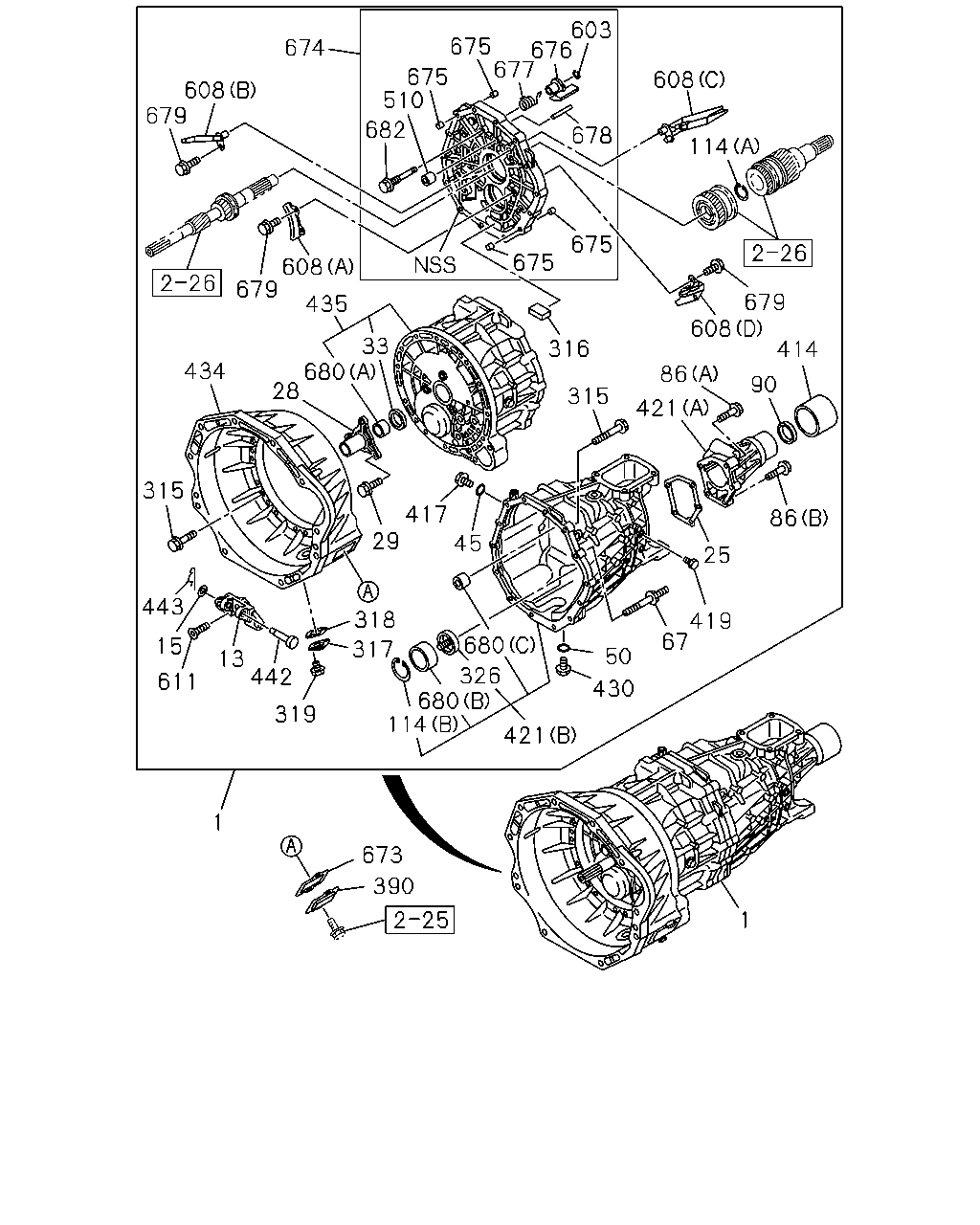

çizim 401933
674 608 679 608 679 434 435 33 680 28 315 443 15 611 442 13 319 317 318 114 680 326 680 45 417 29 315 316 675 675 678 603 676 677 675 675 510 682 608 114 679 608 86 421 90 414 86 25 419 67 50 430 421 1 390 673 1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL 8-98171-012-0 01 1 1312-
13 SUPPORT; SHIFT FORK 8-98004-443-1 01 1 1312-
15 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 1312-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98004-774-0 01 1 1312-
28 COVER; FRT,TRANS CASE 8-97362-409-0 01 1 1312-
29 BOLT; FRT COVER
M8X20 FLANGE IMA 		0-28650-820-0 03 1 1312-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK IMA 		8-97947-839-0 01 1 1312-
45 GASKET; FILLER PLUG
ID=17 IMA 		8-97115-712-0 01 1 1312-
50 GASKET; DRAIN PLUG
ID=17 IMA 		8-97115-712-0 01 1 1312-
67 STUD; CASE TRANS 8-98004-519-0 02 1 1312-
86 BOLT; RR COVER
(A) M8X50 FLANGE IMA 		0-28050-850-0 02 1 1312-
86 BOLT; RR COVER
(B) M8X35 FLANGE IMA 		0-28650-835-0 03 1 1312-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK IMA 		8-97947-840-0 01 1 1312-
114 RING; SNAP,BALL BRG
(A) OD=77 		8-98024-221-0 01 1 1312-
114 RING; SNAP,BALL BRG
(B) OD=60.2 		9-09180-156-0 01 1 1312-
315 BOLT; CASE
M8X60 FLANGE IMA 		0-28050-860-0 12 1 1312-
315 BOLT; CASE
M8X40 FLANGE IMA 		0-28650-840-0 12 1 1312-
316 MAGNET; TRANS CASE
IMA 		8-94249-524-2 01 1 1312-
317 COVER; CASE 8-97034-422-1 01 1 1312-
318 GASKET; COVER 8-97035-567-0 01 1 1312-
319 BOLT; COVER
M6X12 FLANGE IMA 		0-28050-612-0 02 1 1312-
326 NOZZLE; OIL,OUTLET 8-98023-517-0 01 1 1312-
390 COVER; DUST,CLU SHIFT 8-98007-103-0 01 1 1312-
414 COVER; DUST,RR COVER
IMA 		8-98027-802-0 01 1 1312-
417 PLUG; OIL FILLER,TRANS
IMA 		8-97365-373-0 01 1 1312-
419 PLUG; RR COVER
M12X9 		8-98047-054-0 01 1 1312-
421 COVER; RR,TRANS
(A) 		8-97382-905-2 01 1 1312-
421 COVER; RR,TRANS
(B) 		8-98035-906-0 01 1 1312-
430 PLUG; OIL DRAIN
IMA 		8-97365-374-0 01 1 1312-
434 HOUSING; CLU 8-97362-384-0 01 1 1312-
435 CASE; TRANS 8-98035-882-2 01 1 1312-
442 PIN; SHIFT FORK 8-98024-123-0 01 1 1312-
443 PIN; SNAP,SHIFT FORK
L=27.7 		1-09747-005-0 01 1 1312-
510 BEARING 8-97362-853-0 01 1 1312-
603 RING; SNAP 8-98039-270-0 01 1 1312-
608 GUTTER; OIL
(A) 		8-97362-391-0 01 1 1312-
608 GUTTER; OIL
(B) 		8-97362-564-1 01 1 1312-
608 GUTTER; OIL
(D) 		8-98004-505-0 01 1 1312-
608 GUTTER; OIL
(C) 		8-98142-574-0 01 1 1312-
611 SCREW
M10X27 TORQUES 		8-97365-354-0 03 1 1312-
673 SEAL; COVER 8-98007-102-0 01 1 1312-
674 PLATE; INTERMEDIATE 8-98042-863-0 01 1 1312-
675 DOWEL
OD=11 L=8 		9-11229-058-1 04 1 1312-
676 INHIBITOR 8-98037-604-1 01 1 1312-
677 SPRING; INHIBITOR 8-97362-852-0 01 1 1312-
678 PIN 9-08160-436-0 01 1 1312-
679 BOLT; GUTTER
M6X12 FLANGE IMA 		0-28050-612-0 04 1 1312-
680 BEARING
(A) 		8-97362-720-1 01 1 1312-
680 BEARING
(C) 		8-97362-853-0 01 1 1312-
680 BEARING
(B) 		8-98024-431-0 01 1 1312-
682 BOLT; INHIBITOR
M10X50 		8-98042-618-0 01 1 1312-
